    ARNU09GTRB4 component-copyModelName

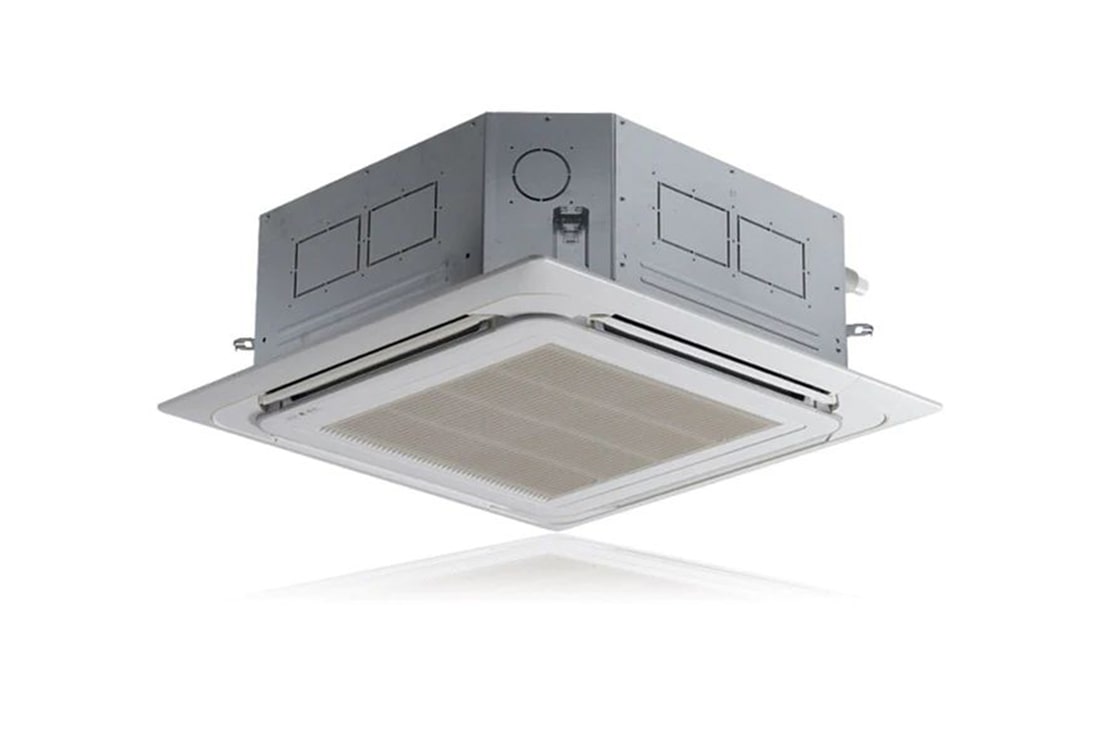

    MULTI V? 4 WAY CEILING CASSETTE (2.8 KW COOLING, 3.2 KW HEATING)

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ARNU09GTRB4)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ARNU09GTRB4)
      $
      $
      LG Members Price
    Total
    MULTI V? 4 WAY CEILING CASSETTE (2.8 KW COOLING, 3.2 KW HEATING)

    NEO-PLASMA AIR PURIFYING SYSTEM

    Removes microscopic contaminants and dust in the air to help prevent allergies.
    NEO-PLASMA AIR PURIFYING SYSTEM NEO-PLASMA AIR PURIFYING SYSTEM

    • JET COOL

      Jet Cool can cool a room to 18°C in a mere 30 minutes*. (Depending on the size of the room)

    INDEPENDENT VANE OPERATION

    INDEPENDENT VANE OPERATION

    The different vanes on our cassette units can be controlled independently. So whether you want to target airflow to a specific place in your room or would prefer a more balanced air circulation, the cassette has a setting to suit.

    • AUTO-CHANGEOVER

      Automatically switches to cooling- or heating- mode to maintain the optimum room temperature during season changes.

    Close
    COOLING CAPACITY
    • kW
      2.8
      kcal/h
      2,400
    • Btu/h
      9,600
    HEATING CAPACITY
    • kW
      3.2
      kcal/h
      2,800
    • Btu/h
      10,900
    POWER INPUT(H/M/L)
    • W
      14 / 13 / 12
    CASING
    • Casing
      Galvanized Steel Plate
    DIMENSIONS(WXHXD)
    • Body - mm
      570 x 214 x 570
      Body - inch
      22-7/16 x 8-7/16 x 22-7/16
    • Decoration Panel #1
      PT-UQC
      Decoration Panel #1 - mm
      700 x 22 x 700
    • Decoration Panel #1 - inch
      27-9/16 x 7/8 x 27-9/16
      Decoration Panel #2
      PT-QCHW0
    • Decoration Panel #2- mm
      620 x 34 x 620
      Decoration Panel #2- inch
      24-13/32 x 1-11/32 x 24-13/32
    • Decoration Panel #3
      PT-QAGW0
      Decoration Panel #3 - mm
      620 x 35 x 620
    • Decoration Panel #3 - inch
      24-13/32 x 1-3/8 x 24-13/32
    PANEL COLOR
    • Panel Color
      #1, #2 : Morning fog
      #3 : White
    COIL
    • Rows x Columns x FPI
      2 x 8 x 18
      Face Area - m2
      0.21
    FAN
    • Type
      Turbo Fan
      Motor Output x Number - W
      43 x 1
    • Air Flow Rate (H / M / L) - m3/min
      8.0 / 7.5 / 7.1
      Air Flow Rate (H / M / L) - ft3/min
      283 / 265 / 251
    • Drive
      Direct
      Motor type
      BLDC
    TEMPERATURE CONTROL
    • Temperature Control
      Microprocessor, Thermostat for cooling and heating
    SOUND ABSORBING THERMAL INSULATION MATERIAL
    • Sound Absorbing Thermal Insulation Material
      Foamed polystrene
    SAFETY DEVICE
    • Safety Device
      Fuse
    PIPE CONNECTIONS
    • Liquid Side - ㎜(inch)
      ? 6.35 (1/4)
      Gas Side - ㎜(inch)
      ? 12.7 (1/2)
    • Drain Pipe(Internal Dia.) - mm(inch)
      25(1)
    NET WEIGHT
    • Body - kg(lbs)
      13.7(30.2)
      Packaged - kg(lbs)
      16.0(35.3)
    SOUND PRESSURE LEVELS(H/M/L)
    • dB(A)
      30 / 29 / 27
    SOUND POWER LEVELS(H/M/L)
    • dB(A)
      48 / 46 / 45
    POWER SUPPLY
    • ?, V, Hz
      1, 220 - 230 - 240, 50/60
    RUNNING CURRENT BY VOLTAGE
    • Rated - A
      0.10 - 0.09 - 0.09
    MAXIMUM RUNNING CURRENT
    • A
      0.20
    REFRIGERANT
    • Type
      R410A / R32
      Additional Charging Amount (CF Value of IDU) - kg(each)
      0.25 / 0.21
    • Control
      EEV
    TRANSMISSION CABLE
    • Transmission cable
      1.0~1.5 x 2C
