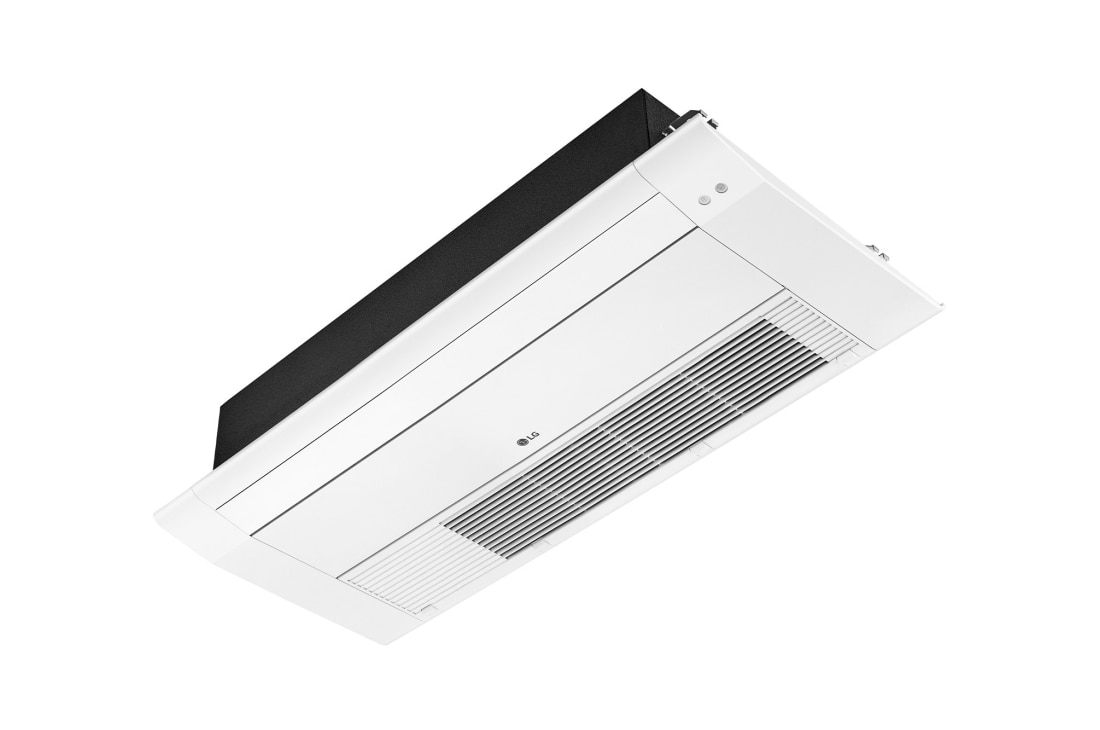

    Ceiling Mounted 1-Way Cassette Unit 7.1kW ARNU24GTTB4
    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ARNU24GTTB4)
      $
      $
      LG Members Price
    Total

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ARNU24GTTB4)
      $
      $
      LG Members Price
    Total
    Ceiling Mounted 1-Way Cassette Unit 7.1kW ARNU24GTTB4
    *Certification Air Conditioner, the Korea Air Cleaning Association strictly tests the air cleaning function of air conditioner products and certifies reliable products.
    *The Air Purification Kit can be purchased as an option.
    • Real-Time Air Quality Monitoring1 Real-Time Air Quality Monitoring2

      Real-Time Air Quality Monitoring

      Real-time monitoring with a wireless or wired remote controller, panel LED lamp, and smart phone
    • Convenient Attachment and Detachment1 Convenient Attachment and Detachment2

      Convenient Attachment and Detachment

      Easier installation by attachment to the indoor unit body.

    Compact Design & Size

    New 4 Way Cassette panel adapted unibody shape. Its panel size is fit into the ceiling tile. Moreover, the indoor unit with slim and compact dimensions has reduced the restriction which enables successful installation in various spaces.
    Compact Design & Size1 Compact Design & Size2

    Auto Elevation Grille

    Auto Elevation Grille allows easy filter cleaning with 4-point support structure, auto leveling and auto stop detection features and memory located at user's level.
    Auto Elevation Grille1 Auto Elevation Grille2
    6-Step Vane Control1 6-Step Vane Control2

    6-Step Vane Control

    There are 6 different steps to control air flow direction with 1 way cassette. It also has the vane for auto swing that moves between left and right sides for up to 120 degrees.
    • Minimized Height1 Minimized Height2

      Minimized Height

      The height of 1 Way Cassette is 132mm, making it the ideal solution for installation in limited space.
    • Flexible Installation1 Flexible Installation2

      Flexible Installation

      The access for inspection at 1 Way Cassette does not require additional ducted space making the installation environment uncomplicated.
    CAPACITY
    • Cooling - kW
      7.1
      Cooling - kcal/h
      6,100
    • Cooling - Btu/h
      24,200
      Heating - kW
      7.1
    • Heating - kcal/h
      6,100
      Heating - Btu/h
      24,200
    POWER INPUT
    • Power Input(H / M / L) - W
      51 / 33 / 26
    CASING
    • Casing
      Galvanized Steel Plate
    DIMENSIONS(W × H × D)
    • Body - ㎜
      1,180 × 132 × 450
      Body - inch
      46-15/32 × 5-3/16 × 17-23/32
    • Front Panel - ㎜
      1,420 × 34 × 500
      Front Panel - inch
      55-29/32 × 1-11/32 × 19-11/16
    COIL
    • Rows × Columns × FPI
      2 × 12 × 18
      Face Area - m2
      0.24
    FAN
    • Type
      Cross Flow Fan
      Motor Output × Number - W
      30.0
    • Running Current - A
      0.30
      Air Flow Rate(H / M / L) - m3/min
      14.6 / 13.3 / 11.5
    • Air Flow Rate(H / M / L) - ft3/min
      575.4 / 469.5 / 406
      Drive
      Direct
    • Motor type
      BLDC
    TEMPERATURE CONTROL
    • Temperature Control
      Microprocessor, Thermostat for cooling and heating
    SOUND ABSORBING THERMAL INSULATION MATERIAL
    • Sound Absorbing Thermal Insulation Material
      Foamed polystyrene
    SAFETY DEVICE
    • Safety Device
      Fuse
    PIPE CONNECTIONS
    • Liquid Side - ㎜(inch)
      ? 9.52 (3/8)
      Gas Side - ㎜(inch)
      ? 15.88 (5/8)
    • Drain Pipe(Internal Dia.) - ㎜(inch)
      ? 25 (1)
    NET WEIGHT
    • Body - kg(lbs)
      15.6 (34.4)
    SOUND PRESSURE LEVELS
    • H / M / L - dB(A)
      43 / 40 / 36
    SOUND POWER LEVELS
    • H / M / L - dB(A)
      59 / 53 / 50
    POWER SUPPLY
    • Power Supply - ?, V, Hz
      1, 220-240, 50
      1, 220, 60
    REFRIGERANT CONTROL
    • Refrigerant Control
      EEV
    TRANSMISSION CABLE
    • Transmission Cable - ? × Cores
      1.0-1.5 × 2C
    DECORATION PANEL(ACCESSORY)
    • Panel Color
      Noble White
      Panel Name(Accessory)
      PT-UTC(Grill), PT-UTD(Panel)
