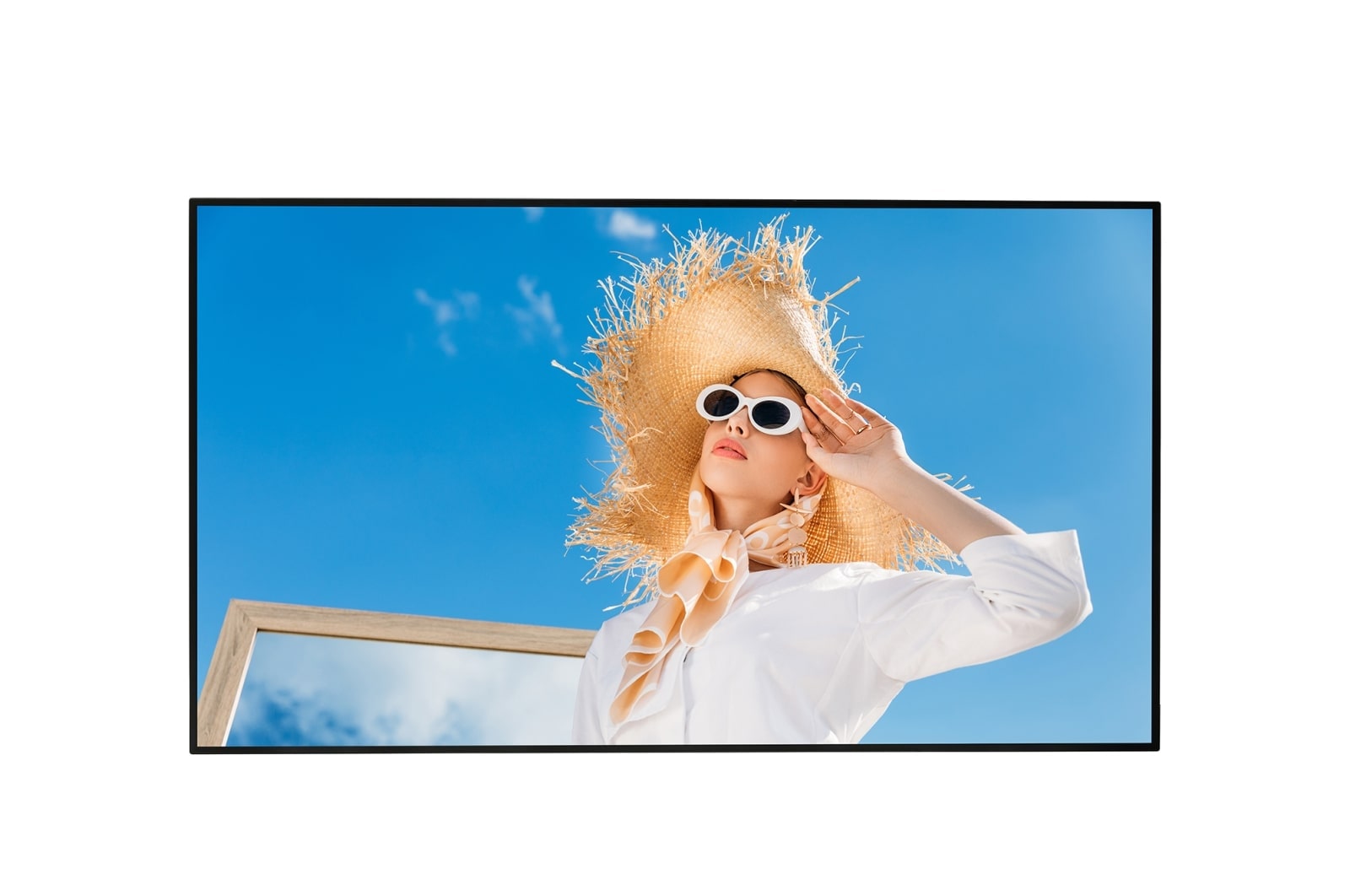

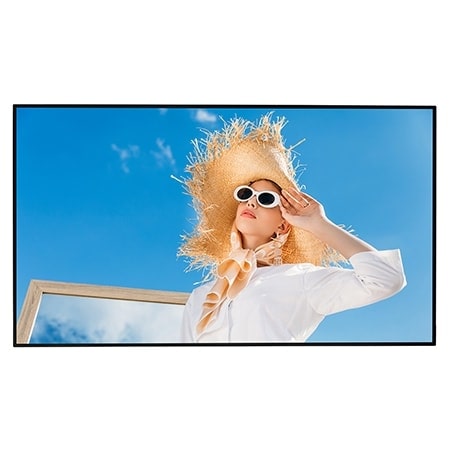

75" UHD 4,000nits Window-facing Display
Double-sided display is attached to the store, allowing customers to get information about the promotion both inside and outside.
* All images of this page are for illustrative purposes only.

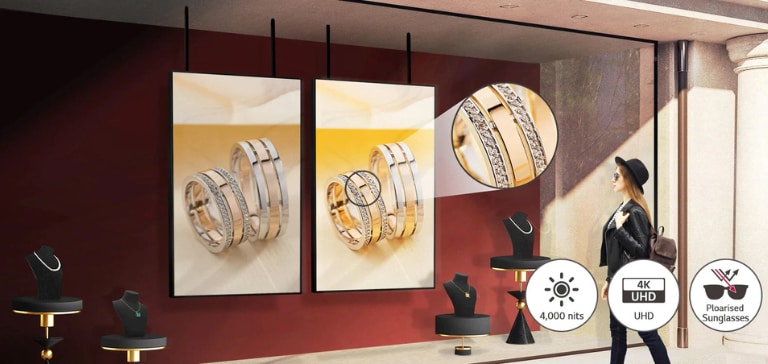

Unlike other products, 75XS4G's display is clearly visible under the sunlight or in environment with sunglasses on.
*LG Conventional’ refers to LG Previous Models.
** Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits
*** Quarter Wave Plate

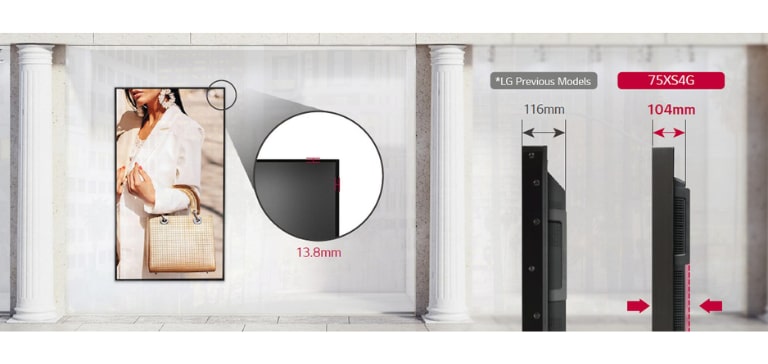

75XS4G is installed close to the window and has a high level of immersion in the display due to its thin bezel and width.
*LG Conventional’ refers to LG Previous Models.

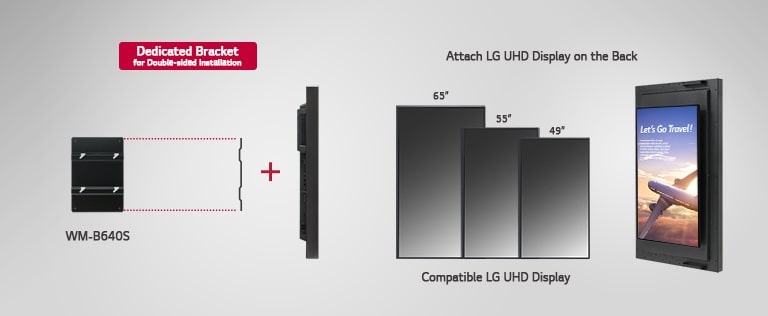

Using an dedicated bracket, LG UHD display compatible with 75XS4G can be attached on the back.
*Optional LG own brackets for LG Displays only.
** Attachable Displays : LG 65/55/49 inches UH7 Series, 65/55/49 inches UH5/UM3 Series
A display is working well in an environment of 0-40°C.
*Image illustrated to enhance feature understanding

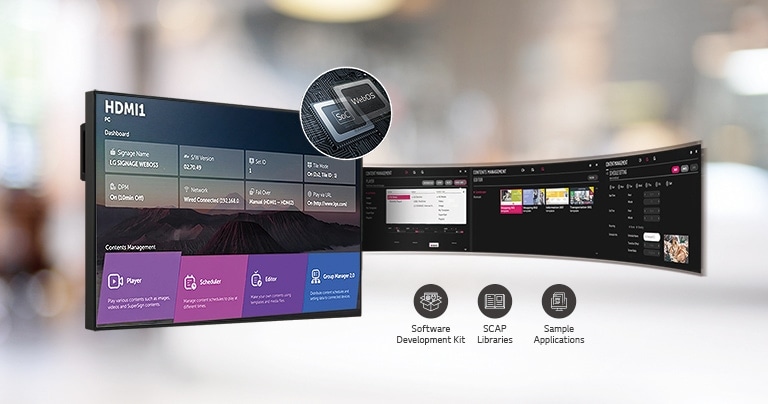

A number of tasks that can be done at the same time are arranged easily through webOS platform.
* System-on-Chip

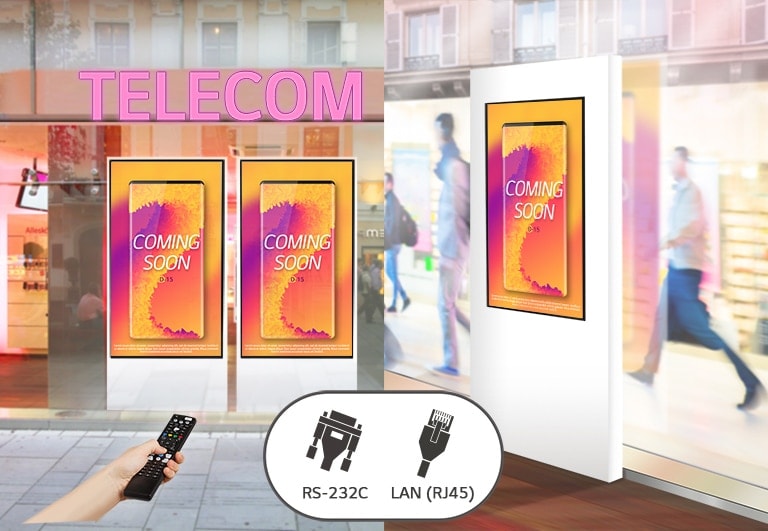

It operates double-sided displays simultaneously with one remote control.
A visitor is receiving promotional coupon in real time through Wi-Fi, Bluetooth, and Beacon built into the display.

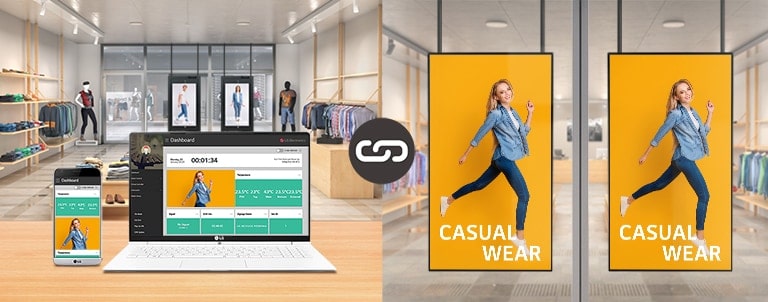

Control Manager" function to be installed on device for easy content distribution.
User can monitor and control their displays through mobile phone and laptop.
*"Control manager” function must be installed on device for easy content distribution to be used.
*Effective use of Web Monitoring is subject to external operating factors, including stable internet

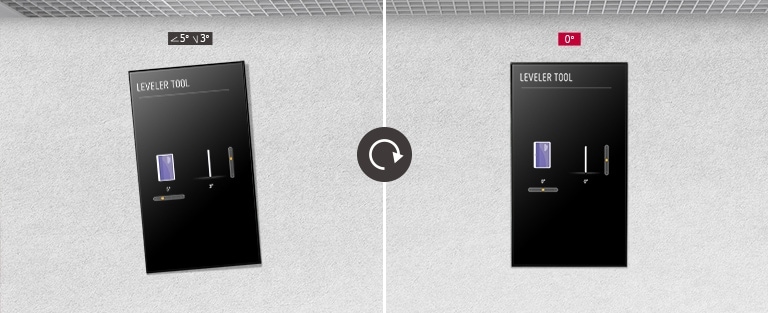

A display is installed without tilting using the leveler tool.
*Image illustrated to enhance feature understanding.

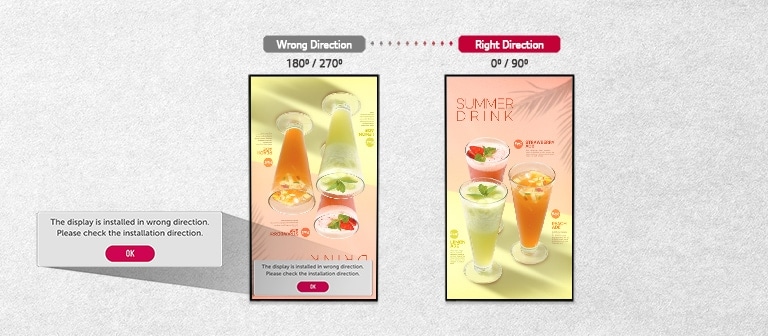

Through equipped horizontal sensor, the display can be reinstalled in the correct direction if it is incorrectly installed.
*image illustrated to enhance feature understanding.
Screen Size (Inch)
75
Panel Technology
IPS / M+
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
4,000nit (Typ.), 3,200nit (Min.)
Contrast Ratio
1,200:1 (Typ.)
Dynamic CR
500,000:1
Color Gamut
NTSC 68%
Viewing Angle (H x V)
178o x 178o
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 3%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
YES
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
YES
DP Out
YES
Audio Out
NO
Touch USB
NO
External Speaker Out
YES
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
YES (Sharing RS232C Out)
Daisy Chain
NO
Bezel Color
Black
Bezel Width
Even bezel : 13.8mm
Weight (Head)
39.6Kg
Weight (Head+Stand)
N/A
Packed Weight
50Kg
Monitor Dimensions (W x H x D)
1679.2 x 957.6 x 104mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1816 x 1106 x 285mm
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
Thickness
N/A
Degree of Protection
N/A
Tempered / Chemical strengthening
N/A
Anti-Reflective
N/A
Infrared - Resistance (IR)
N/A
Shatter-Proof
N/A
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
YES
OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
YES
PIP
YES
PBP
YES (2PBP)
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
NO
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
750W (Full White) 405W (IEC 62087)
Max.
790W
BTU (British Thermal Unit)
2559 BTU/Hr(Typ.), 2696 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
YES / NO
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türk?e, Arabic
Basic
Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver(w/Ambient Light Sensor), RS-232C Gender, IR Sheet
Optional
Double sided Bracket (Landscape&Portrait : WM-B640S)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
Available Object Size for Touch
N/A
Response Time ('Paint' app on Windows 10 PC)
N/A
Accuracy (Typ.)
N/A
Interface
N/A
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
N/A
Multi Touch Point
N/A
To access more technical documentation and resources, please visit the LG B2B partner portal.
