All-in-one Smart Series

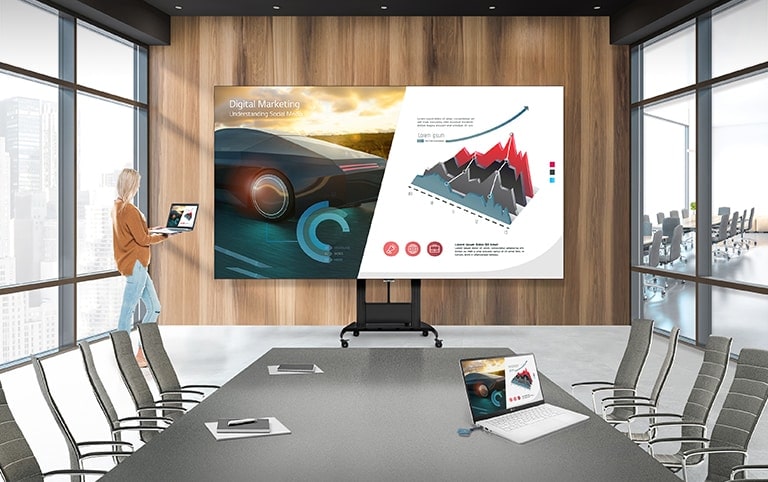

The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.
*All images in this web page are for illustrative purposes only and may differ from the actual product.
One:Quick Share dongle shown is not included with the product.

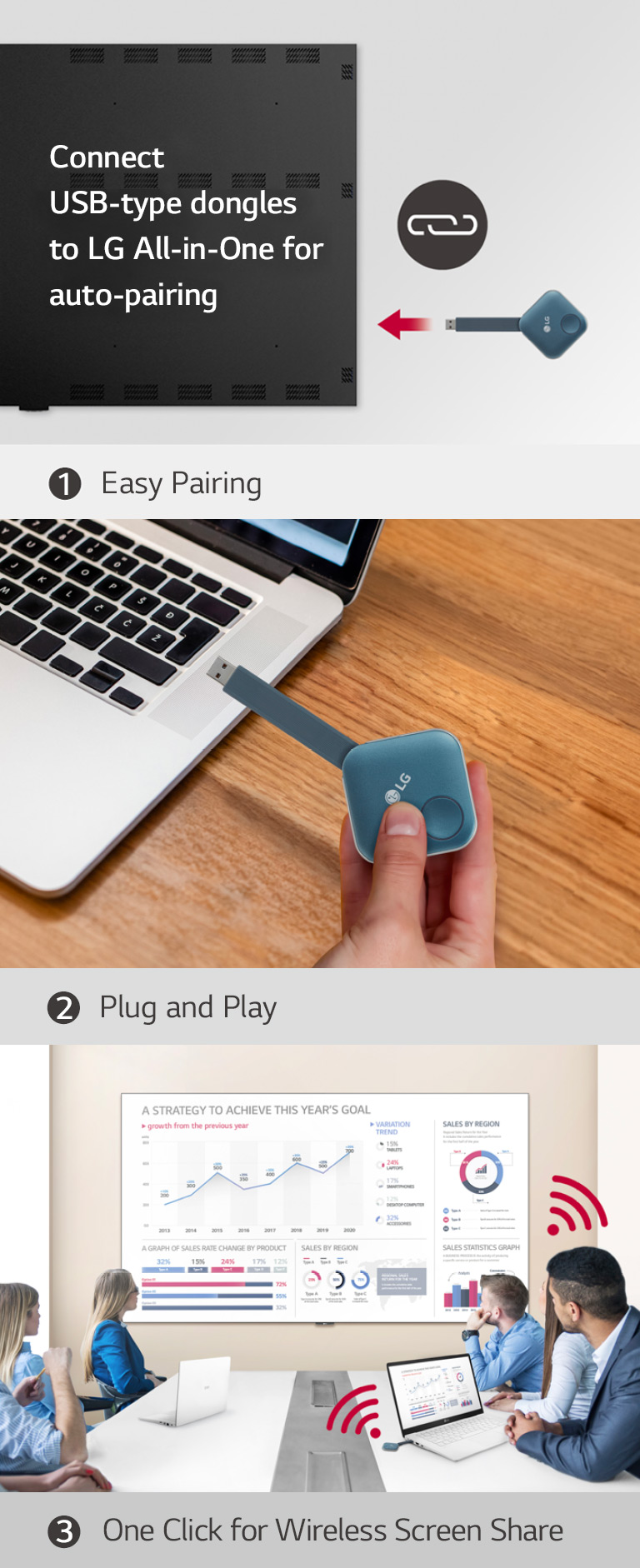

This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
^ LG One:Quick Share needs to be purchased separately.

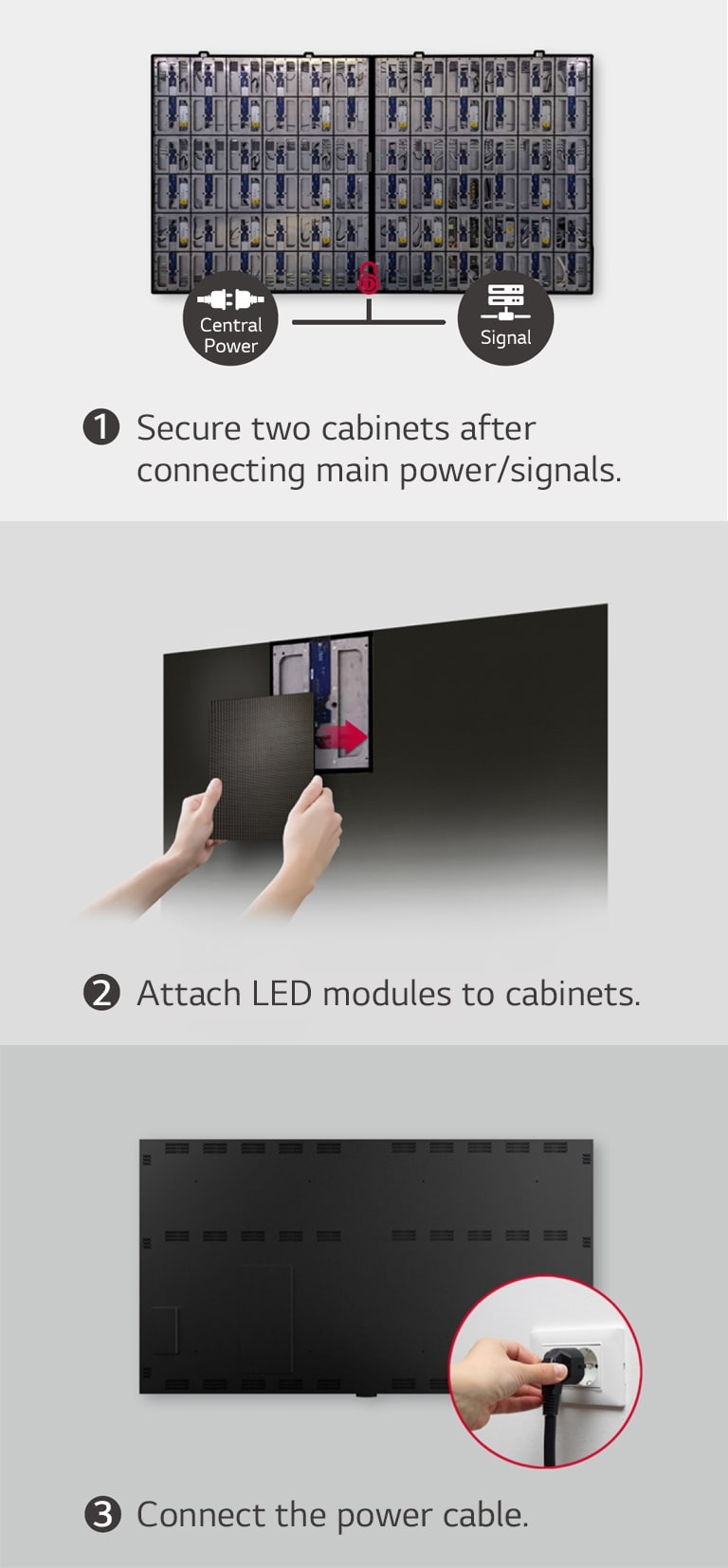

LG LAEC015 Easy Installation
*Fixing screws or installing wall mount / accessories is needed additionally.

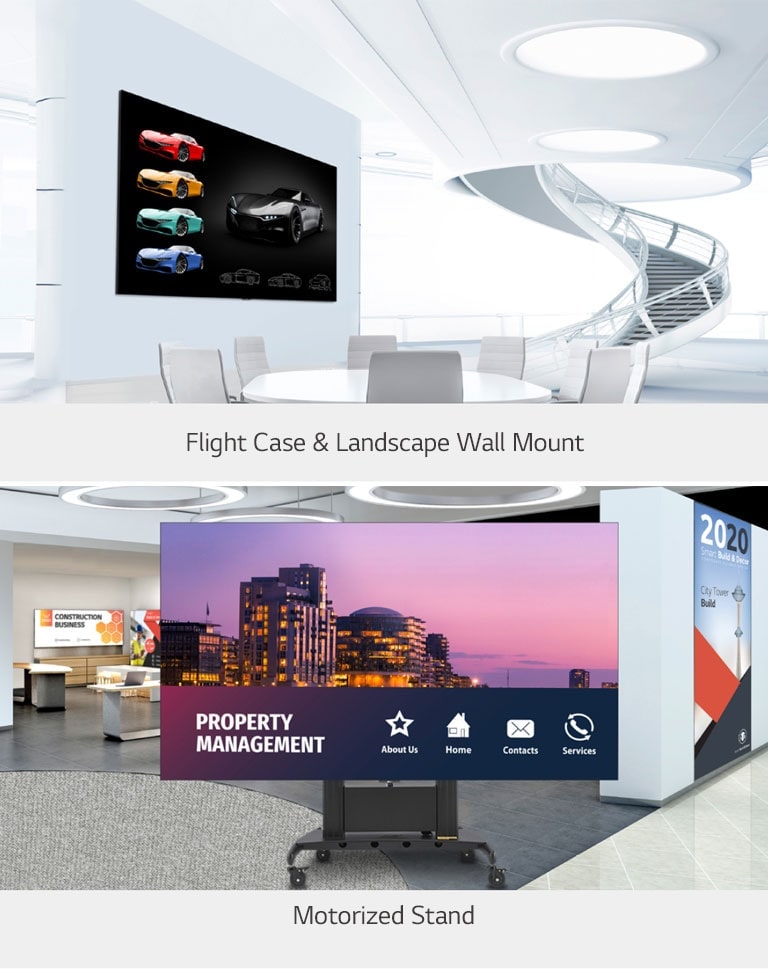

LG LAEC015 Dedicated Installation Accessories
*Optional (Available for Purchase Separately).
*The availability of LG ConnectedCare differs by region.
Connected Care service requires separate purchase
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
1.56
Screen Resolution
1,920 × 1,080
Module Dimensions (W x H, mm)
250 × 281.25
No. of Modules per Cabinet (WxH)
12 × 6 (Total 72)
Screen Dimensions (W × H × D, mm)
3,004.6 × 1,692.1 × 36.5 (Thickest 70)
Screen Surface Area (m2)
5.06
Screen Weight (kg)
129
Physical Pixel Density (pixels/m2 )
409,600
Flatness of Cabinet (mm)
±0.2
Cabinet Material
Aluminum
Service Access
Front
Brightness
500 nit
Colour Temperature
3,200 - 9,300
Visual Viewing Angle (H × V)
160 x 160
Brightness Uniformity
98%
Colour Uniformity
±0.015Cx,Cy
Contrast Ratio
3,000
Processing Depth (bit)
16
Key Features
DPM, HDMI CEC, Auto Brightness, PIP/2PBP, On/Off Scheduling, Play via URL, Content Manager, SuperSign CMS , CestronConnected, HDR10/HDR10 Pro, SoftAP, ScreenShare(Miracast), Office Meeting Mode, One:Quick Share, LG ConnectedCare ,Height Adjustable Floor Stand (Sold separately).
Power Consumption (W/Screen, Max.)
2,000
Power Consumption (W/Screen, Avg.)
800
Power Consumption(W/m2) Max
395
Power Consumption (BTU/h/Screen, Max.)
6,824
Power Consumption (BTU/h/Screen, Avg.)
2,730
Power Consumption (BTU/h/m2, Max.)
1,348
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
≥2,880
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature
0°C to +40°C
Operating Humidity
<90%RH (without condensation)
Speaker
Built-in (9W + 9W)
Certification
CE, FCC, ETL, CB
Environment
RoHS, REACH
Controller
Embedded LG WebOS Controller
Connectivity
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, SPDIF
To access more technical documentation and resources, please visit the LG B2B partner portal.
