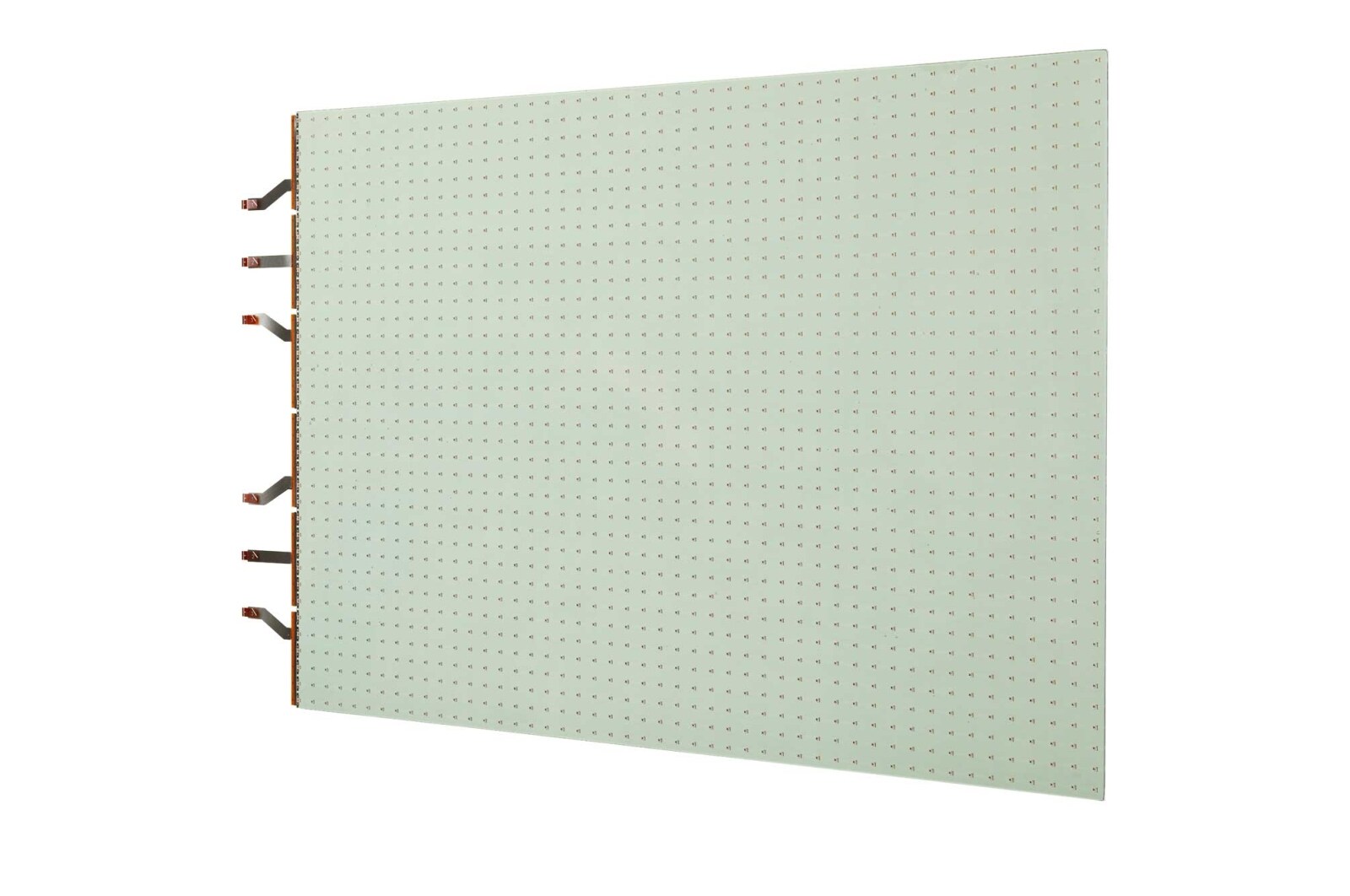

Transparent LED Film

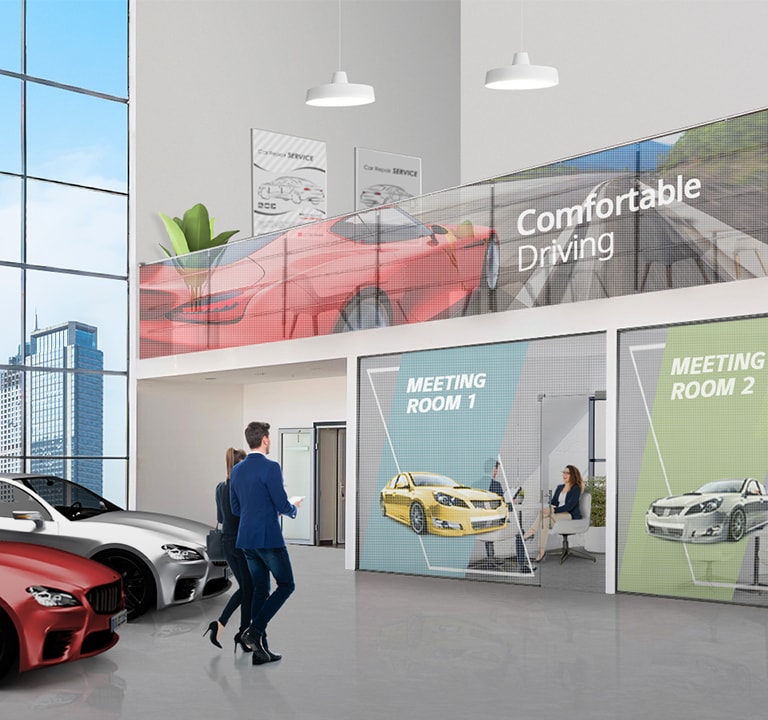

Bring New Life to Transparent Space
*Images are for illustrative purposes only, actual product may differ in appearance

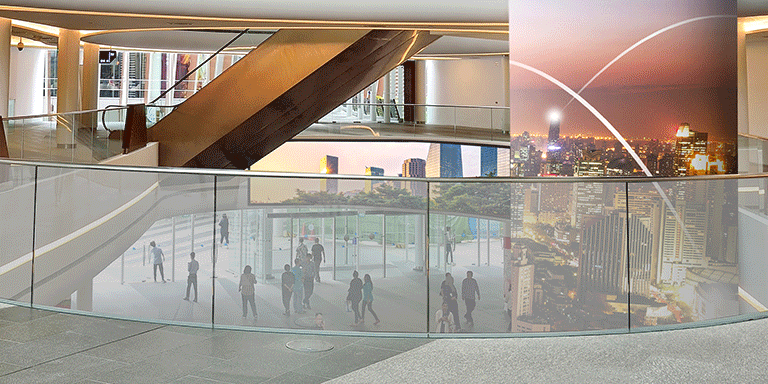

Superb Transparency
*Images dramatised for illustrative purposes only.

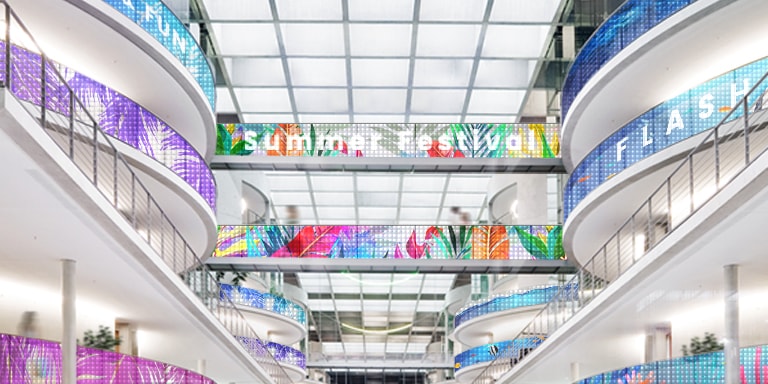

Fitting in with Flats and Curves
^Images dramatised for illustrative purposes only.
^Images dramatised for illustrative purposes only.
*Internet connection and Control Manager software required
Real-time 365 Care Service
*Additional charges may apply

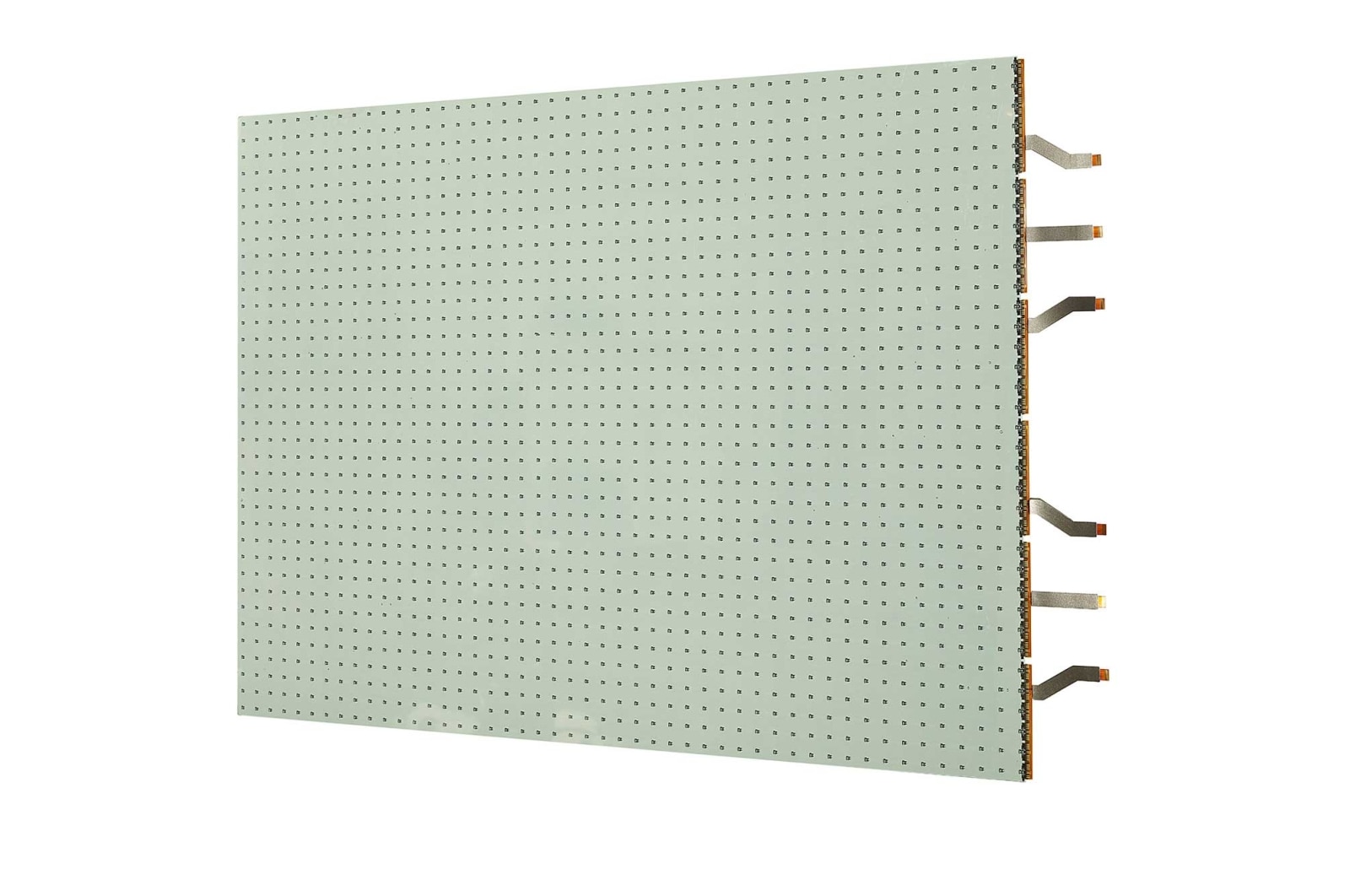

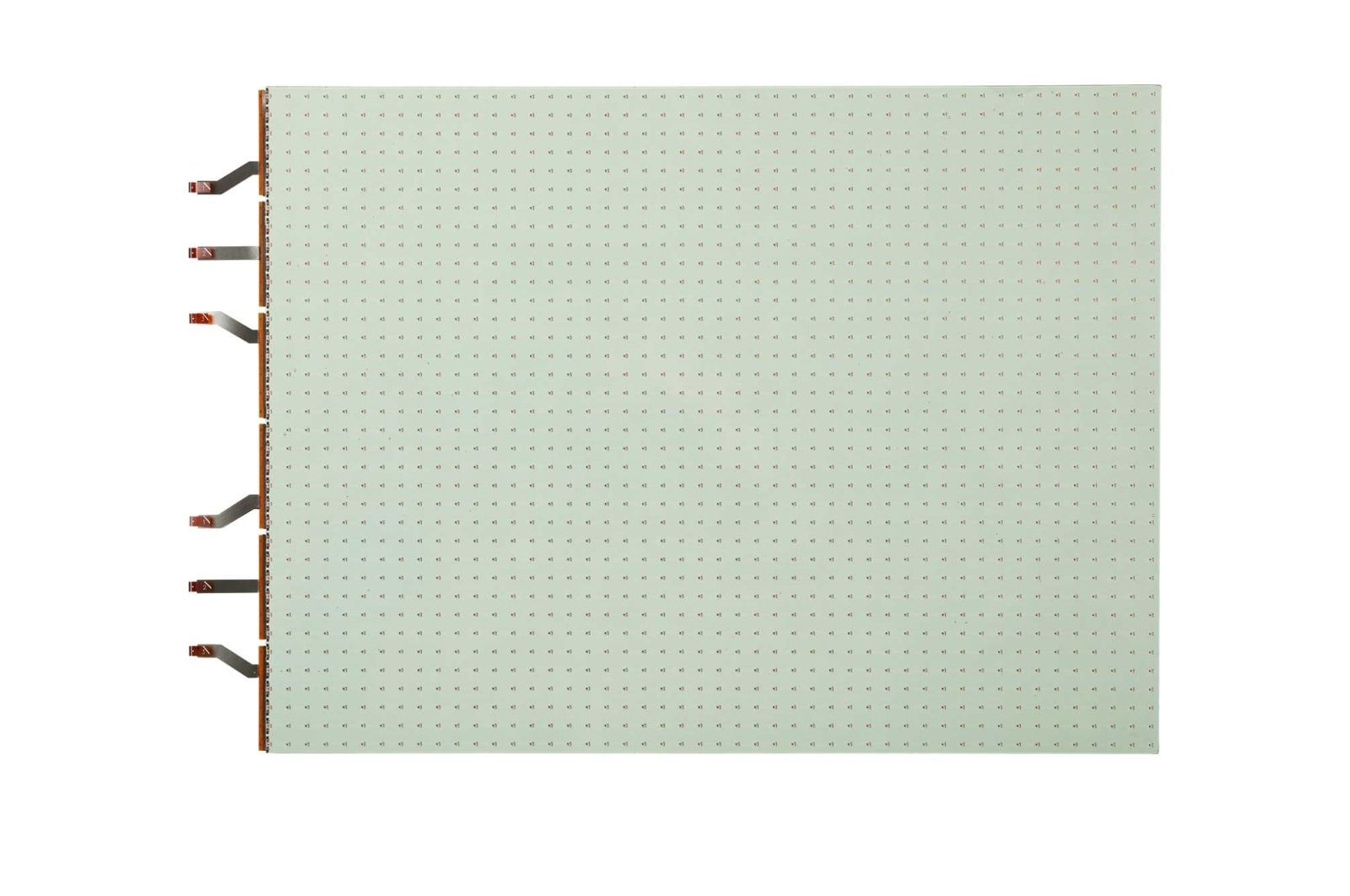

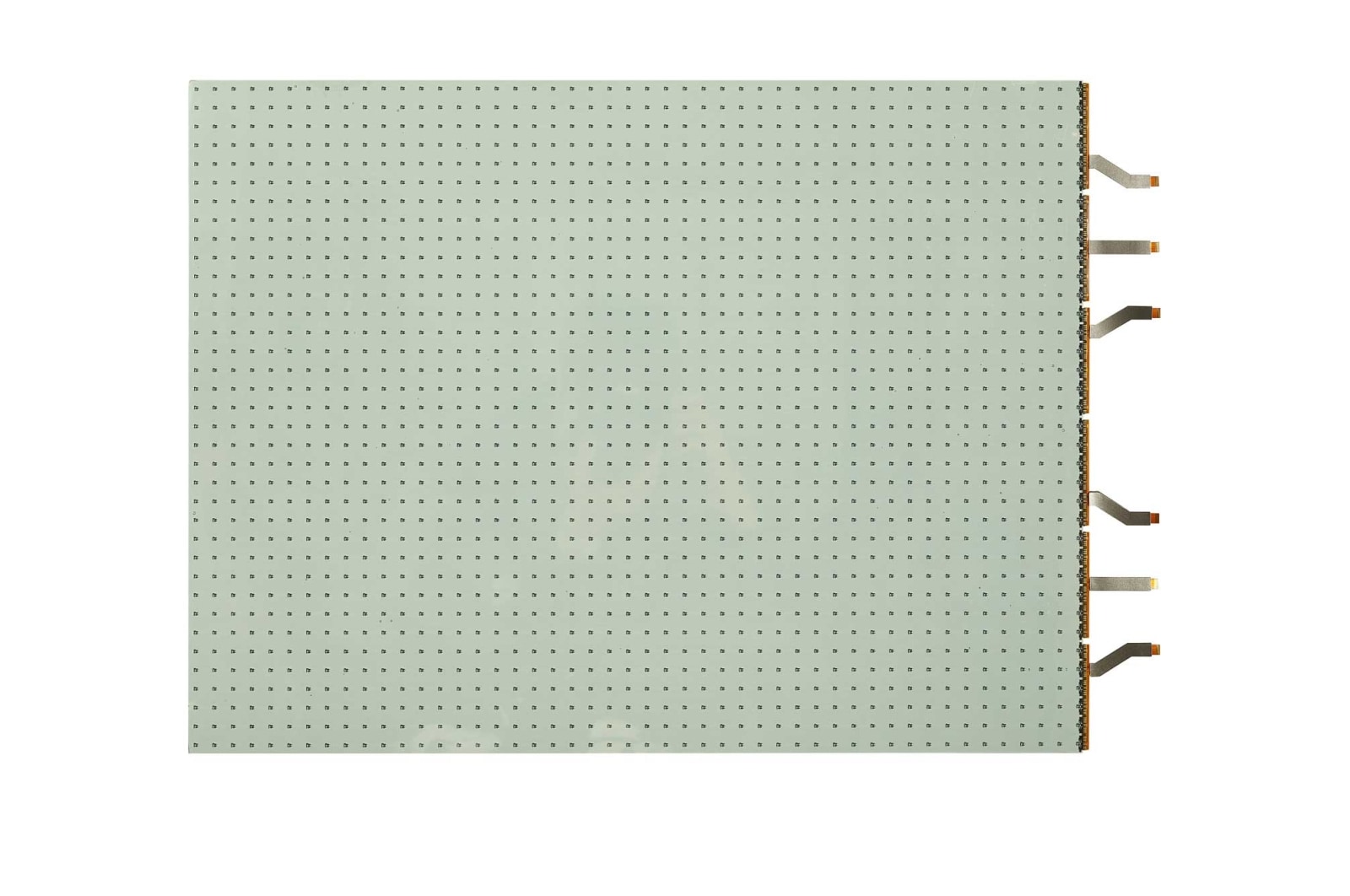

Model Name
LAT140
Pitch
13.7 ± 0.2 mm
LED Type
R, G, B 3in1 Colour Package (SMD2020)
Resolution
48x36
Pixels per Panel
1,728
Pixel Density [point/m2 ]
5,102
Brightness
2,100 cd/m2 (Typ.)
Contrast Ratio
100,000:1
Luminance Uniformity
≥ 70%
Viewing Angle (H x V)
120 x 120
Lifetime (Half Brightness)
Up to 50,000 Hrs
Daily Usage
24 Hrs / 7 Days
Transmittance
53%
Operating Temperature
0° ~ 45° (Indoor Glass Installation Only)
Curved Installation
1,100R (Convex & Concave, Glass Only)
Film Trimming
Yes (Parallel to the Bezel Side Only)
Colour Processing
9bit
Colours
125,000,000 Colours
Colour Chromaticity
Cx: 0.25±0.03, Cy : 0.34±0.03
Dimension (W x H x D)
655 x 492 x 2.9mm(with Front & Back Protection Film)
Weight
1 kg
Power Consumption
37W(Transparent panel 1EA + Common Bezel kit 2EA)

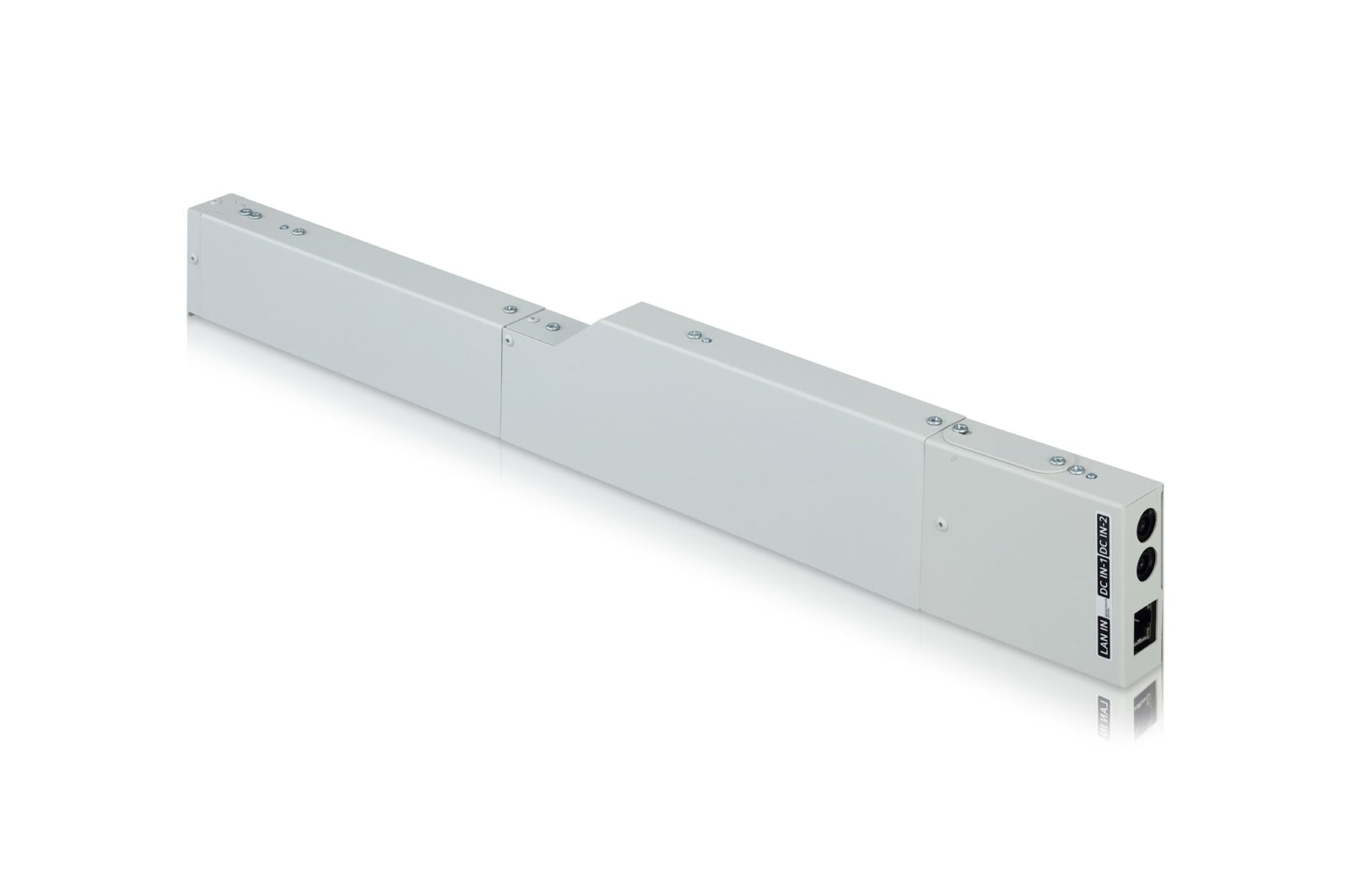

Model Name
ACC-14LATB1
Dimension (W x H x D)
69.4 x 492 x 25mm
Weight
0.4 kg

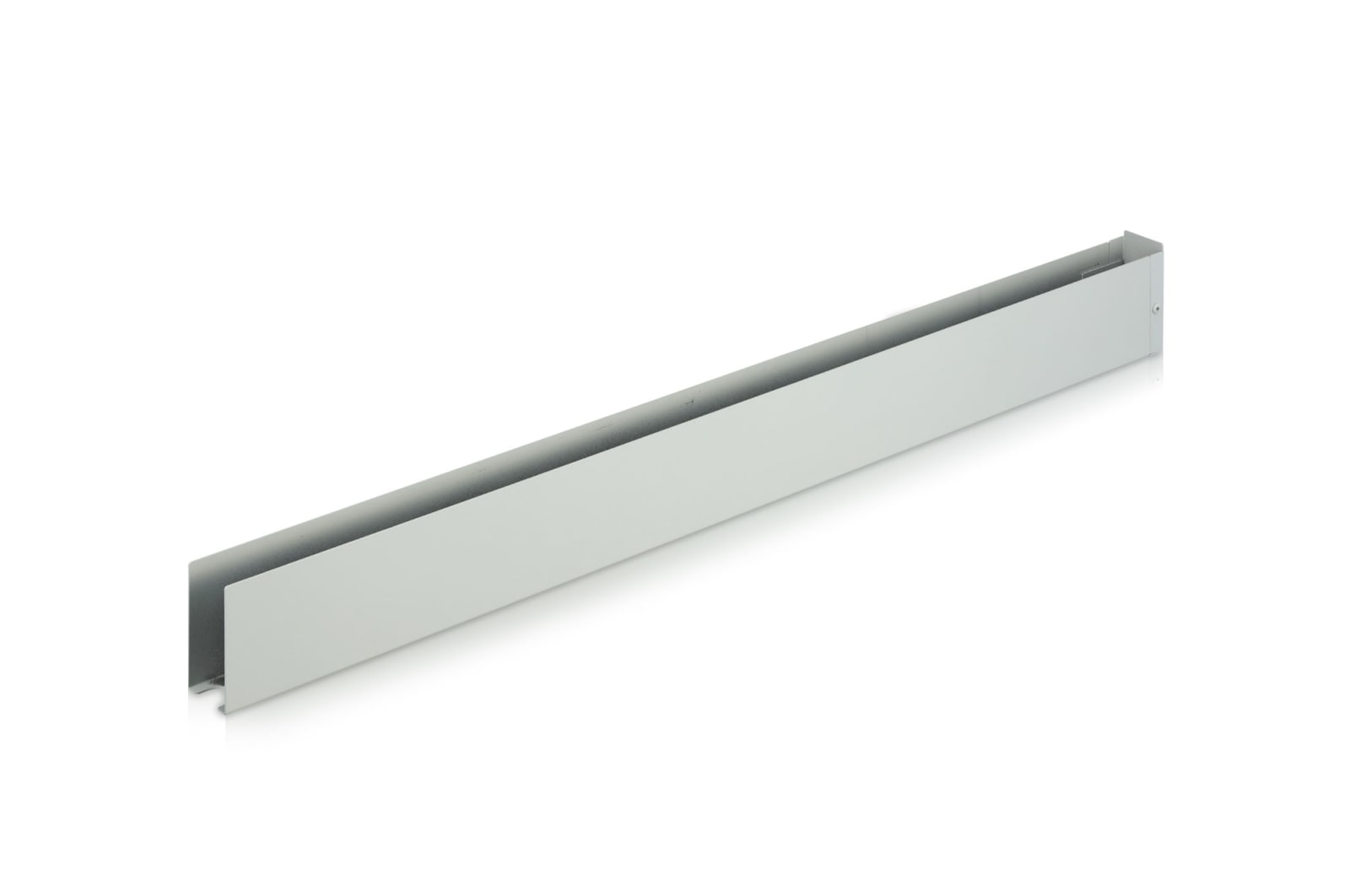

Model Name
ACC-14LATB2
Dimension (W x H x D)
51.4 x 492 x 25mm
Weight
0.3 kg
Model Name
ACC-LATP1
Dimension (W x H x D)
183 × 86 × 28 mm
Weight
0.769 kg
Input
100~240V, 50~60Hz
Output
19.5V/10.8A (210W)
Colour
White
DC Output Cable
14AWG, 1.5m
Type
L Type
Model Name
LCLG140U
Resolution
960x540 (1/4 FHD)
Interface
LVDS In, RJ45 (4ea) Out
Maximum Transmission Length
100 m (CAT5E, CAT6)
Dimension (W x H x D)
293 x 37 x 188.7 mm
Weight
1.5 kg
Power Consumption
20 W
Accessories
Power Cord, LVDS MCX Cable, ESG,
Regulation Book, Warranty Card
Model Name
LCLG002
Video
DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz
Input
HDMI, DP, DVI-D, RS232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
Output
DP, RS232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS
Dimension (W x H x D)
293 x193.3 x 40.1mm
Weight (Head)
1.6 kg
Temperature Sensor
O
Light Sensor
O
Source Selection
HDMI, DVI-D, DP
TPC (Temporal Peak Luminance Control)
Yes
Power Consumption
17 W
CMS S/W
SuperSign CMS,Signage365care
Accessories
Power Cord, IR & Bright Sensor, 4P Phone-to-RS232C Gender, ESG, Regulation Book, Warranty Card
To access more technical documentation and resources, please visit the LG B2B partner portal.
