    22SM3G-B component-copyModelName
    22'' Standard Signage

    Key Features

    Choose your Size

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (22SM3G-B)
      ?
      ?
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (22SM3G-B)
      ?
      ?
      LG Members Price
    Total

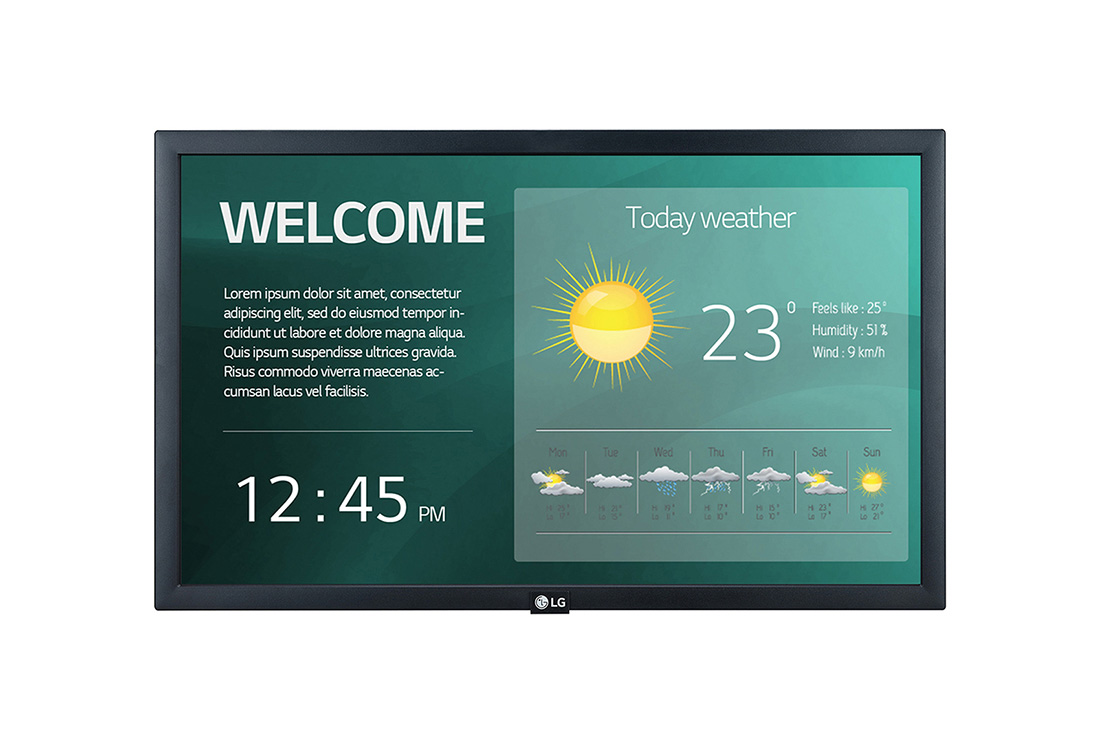

    22" Standard Signage
    22" Signage with More Utility for Commercial Space 22" Signage with More Utility for Commercial Space

    22" Signage with More Utility for Commercial Space

    22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
    High Performance SoC with webOS1 High Performance SoC with webOS2
    SMART SIGNAGE PLATFORM

    High Performance SoC with webOS

    Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
    Various Sensor Applications Various Sensor Applications
    SMART SIGNAGE PLATFORM

    Various Sensor Applications

    LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
    A Wide Range of Interfaces A Wide Range of Interfaces
    SMART SIGNAGE PLATFORM

    A Wide Range of Interfaces

    Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
    USB Plug & Play USB Plug & Play
    SMART SIGNAGE PLATFORM

    USB Plug & Play

    22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

    • SMART SIGNAGE PLATFORM

      SMART SIGNAGE PLATFORM1 SMART SIGNAGE PLATFORM2

    • Content Sharing

      Content Mirroring among devices is more convenient on a Wi-Fi network.

    • Real-time Promotion

      With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

    • Wireless Solution

      22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

    Remote Monitoring and Control Remote Monitoring and Control
    OPERATIONAL EFFICIENCY

    Remote Monitoring and Control

    Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
    Real-time Care Service with LG Signage365Care Real-time Care Service with LG Signage365Care
    OPERATIONAL EFFICIENCY

    Real-time Care Service with LG Signage365Care

    The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client's business.
    * The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
    Close
    ACCESSORIES
    • Basic
      Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
    CERTIFICATION
    • EMC
      FCC Class “A” / CE
      ePEAT (US Only)
      No
    • ErP / Energy Star
      Yes (EU Only) / No
      Safety
      CB / NRTL
    CONNECTIVITY
    • External Control
      RS232C In (Phone-jack), RJ45 (LAN) In, IR In
      Input
      HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In
    ENVIRONMENT CONDITIONS
    • Operation Humidity
      10 % to 80 %
      Operation Temperature
      0 °C to 40 °C
    KEY FEATURE
    • Key Feature
      Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected?1), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC2), SI Server Setting, webRTC, Pro:Idiom
    MECHANICAL SPECIFICATION
    • Bezel Color
      Black
      Bezel Width
      16.3 mm (Even Bezel)
    • Carton Dimensions (W x H x D)
      565.0 x 357.0 x 103.0 mm
      Handle
      No
    • Monitor Dimensions (W x H x D)
      510.3 x 302.1 x 53.8 mm
      Packed Weight
      4.74 kg
    • VESATM Standard Mount Interface
      100 x 100 mm
      Weight (Head)
      3.34 kg
    OPS COMPATIBILITY
    • OPS Power Built In
      No
      OPS Type Compatible
      No
    PANEL
    • Aspect Ratio
      0.672916667
      Brightness
      250cd/m2
    • Contrast Ratio
      1,000:1
      Life Time (Min.)
      30,000 Hrs
    • Native Resolution
      1,920 x 1,080 (FHD)
      Operation Hours (Hours / Day)
      16 / 7
    • Panel Technology
      IPS
      Portrait / Landscape
      No / Yes
    • Refresh Rate
      60 Hz
      Response Time
      14ms (G to G)
    • Screen Size
      21.5"
      Surface Treatment (Haze)
      0.25
    • Viewing Angle (H x V)
      178 x 178
    POWER
    • Power Consumption - Smart Energy Saving
      15 W
      Power Consumption - Typ.
      30 W
    • Power Supply
      AC 100-240 V~, 50 / 60 Hz
      Power Type
      Built-In Power
    SOFTWARE COMPATIBILITY
    • Content Management Software
      SuperSign CMS
      Control and Monitoring Software
      SuperSign Control / Control+
    • Signage 365 Care3)
      Yes
    SOUND
    • Speaker
      Yes (1 W x 2 ea)

    Compare

    0
    Compare 0
    *Prices, promotions and availability may vary by store and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for final price and availability.
    LG Electronics focused on developing new innovations across information displays. We are committed to providing commercial electronic products that help businesses perform better. To support this, we have developed digital signage. We offer a wide range of products, including information displays, digital signage for advertising, commercial system air conditioners, VRF systems & tailored solutions for different vertical markets. Find out more about our digital signage today. Contact your local LG representative for more information.
