    86TR3E-B component-copyModelName

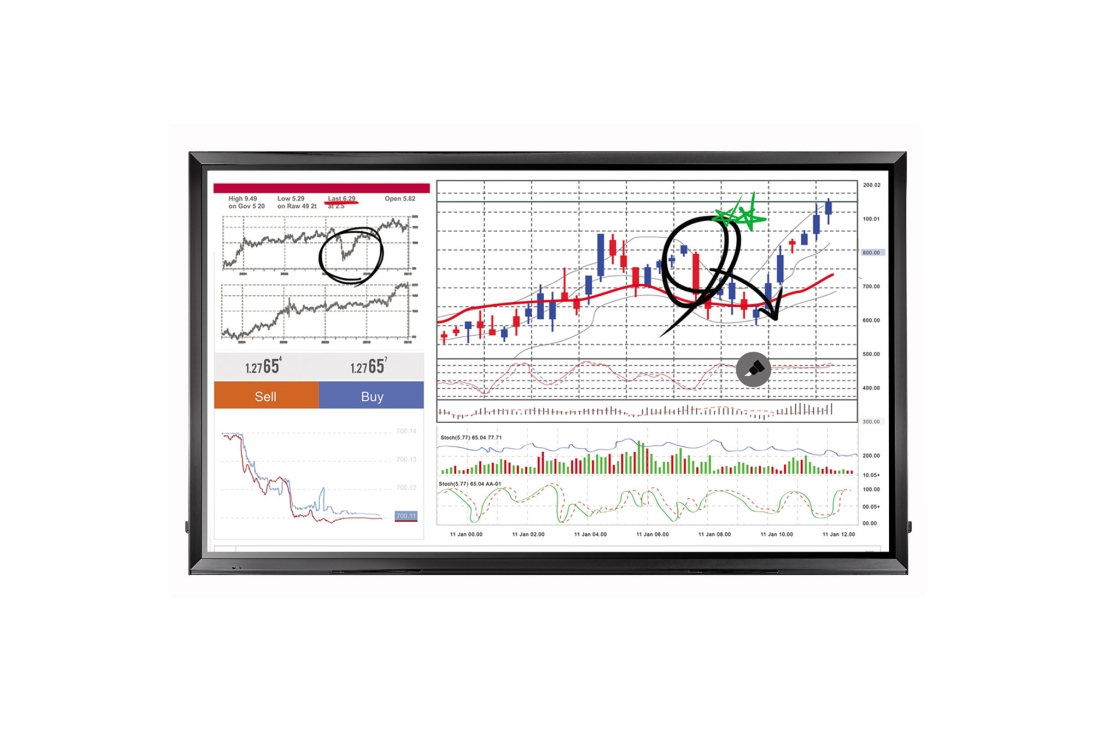

    Interactive Digital Board

    Key Features

    Choose your Size

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (86TR3E-B)
      ?
      ?
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (86TR3E-B)
      ?
      ?
      LG Members Price
    Total
    Interactive Digital Board
    Be Smarter and Simpler with LG IDB1 Be Smarter and Simpler with LG IDB2
    Embedded LG IDB App & webOS

    Be Smarter and Simpler with LG IDB

    IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.
    Intuitive Touch and Writing1 Intuitive Touch and Writing2
    Outstanding Touch Performance

    Intuitive Touch and Writing

    The most advanced touch technology, InGlass?, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.
    All-in-One Meeting Experience1 All-in-One Meeting Experience2
    Efficient Collaboration

    All-in-One Meeting Experience

    For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless connection simultaneously, writing on the shared screen, and saving annotation.
    The Superior Picture Quality1 The Superior Picture Quality2
    UHD Resolution

    The Superior Picture Quality

    With the UHD resolution of LG IDB, users can view the content in fine detail even when zoomig in it on the display. It provides high-quality media experience with 4 times higher definition picture quality than FHD.
    True Colors and Wider View1 True Colors and Wider View2
    IPS Panel

    True Colors and Wider View

    The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.
    Quick and Easy to Share a Screen1 Quick and Easy to Share a Screen2
    Auto Signal/Touch Switching

    Quick and Easy to Share a Screen

    The display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. It is a time-saving function for users to set-up the signals in conference.
    Easy to Call and Control the Menu1 Easy to Call and Control the Menu2
    Assistive Touch Menu

    Easy to Call and Control the Menu

    For improving user-friendliness, LG IDB users can run the desired function or change the setting from anywhere by softly pressing the screen to call up the Touch Menu.
    *The menu design(GUI) is subject to change without notice.
    Enjoy Multi Screens1 Enjoy Multi Screens2
    PBP/PIP

    Enjoy Multi Screens

    PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.
    Close
    PANEL
    • Screen Size
      86"
      Brightness(Module, Typ., cd/m2)
      410
    CONNECTIVITY
    • Input
      HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0
      Output
      Touch USB 2.0 (2)
    PHYSICAL SPECIFICATION
    • Bezel Width
      50.7 mm (T/L/R), 62.2 mm (B)
      Monitor Dimension (W x H x D)
      2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
    • Weight (Head)
      85.8 kg
      Carton Dimensions (W x H x D)
      2,190 × 1,470 × 371 mm
    • Packed Weight
      114.6 kg
      VESA? Standard Mount Interface
      600 x 400 mm
    ENVIRONMENT CONDITIONS
    • Operation Temperature
      0°C to 40°C
      Operation Humidity
      10% to 80%
    SOFTWARE COMPATIBILITY
    • Content Management Software
      SuperSign Premium
      Control and Monitoring Software
      SuperSign Link
    ACCESSORY
    • Basic
      Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)
      Optional
      OPS Kit (KT-OPSA)
    TOUCH
    • Touch type
      InGlass?
      Available Object Size for Touch
      more than ? 3 mm
    • Accuracy
      2 mm
      Interface
      USB 2.0
    • Protection Glass Thickness
      4T (Anti-Glare)
      Multi Touch Point
      Max 20 Point

    Compare

    0
    Compare 0
    *Prices, promotions and availability may vary by store and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for final price and availability.
