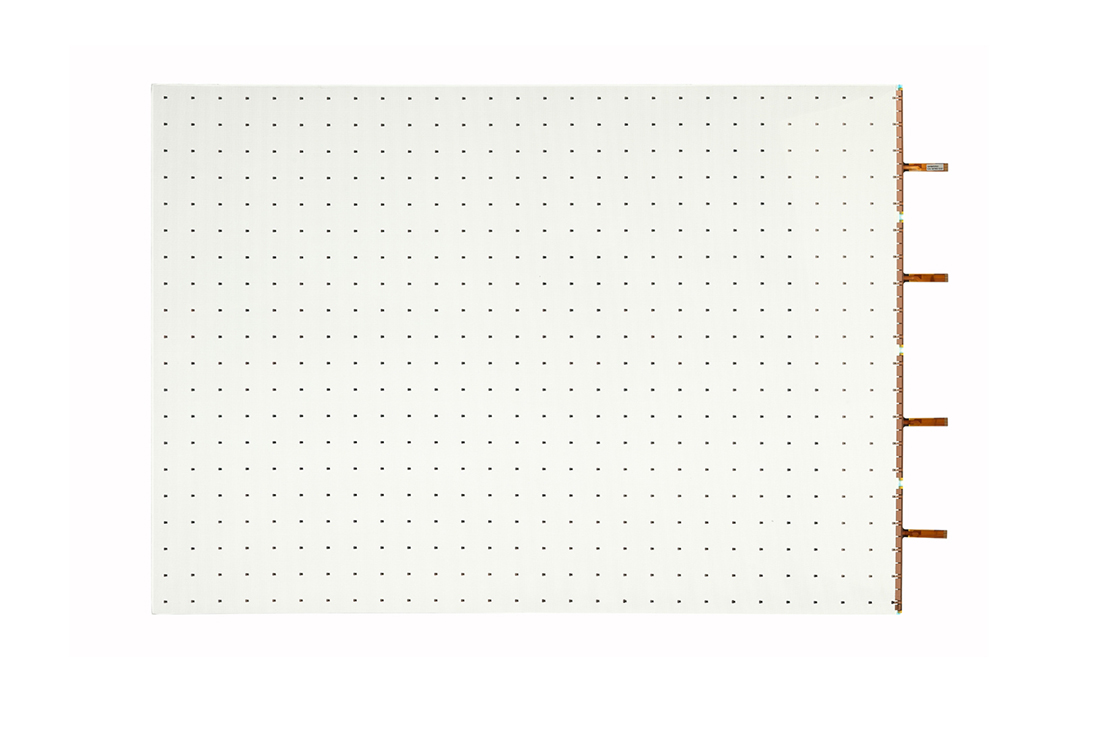

High Transparency
film, with no adverse effects on the original design. When the LED is OFF, the film
is unnoticeable, blending into the glass completely.
Full Color Expression
Self-adhesive Film
Superb Expandability and Flexibility
Curved Format Supported
System Connection
-
- Pitch
- 24±0.2mm
- LED Type
- R, G, B 3in1 Color Package (SMD1818)
-
- Resolution
- 28 x 20
- Pixels per Panel
- 560
-
- Pixel Density [point/㎡ ]
- 1,736
- Brightness (After Calibration)
- >1,000nit
-
- Contrast Ratio
- ≥ 100,000:1
- Luminance Uniformity
- ≥ 70%
-
- Chromaticity Uniformity
- Δu’v’≤0.015
- Viewing Angle (H x V)
- 120 x 120
-
- Lifetime (Duration of Half Brightness in Hours)
- 50,000
- Daily Usage
- 24h / 7days
-
- Warranty
- 2 Years
- Operating Temperature
- 0℃ ~ 45℃ (Indoor Glass Installation Only)
-
- Curved Installation
- 1,100 R (Convex and Concave)
- Film Trimming
- Yes (Parallel to the Bezel Side Only)
-
- Film Surface Color Distortion
- No
- Color Processing
- 130/120/110 Level ( R, G, B)
-
- Colors
- 1,716,000 Colors
- Color Chromaticity
- Cx: 0.28±0.03, Cy : 0.28±0.03
-
- Dimension (W x H x D)
- 668 x 480 x 2.0㎜ (with Front & Back Protection Film)
- Weight
- 0.73kg
-
- Power Consumption
- 37W (Transparent panel 1EA + Bezel kit 1EA)
-
- Dimension (W x H x D)
- 547.3 x 63 x 24㎜
- Weight
- 0.45Kg
-
- Dimension (W x H x D)
- 479.5 x 28.1 x 24㎜
- Weight
- 0.26Kg
-
- Resolution
- 960x540 (4 Unit Controllers Needed for FHD))
- Interface
-
Input : LVDS
Output : RJ45 x4EA
-
- Maximum Transmission Length
- 100m
- Dimension (W x H x D)
- 293 x 37 x 188.7mm
-
- Weight
- 1.5Kg
- Temperature Sensor
- Yes
-
- Power Consumption
- 20 W
-
- Video (Max. Input Resolution)
-
DP: 3,840 x 2,160 @30Hz
HDMI: 3,840 x 2,160 @30Hz
DVI-D: 1,920 x 1,080 @60Hz
- Input
- HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
-
- Output
- LVDS, DP, RS232C, RJ45 (w/o LED Indicator)
- Dimension (W x H x D)
- 293 x 40.1 x 193.3 mm
-
- Weight (Head)
- 1.6 kg
- Temperature Sensor
- O
-
- Light Sensor
- O
- Source Selection
- HDMI, DVI-D, DP
-
- TPC (Temporal Peak luminance Control)
- Yes
- Power Consumption
- 17W
-
- CMS S/W
- Yes
- Accessories
- Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
