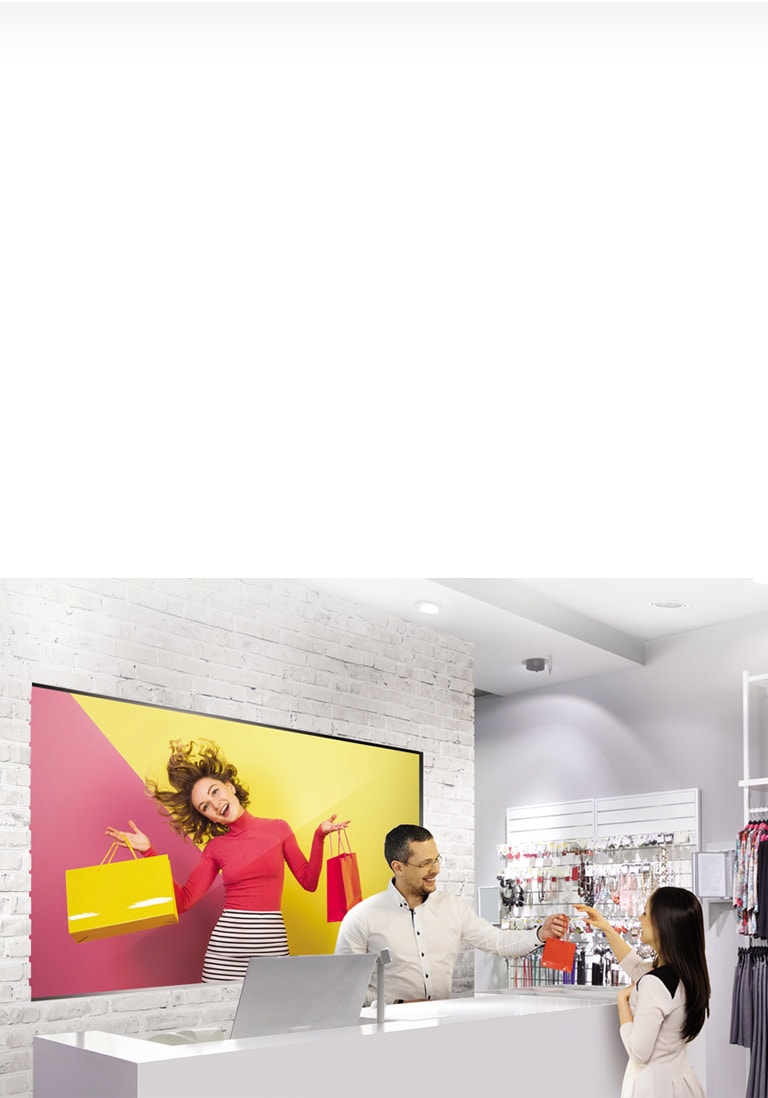

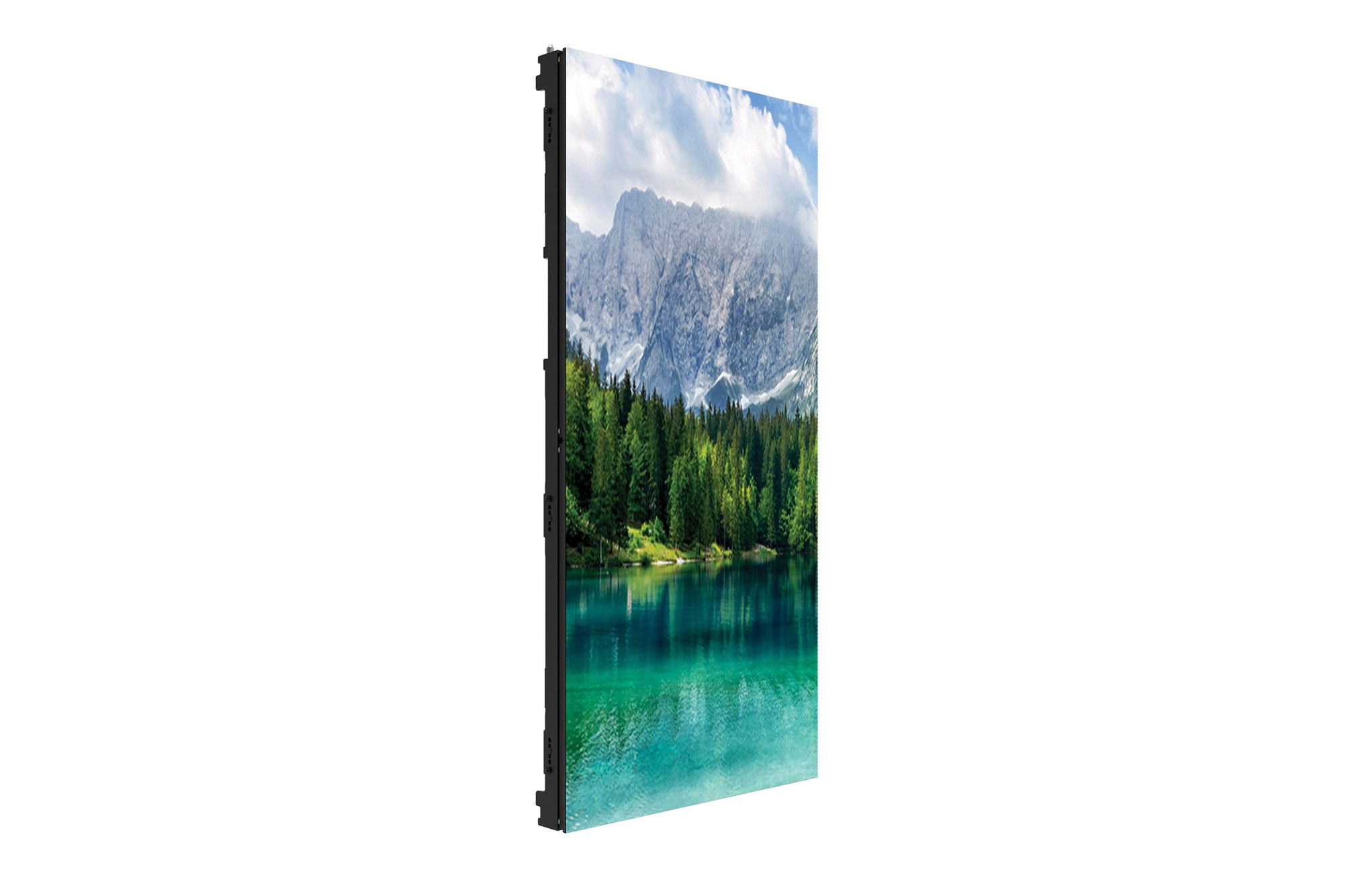

The LAE Standard is versatile indoors with its compact design. It delivers an eye catching display that fills the room with its presence. Find out more below.
?
ID_LED-Signage-Indoor_hero_06_M01_Standard_1522041793695
ID-LAE-Standard-01-1,200nit-High-Brightness_full_1554702121291

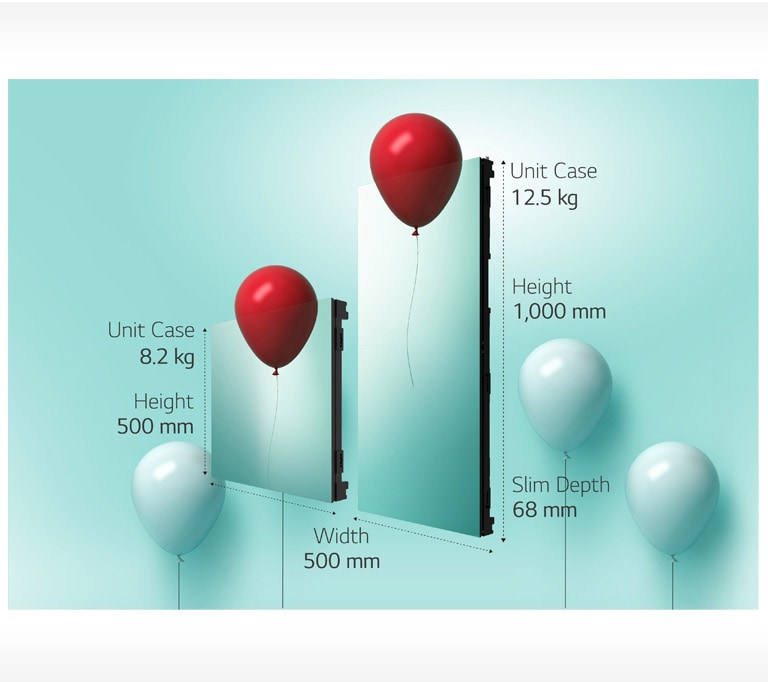

ID-LAE-Standard-02-Lightweight-and-Slim-Design_1554422660544
ID-LAE-Standard-03-Easy-Installation-Mobile_1554422708706
ID-LAC-Curved-03-IP30-Secured-Design_1554419574929

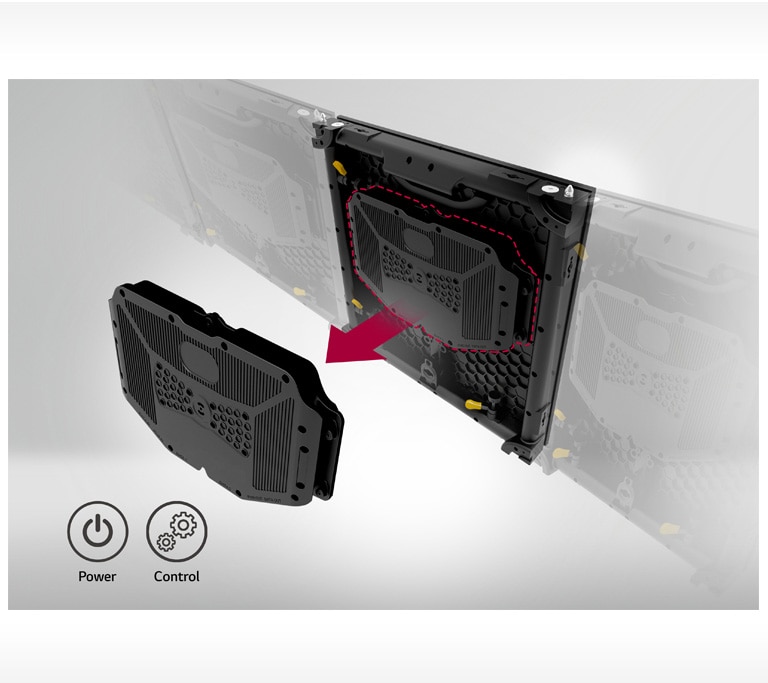

ID-LAE-Standard-05-Attachable-Power-and-Control-Modules-Fin_1554423003661

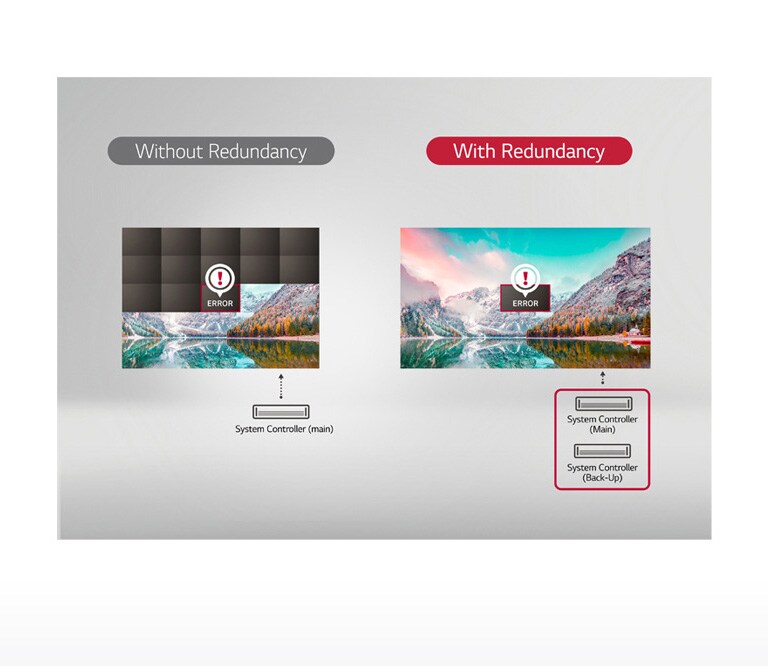

ID-LAE-Standard-06-Reliable-Operation-with-Signal_Power-Redundancy_1554423078105

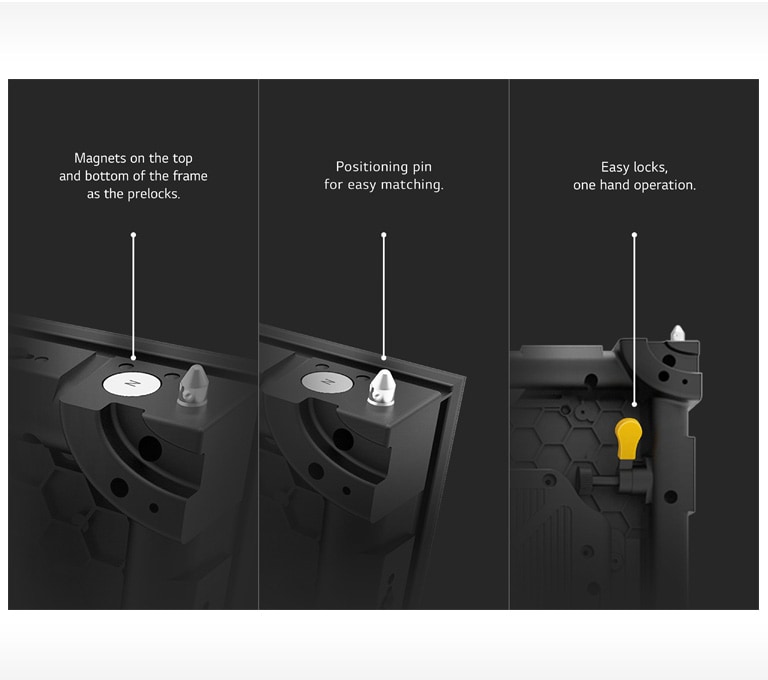

ID-LAC-Curved-06-Simple-Magnetic-Connection-Fin_1554419846610
ID-LED-08-Vividness-with-Color-Accuracy_1554419931218
ID-LED-09-RoHS-Certified-Safe-Product_1554419971582
| Model Name | LAE029DD3DE | LAE029DD3E | LAE039DD8 | LAE039DD8D |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 2.97 | 2.97 | 3.91 | 3.91 |
| Unit Case Resolution (WxH) | 168x168 | 168x336 | 128x256 | 128x128 |
| Unit Case Dimensions (WxHxD, mm) | 500x500x68 | 500x1000x68 | 500x1,000x68 | 500x500x68 |
| Weight per Unit Case / Square Meter (kg) | 10.0/40.0 | 15.5/31.0 | 12.5 / 25.0 | 8.2 / 32.8 |

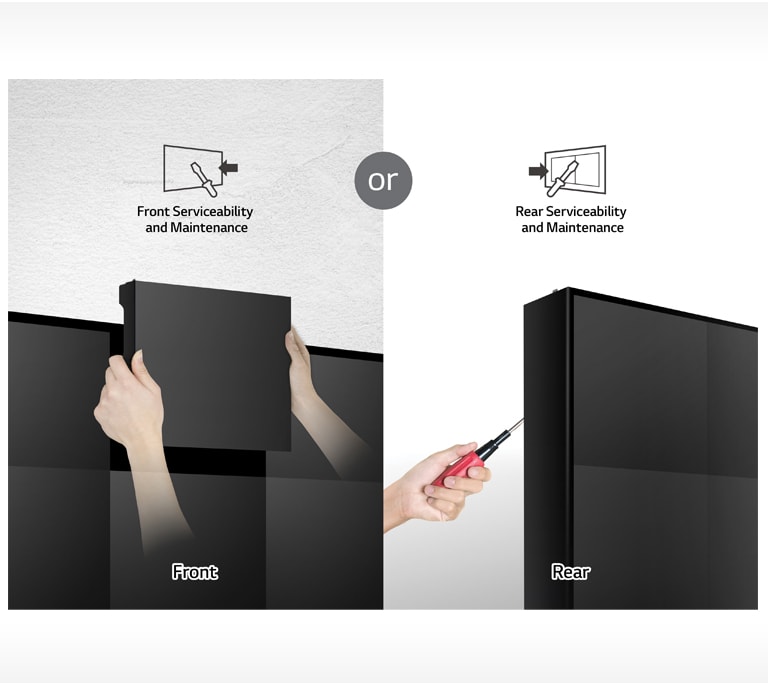

| Service access | Front or Rear (One Option Only) | Front or Rear (One Option Only) | Front or Rear (One Option Only) | Front or Rear (One Option Only) |
| Min. Brightness (After Calibration) | 1,000 | 1,000 | 1,000 | 1,000 |
| Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/160 | 160/160 | 160 / 160 | 160 / 160 |
| Brightness Uniformity | 97％ | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 13 | 13 | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) | 330 / 110 | 160 / 53 | 330 / 110 | 160 / 53 |
| Power Consumption (W/m2, Max.) | 660 | 640 | 660 | 640 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 1,920 | 1,920 | 3,840 | 3,840 |
| Lifetime (Half brightness)* | 100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -10°to+45°/0~80％RH | -10°to+45°/0~80％RH | -10°to+45°/0~80％RH | -10°to+45°/0~80％RH |
* Models may vary by region. Check with local salesteam.
?
