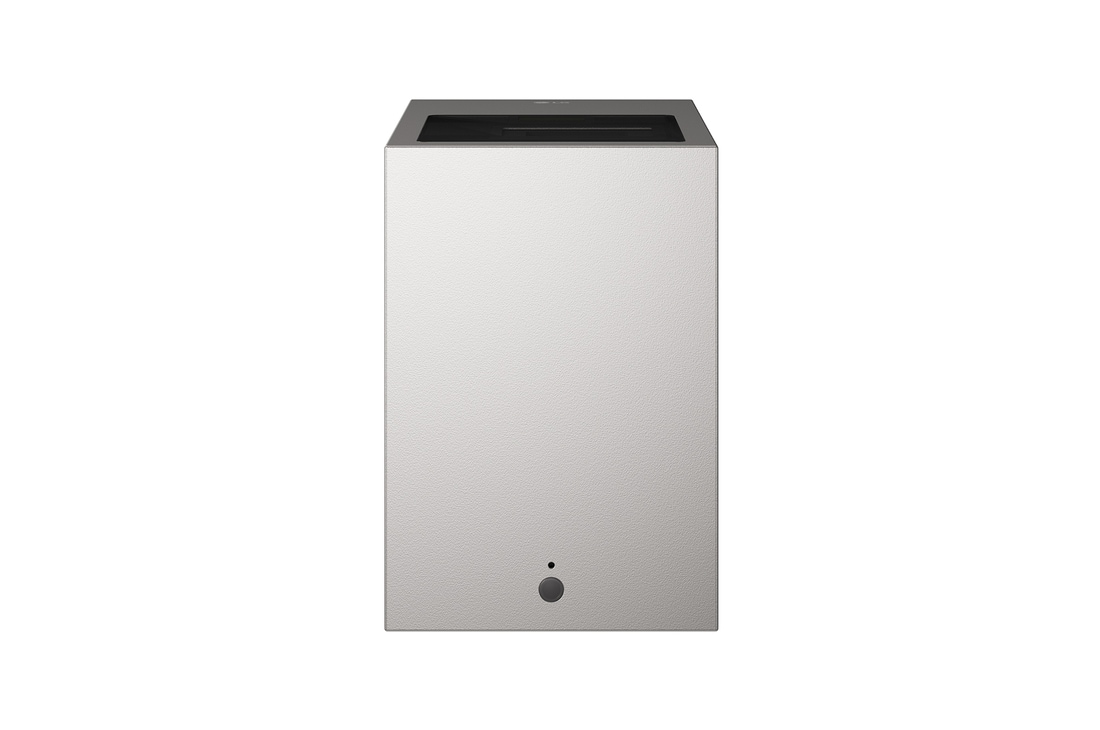

LG CineBeam S | Mini UST (Ultra Short Throw) 4K Projector with Dolby Atmos

PU615U

Key Features

Ultra Short Throw
4K UHD Resolution
DCI-P3 154% (Overall), 3-ch RGB Laser
450,000:1 Contrast ratio
Max. 100-inch screen size
500 ANSI Lumens Brightness

All Spec

ACCESSORY

Conformances(Regulation): KCC, KC, FCC, ETL, CE/CB, PSE

Manual (Full or Simple Book): Simple Book

Quick User Guide (Quick Set-up Guide): Yes

Remote Control - Normal: Yes

Warranty Card: Depends on region

ASPECT RATIO

Aspect Ratio Control: 16:9/Original/Full Wide/4:3/Vertical Zoom

BRIGHTNESS (ANSI LUMEN)

Brightness (ANSI Lumen): 500

CONTRAST RATIO

Contrast Ratio: 450,000:1

DESIGN

Cabinet Color: Top/Bottom_Silver , Left/Right_Black

Kensington Lock: Yes

Local Key: One Key

Tripod hole (for Tripod, Ceiling mount): Yes

FEATURES

Auto Keystone: Yes (Auto Screen Adjustment)

Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming): Yes (up to 4K/30Hz)

Background Image: Yes

Black Level Control: Yes

Bluetooth Sound out: Yes

Color gamut setting (Expert control): Yes

Color Management System (Expert control): Yes

Color Temperature Adjustment: Yes

Contents Sharing (with DLNA supporting device): Yes

Contents Store / LG Smart World (App Store): Yes

Contents Suggestion: Yes

Digital Keystone Correction: Edge Adjustment
(4/9/15 Point Warping)

Dynamic Color (Expert control): Yes

Dynamic Contrast (Expert control): Yes

Eco Function - Automatic Standby / Auto Power Off: Yes

Eco Function - Auto Off / Auto Sleep: Yes

Eco Function - Energy Saving Mode: Yes (Min/Med/Max)

Eco Function - Sleep Timer: Yes

Eco Function - Time Power On/Off: Yes (On / Off)

FILMMAKER mode: Yes

Gamma Correction (Expert control): Yes

HDCP: HDCP2.2

HDMI ARC(Audio Return Channel): Yes (eARC)

HDMI simplink(CEC): Yes

HDR: HDR10, HLG

HDR Tone Mapping: Yes (Auto, Dynamic/frame by frame)

HGiG (HDR Gamming Interest Group) mode: Yes

HID (Keyboard/Mouse/GamePad Connection Thru USB): Yes

Home Dashboard (Input, IoT with OFC device): Yes (OCF/UEI IoT not supported)

Image Flip: Yes (Horizontal/Vertical)

Internet Browser: Yes

LG Sound Sync(with Sound Bar): Yes

Noise Reduction: Yes

Platform (OS, UI): webOS24 (Smart)

Plug & Play(RGB/DVI/HDMI Auto Source Detection): Yes

Premium CP: Yes

Processor: Quad Core

Quick(Instant) Power on/off: Yes (on 12 Sec ↓ / off 2 Sec)

Screen Share (Wireless Mirroring with MiraCast supporting device): Yes (up to 4K/30Hz)

Self Diagnosis: Yes

Setting Guide: Yes

Smooth Gradation: Yes

Store Mode: Yes

Super Resolution (Expert Control): Yes (4K)

TruMotion: Yes (up to 4096x2160)

Upscaler: Yes (4K)

USB Host (Movie, Music, Photo): Yes

White balance setting (Expert control): Yes

INPUT/OUTPUT TERMINALS

HDMI: 1

USB Type-C (Display, Charging): 2 (USB2.0, Display, Power : 5V/1A Out, 20V/3.25A In)

INPUT SIGNAL COMPATIBILITY

Digital(HDMI): Up to 4K (4096x2160)
(60Hz, 50Hz, 24Hz)

USB Type-C: Yes

LIGHT SOURCE

Life Hours: 20,000 Hrs

Type: 3Ch Laser
(R, G, B)

NOISE

Energy Saving Max. (Eco): 25 dB(A)↓

Energy Saving Med.: 27 dB(A)↓

Energy Saving Min. (Bright): 29 dB(A)↓

POWER

Power Consumption (Max.): 73W

Power Supply: Adapter 65W(Type-C)

Stand-by Power: <0.5W

PROJECTION IMAGE

Screen Size: 40" ~ 100"

Standard (lens to wall): 100"@0.55m

Throw Ratio: 0.25

PROJECTION LENS

Focus (Auto / Manual): Motorized, Auto

Zoom: Fixed

PROJECTION OFFSET

Projection Offset: 122.5%

PROJECTION SYSTEM

Projection System: DLP

SIZE

Net Size (mm) (W x D x H): 110 x 160 x 160

SOUND

Clear Voice: Yes (Clear Voice lll)

Dolby Atmos compatible: Yes (Support & Pass Through)

Output: 4Wx2

TEMPERATURE

Operation Temperature: 0 ~ 40℃

UNIFORMITY

Uniformity (JBMMA 9 Point): 80%↑

WEIGHT

Net Weight (kg or g): 1.9Kg
