Key Features
The images used in the product overview below are for representative purposes. Refer to the image gallery at the top of the page for an accurate representation.
LG Soundbar and LG QNED TV against the wall with the QNED Matching Bracket in a grey and wooden living space in angled perspective, displaying a man playing a guitar in front of the ocean. LG Soundbar and LG TV in a living room playing an orchestra performance. White waves of droplets representing soundwaves shoot upwards and forward from the soundbar and project from the TV, as subwoofer is creating a sound effect from the bottom. LG Soundbar and LG TV in a black room playing a musical performance. White droplets representing soundwaves shoot upwards and forward from the soundbar, as subwoofer is creating a sound effect from the bottom.
*Screen images simulated.
Appreciate the visual harmony of LG QNED and the all-new Crest Design LG Sound bar for refined interiors.
LG Soundbar and LG QNED TV against the wall with the QNED Matching Bracket in a grey and wooden living space in angled perspective, as LG QNED TV is displaying a man playing a guitar . LG Soundbar and LG QNED TV against a cream wall with the QNED Matching TV Bracket. The TV is playing a video of a woman singing in a recording studio. Below the TV, there is a modern geometric wooden stand. LG Soundbar and LG QNED TV on a wall with the QNED Matching TV Bracket in a cozy and dimly lit living space with children's toys. The TV is playing a video of a little boy playing the cello.

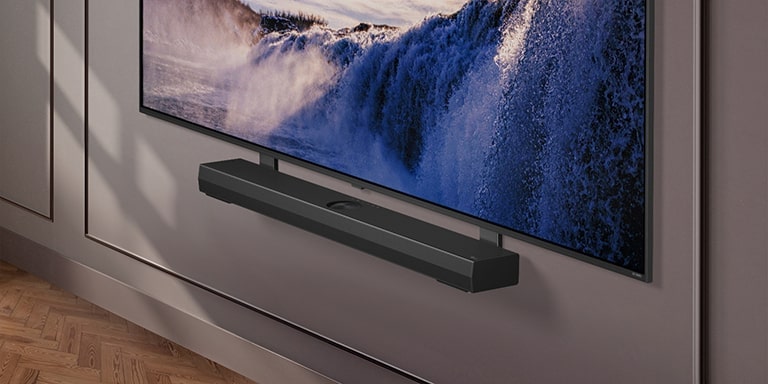

Synergy Bracket
The Synergy Bracket is specifically designed to slot gracefully into your LG QNED TV for visual harmony and a boost in audio performance.
*Applies to 2024 QNED models QNED 90/QNED 85/QNED 80.
?**Synergy Bracket comes with a 1-pole stand or 2-pole stand, which may differ by country/product.
***Synergy Bracket can be purchased separately.
A cozy concert is playing on an LG TV with an LG Soundbar underneath.
La barra de sonido LG, el televisor LG y un subwoofer se encuentran en una sala de estar interpretando una actuación musical. Las gotas blancas generan ondas de sonido que se disparan hacia arriba y hacia adelante desde la barra de sonido y se proyectan desde el televisor. Un subwoofer crea un efecto de sonido desde abajo.
*Screen images simulated.?
**LG TV Remote usage is limited to certain features only.?
***WOW Interface Compatible TVs : OLED M4/G4/C4/B4/M3/G3/C3/B3/A3/Z2/G2/C2/CS/B2/A2, QNED 99/95/90/85/80/75, NANO 80/77/75, UHD UT90/UT80/UT73/UR/UQ. FHD 63 Compatible TVs may vary by year of release.
****WOW Orchestra Compatible TVs: OLED M4/G4/C4/B4/Z3/M3/G3/C3/B3/A3/Z2/G2/C2/CS/B2/A2, QNED 99/95/90/85/80. Compatible TVs may vary by year of release. QNED 80 support limited to 2022 and 2023 models.
*****Please note that services may not be available at the time of purchase. A network connection is required for updates.
******WOW Interface may vary depending on sound bar model.
The Center Up-firing Channel creates more lifelike sound, making voices clearer and on-screen action perfectly synced with the audio — no delays or stutters.
LG Soundbar and LG TV in a black room playing a musical performance. White droplets representing soundwaves shoot upwards and forward from the soundbar. A subwoofer is creating a sound effect from the bottom.
*The above is confirmed through an investigation of its own standards.
**Screen images simulated.?
Dolby Atmos
Immerse yourself in the perfect Dolby experience with LG TV's Dolby Vision and Dolby Atmos on LG Sound bar.
A movie plays on an LG OLED TV and LG Soundbar in a modern city apartment in a side angle view. White beads depicting sound waves project upwards and downwards from the Soundbar and TV, creating a dome of sound in the space. Dolby Atmos logo DTS X logo
*Dolby and Dolby Vision are registered trademarks of Dolby Laboratories Licensing Corporation.
**The double-D symbol is a trademark of Dolby Laboratories Licensing Corporation.
***Screen images simulated
Triple Level Spatial Sound adds a virtual layer to create a sound dome around you of richer sound.
LG Soundbar and LG TV are in a grand city apartment. Three red bands depicting virtual layers with a bold middle layer create a sound dome that envelops the sofas.
*Triple Level Spatial Sound is available through Cinema and AI Sound Pro modes.
**The mid-layer is created using the Sound bar’s speaker channel. The sound of the front and front-top speakers are synthesized to build a sound field. If there is no rear speaker, the rear field cannot be created.
***Screen images simulated.?
****If there is no rear speaker, the rear field cannot be created.

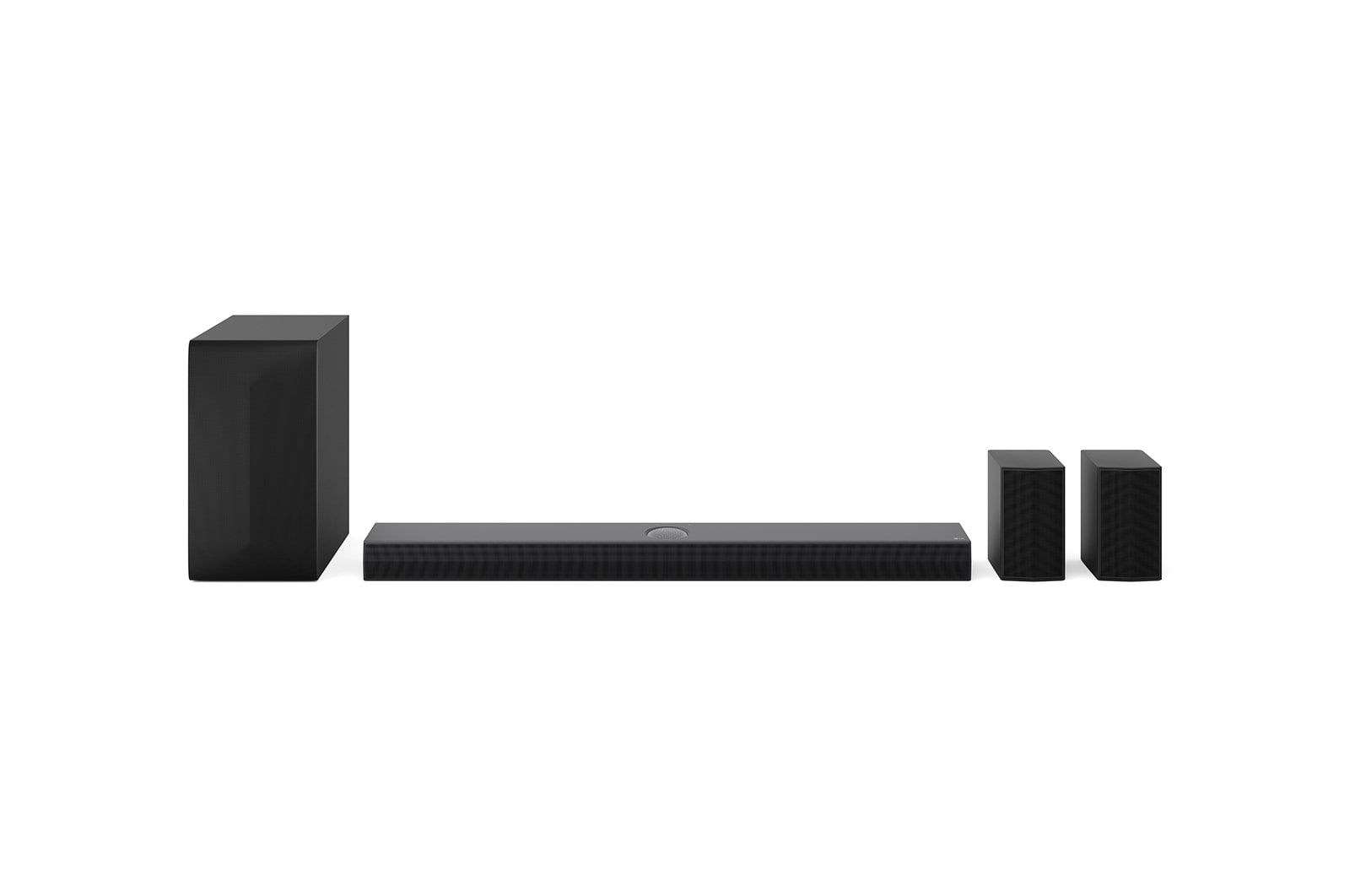

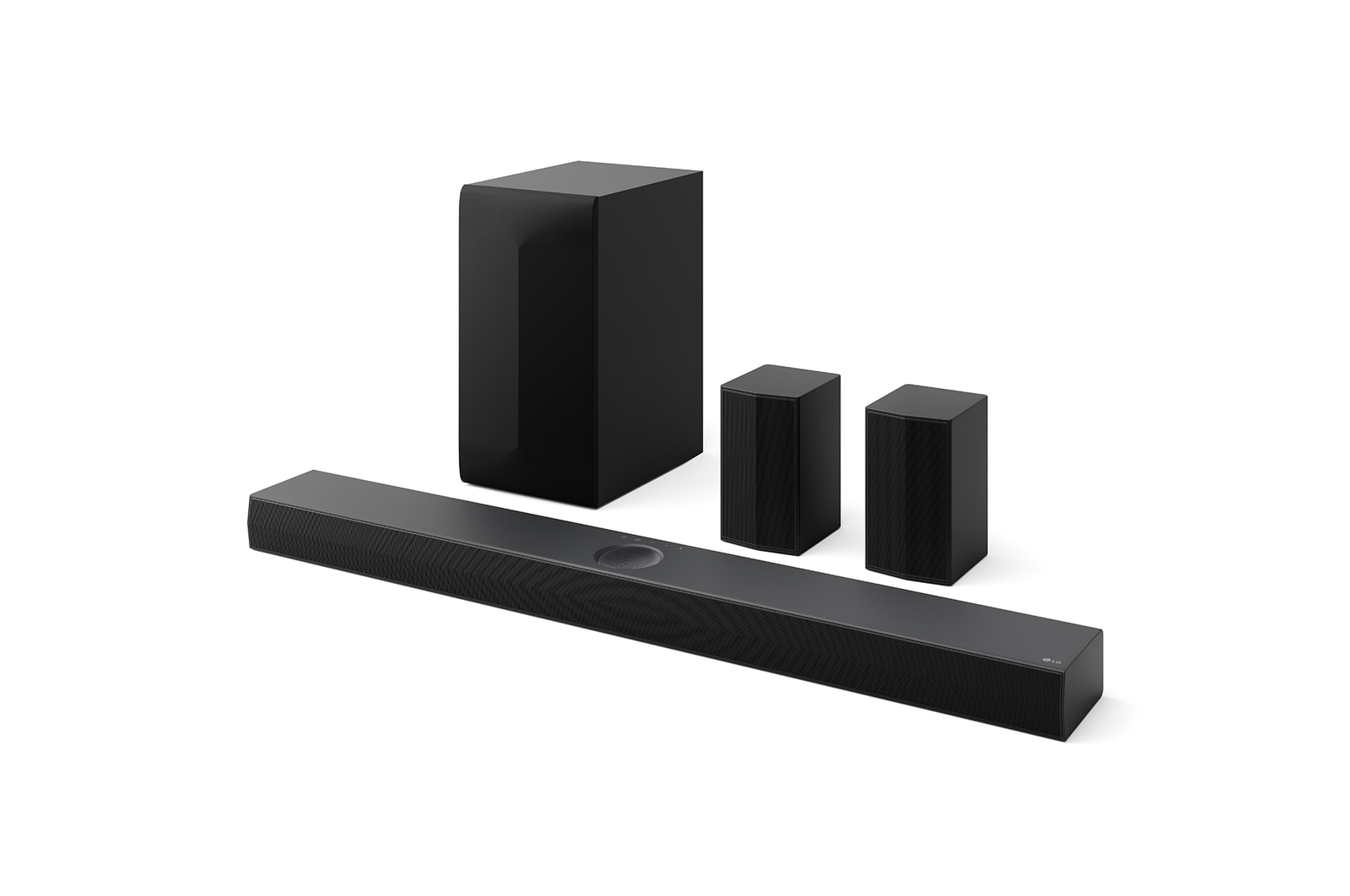

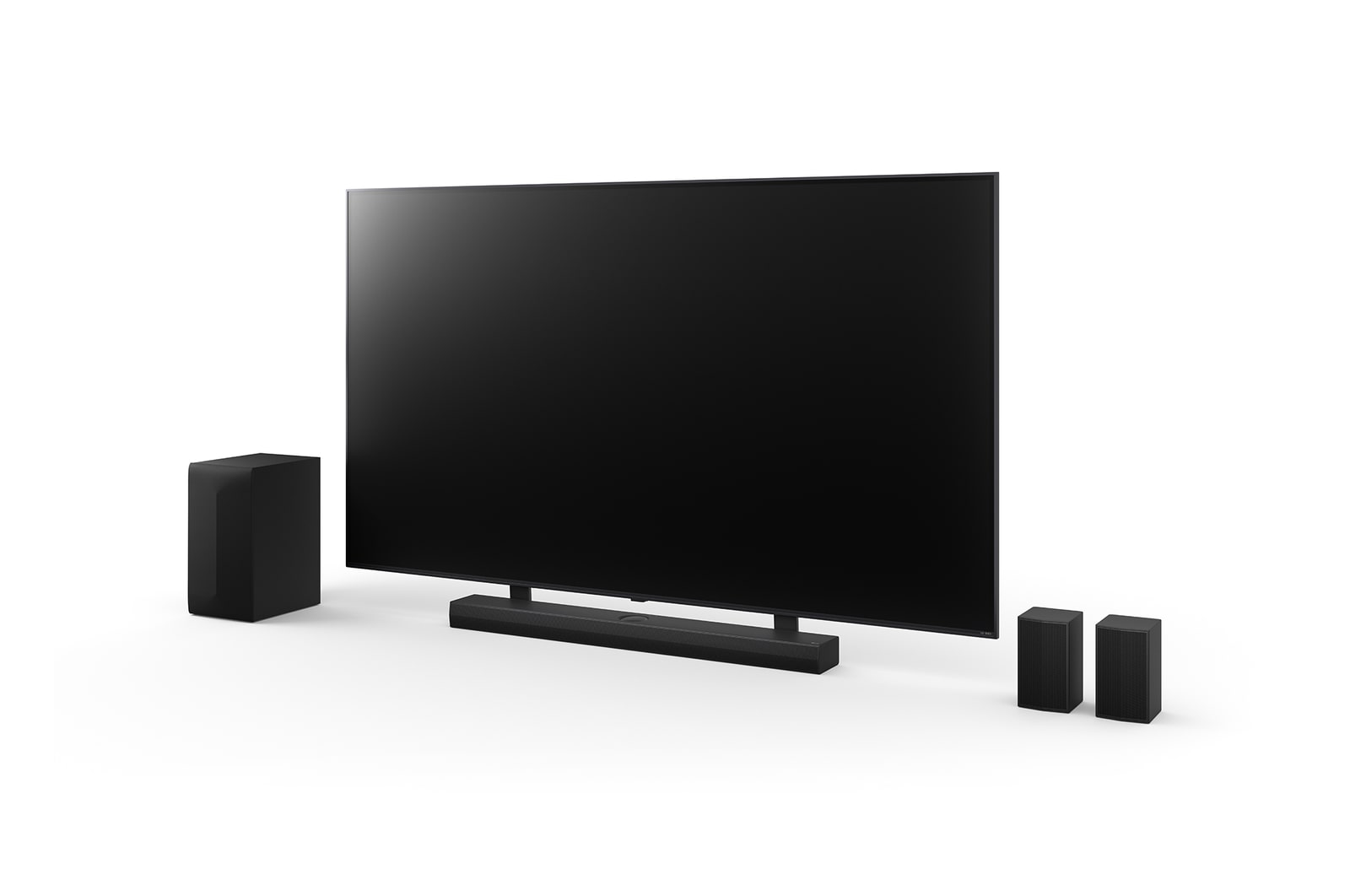

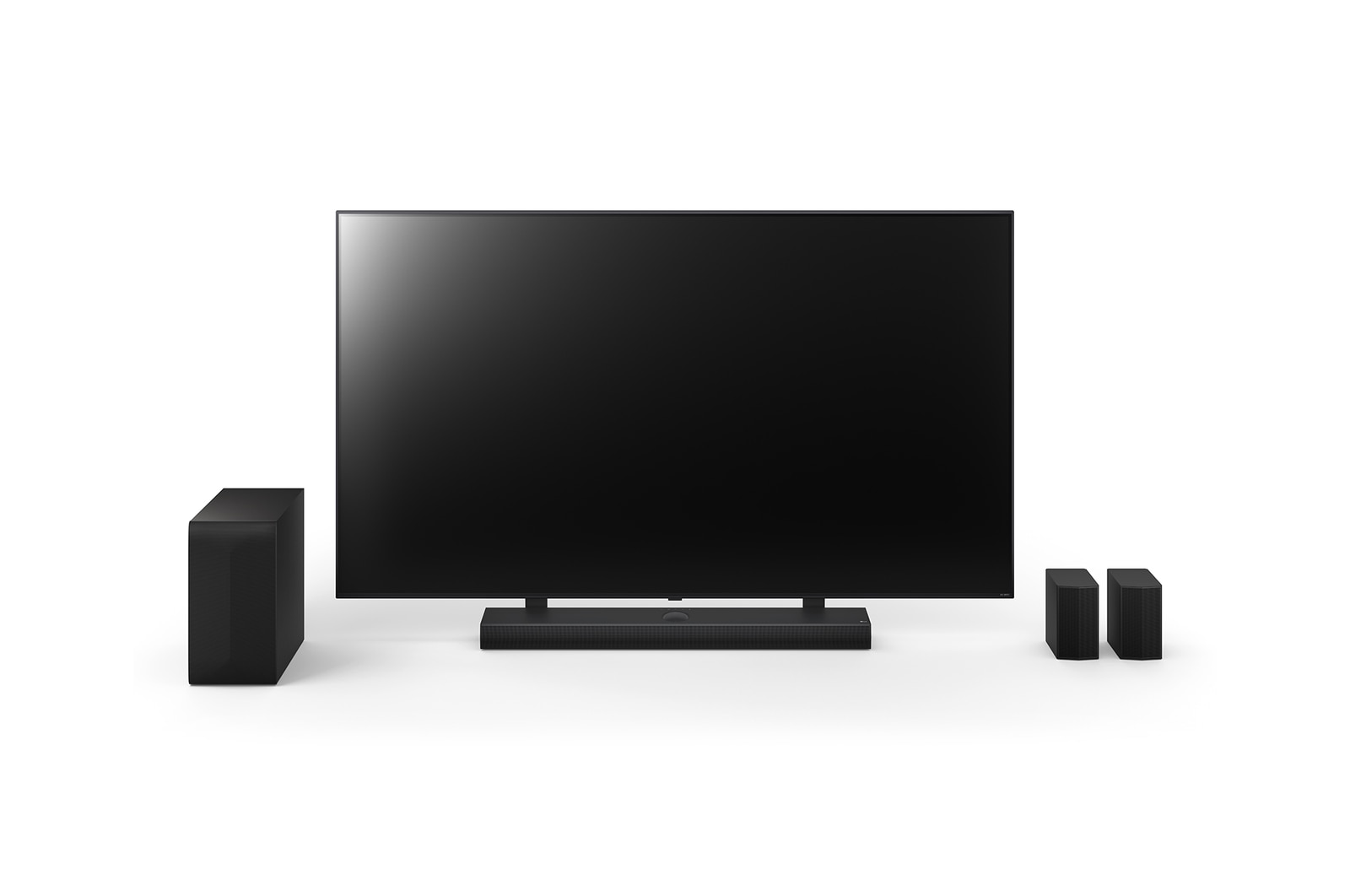

Experience the immersion of Dolby Atmos and DTS:X fill your room with a 500W 5.1.1ch surround sound system, subwoofer, and rear speakers.
LG Soundbar, LG TV, rear speakers and a subwoofer are in a living room of a skyscraper, playing a musical performance. White soundwaves made up of droplets project from the soundbar, looping around the sofa. A subwoofer is creating a sound effect from the bottom. Dolby Atmos logo DTS X logo
*Dolby and Dolby Vision are registered trademarks of Dolby Laboratories Licensing Corporation.
**The double-D symbol is a trademark of Dolby Laboratories Licensing Corporation.
***Screen images simulated.?

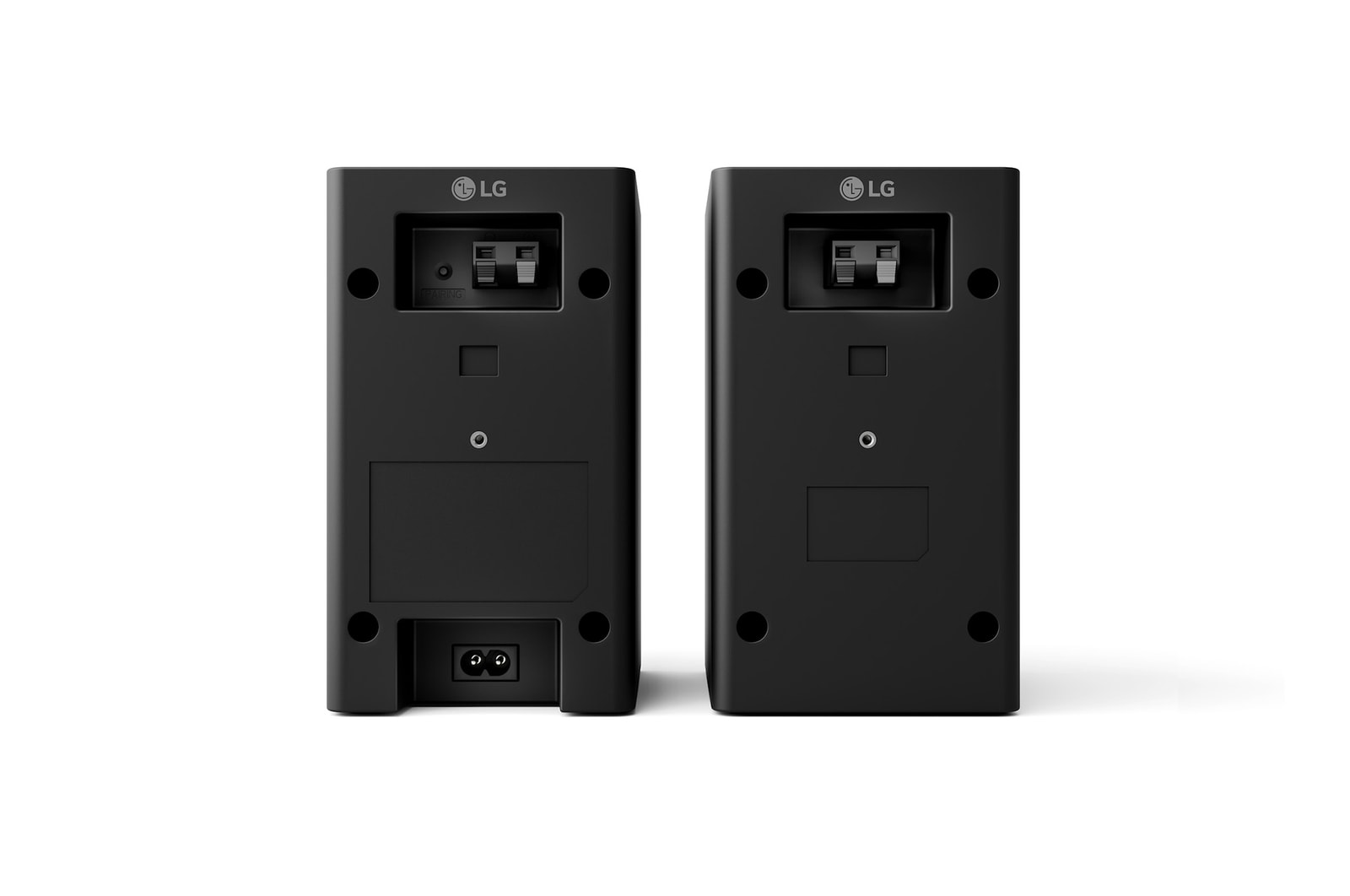

2ch Rear Speakers
Install the Rear Speakers anywhere in your space without worrying about wires, thanks to the built-in Wireless Receiver.?
*Screen images simulated.
**Rear speakers are connected via wired cables.
?
The LG Sound bar converts basic 2-channel audio into multi-channel audio for deep sound that resonates through your space.
?
2 Channel
Multi-Channel
*Smart up-mixing algorithm applies the sound for each channel in AI Sound Pro, Cinema, Clear Voice Pro, Game, and Sports Modes.
**The multi-channel audio experience operates via a smart up-mixing algorithm. This algorithm does not apply to Standard Mode or Music Modes. Bass Blast doesn't use the smart up-mixing algorithm but copies 2ch information and outputs it to all channels.?
***Screen images simulated.?
?
AI Sound Pro categorizes different sounds into effects, music, and voices, and then applies the ideal settings to create the optimal audio experience.
?
An LG Soundbar has three different TV screens above it. The one directly above shows a music concert with a woman singing. The TV on the right-hand side shows a news announcer filming a breaking news broadcast outside an ornate building. The TV on the left-hand side shows a still from an action movie with a man in shadow. In between the TV and soundbar, there is a purple diagram of a soundwave.
An LG Soundbar has three different TV screens above it. The one directly above shows a news announcer filming a breaking news broadcast outside an ornate building. The TV on the right-hand side shows a still from an action movie with a man in shadow. The TV on the left-hand side shows a music concert with a woman singing. In between the TV and soundbar, there is a mint diagram of a soundwave.
An LG Soundbar has three different TV screens above it. The one directly above shows a still from an action movie with a car speeding towards a man and woman. The TV on the right-hand side shows shows a music concert with a woman singing. The TV on the left-hand side news announcer filming a breaking news broadcast outside an ornate building. In between the TV and soundbar, there is a blue diagram of a soundwave.
*Screen images simulated.
?
Free up ports on your TV and connect consoles to your LG Sound bar without compromising graphics performance. VRR/ALLM support ensures tear-free, low input lag gaming.
?
?
LG Soundbar and LG TV are shown together. A racing car game is displayed on screen.
*Screen images simulated.
**According to HDMI 2.1 specifications standards, this sound bar supports eARC, VRR, and ALLM.
***TV, sound bar, and source device (e.g., gaming console) must all support VRR/ALLM.
****VRR pass-through supports 120Hz content. (For 4K, supports YCbCr 4:2:0 / For 1080p, supports 120Hz).
*****Please note that service may not be available at the time of purchase. A software update may be required. A network connection is required for the update.
******HDCP 2.3 supports 4K resolution content. 120Hz support varies by device, with support up to YCbCr4:2:0 for 4K.
HDMI Cable
Yes
Remote Control
Yes
Wall Mount Bracket
Yes
Warranty Card
Yes
Dolby Digital
Yes
AAC
Yes
Dolby Atmos
Yes
DTS Digital Surround
Yes
DTS:X
Yes
Bluetooth Codec - SBC/AAC
Yes
Bluetooth Version
5.1

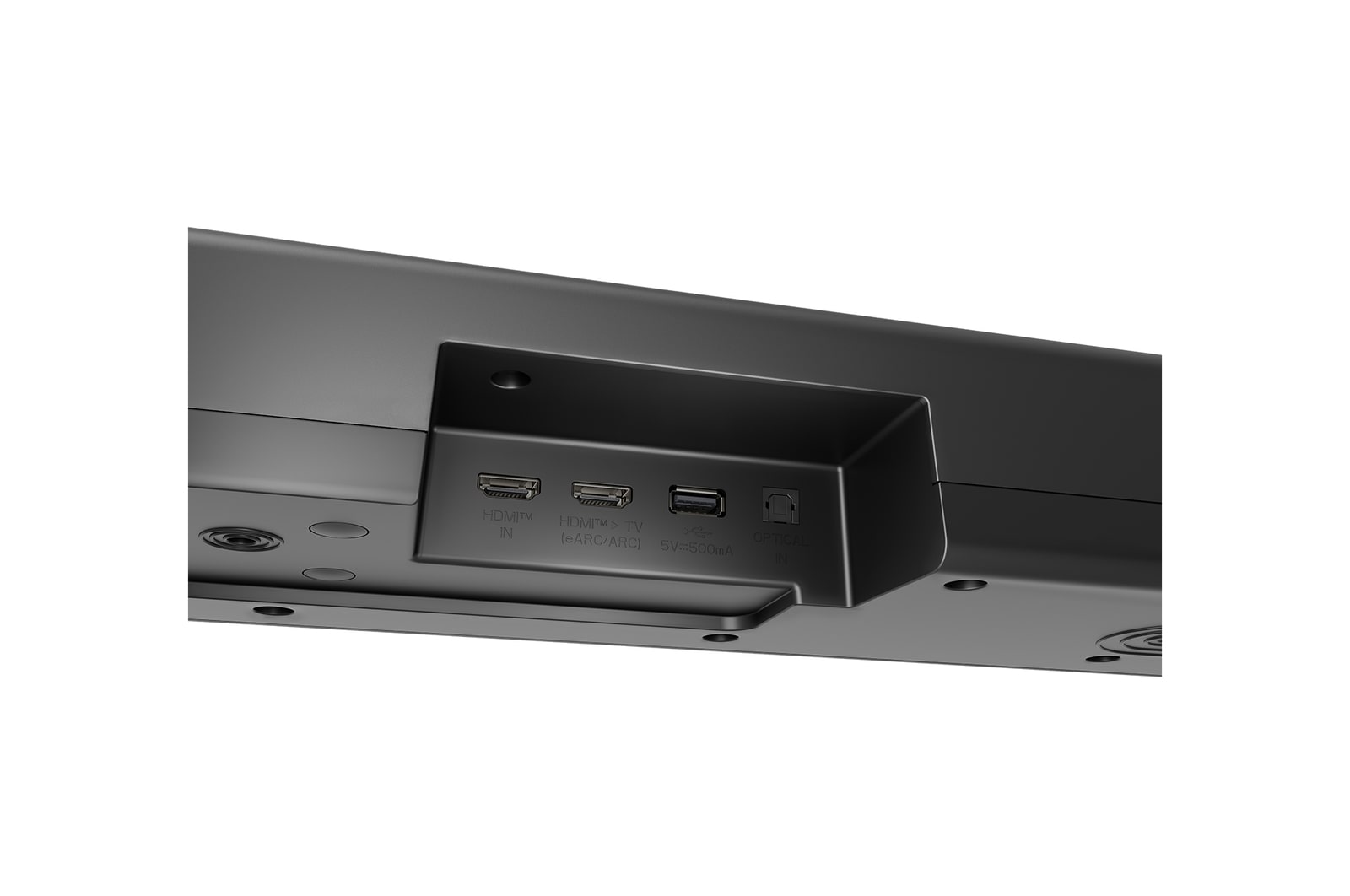

HDMI In
1
HDMI Out
1
Optical
1
USB
1
Wireless Rear Ready
Yes
Remote App - iOS/Android OS
Yes
Soundbar Mode Control
Yes
TV Sound Mode Share
Yes
WOW Interface
Yes

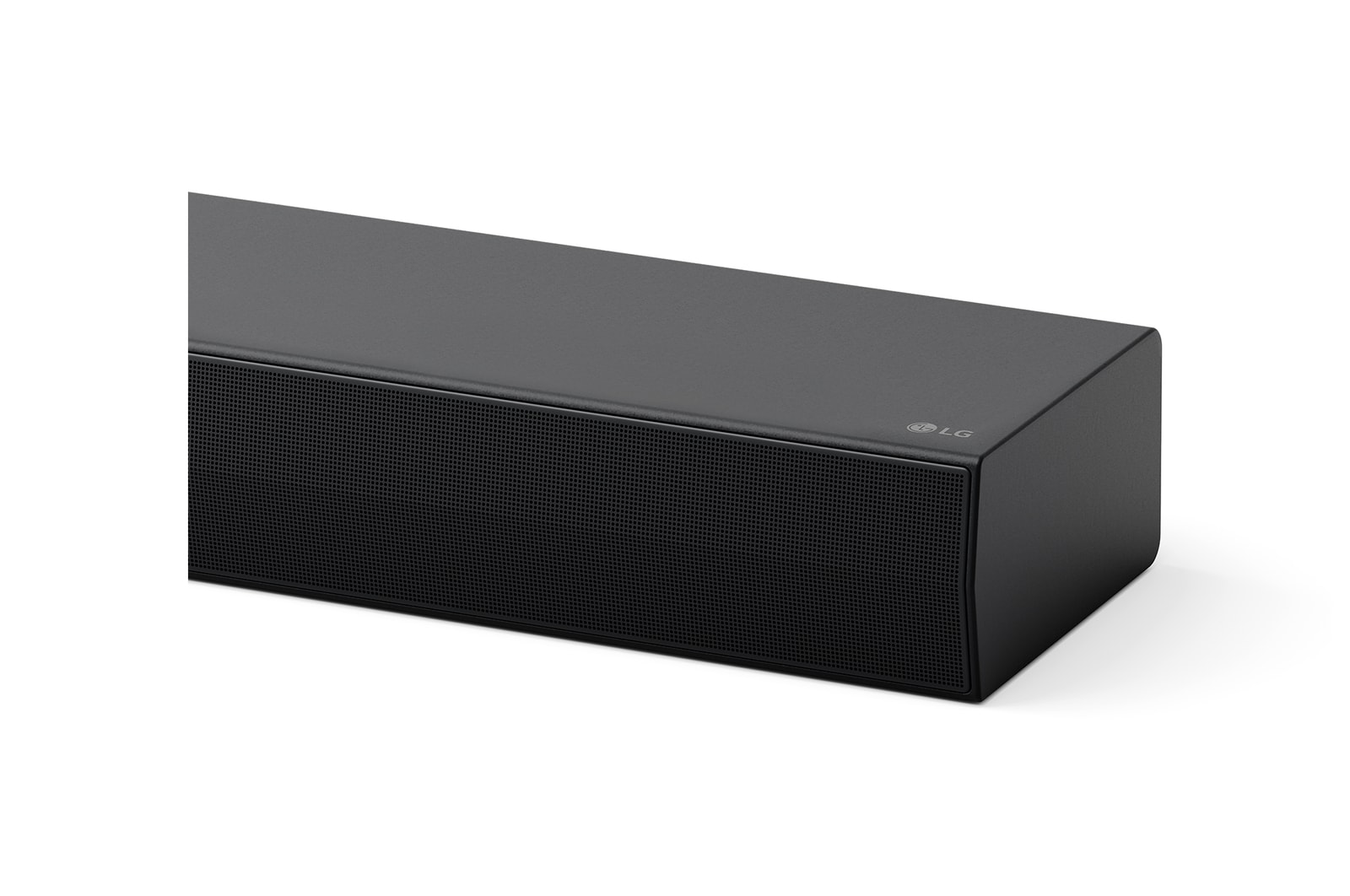

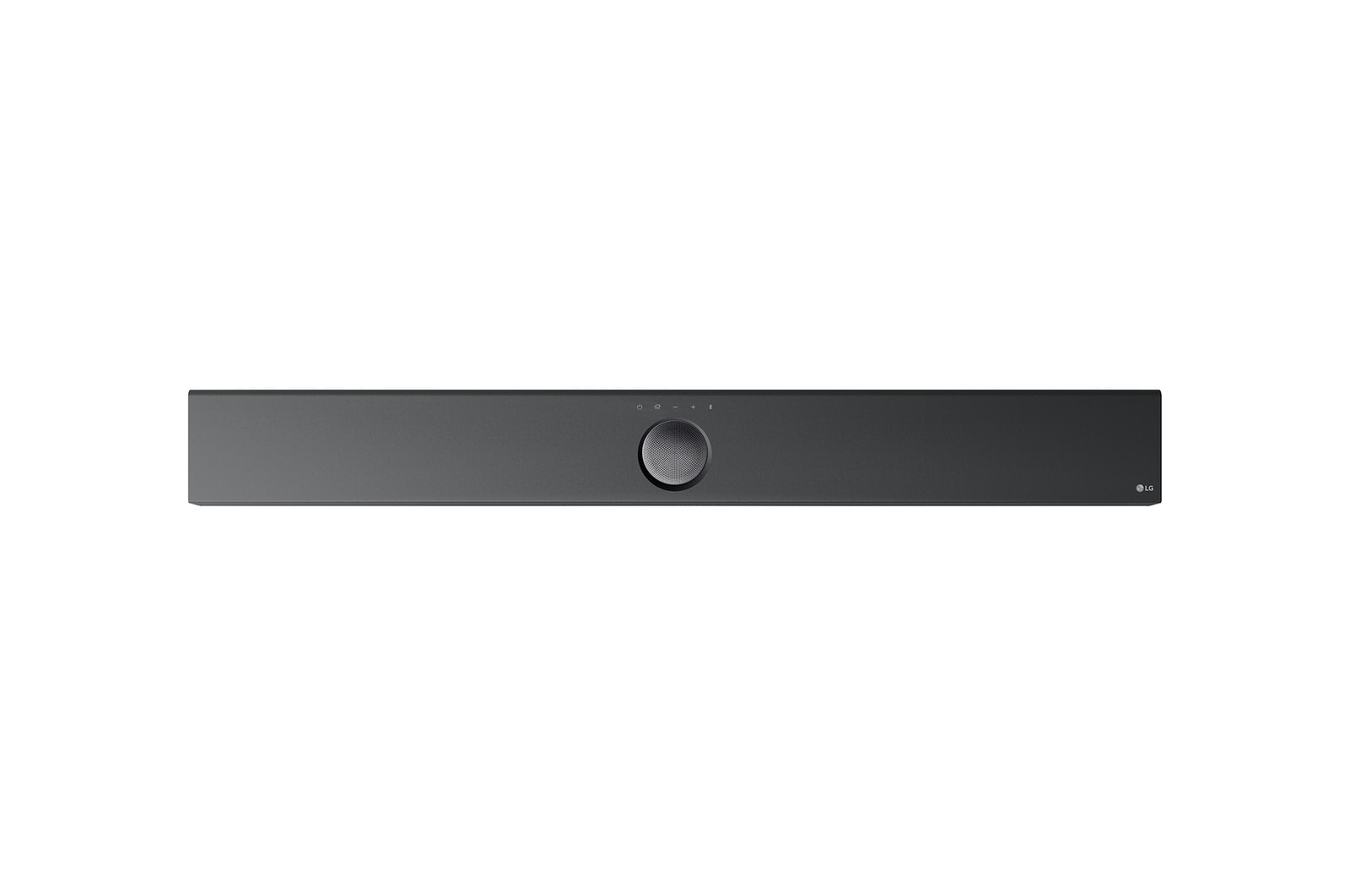

Main
950 x 63 x 115 mm
Rear Speaker
100.0 x 176.5 x 120.0 mm

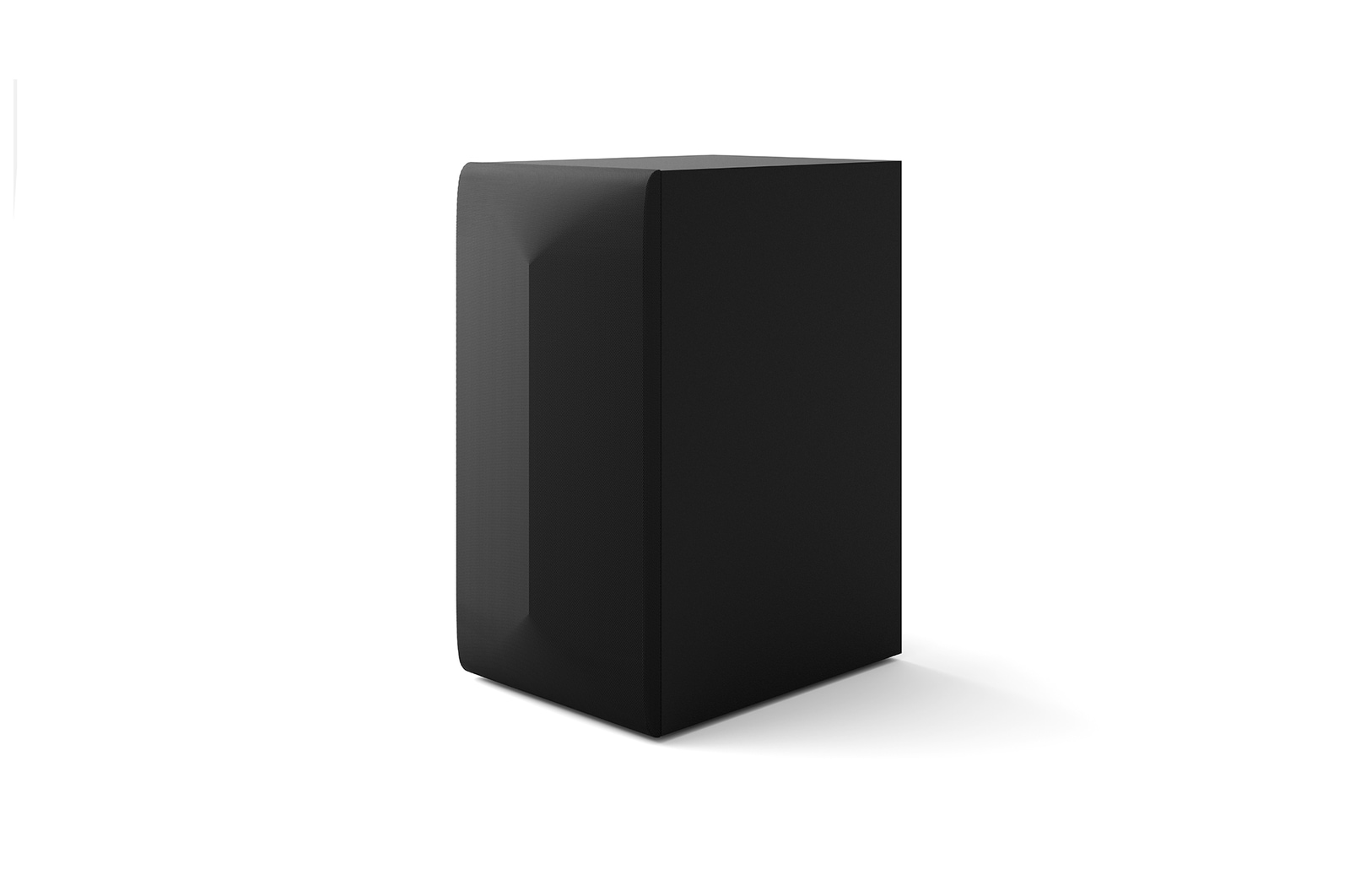

Subwoofer
200 x 377 x 285 mm
Number of Channels
5.1.1
Number of Speakers
9 EA
Output Power
500 W
Audio Return Channel (ARC)
Yes
120Hz
Yes
Audio Return Channel (e-ARC)
Yes
CEC (Simplink)
Yes
Dolby Vision
Yes
HDR10
Yes
Pass-through
Yes
Pass-through (4K)
Yes
VRR / ALLM
Yes
Sampling
24bit/96kHz
Power Consumption (Main)
33 W
Power Consumption (Rear Speaker)
20 W
Power Consumption (subwoofer)
33 W
Power Off Consumption (Main)
0.5 W ↓
Power Off Consumption (Rear Speaker)
0.5 W ↓
Power Off Consumption (Subwoofer)
0.5 W ↓
Bass Blast / Bass Blast +
Yes
AI Sound Pro
Yes
Cinema
Yes
Clear Voice Pro
Yes
Game
Yes
Music
Yes
Sports
Yes
Standard
Yes
Gross Weight
15.4 kg
Main
3.0 kg
Rear Speaker (2EA)
2.1 kg
Subwoofer
5.7 kg
