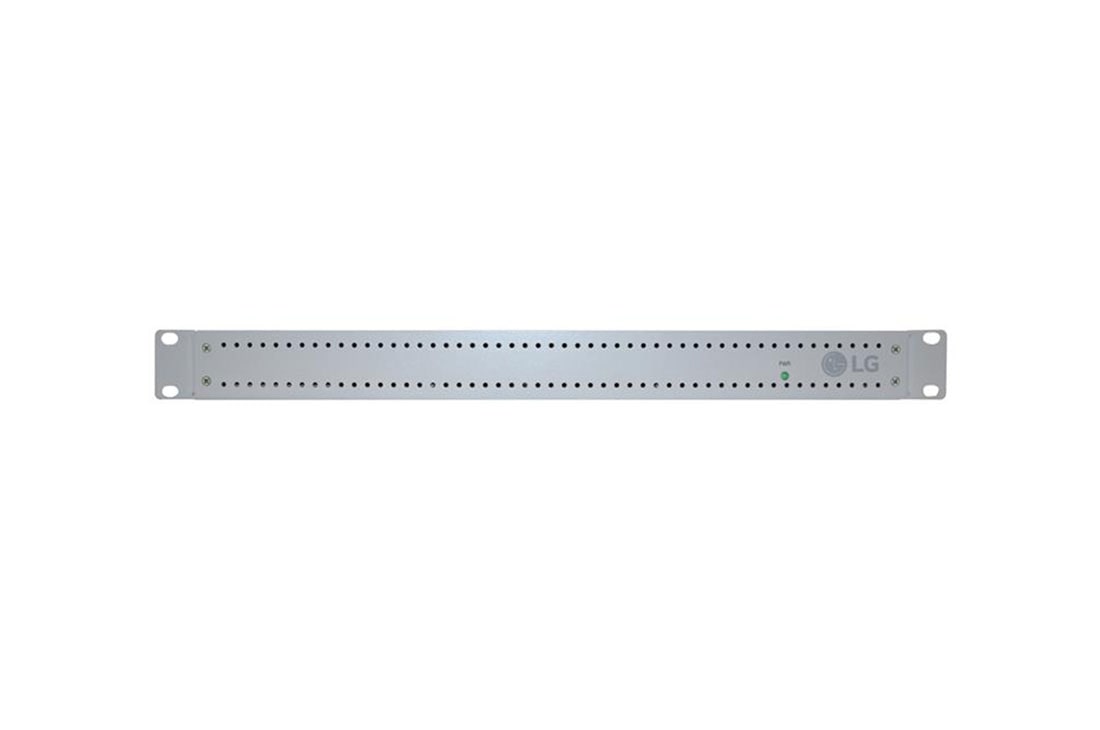

PCS400R
component-copyModelName
Pro:Centric? Server
/
component-OBScountrySelectDesc
*titleText*
component-copyModel-toastMsg
See Retailer for Pricing
Limited Quantity Sale
Available QTY
*quantity* ea
-
Product Price(PCS400R)
$*rPrice*$*rPromoPrice**discountPDPMsg*LG Members Price(PCS400R)$*rMemberPrice*$*rMembershipPrice**discountPDPMsg*vip-price-message(PCS400R)$*rPrice*$*rVipPrice**discountPDPMsg*OBS_CHEAPERPRICE_MSG $*cheaperPrice*
LG Members Price$*rMembershipPrice**rWelcomePriceDescription**rWelcomePriceTooltip*
$*rWelcomePrice*
Total
MSRP
$*improveTotalPrice*
component-previousPrice-prefix
$*rPrice*
$*rPromoPrice*
*discountMsg*
MSRP
$*rPrice*
See Retailer for Pricing
*obsMemberShipLinkStart*
OBS_MEMBERSHIP_MSG $*membershipPrice*
*obsMemberShipLinkEnd*OBS_LOWEST_PRICE_MARK_MSG
OBS_CHEAPERPRICE_MSG $*cheaperPrice*
MSRP
$
See Retailer for Pricing
OBS_MEMBERSHIP_MSG $*recommendedMembershipPrice*
┗ *modelName*
$*discountedPrice*
*userFriendlyName*
bundle-unable-text
$*discountedPrice*
component-discountMsg $*discountPrice*
component-protectYour
0 component-selectedItems
*modelName*
$*rPrice*.*rPriceCent*
$*rPromoPrice*.*rPromoPriceCent*
*discountMsg*
OBS_LOWEST_PRICE_MARK_MSG
*retailerPricingText*
*modelName*
$*rPrice*.*rPriceCent*
$*rPromoPrice*.*rPromoPriceCent*
*discountMsg*
OBS_LOWEST_PRICE_MARK_MSG
*retailerPricingText*
Pro:Centric? Server
MSRP
$*rPrice*
MSRP
$*rPromoPrice*
*discountMsg*
MSRP
$
See Retailer for Pricing
MSRP
vip-price-message
$
Supports Pro:Centric Direct (PCD)
The PCS400R supports LG’s new Pro:Centric Direct, HTML5 Content Management Software. Pro:Centric Direct offers a comprehensive UI (User Interface) Editor, along with customizable widgets and multiple theme templates to enable system integrators to create a unique guest user experience and express the hotel’s brand identity and individuality through LG's Pro:Centric In-Room television.
SERVER ADMIN CLIENT
PCA or PCD Admin Client Graphical User Interface (GUI) is provided and is remotely accessible via the Internet using VPN service and a standard web browser, to provide System Integrator administration users with a full suite of features to manage and support the Pro:Centric system, including:
? System status and logs, and server settings
? Configuration for Channel lineup and Electronic Program Guide
? UI Editor and customization tools
? Managing television configurations settings and software updates
For further details, refer to the appropriate
Pro:Centric? Admin Client User Guide
(also accessible on the system).
? System status and logs, and server settings
? Configuration for Channel lineup and Electronic Program Guide
? UI Editor and customization tools
? Managing television configurations settings and software updates
For further details, refer to the appropriate
Pro:Centric? Admin Client User Guide
(also accessible on the system).
TYPICAL FTG Pro:Centric PCS400R INSTALLATION
Remote management of the PCS400R server functionality is provided via a secure, built-in VPN client that connects to the centralized VPN server. In this way, remote configuration management, remote software updates and other services are supported. Free hosting of the service is provided by LGE during the warranty period. Extended support plans are available.INSTALLATION REQUIREMENTS:Installation of the PCS400R requires the following:– 1U rack space in the Head-end room– Ethernet Connection (VPN and FTP open)– 1 x 110/120VAC power outlet– 1 coax drop to the RF combiner to feed the output of theserver into the RF network or 1 Ethernet cable to connectFeature Port to the IP network switch
SYSTEM SOFTWARE
-
- System Software
- Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications
ELECTRICAL
-
- Active Output Level at RF Out jack
- -1 dBm (+47.75 dBmV) Typical
- DC Input
- +19V DC @ 2.2 Amps Adaptor
-
- RF Output Span
- Up to 8 Contiguous Channels (Typically 48-64 MHz)
- Ethernet Connector (Control Port)
- 10/100/1000 BaseT, RJ-45
-
- Ethernet Connector (Feature Port)
- 100/1000BaseT, Full Duplex RJ-45
- RF Output Frequency Range
- 54 MHz to 865 MHz
-
- RS-232 DB-9
- Command Line Interface port (5V TTL)
- Level at ASI Out Jack
- 800 mv
-
- Frequency Accuracy
- +/- 5 ppm
- ASI Out Jack
- 75 ohms, BNC
-
- Data Output
- ASI,RF, 100/1000T Ethernet
- Rear Port
- ASI/RF/RF Tap/TTL serial, Ethernet 2 Port
-
- Active Output Level
- -1 dBm (+47.75 dBmV) Typical
- Test Output Level
- -47.75 dBm (+1 dBmV) Typical
-
- CPU/Memory / Storage
- 64 bit Intel Atom (4 Cores @ 1.91GHz ) processor / 8GB memory / 275GB SSD
MODULATION SPECIFICATIONS
-
- Standard
- ITU-T J.83 Annex B (QAM-B)
- Constellations
- 64-QAM, 256 QAM
-
- Symbol Rate
- 64-QAM / 256-QAM / 5.056 MBaud, 6.111 Mbaud, 6.9 MBaud
- Interleaving
- Fixed I=128, J=1
-
- Parameters
- 64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments
- Sample Rate
- 8.126984 Ms/s
ENVIRONMENTAL STORAGE CONDITIONS
-
- Humidity
- 95% Non-condensing
- Temperature
- 32° to 104° Fahrenheit
ENVIRONMENTAL OPERATING CONDITIONS
-
- Humidity
- 95% Non-condensing
- Temperature
- -4° to 158° Fahrenheit (-20° to 70° Celsius)
DIMENSIONS
-
- Unit Dimensions (W × H × D)
- 19.0” x 1.7” x 8.5”
- Unit Weight (Rack-only)
- 5.65 Ibs.
REGULATORY COMPLIANCE
-
- Regulatory Compliance
- FCC, UL, RoHS
WARRANTY/UPC
-
- Warranty
- 1 Year
