    49SM5KE-B component-copyModelName

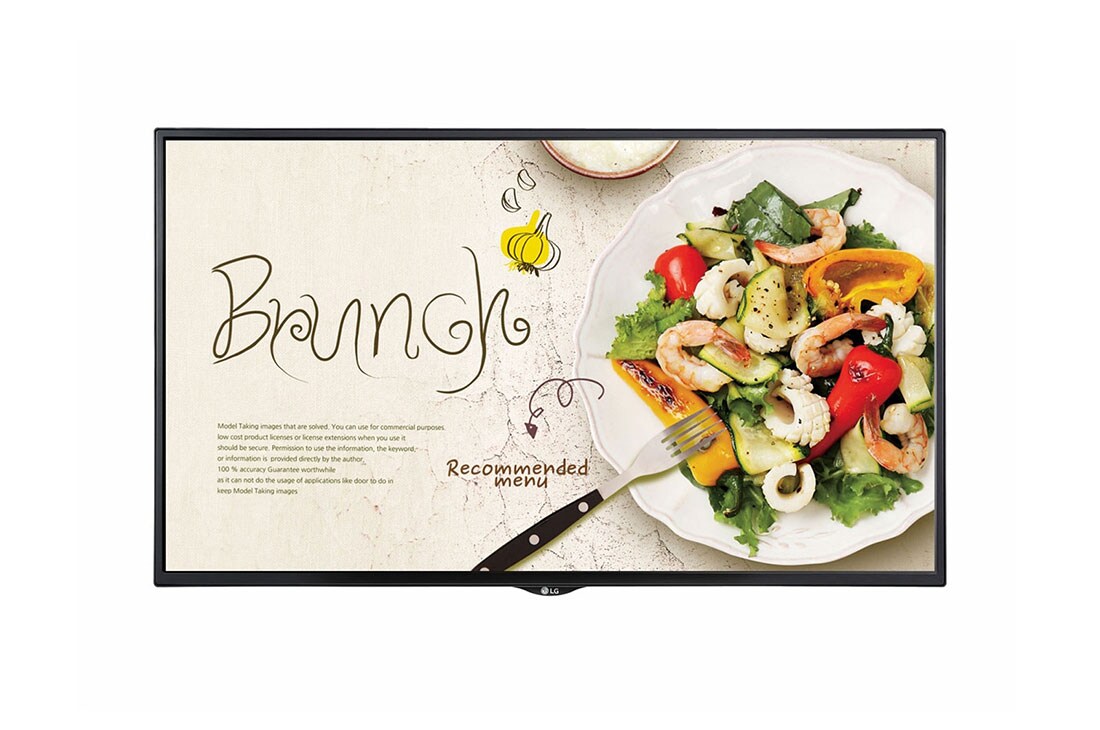

    LG Digital Display Board 49 Inch

    Key Features

    Choose your Size

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (49SM5KE-B)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (49SM5KE-B)
      $
      $
      LG Members Price
    Total
    LG Digital Display Board 49 Inch
    Contact Us
    High Performance Smart Platform1 High Performance Smart Platform2
    Quad Core SoC with webOS

    High Performance Smart Platform

    Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
    Easy Contents Management1 Easy Contents Management2
    Integrated CMS

    Easy Contents Management

    Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.
    Enhanced Usability1 Enhanced Usability2
    GUI for B2B & EZ Setting

    Enhanced Usability

    A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.
    Real-time Streaming1 Real-time Streaming2
    Video Streaming

    Real-time Streaming

    Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
    *Image is for illustration-purposes only.
    *HLS (HTTP Live streaming)/*UDP (User Datagram Prototcol).
    *RTSP (Real-Time streaming Prototcol)/*RTP (Real-time Transport Protocol).
    Seamless Content Playback1 Seamless Content Playback2
    Gapless Playback

    Seamless Content Playback

    During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.
    Multiple Screen Composition1 Multiple Screen Composition2
    PBP/PIP

    Multiple Screen Composition

    PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
    Suited for Industrial Design1 Suited for Industrial Design2
    Detachable Logo & Built-in Speaker

    Suited for Industrial Design

    The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
    <h3 class="text-normal">Wireless Solutions</h3>1 <h3 class="text-normal">Wireless Solutions</h3>2

    Wireless Solutions

    • <h3>Content Sharing</h3>1

      Content Sharing

      Mirroring among devices is more convenient on a Wi-Fi network.

    • <h3>Real-time Promotion</h3>1

      Real-time Promotion

      With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

    Support for Network Protocol1 Support for Network Protocol2

    Support for Network Protocol

    Real-time Care Service1 Real-time Care Service2

    Value-added Offerings

    Real-time Care Service

    The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

    Thermal Printer Supported1 Thermal Printer Supported2
    Value-added Offerings

    Thermal Printer Supported

    Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.
    *Supported model: NIPPON PRIMEX (NP-3511, NP-3611).
    • HTTPS1

      HTTPS

      With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.

    • Proxy Server1

      Proxy Server

      Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

    <h3 class="text-normal">Conformal Coating</h3>1 <h3 class="text-normal">Conformal Coating</h3>2

    Conformal Coating

    The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
    Optimized Work-Flow with LG Presenter1 Optimized Work-Flow with LG Presenter2

    Optimized Work-Flow with LG Presenter

    LG Presenter, an embedded application, enables wireless screen sharing* between computers and LG digital signages. It provides users with a smart and convenient meeting experience, reducing time spent unnecessarily managing devices and cables for connection.
    *A laptop and a display must be connected to same network.
    *Installation of the PC client app is required.
    Go to the 'Tech spec' section of this page for the minimum requirements and then download the app from the 'Business Resources' section.
    Close
    PANEL
    • Screen Size
      49"
      Resolution
      1,920 x 1,080 (FHD)
    • Brightness(Typ.,cd/m2)
      450
    CONNECTIVITY
    • Input
      HDMI (3), DP, DVI-D, Audio, USB 3.0
      Output
      DP (SST), Audio (Off/Fixed/Variable)
    • External Control
      RS232C In/Out, RJ45 In, IR Receiver In
    PHYSICAL SPECIFICATION
    • Bezel Width
      11.9 mm (T/R/L), 18 mm (B)
      Monitor Dimension (W x H x D)
      1,102.2 x 638.5 x 54 mm
    • Weight (Head)
      14.3kg
      Monitor with Optional Stand Dimensions (W x H x D)
      1102.2 x 696.8 x 219.6 mm
    • Weight (Head+Stand)
      17.6kg
      Carton Dimensions (W x H x D)
      1,197 x 760 x 166 mm
    • Packed Weight
      17.4kg
      VESA? Standard Mount Interface
      300 x 300 mm
    MINIMUM REQUIREMENTS FOR LG PRESENTER
    • OS (Windows)
      Windows 7*, Windows 10 (32bit or 64bit)
      OS (macOS)
      macOS 10.12 Sierra, MacOS 10.13 High Sierra
    • CPU (Windows)
      2.7GHz+ Dual Core Broadwell or higher
      CPU (macOS)
      Any CPU which supports Sierra or High Sierra
    • Memory
      4GB RAM
      Hard Drive
      1GB of free space
    • Graphics Hardware (Windows)
      Intel Iris or higher, Nvidia, ATI
      Graphics Hardware (macOS)
      Any GPU which supports Sierra or High Sierra
    ENVIRONMENT CONDITIONS
    • Operation Temperature
      0°C to 40°C
      Operation Humidity
      10% to 80%
    POWER
    • Power Supply
      100-240 V~, 50/60 Hz
      Power Type
      Built-In Power
    POWER CONSUMPTION
    • Typ. / Max.
      85W (TBD)/105W
      Smart Energy Saving
      60W (TBD)
    STANDARD(CERTIFICATION)
    • Safety
      IEC 60950-1/EN 60950-1/UL 60950-1
      EMC
      FCC Class "A"/CE/KC
    • ErP / Energy Star
      N/A / Yes (Energy Star 8.0)
    MEDIA PLAYER COMPATIBILITY
    • OPS type compatible
      Yes
      External Media player Attatchable
      Yes
    SOFTWARE COMPATIBILITY
    • Content Management Software
      SuperSign CMS
      Control and Monitoring Software
      SuperSign Control+/Control
    ACCESSORY
    • Basic
      Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
      Optional
      Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)
