Key Features

Brightness(Typ.): 450 cd/m2
Bezel : T/L/R 11.9 mm, B 18.0 mm
Depth : 56.5 mm
Interface : HDMI(2), DVI, DP, RGB, RJ45, IR, RS232C, USB
Built-in Speaker : 10W + 10W

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 450 cd/m2
Bezel : T/L/R 11.9 mm, B 18.0 mm
Depth : 56.5 mm
Interface : HDMI(2), DVI, DP, RGB, RJ45, IR, RS232C, USB
Built-in Speaker : 10W + 10W

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

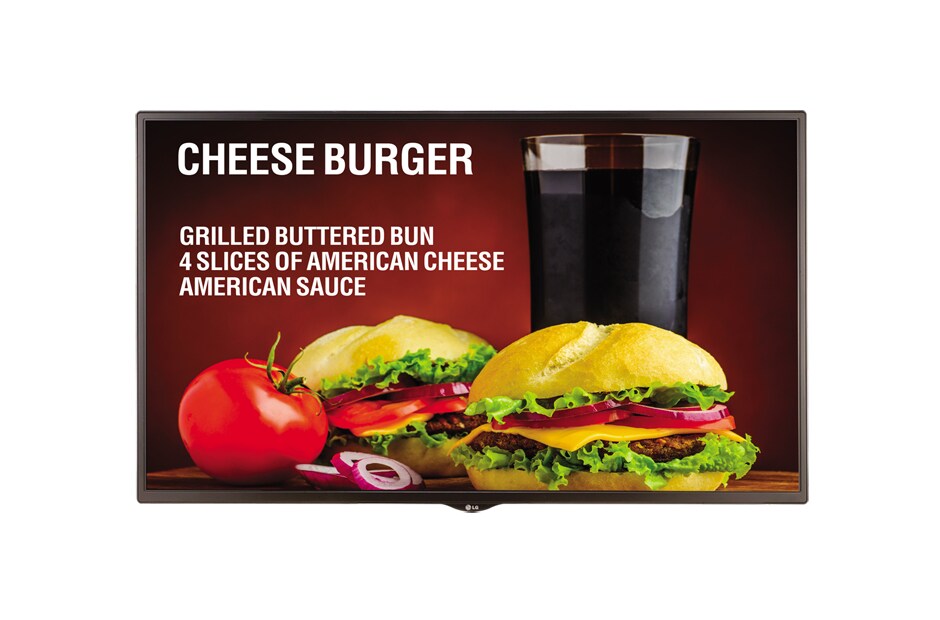

SM5KD Series

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

Integrated CMS

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.

GUI for B2B & EZ Setting

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.

Video Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
* Image is for illustration-purposes only.

^* HLS (HTTP Live Streaming) / ^* UHD (User Datagram Protocol)
^* RTSP (Real-Time Streaming Protocol) / ^* RTP (Real-time Transport Protocol)

Gapless Playback

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Detachable Logo & Built-in Speaker

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Support for Network Protocol

HTTPS

With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.
Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

PANEL

Screen Size

65"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m2)

450

CONNECTIVITY

Input

HDMI (2), DP, DVI-D, RGB, Audio, USB 3.0

Output

DP, Audio
External Control

RS232C in/out, RJ in, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Monitor Dimension (W x H x D)

1,456.9 x 838 x 56.5 mm
Weight (Head)

27.9 kg

VESA? Standard Mount Interface

300 x 300

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240 V~, 50/60 Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

120 W

Smart Energy Saving

85 W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

NA / Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

ACCESSORY

Basic

Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover

Optional

Stand (ST-652T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AMB330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T651)
