數碼戶外顯示屏 LBS

數碼戶外顯示屏 LBS 系列採用纖薄的裝置組件，設計適用於各種戶外用途。

產品及銷售查詢

Gallery Features Spec

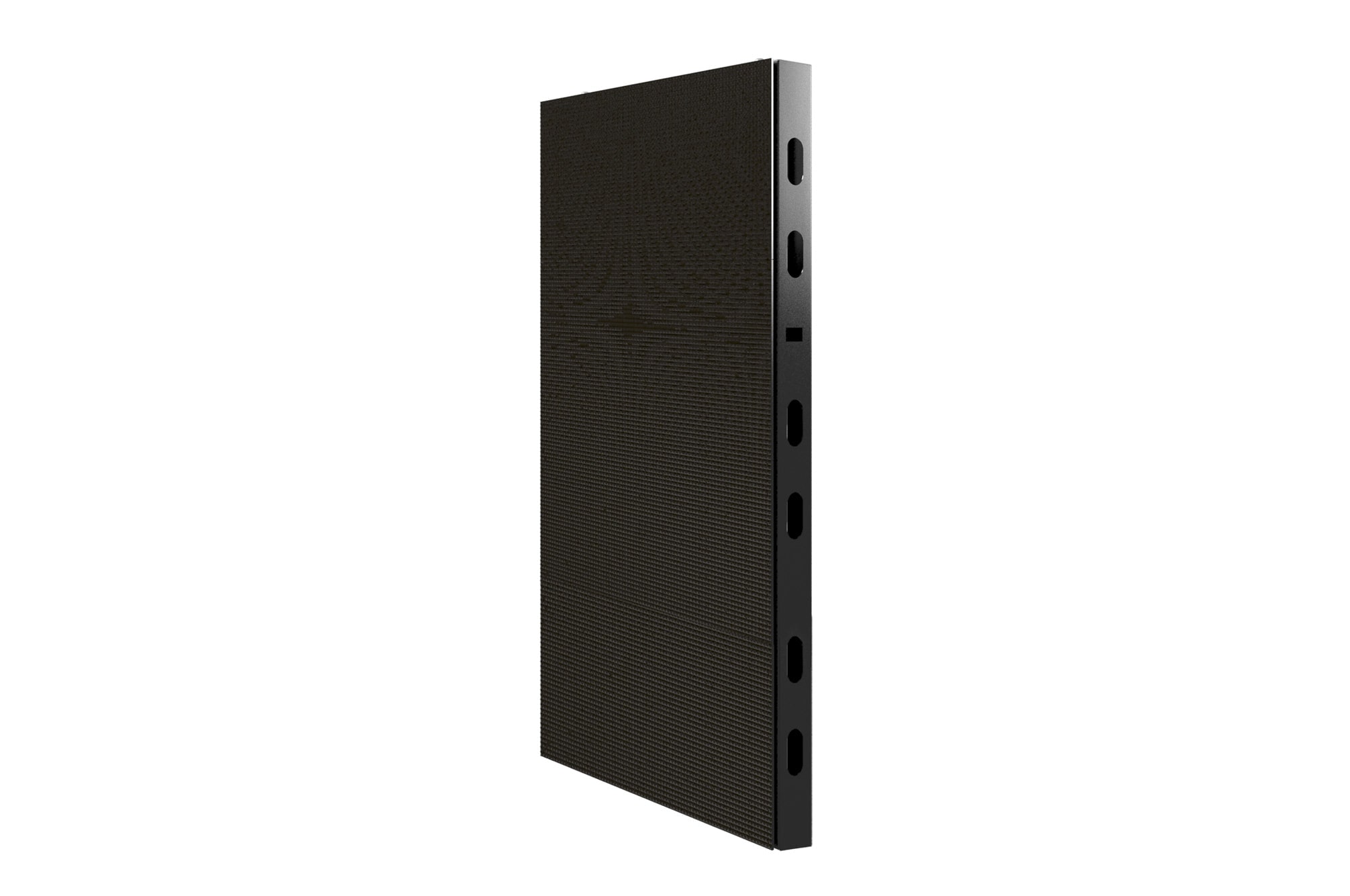

ID-LBS-DOOH-Series-Gallery-00_1554358159698

ID-LBS-DOOH-Series-Gallery-01_1554161980928

ID-LBS-DOOH-Series-Gallery-02_1554162001965

ID-LBS-DOOH-Series-Gallery-03_1554162012018

ID-LBS-DOOH-Series-Gallery-04_1554162022763

ID-LBS-DOOH-Series-Gallery-05_1554162032026

D03_ID-LBS-DOOH-01-Outstading-Visibility_full_1554706871082

出眾影像

數碼戶外顯示屏 LBS 系列亮度達 6,000 nits ，即使在陽光直射下的戶外環境使用，內容仍能清晰表達，瞬間引人注目。

D04_ID-LBS-DOOH-02-Smooth-Playback-in-Dynamic-Motion_full_1554706921699

流暢播放影像

備有高達 4,000Hz 更新率，確保內容播放流暢。無閃爍圖像可防止錄製時影片出現黑線，亦減少觀看者出現眼睛疲勞和視力模糊的問題。

D05_ID-LBS-DOOH-03-Reliable-Weatherproof-Design_1554337323387

防風雨設計　可靠耐用

裝置組件的正面和背面均獲 IP66 認證，不受天氣和有害室外環境影響，運作穩定。

D06_ID-LBS-DOOH-04-Stadium-Front-and-Rear-Serviceability_CN

前向或後向式操作

該產品可在正向式或背向式操作，根據其安裝環境選擇，盡量減少安裝和維修的限制。

D05_ID-LBS-Stadium-04-Detailed-Expression-of-Color-Depth_1554352909619

呈現細緻色彩

16 位色彩處理提供更闊的灰色色域，顯示不同深度和色彩密度而不會失真，提供更逼真細緻的影像。

D08_ID-LBS-DOOH-06-Slim-and-Lightweight-Design_1554337475152

纖薄輕巧的機身設計

1 平方米的 LED 顯示屏重量僅為 31.3 公斤，整套屏幕亦很輕巧，減低了支撐屏幕時的結構壓力。

Model Name	LBS062DA1-V	LBS062DA3-V	LBS083DA1-V	LBS083DA3-V
Pixel Configuration	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD
Pixel Pitch(mm)	6.25	6.25	8.333	8.333
Unit Case Resolution(WxH)	128x256	128x256	96x192	96x192
Unit Case Dimensions(WxHxD, mm)	800x1600x143.5	800x1600x143.5	800x1600x143.5	800x1600x143.5
Weight per Unit Case/Square Meter (kg)	40.0/31.3	40.0/31.3	40.0/31.3	40.0/31.3
Service access	Front and Rear	Front and Rear	Front and Rear	Front and Rear
Min. Brightness(After Calibration, cd/m2)	6,000	6,000	6,000	6,000
Color Temperature	3500-8500	3500-8500	3500-8500	3500-8500
Visual Viewing Angle(Horizontal/Vertical)	160/130	160/130	160/125	160/125
Brightness Uniformity / Color Uniformity	97％/±0.05Cx,Cy	97％/±0.05Cx,Cy	97％/±0.05Cx,Cy	97％/±0.05Cx,Cy
Contrast Ratio	3,000	3,000	3,000	3,000
Processing Depth (bit)	16	16	16	16
Power Consumption(W/Unit, Avg./Max.)	312/780	312/780	320/800	320/800
Power Consumption(W/m2, Max.)	609	609	625	625
Power Supply (V)	100 to 240	100 to 240	100 to 240	100 to 240
Refresh Rate (Hz)	4,000	4,000	4,000	4,000
Lifetime(Half brightness, hrs)*	100,000	100,000	100,000	100,000
Operating Temperature(°C) / Humidity	-20° to 50°/< 90％RH	-20° to 50°/< 90％RH	-20° to 50°/< 90％RH	-20° to 50°/< 90％RH
IP rating Front / Rear	IP66/IP66	IP66/IP66	IP66/IP66	IP66/IP66

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.

Model Name	LBS100DA1-V	LBS100DA3-V
Pixel Configuration	3 in 1 SMD	3 in 1 SMD
Pixel Pitch(mm)	10	10
Unit Case Resolution(WxH)	80x160	80x160
Unit Case Dimensions(WxHxD, mm)	800x1600x143.5	800x1600x143.5
Weight per Unit Case/Square Meter (kg)	40.0/31.3	40.0/31.3
Service access	Front and Rear	Front and Rear
Min. Brightness(After Calibration, cd/m2)	6,000	6,000
Color Temperature	3500-8500	3500-8500
Visual Viewing Angle(Horizontal/Vertical)	160/115	160/115
Brightness Uniformity / Color Uniformity	97％/±0.05Cx,Cy	97％/±0.05Cx,Cy
Contrast Ratio	3,000	3,000
Processing Depth (bit)	16	16
Power Consumption(W/Unit, Avg./Max.)	300/750	300/750
Power Consumption(W/m2, Max.)	586	586
Power Supply (V)	100 to 240	100 to 240
Refresh Rate (Hz)	4,000	4,000
Lifetime(Half brightness, hrs)*	100,000	100,000
Operating Temperature(°C) / Humidity	-20° to 50°/< 90％RH	-20° to 50°/< 90％RH
IP rating Front / Rear	IP66/IP66	IP66/IP66

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
