    LBE DOOH

    D01_ID_LED-Signage_hero_02_M03_LBE-DOOH_1554700996524

    LBE DOOH

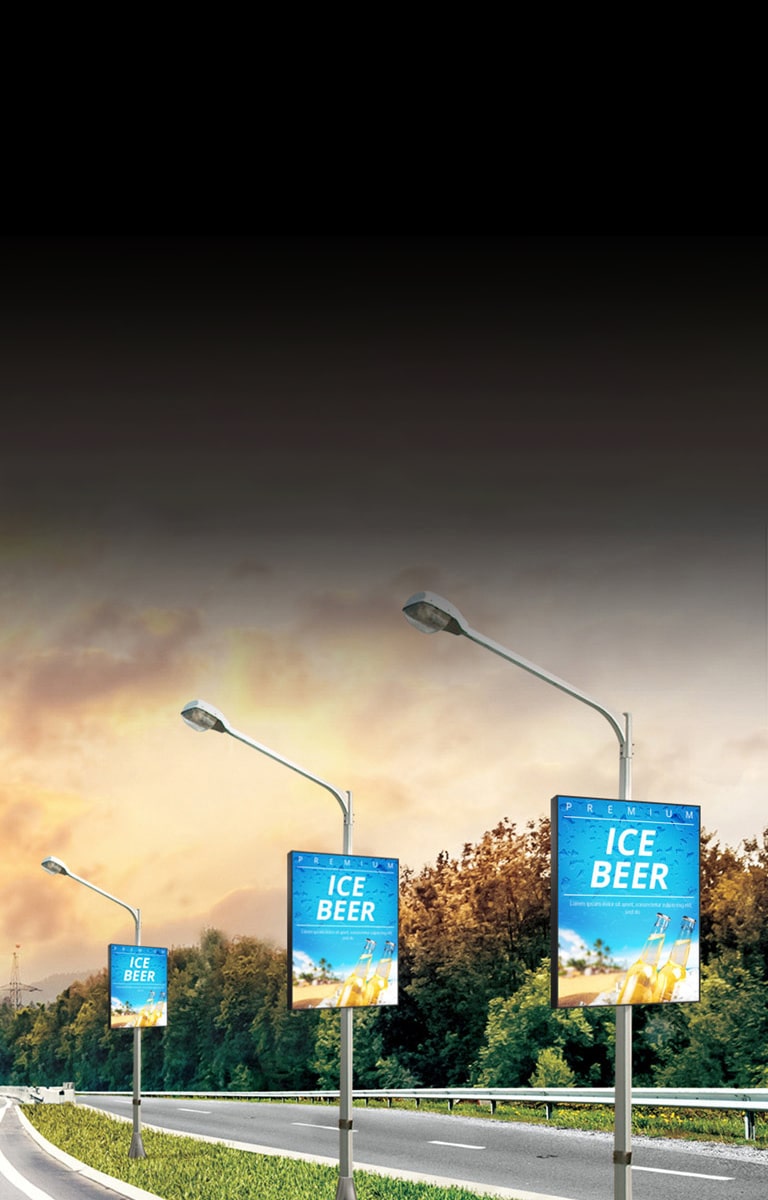

    The LBE DOOH series is suitable for fixed outdoor installation, featuring slim die-cast aluminum housing for seamless building with energy efficient performance. It can be configured to screen ratios of 4:3, 8:9, and 16:9, which are ideal for playing back advertising content.

    LBE DOOH Click here for sales inquiry
    Gallery Features Tech specs
    D03_ID-LBE-DOOH-01-Reliable-Weatherproof-Design_1554339396959

    Reliable weatherproof design

    The front and back of the unit case are IP65- and IP54-certified, respectively, allowing stable operation unaffected by weather and harmful outdoor environments.

    ?

    D06_ID-LAE-Standard-04-Front-or-Rear_1554422910755-hk

    Front or rear serviceability

    The product offers either front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

    *Except the LBE040DD4 model

    ID-LBE-DOOH-03-Die-Cast-Aluminum-Frame-Design_CN

    Die cast aluminum frame design

    The aluminum frame design gives the unit cases clean angles and finishes, eliminating gaps that would disrupt the smooth screen display.

    ID-LBE-DOOH-04-Fast-Lock-for-Easy-Assembly_CN

    Fast lock for easy assembly

    The unit cases can be simply connected by “rolling fast lock” each other.

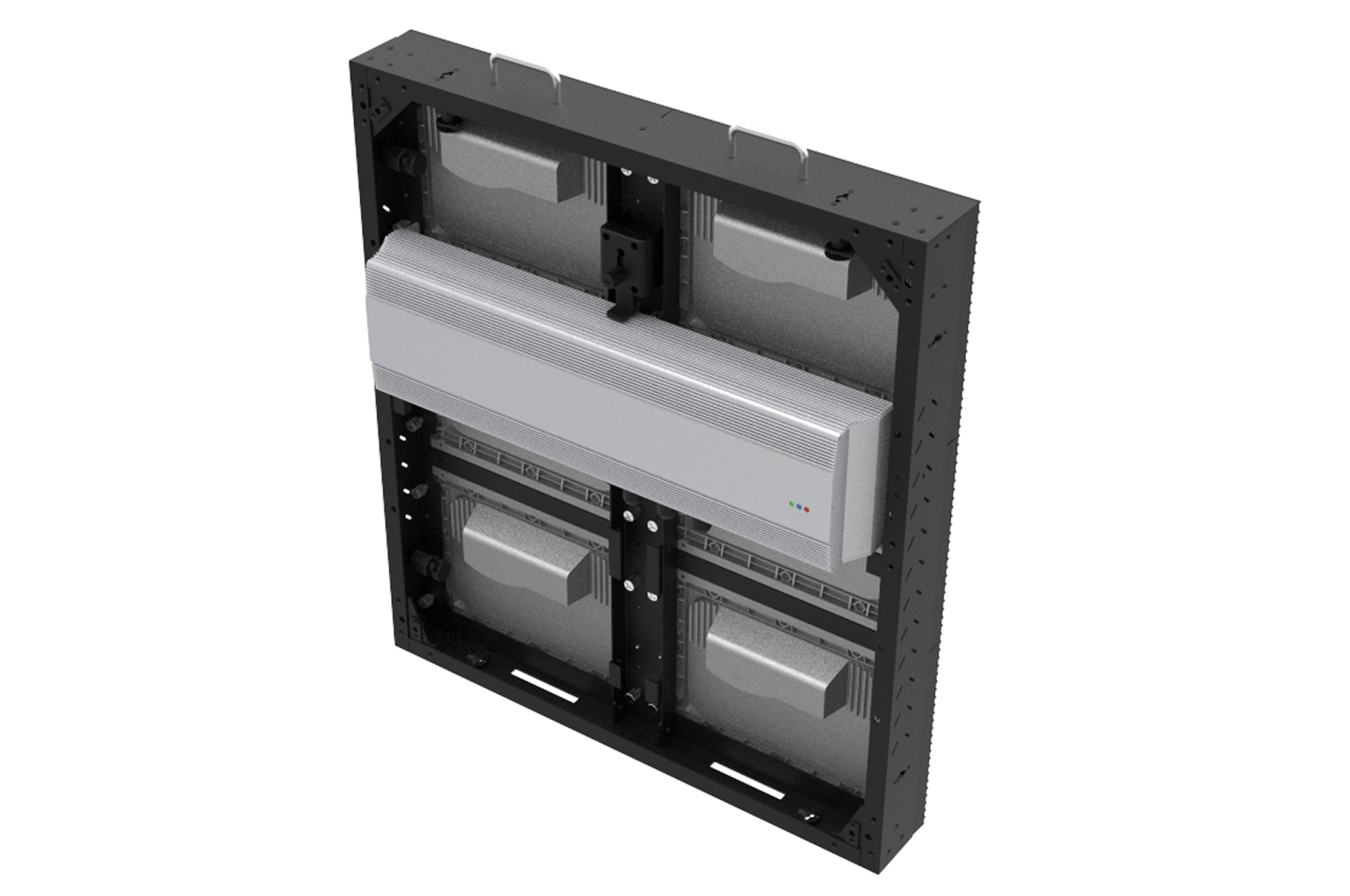

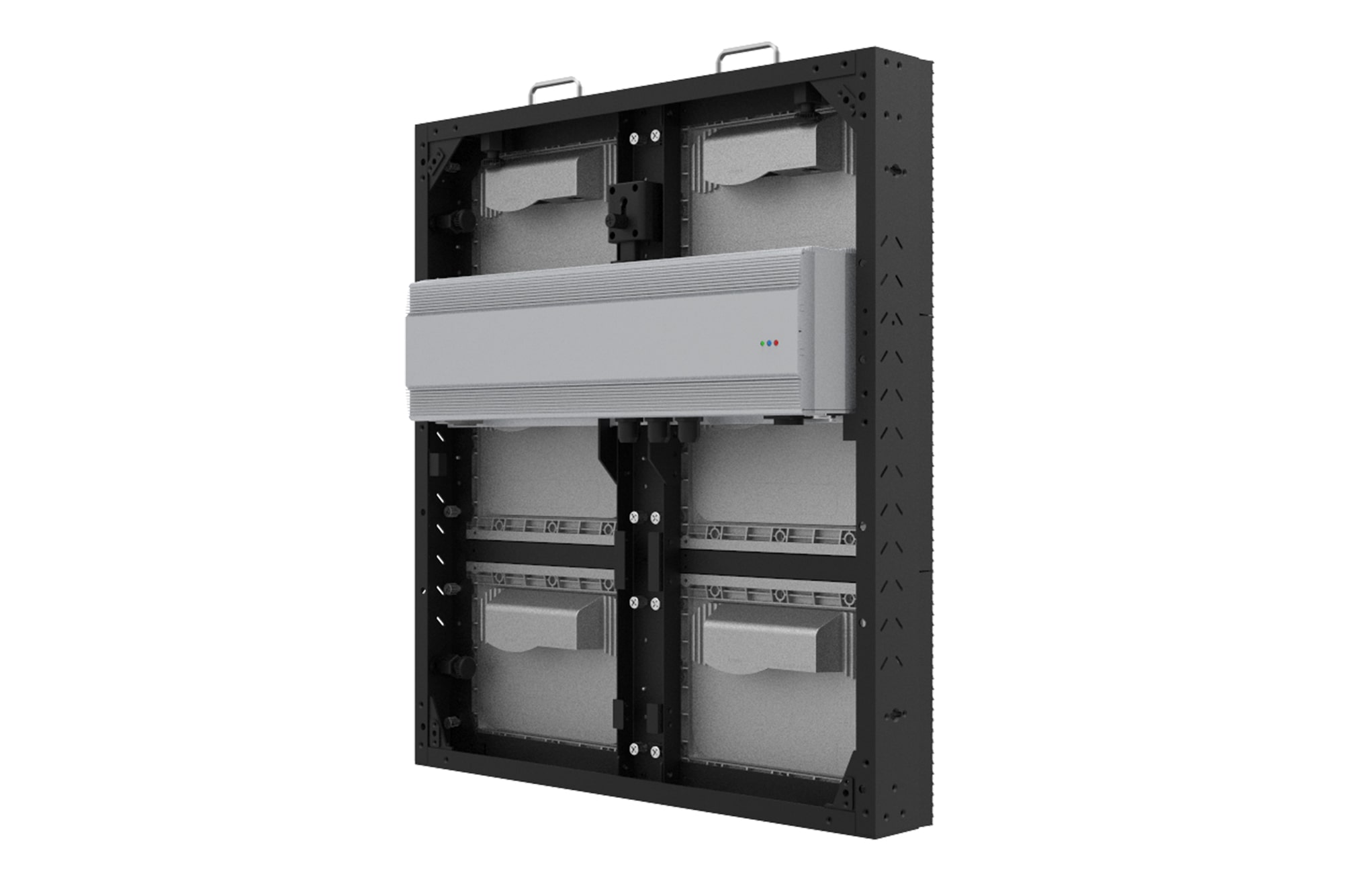

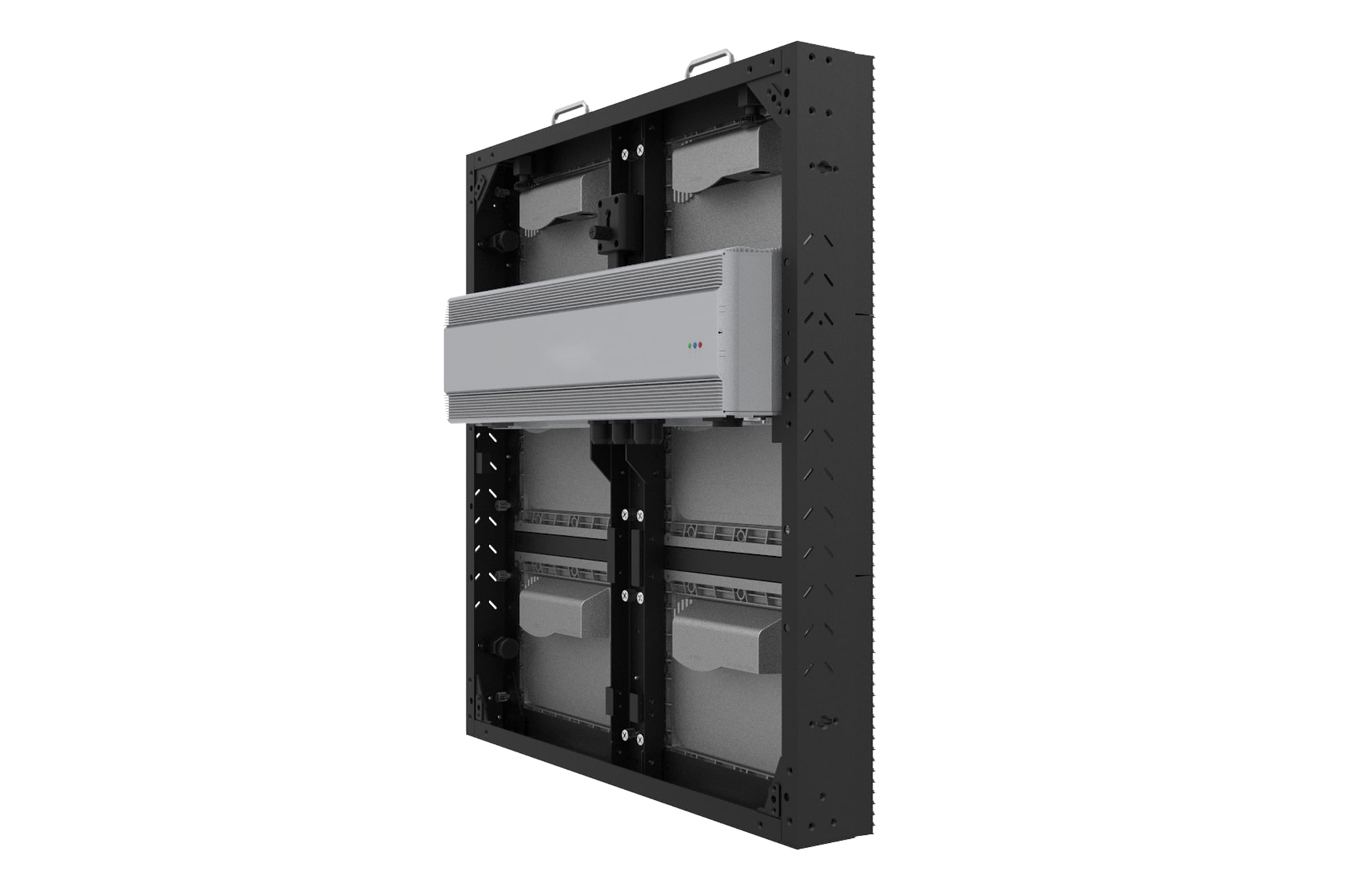

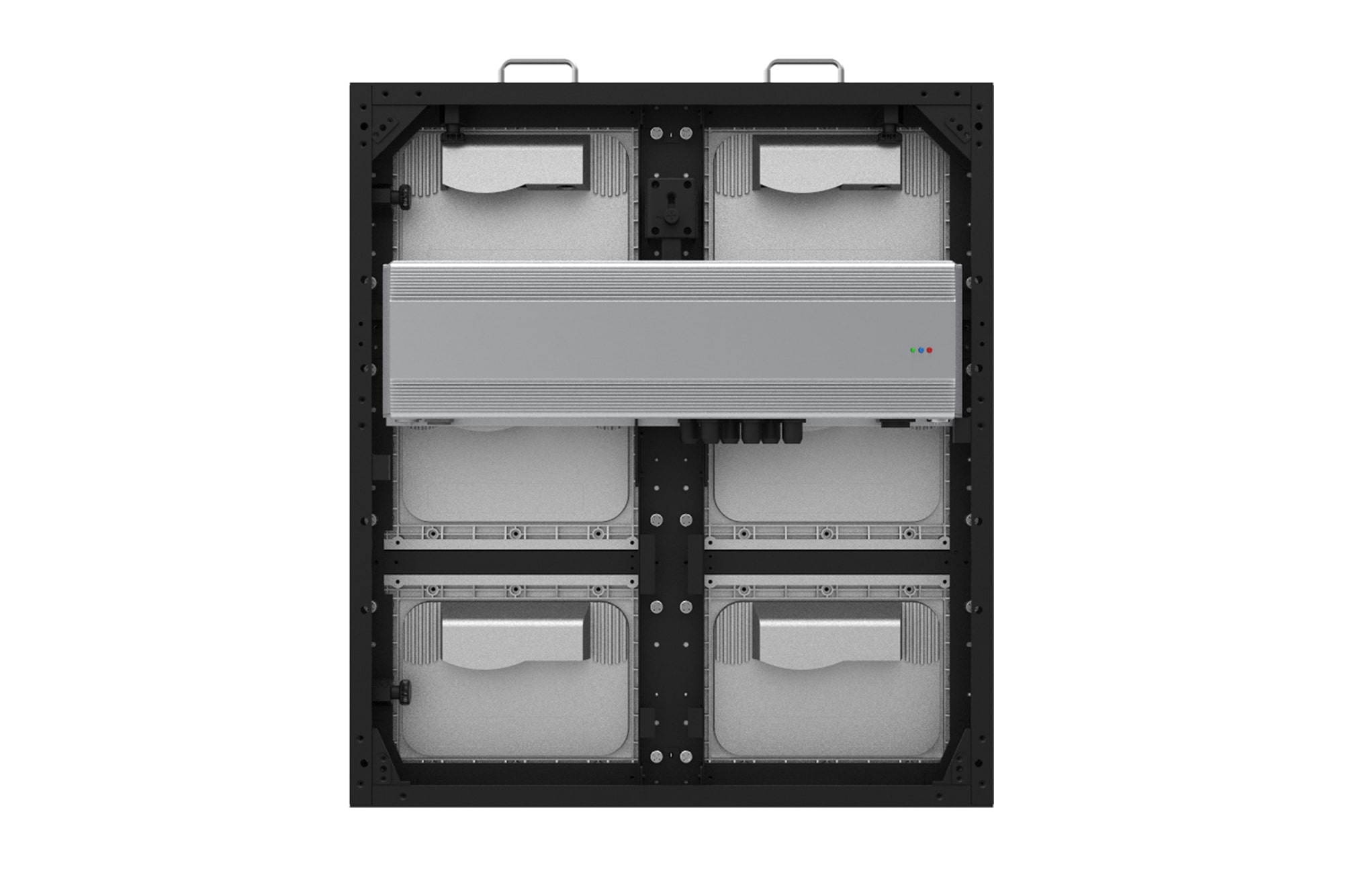

    ID-LBE-DOOH-05-Attachable-Power-Unit_CN

    Attachable control/power unit

    Power and control units attached to the unit cases can be easily removed, facilitating repairs.

    D08_ID-LED-06-Uniform-Picture-Quality_hk

    Uniform picture quality

    Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.

    D09_ID-LED-07-Vividness-with-Color-Accuracy_hk

    Vividness with color accuracy

    LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

    D10_ID-LED-08-RoHS-Certified-Safe-Product__1554427253259

    RoHS certified safe product

    Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.

    Model NameLBE040DD4LBE080DD3LBE080DD4
    Pixel Configuration3 in 1 SMD3 in 1 SMD3 in 1 SMD
    Pixel Pitch(mm)488
    Unit Case Resolution(WxH)160x18080x9080x90
    Unit Case Dimensions(WxHxD, mm)640x720x90640x720x90640x720x90
    Weight per Unit Case/Square Meter (kg)17.0/36.917.0/36.917.0/36.9
    Service accessRearFront or RearFront or Rear
    Min. Brightness(After Calibration, cd/m2)5,0005,5005,000
    Color Temperature6,5006,5006,500
    Visual Viewing Angle(Horizontal/Vertical)160/120160/120160/120
    Brightness Uniformity / Color Uniformity97％/±0.003Cx,Cy97％/±0.003Cx,Cy97％/±0.003Cx,Cy
    Contrast Ratio5,0005,0005,000
    Processing Depth (bit)141414
    Power Consumption(W/Unit, Avg./Max.)120/360110/330110/330
    Power Consumption(W/m2, Max.)780720720
    Power Supply (V)100 to 240100 to 240100 to 240
    Refresh Rate (Hz)3,8403,8403,840
    Lifetime(Half brightness, hrs)*50,00080,00050,000
    Operating Temperature(°C) / Humidity-20° to 50°/< 90％RH-10° to 45°/0-80％RH-10° to 45°/0-80％RH
    IP rating Front / RearIP65/IP54IP65/IP54IP65/IP54

    *The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.

    Model NameLBE100DD3LBE100DD4
    Pixel Configuration3 in 1 SMD3 in 1 SMD
    Pixel Pitch(mm)1010
    Unit Case Resolution(WxH)64x7264x72
    Unit Case Dimensions(WxHxD, mm)640x720x90640x720x90
    Weight per Unit Case/Square Meter (kg)17.0/36.917.0/36.9
    Service accessFront or RearFront or Rear
    Min. Brightness(After Calibration, cd/m2)5,5005,000
    Color Temperature6,5006,500
    Visual Viewing Angle(Horizontal/Vertical)160/120160/120
    Brightness Uniformity / Color Uniformity97％/±0.003Cx,Cy97％/±0.003Cx,Cy
    Contrast Ratio5,0005,000
    Processing Depth (bit)1414
    Power Consumption(W/Unit, Avg./Max.)110/330110/330
    Power Consumption(W/m2, Max.)780720
    Power Supply (V)100 to 240100 to 240
    Refresh Rate (Hz)3,8403,840
    Lifetime(Half brightness, hrs)*80,00050,000
    Operating Temperature(°C) / Humidity-10° to 45°/0-80％RH-10° to 45°/0-80％RH
    IP rating Front / RearIP65/IP54IP65/IP54

    *The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
