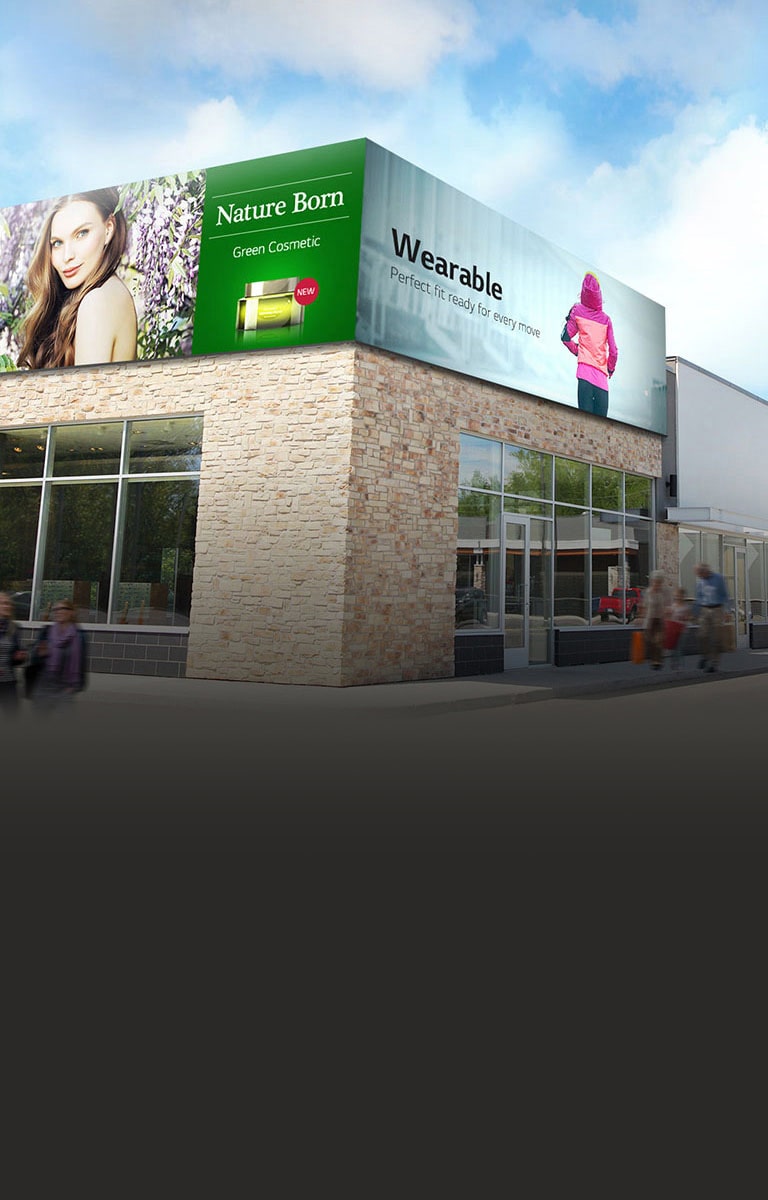

D01_ID_LED-Signage-Outdoor_hero_03_M01_Standard_1538714461919

LBE Standard

The LBE Standard series is reasonable and provides versatile performance. It is available in various creative and user-friendly designs for convenient installation and maintenance.

Click here for sales inquiry

Gallery Features Tech specs

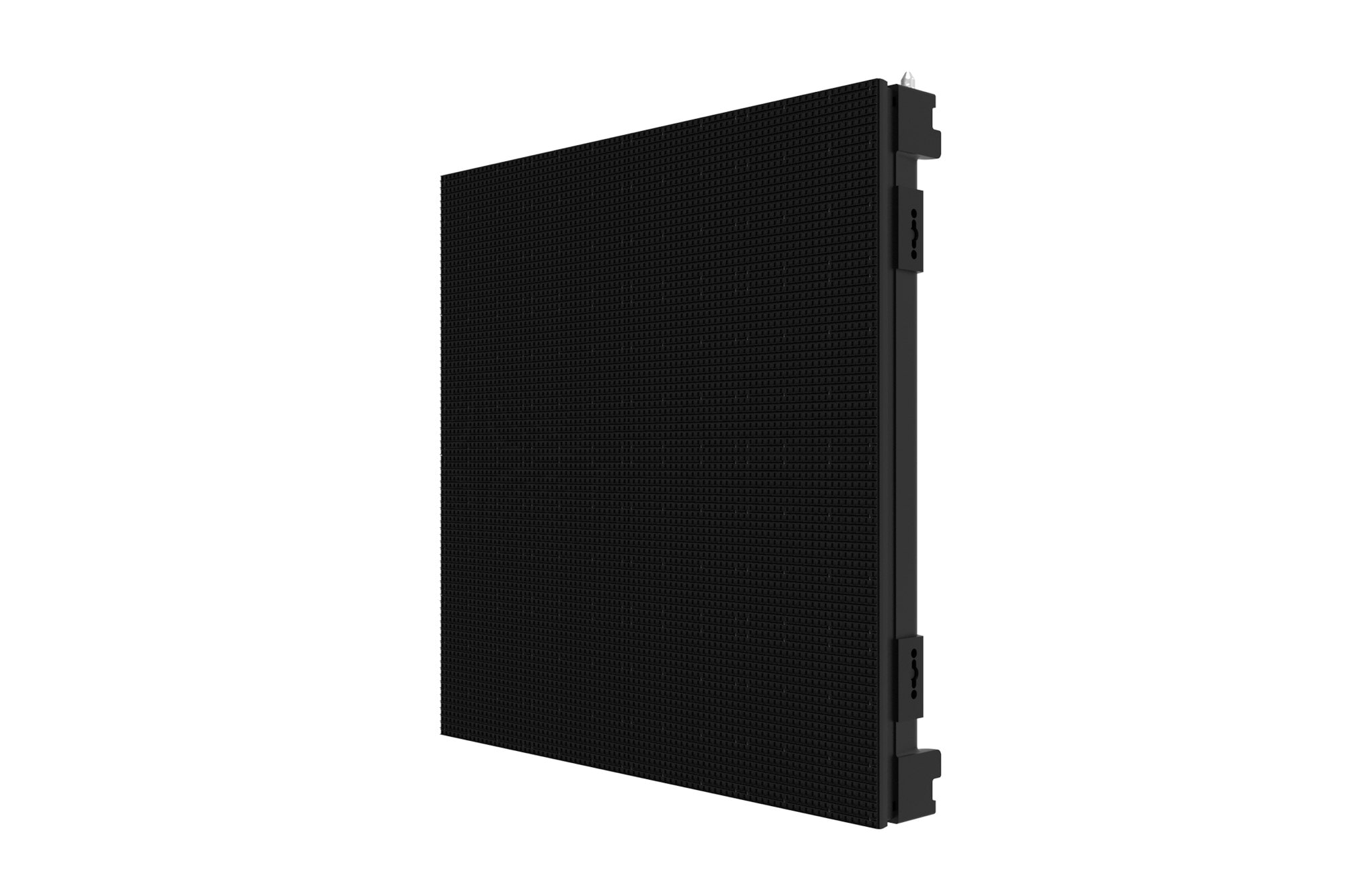

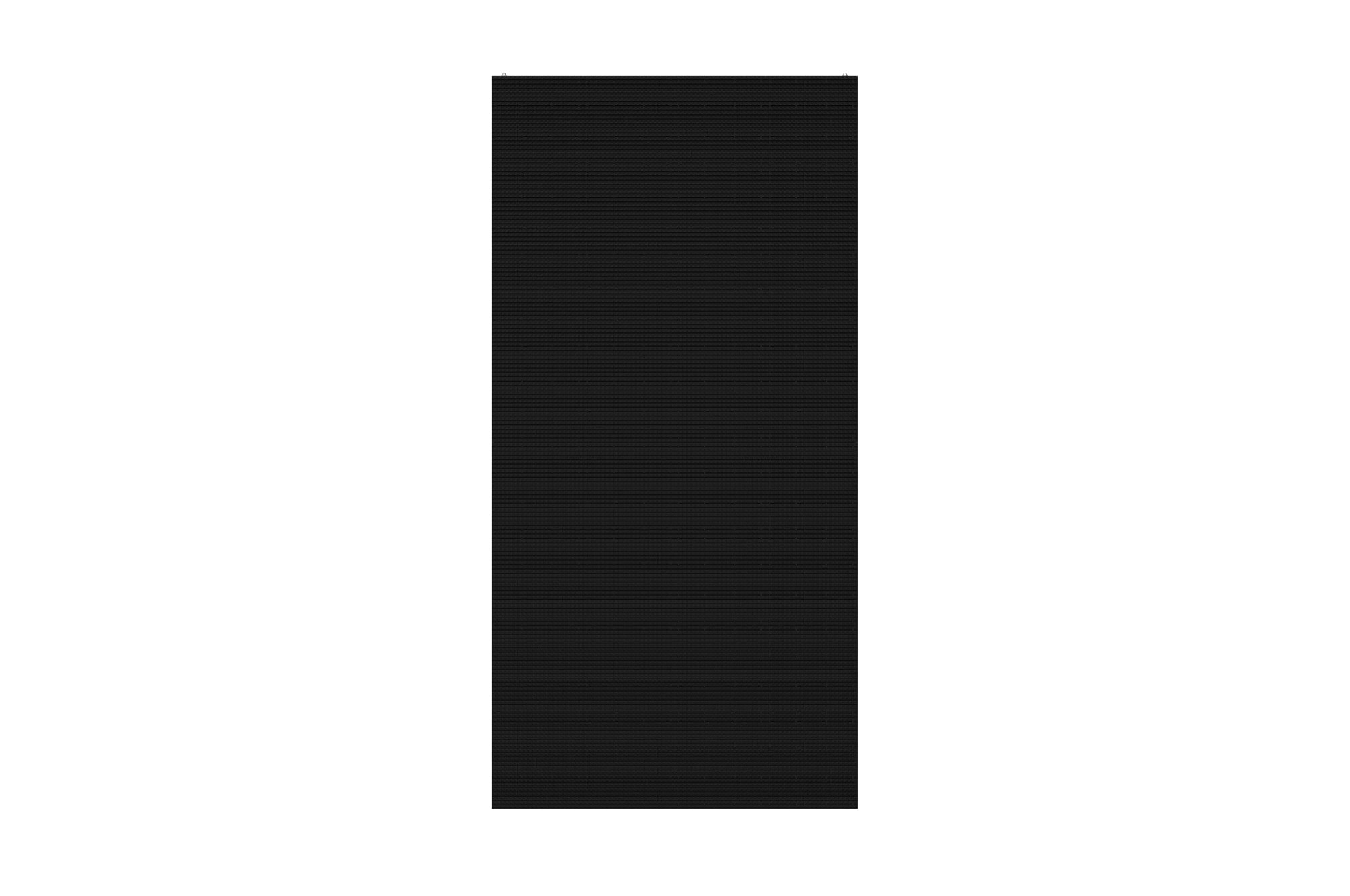

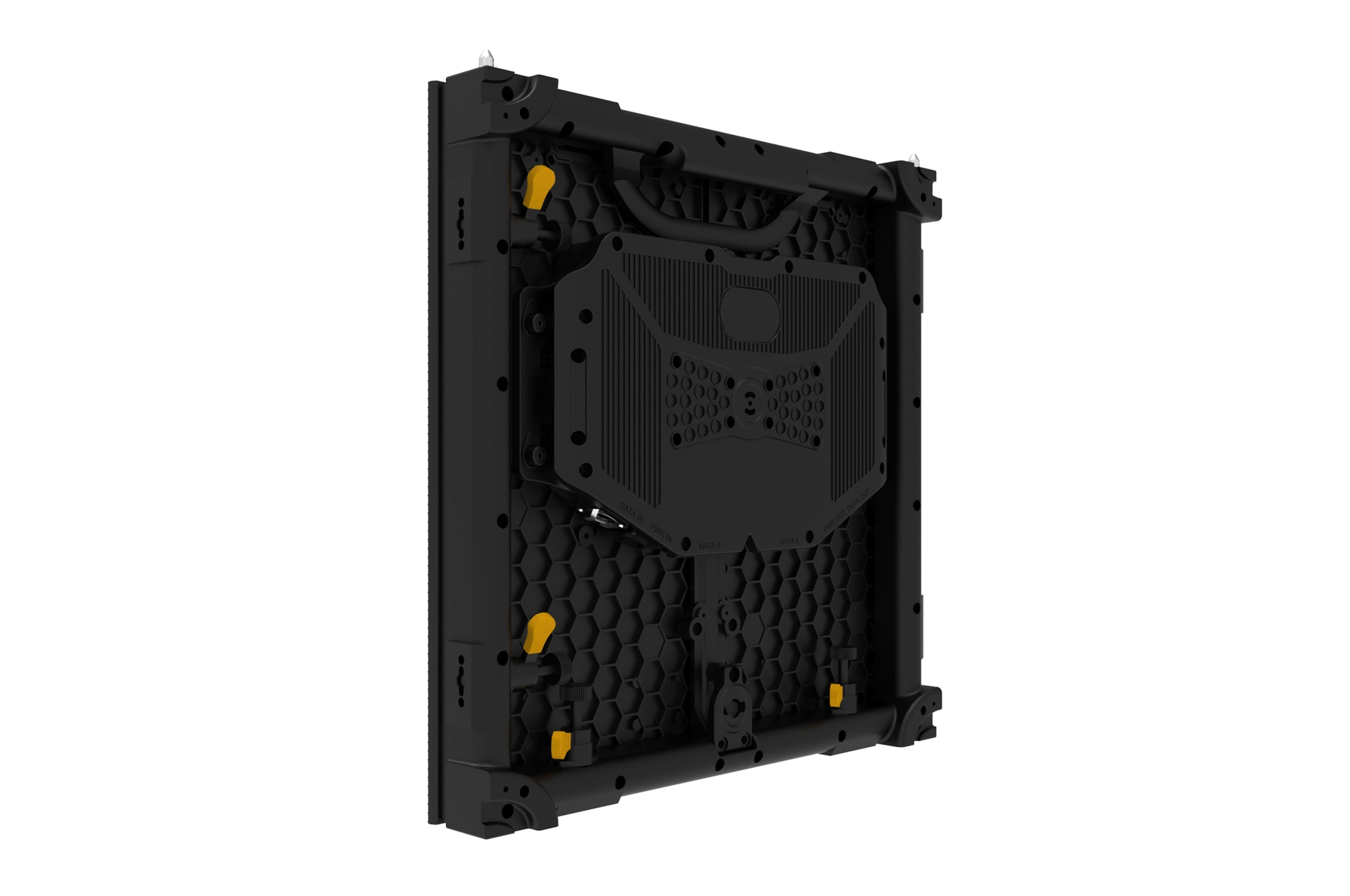

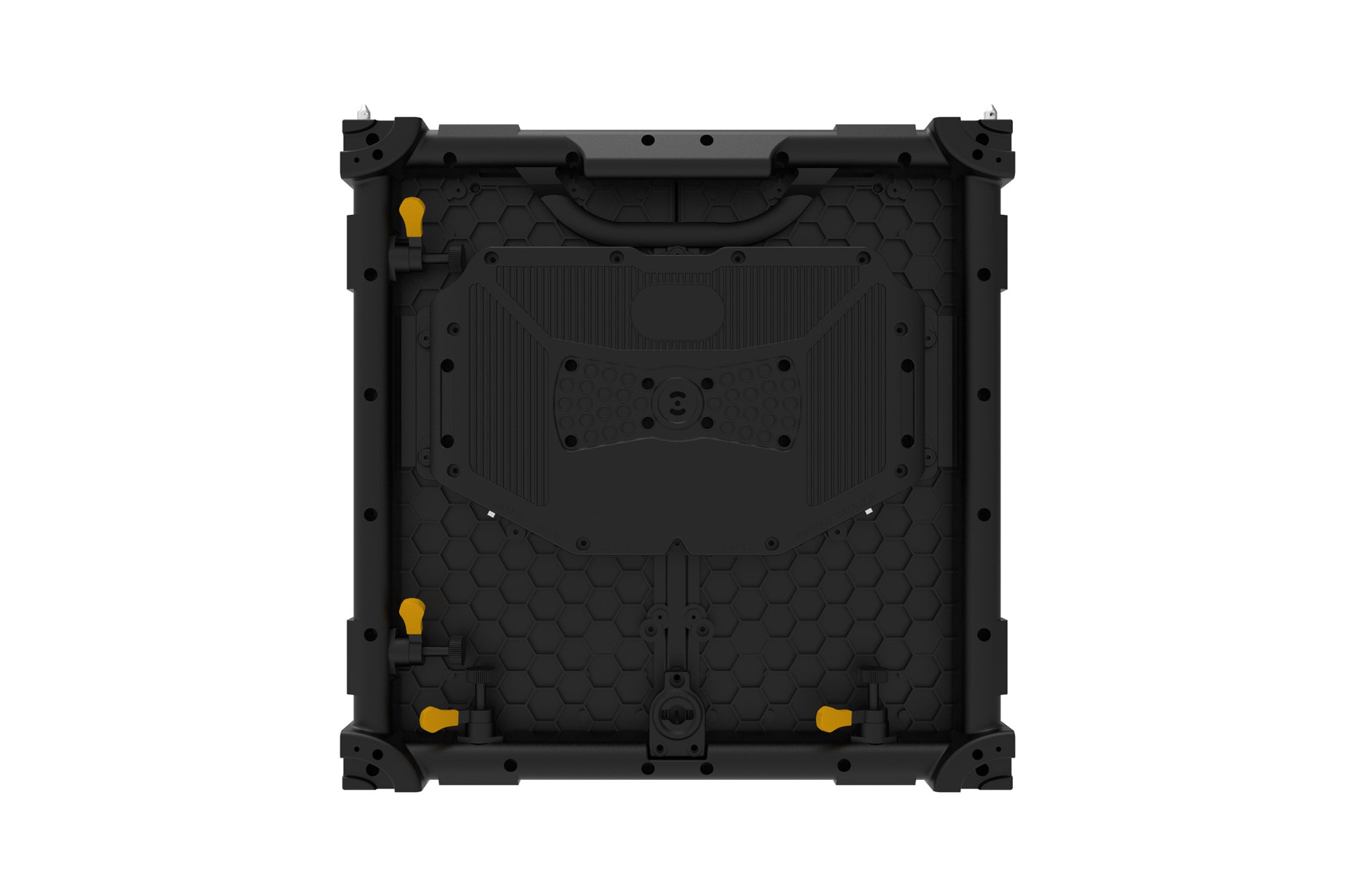

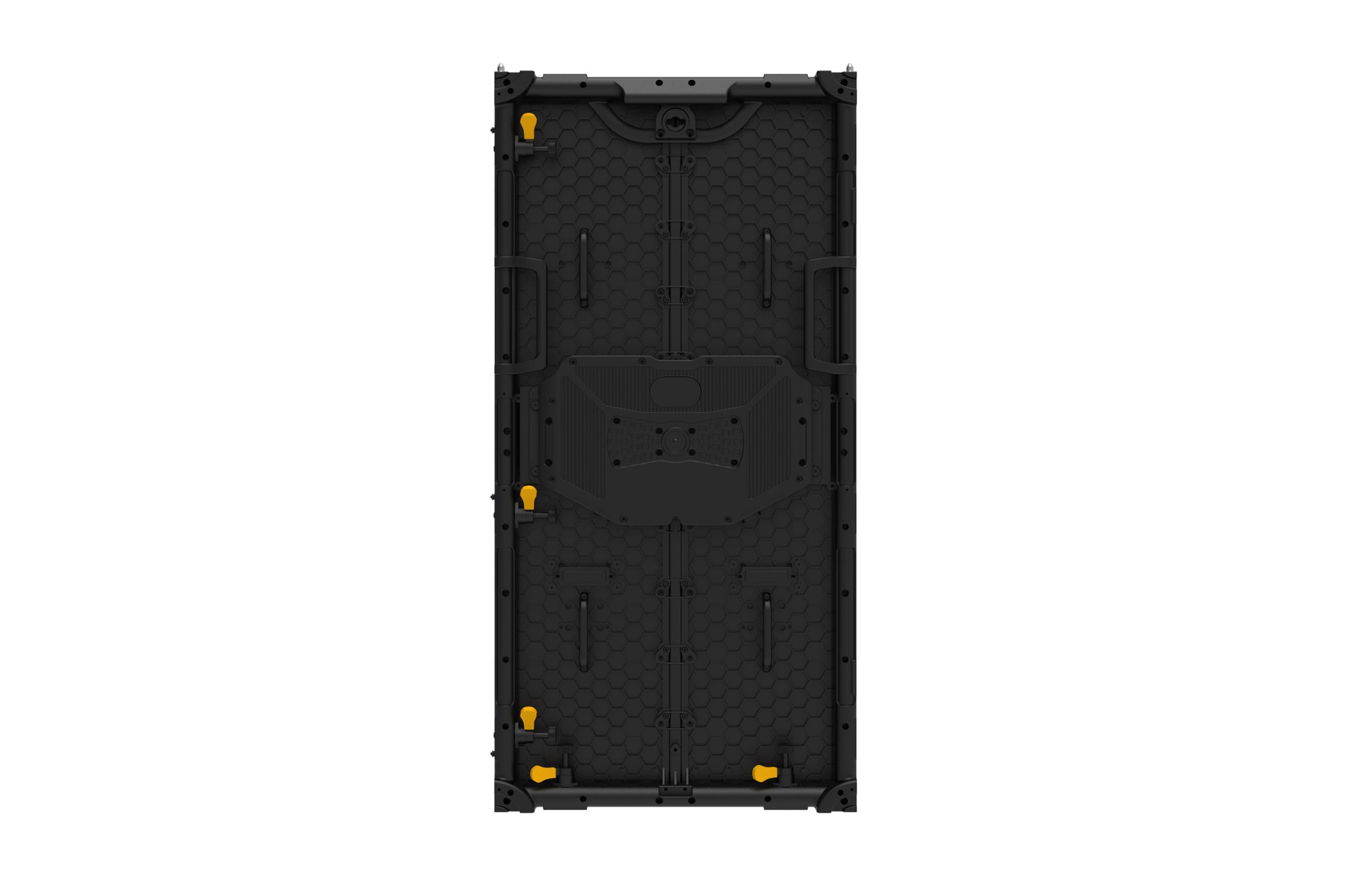

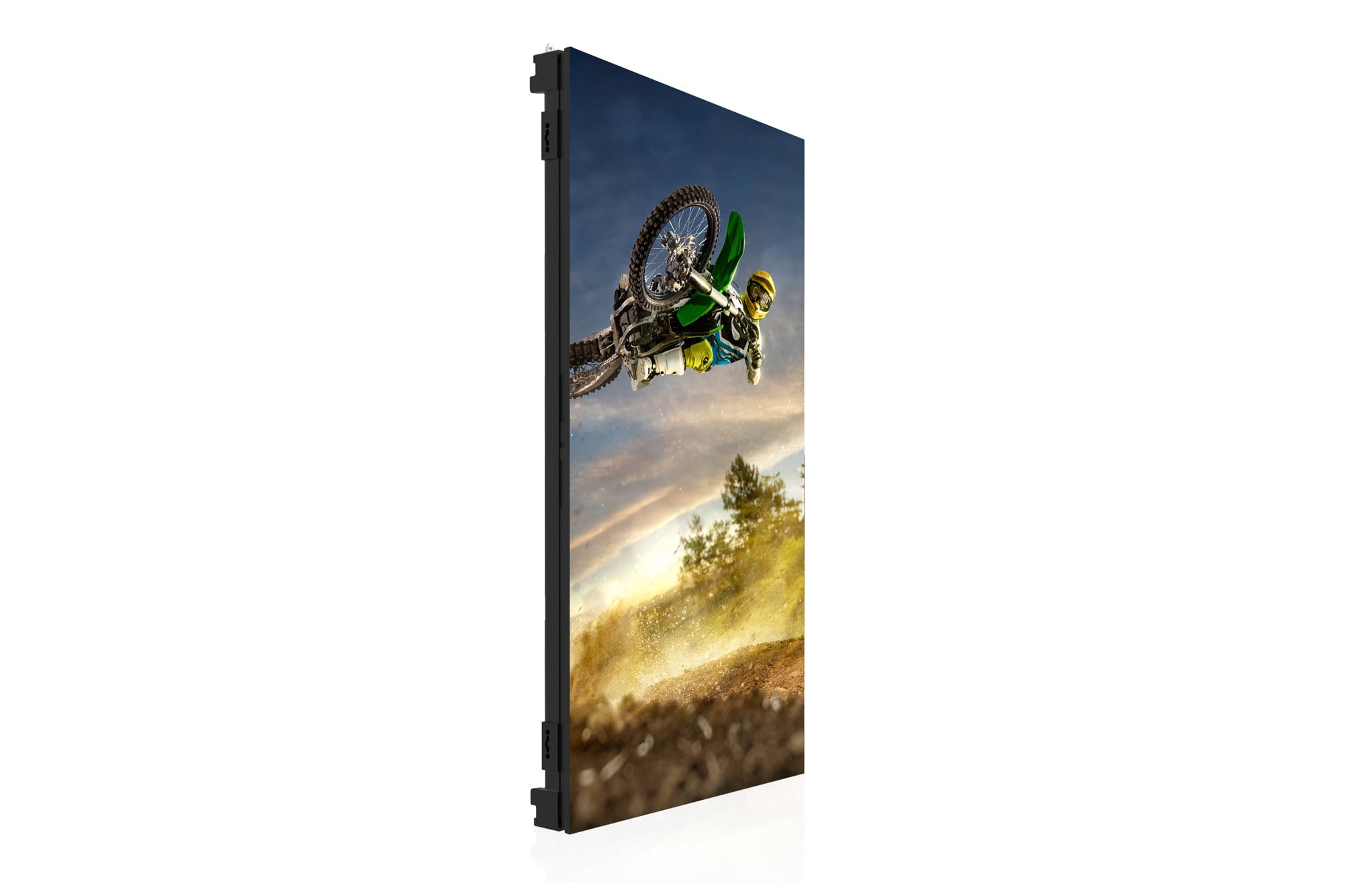

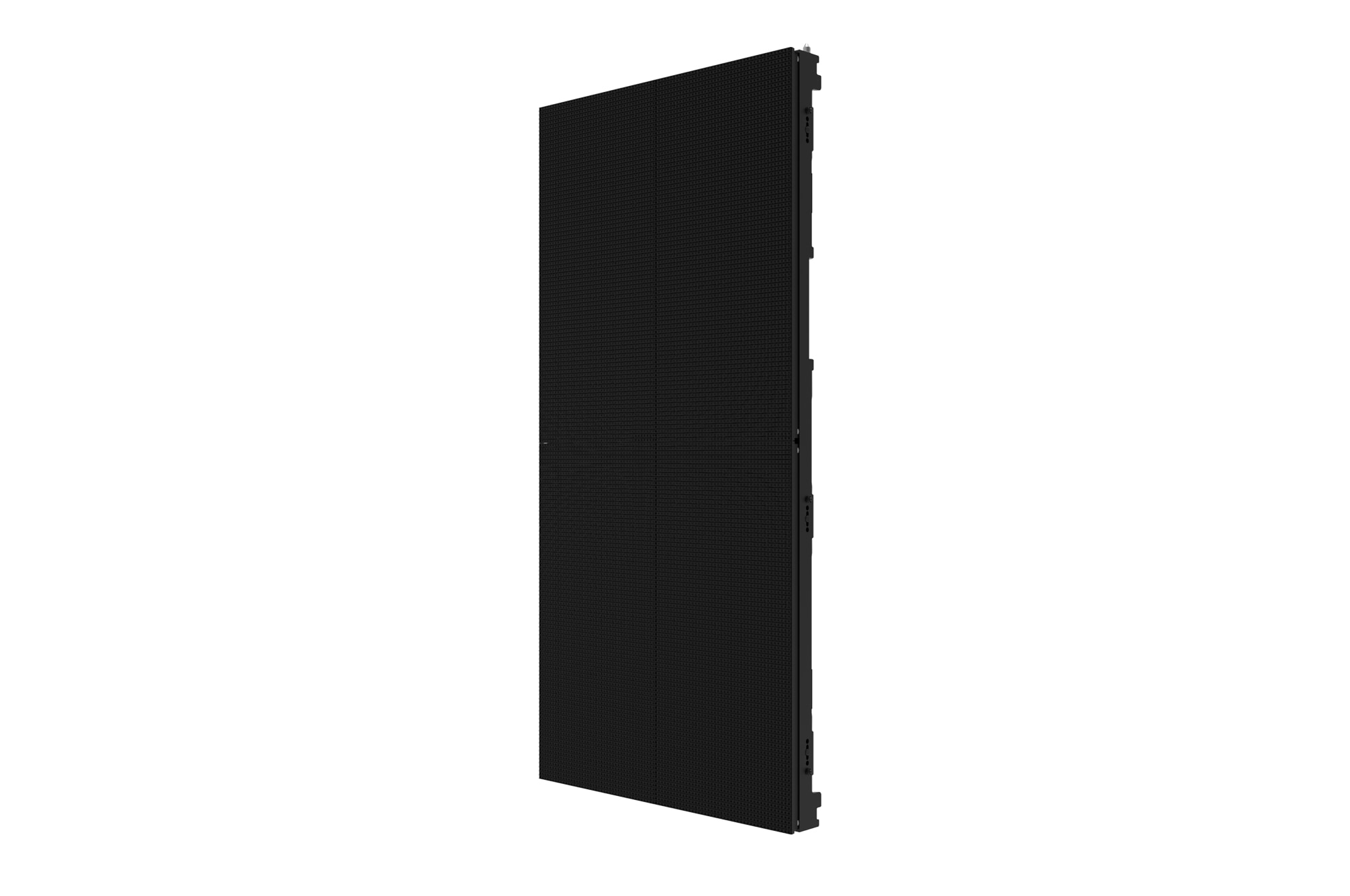

1ID-LBE-Standard-Series-Gallery-500x500-00_1554357670818

2ID-LBE-Standard-Series-Gallery-500x1000-00_1554357910691

3ID-LBE-Standard-Series-Gallery-500x500-01_1554357682196

4ID-LBE-Standard-Series-Gallery-500x1000-01_1554357898013

5ID-LBE-Standard-Series-Gallery-500x500-02_1554357695040

6ID-LBE-Standard-Series-Gallery-500x1000-02_1554357884194

7ID-LBE-Standard-Series-Gallery-500x500-03_1554357704983

8ID-LBE-Standard-Series-Gallery-500x1000-04_1554357863515

9ID-LBE-Standard-Series-Gallery-500x500-04_1554357714328

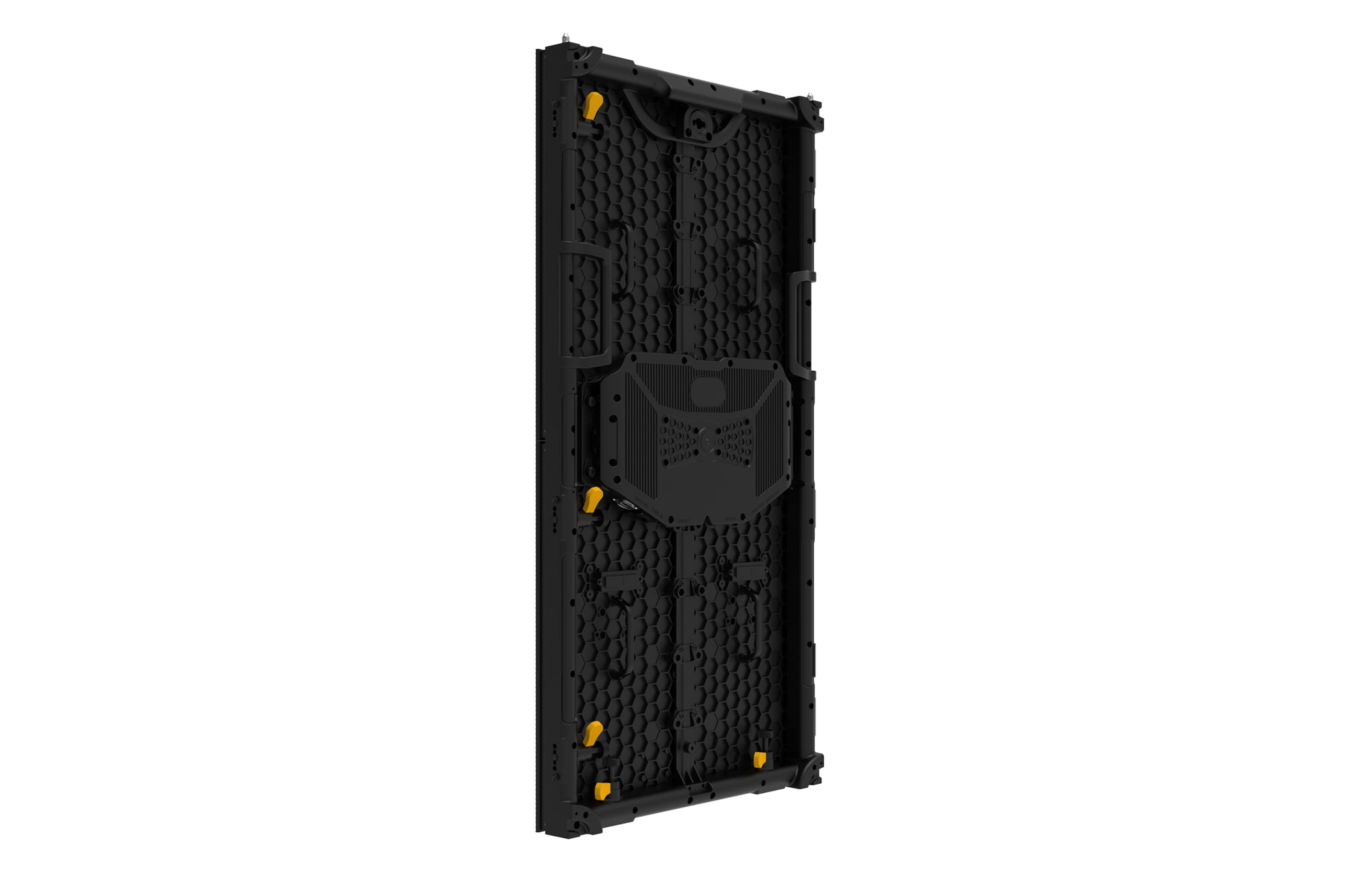

10ID-LBE-Standard-Series-Gallery-500x1000-05_1554357854210

Lightweight and slim design

Each unit case weighs 8.2 kg or 12.5 kg, with a depth of 68 mm. This makes the screens easy to install, minimizes damage during installation, and reduces strain on the structure holding them.

Reliable weatherproof design

The front and back of the unit case are IP65- and IP54-certified, respectively, allowing stable operation unaffected by weather and harmful outdoor environments.

D07_ID-LAE-Q-05-Front-or-Rear_1554421094259-hk

Front or rear serviceability

The product offers either front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

*Support may differ by model

D06_ID-LBE-Standard-04-Easy-Maintenace-Fin_CN

Easy maintenance

Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

Easy installation

Various factors including magnets on the top and bottom, positioning pins, and easy locks help installers easily set up and dismantle the screens.

Uniform picture quality

Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.

Vividness with color accuracy

LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

RoHS certified safe product

Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.

Model Name	LBE039DD3D	LBE039DD3	LBE039DD4D	LBE039DD4
Pixel Configuration	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD
Pixel Pitch(mm)	3.91	3.91	3.91	3.91
Unit Case Resolution(WxH)	128x128	128x256	128x128	128x256
Unit Case Dimensions(WxHxD, mm)	500x500x68	500x1000x68	500x500x68	500x1000x68
Weight per Unit Case/Square Meter (kg)	8.2/32.8	12.5/25.0	8.2/32.8	12.5/25.0
Service access	Front or Rear	Front or Rear	Front or Rear	Front or Rear
Min. Brightness(After Calibration, cd/m2)	5,500	5,500	5,000	5,000
Color Temperature	6,500	6,500	6,500	6,500
Visual Viewing Angle(Horizontal/Vertical)	160/120	160/120	160/120	160/120
Brightness Uniformity / Color Uniformity	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy
Contrast Ratio	5,000	5,000	5,000	5,000
Processing Depth (bit)	14	14	14	14
Power Consumption(W/Unit, Avg./Max.)	53/160	110/330	53/160	110/330
Power Consumption(W/m2, Max.)	640	660	640	660
Power Supply (V)	100 to 240	100 to 240	100 to 240	100 to 240
Refresh Rate (Hz)	3,840	3,840	3,840	3,840
Lifetime(Half brightness, hrs)*	80,000	80,000	50,000	50,000
Operating Temperature(°C) / Humidity	-20° to 50°/< 90％RH	-10° to 45°/0-80％RH	-10° to 45°/0-80％RH	-10° to 45°/0-80％RH
IP rating Front / Rear	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.

Model Name	LBE046DD3D	LBE046DD3	LBE046DD4D	LBE046DD4
Pixel Configuration	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD
Pixel Pitch(mm)	4.63	4.63	4.63	4.63
Unit Case Resolution(WxH)	108x108	108x216	108x108	108x216
Unit Case Dimensions(WxHxD, mm)	500x500x68	500x1000x68	500x500x68	500x1000x68
Weight per Unit Case/Square Meter (kg)	8.2/32.8	12.5/25.0	8.2/32.8	12.5/25.0
Service access	Rear	Rear	Rear	Rear
Min. Brightness(After Calibration, cd/m2)	5,500	5,500	5,000	5,000
Color Temperature	6,500	6,500	6,500	6,500
Visual Viewing Angle(Horizontal/Vertical)	160/120	160/120	160/120	160/120
Brightness Uniformity / Color Uniformity	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy
Contrast Ratio	5,000	5,000	5,000	5,000
Processing Depth (bit)	14	14	14	14
Power Consumption(W/Unit, Avg./Max.)	53/160	110/330	53/160	110/330
Power Consumption(W/m2, Max.)	640	660	640	660
Power Supply (V)	100 to 240	100 to 240	100 to 240	100 to 240
Refresh Rate (Hz)	3,840	3,840	3,840	3,840
Lifetime(Half brightness, hrs)*	80,000	80,000	50,000	50,000
Operating Temperature(°C) / Humidity	-20° to 50°/< 90％RH	-10° to 45°/0-80％RH	-10° to 45°/0-80％RH	-10° to 45°/0-80％RH
IP rating Front / Rear	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.

Model Name	LBE069DD3D	LBE069DD3	LBE069DD4D	LBE069DD4
Pixel Configuration	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD
Pixel Pitch(mm)	6.94	6.94	6.94	6.94
Unit Case Resolution(WxH)	72x72	72x144	72x72	72x72
Unit Case Dimensions(WxHxD, mm)	500x500x68	500x1000x68	500x500x68	500x1000x68
Weight per Unit Case/Square Meter (kg)	8.2/32.8	12.5/25.0	8.2/32.8	12.5/25.0
Service access	Rear	Rear	Rear	Rear
Min. Brightness(After Calibration, cd/m2)	5,500	5,500	5,000	5,000
Color Temperature	6,500	6,500	6,500	6,500
Visual Viewing Angle(Horizontal/Vertical)	160/120	160/120	160/120	160/120
Brightness Uniformity / Color Uniformity	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy
Contrast Ratio	5,000	5,000	5,000	5,000
Processing Depth (bit)	14	14	14	14
Power Consumption(W/Unit, Avg./Max.)	53/160	110/330	53/160	110/330
Power Consumption(W/m2, Max.)	640	660	640	660
Power Supply (V)	100 to 240	100 to 240	100 to 240	100 to 240
Refresh Rate (Hz)	3,840	3,840	3,840	3,840
Lifetime(Half brightness, hrs)*	80,000	80,000	50,000	50,000
Operating Temperature(°C) / Humidity	-20° to 50°/< 90％RH	-10° to 45°/0-80％RH	-10° to 45°/0-80％RH	-10° to 45°/0-80％RH
IP rating Front / Rear	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
