LBH High Brightness

The LBH High Brightness series is recommended for fixed outdoor installations requiring high brightness and high contrast. With IP65-rated (front/rear) robust weatherproof design, it boasts reliable performance even under harsh environments.

CLICK HERE FOR SALES INQUIRY

Gallery Features Spec

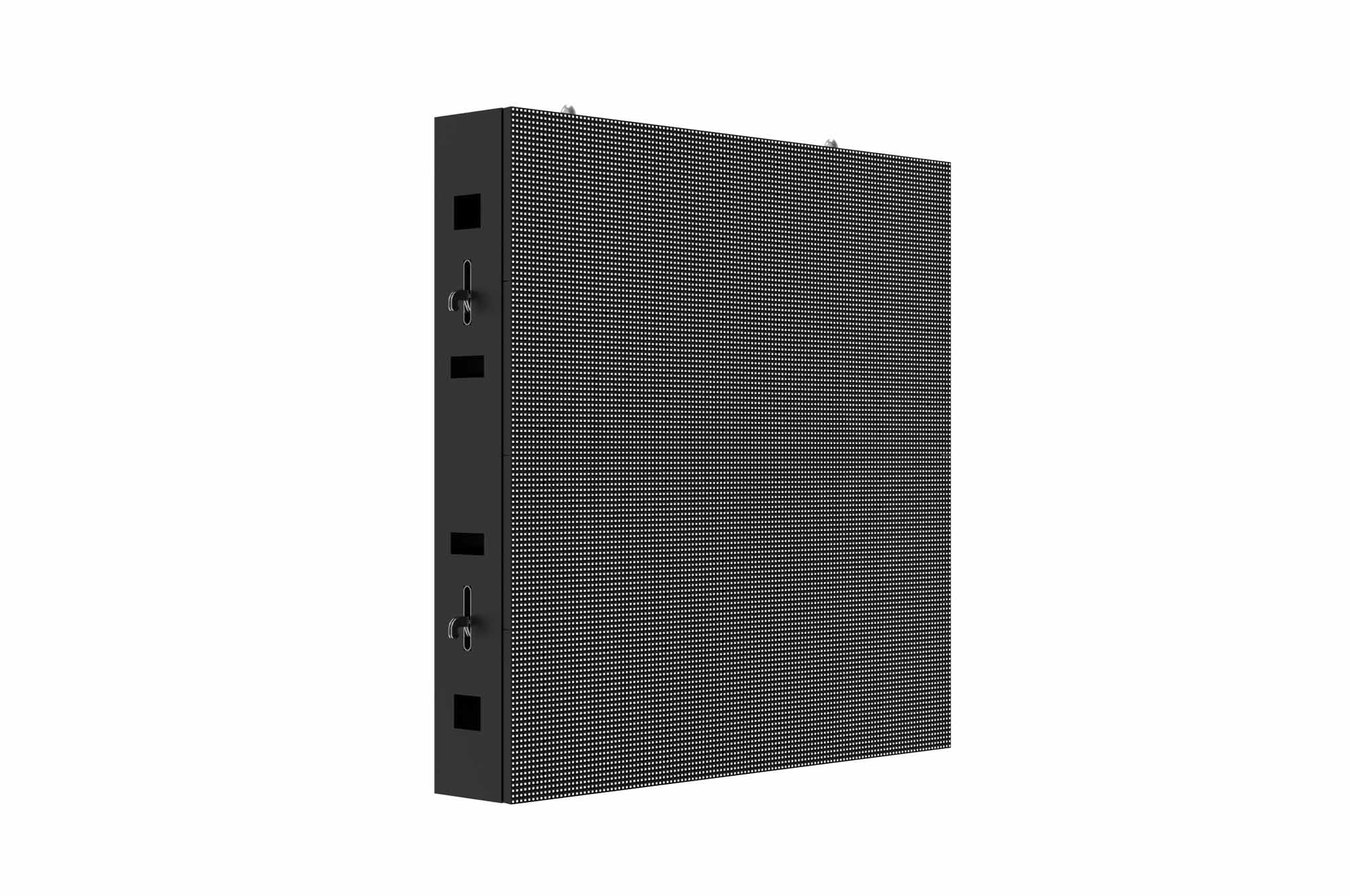

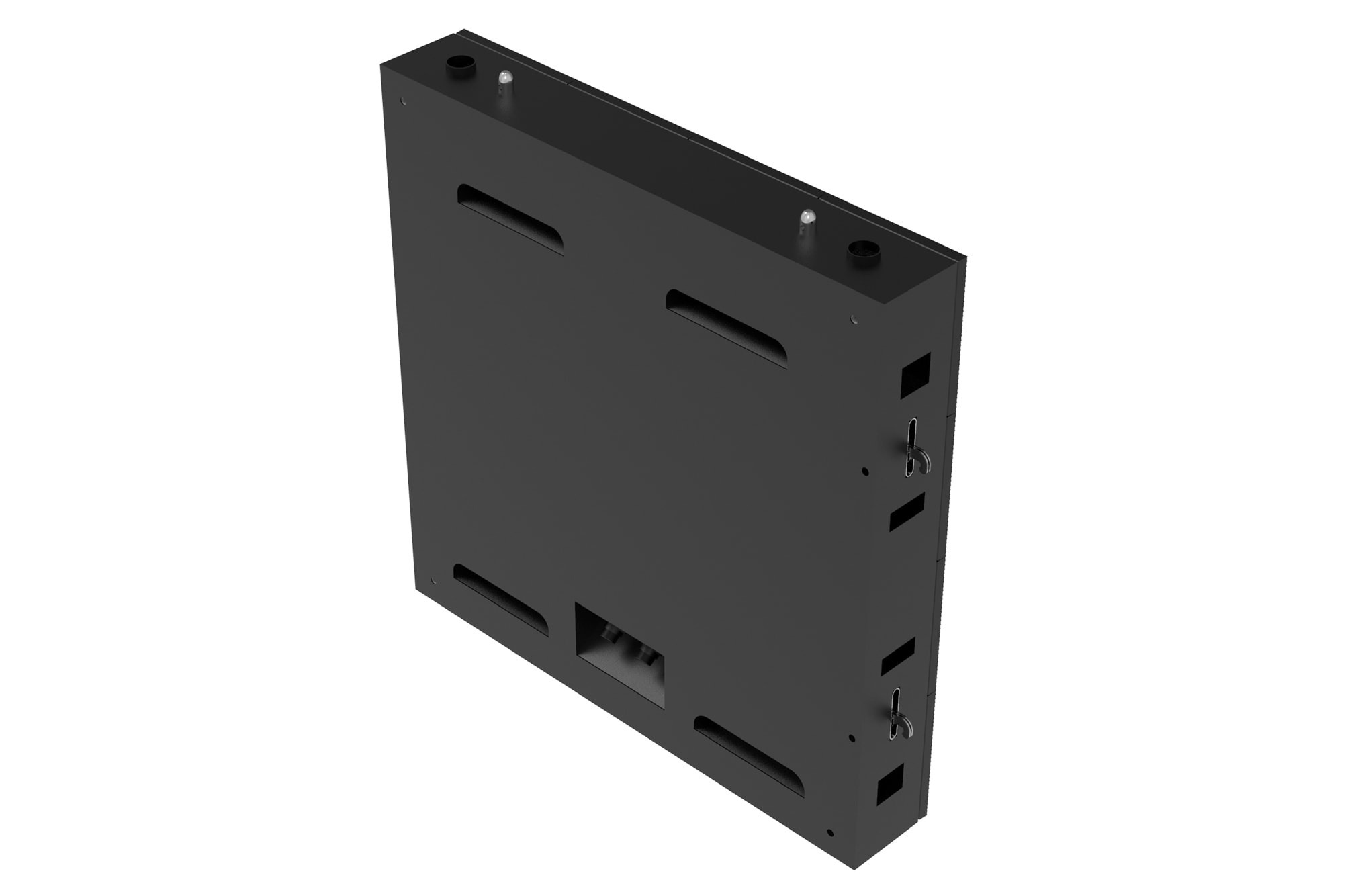

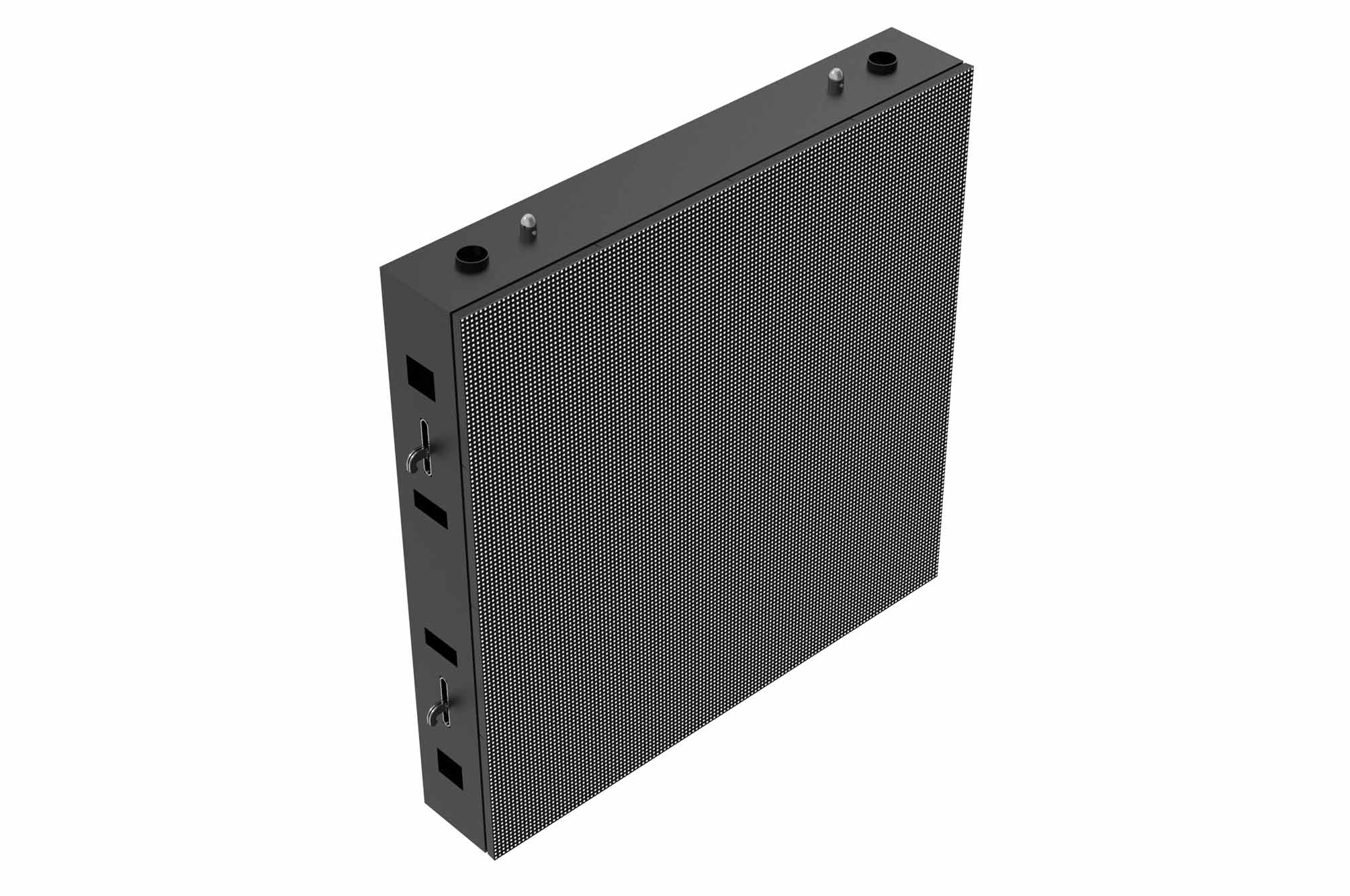

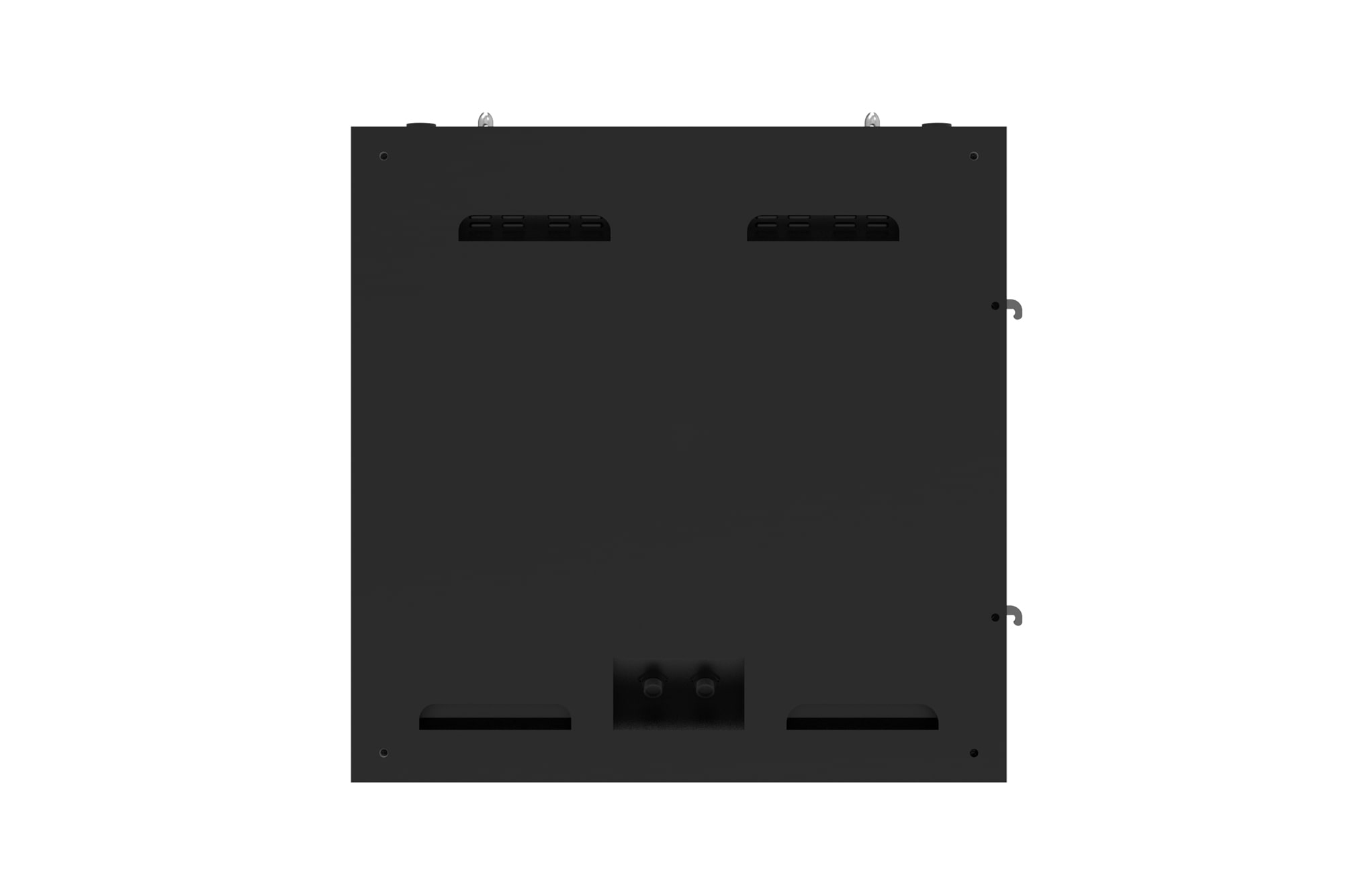

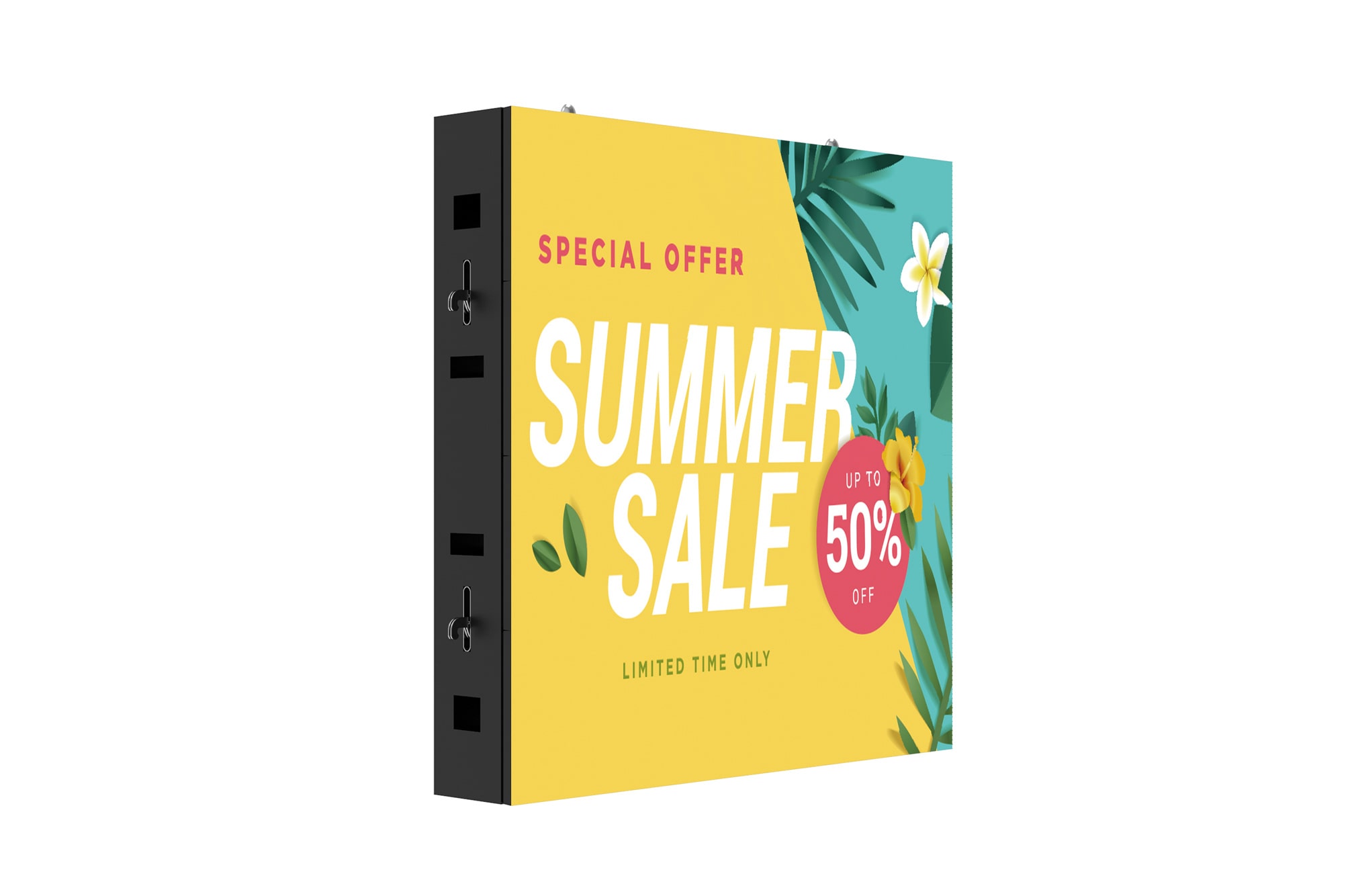

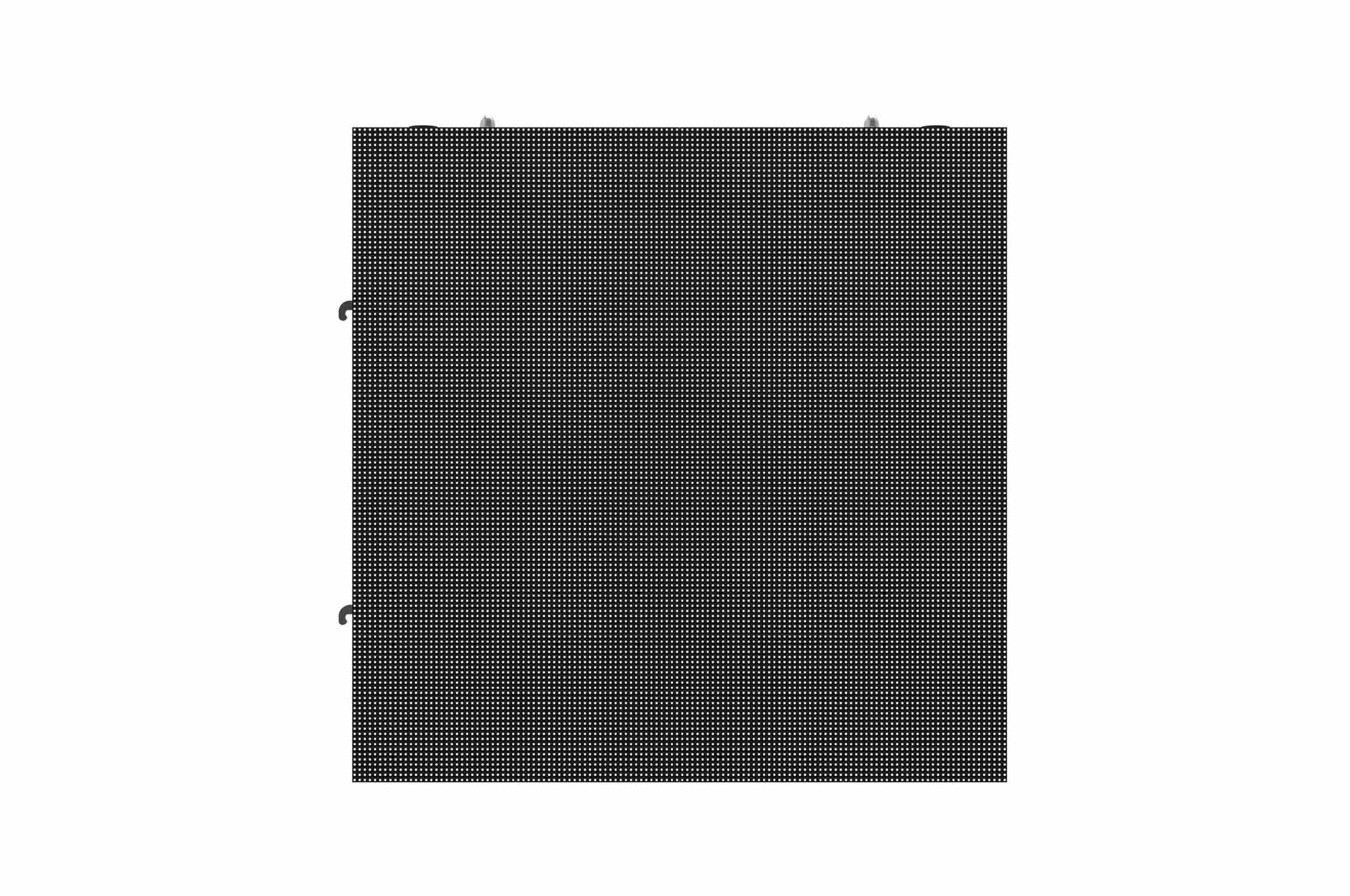

1D02_ID-LBH-High-Brightness-Series-Gallery-00_1554358040893

2ID-LBH-High-Brightness-Series-Gallery-01_1554162838741

3ID-LBH-High-Brightness-Series-Gallery-02_1554162852423

4ID-LBH-High-Brightness-Series-Gallery-03_1554162864931

5ID-LBH-High-Brightness-Series-Gallery-04_1554162875725

6ID-LBH-High-Brightness-Series-Gallery-05_1554162886143

7ID-LBH High Brightness Series-Gallery-06_1554162898284

M03_ID-LBH-High-Brightness-01-Outstading-Visibility-Mobile_full_1554707010005

Outstanding Visibility

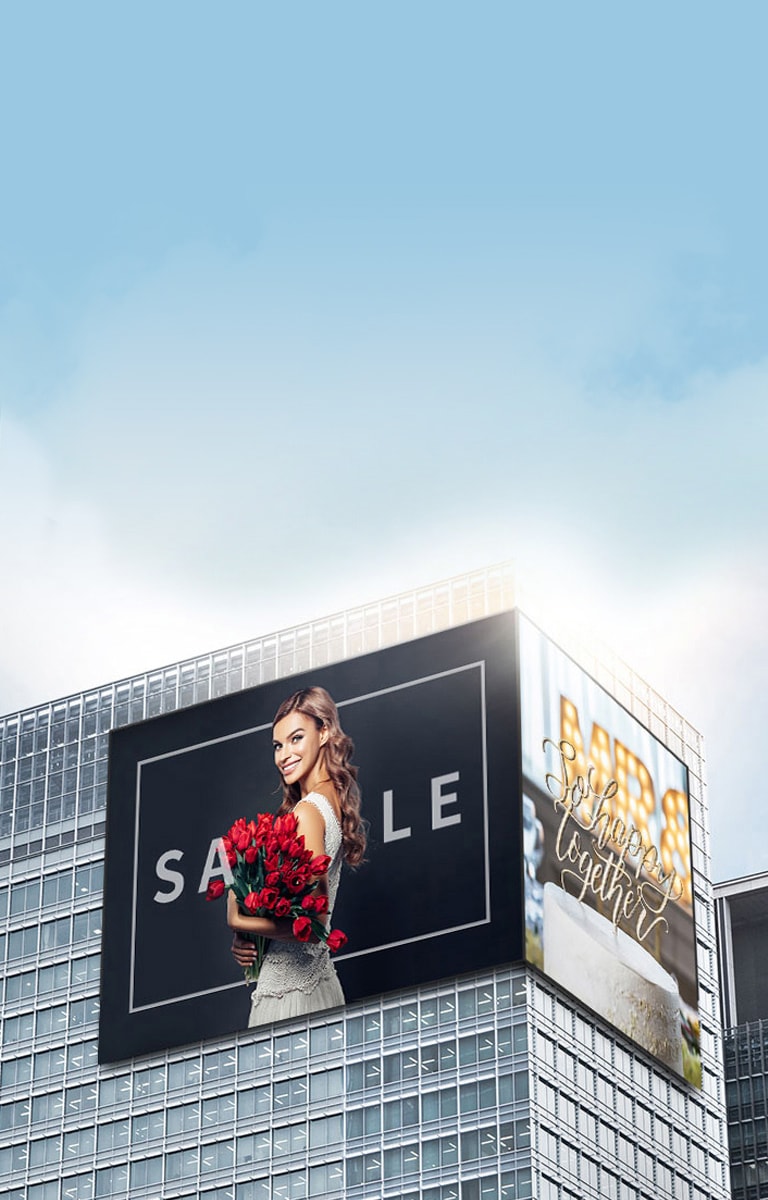

The brightness is a maximum of 8,000 nits for superb visibility. The product is perfect for outdoor spaces exposed to direct sunlight, instantly catching attention and delivering content more effectively than ever.

Reliable Weatherproof Design

The front and rear of the unit case are both IP65-certified. This keeps it resistant to dust and moisture penetration, allowing stable operation unaffected by weather and harmful outdoor environments.

Smooth Playback in Dynamic Motion

A high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.

Realism Through Lifelike Colors

The LBH series delivers vivid and distinctive picture quality through a wide range of color details with high contrast ratio.

Uniform Picture Quality

Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.

Vividness with Color Accuracy

LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

RoHS Certified Safe Product

Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.

Model Name	LBH106VD3-B	LBH160VD3DB
Pixel Configuration	Oval	Oval
Pixel Pitch(mm)	10.66	16
Unit Case Resolution(WxH)	96x96	64x64
Unit Case Dimensions(WxHxD, mm)	1024x1024x150	1024x1024x150
Weight per Unit Case/Square Meter (kg)	42.0/40.0	42.0/40.0
Service access	Front or Rear	Front or Rear
Min. Brightness(After Calibration, cd/m2)	6,000	8,000
Color Temperature	6,500	6,500
Visual Viewing Angle(Horizontal/Vertical)	160/120	160/120
Brightness Uniformity / Color Uniformity	97％/±0.003Cx,Cy	97％/±0.003Cx,Cy
Contrast Ratio	5,000	5,000
Processing Depth (bit)	14	14
Power Consumption(W/Unit, Avg./Max.)	220/682	220/682
Power Consumption(W/m2, Max.)	650	650
Power Supply (V)	100 to 240	100 to 240
Refresh Rate (Hz)	3,840	3,840
Lifetime(Half brightness, hrs)*	80,000	80,000
Operating Temperature(°C) / Humidity	-20° to 50°/< 90％RH	-10° to 45°/0-80％RH
IP rating Front / Rear	IP65/IP65	IP65/IP65

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
