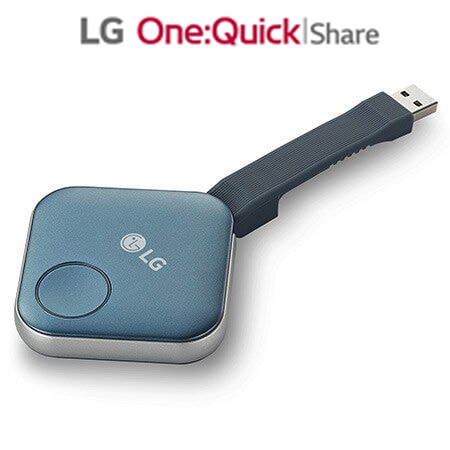

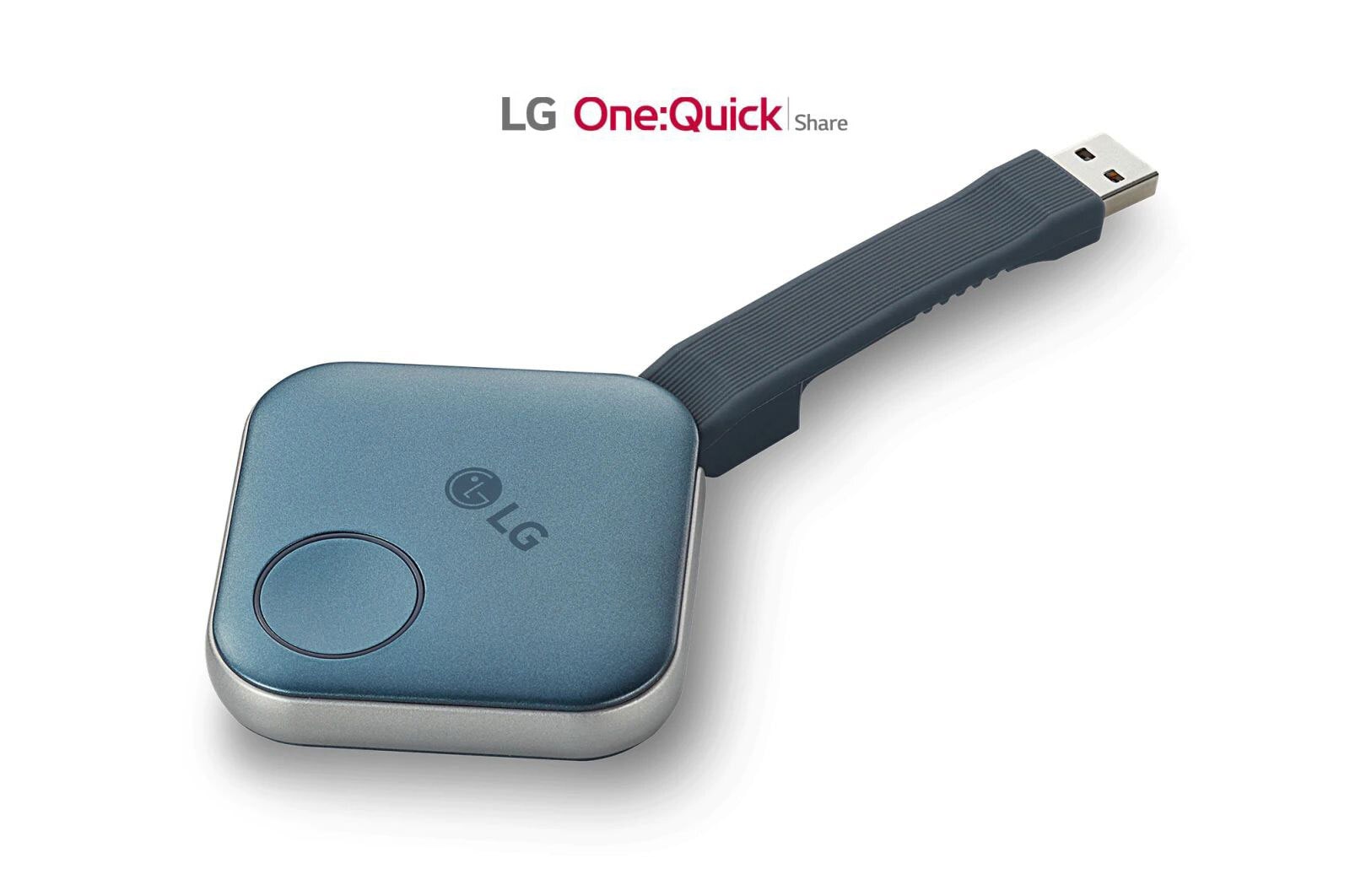

LG SC-00DA Simple and Easy Connecting
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* One:Quick Share may not be available in certain products.
** Volume, Picture Mode, Auto Bright, Presentation Timer, Agenda/Note can be set on LG One:Quick Share PC App.
* One signage can be connected to a total of 4 USB-type dongle devices.
* At the very first time, personal PC needs to install One:Quick Share monitoring software by connecting the dongle device.
* LG Signage needs to set up Soft AP enabled at Network Menu in Settings App.

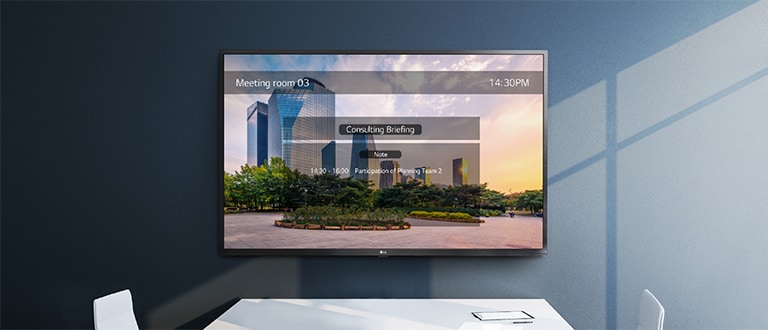

LG SC-00DA Setting Without Remote Control
* Setting without remote control function is enabled when the USB Dongle is paired to the LG Signage and connected to the PC.
** Users can enable Office Meeting Mode at EZ Setting menu of the Signage.
LG SC-00DAScreen Manager
Standard Signage
65 (165.1 cm) / 55 (139.7 cm) / 49 (124.46 cm) UH7F
65 (165.1 cm) / 55 (139.7 cm) / 49 (124.46 cm) / 43 (109.22 cm) UH5F (-H)
65 (165.1 cm) / 55 (139.7 cm )/ 49 (124.46 cm) / 43 (109.22 cm) UM3DG
86 (218.44 cm) / 75 (190.5 cm) / 65 (165.1 cm) / 55 (139.7 cm) /50 (127 cm) / 43 (109.22 cm) UL3G
User Switching
Yes
Split View
Yes (Max. 4 Screen)
Admin Mode
Yes
Signage Control
Yes
Sound
Windows Only
Embedded OS
Linux
CPU
Quad-core CortexTM-A7
Internal Memory
eMMC (4 GB) , DDR3 (512 MB)
Wi-Fi
IEEE 802.11 a/b/g/n/ac (Max. 30 m available)
Video
H.264
Connectivity
USB 2.0 Type A (1)
Size (W × H × D)
63.8 × 63.8 × 13.5 mm / USB cable (85.5 mm)
Weight
0.046 kg
Power Consumption
2.0 W (Typ.), 2.5 W (Max.)
Operating Temperature / Humidity
0℃ to 40℃ / 0% to 85%
Operating System Support
Windows 7 SP1 / 8 / 8.1 / 10 64 bit
macOS 10.11 / 10.12 / 10.13 / 10.14 / 10.15 64 bit
CPU
Intel Sandy Bridge i3 (or Later Version)
Skylake i3 / i5 / i6 (or Later Version)
AMD Rygen 1st Generation (or Later Version)
Memory
8 GB↑
