All-in-One
*All images in this page are for illustrative purposes only.

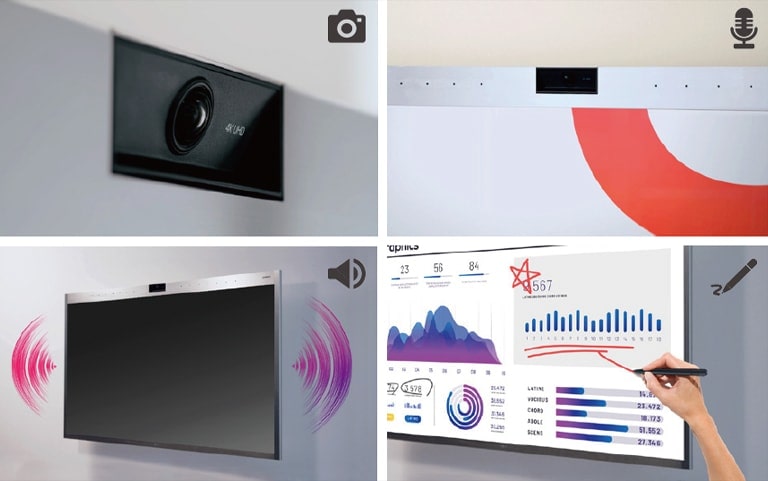

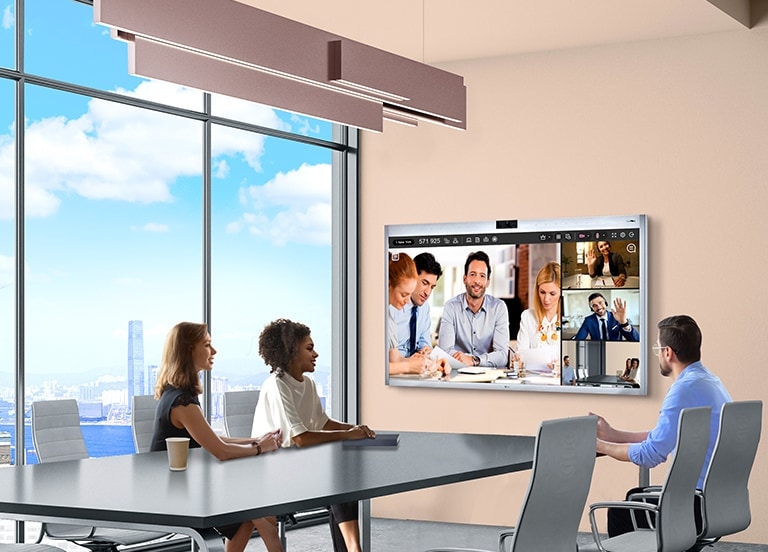

All-in-One Video Conferencing Solution
Smart Auto Focusing

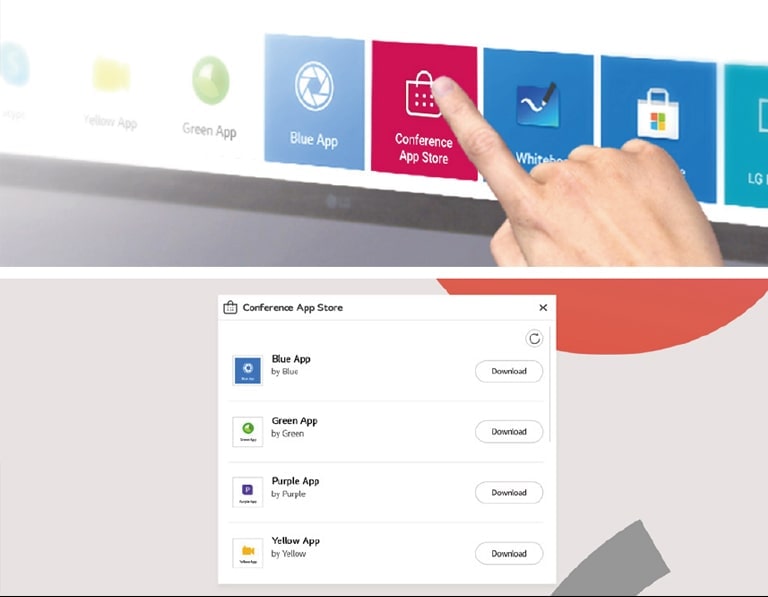

Pre-installed Video Conferencing Application,
Easy-To-Use
*Excellent expandability based on Windows 10 IoT

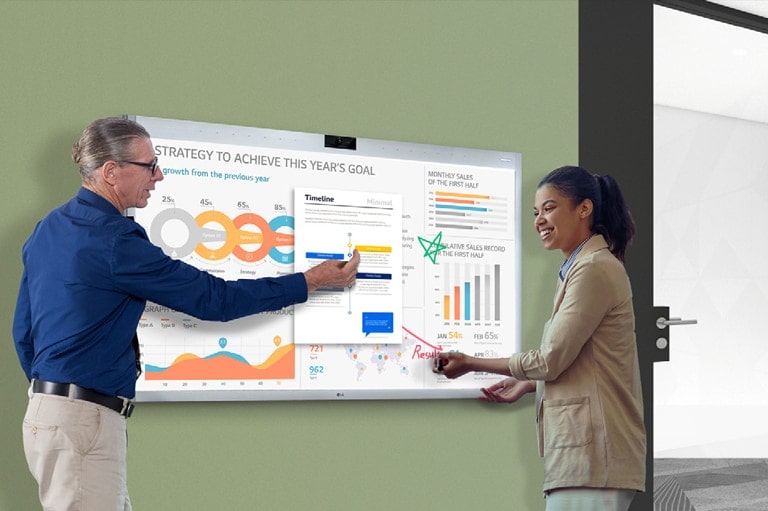

Multi-Touch and Annotation
Voice Recording

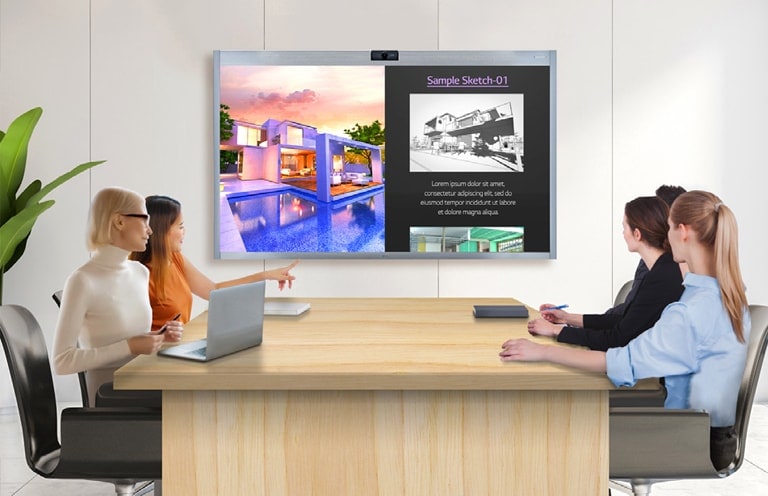

Split View

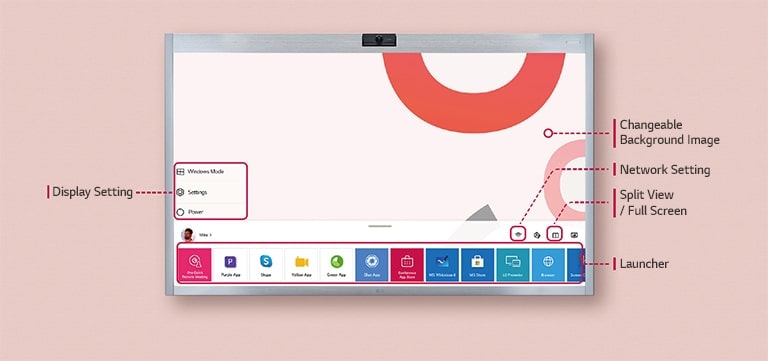

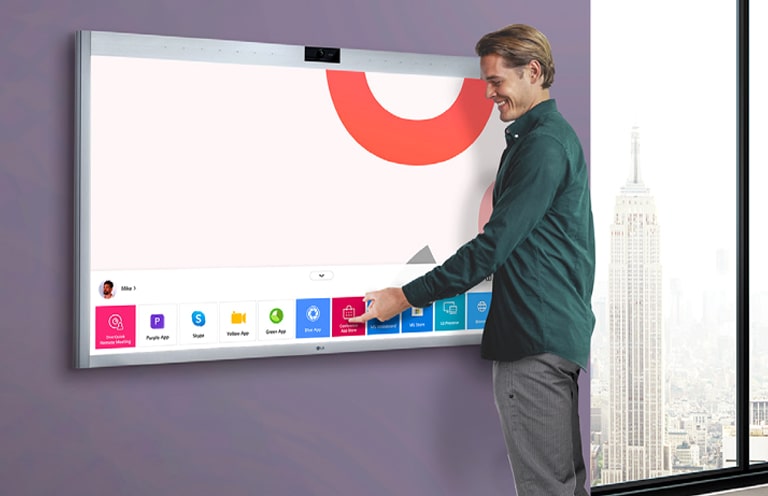

Optimized User Experience
*SW for adding and deleting apps is scheduled to be updated and will be available in November 2021.
Optimized-User-Experience

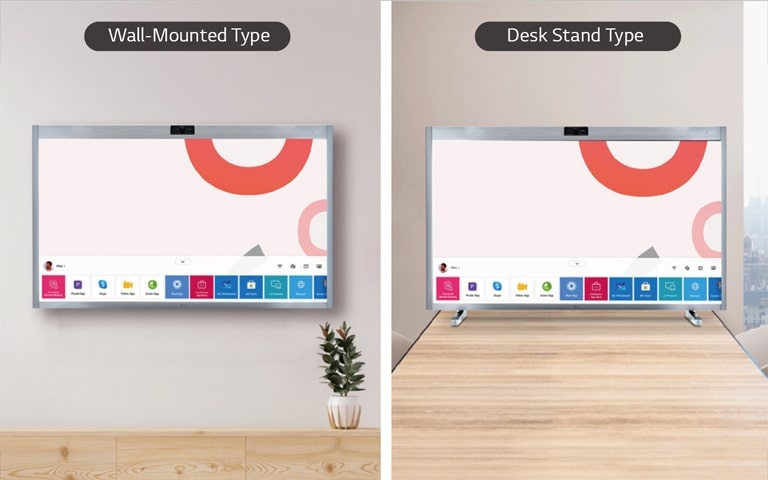

2-way Installation

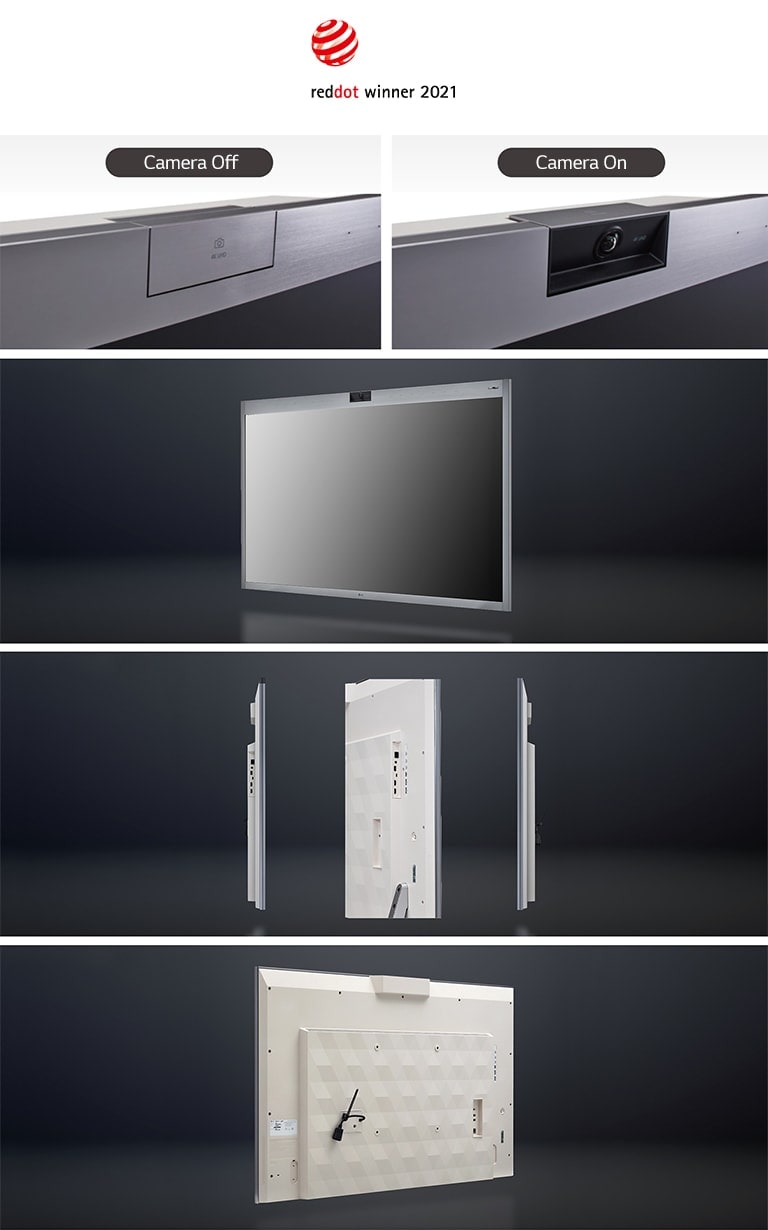

Awarded
Scree Size
55
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
450nit (Typ.)
Dynamic CR
NO
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178o x 178o
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
9ms (G to G)
Surface Treatment (Haze)
Haze 12%
Operation Hours (Hours/Day)
24/7
Portait / Landscape
NO / YES
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (USB Type C)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
NO
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB3.1 Type A (2ea), USB Type C (1ea)
HDMI Out
NO
DP Out
YES (USB Type C)
Audio Out
NO
Touch USB
NO
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
NO
Bezel Color
Silver
Bezel Width
T/R/L/B : 57.2/26.2/26.2/28.9mm
Weight (Head)
26Kg
Packed Weight
31Kg
Monitor Dimensions (W x H x D)
1265 x 769.5 x 61.8mm
Monitor Dimension with Stand (W x H x D)
1265 x 815 x 290mm
Handle
NO
VESA Standard Mount Interface
300 x 300 mm
Carton Dimensions (W x H x D)
1372 x 903 x 168mm (without Stand)
Weight (Head+Stand)
26.6Kg
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
Smart Energy Saving
YES
Wake on LAN
YES
HDMI-CEC
YES
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Smart Energy Saving (70%)
30±10% (for HDMI1/2)
DPM
0.5W
Power off
0.5W
Max.
245W
Typ.
127W
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "B" / CE
ERP / Energy Star
YES / Energy Star 8.0
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
Connected Care
NO
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türk?e, Arabic
Basic
HDMI Cable, Remote Controller(include battery 2ea), Touch Pen, Pen tip, Manual, Regulation Book, Warranty Card, IG
Optional
2 pole Stand(ST-653TW)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
N/A
Power Protection
N/A
Direct Sunlight
N/A
Available Object Size for Touch
?8 mm
Response Time ('Paint' app on Windows 10 PC)
35ms ↓
Accuracy (Typ.)
3.5mm
Interface
USB1.1
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
Windows 10 or higher
Multi Touch Point
Max. 10 Points
CPU
AMD Ryzen Embedded V1605B
Memory(RAM)
8GB
Storage
128GB
Graphic
AMD Radeon Vega
Wi-Fi
802.11ac
Bluetooth
Bluetooth 5.0
Launcher Bar
YES
Home Dashboard
NO
SplitView_Full / Half
YES
SplitView_Customized Template
NO
Cloning
NO
Screen Capture
YES
Meeting(Voice) Record
YES
File Sharing
YES
Compatibility One:Quick Share
YES

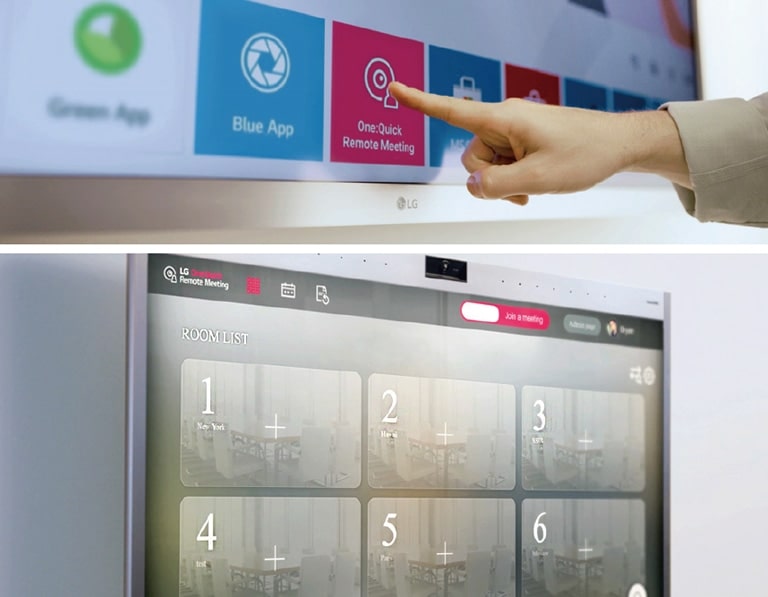

One:Quick Remote Meeting
YES
Reader Mode (Bluelight)
YES
Built-in Apps
Chrome, Skype (Preloaded) MS Whiteboard (Download link)
Camera_Resolution
3840 x 2160 (UHD)
Camera_Field of View (FoV)
120°
Camera_Zoom (ePTZ)
4x Zoom
Camera_Video Framing
YES
MIC_Array
10ea
MIC_Beamforming
YES
MIC_Pickup Range
6m
Warranty
3 Years (Panel) 1 Year (PC Board)
OS ver.
Windows 10 IOT Enterprise (Value)
