    LG Ultra Stretch Signage

    LG Ultra Stretch Signage

    86BH5F
    • Front view
    • Front view
    • Right Side view

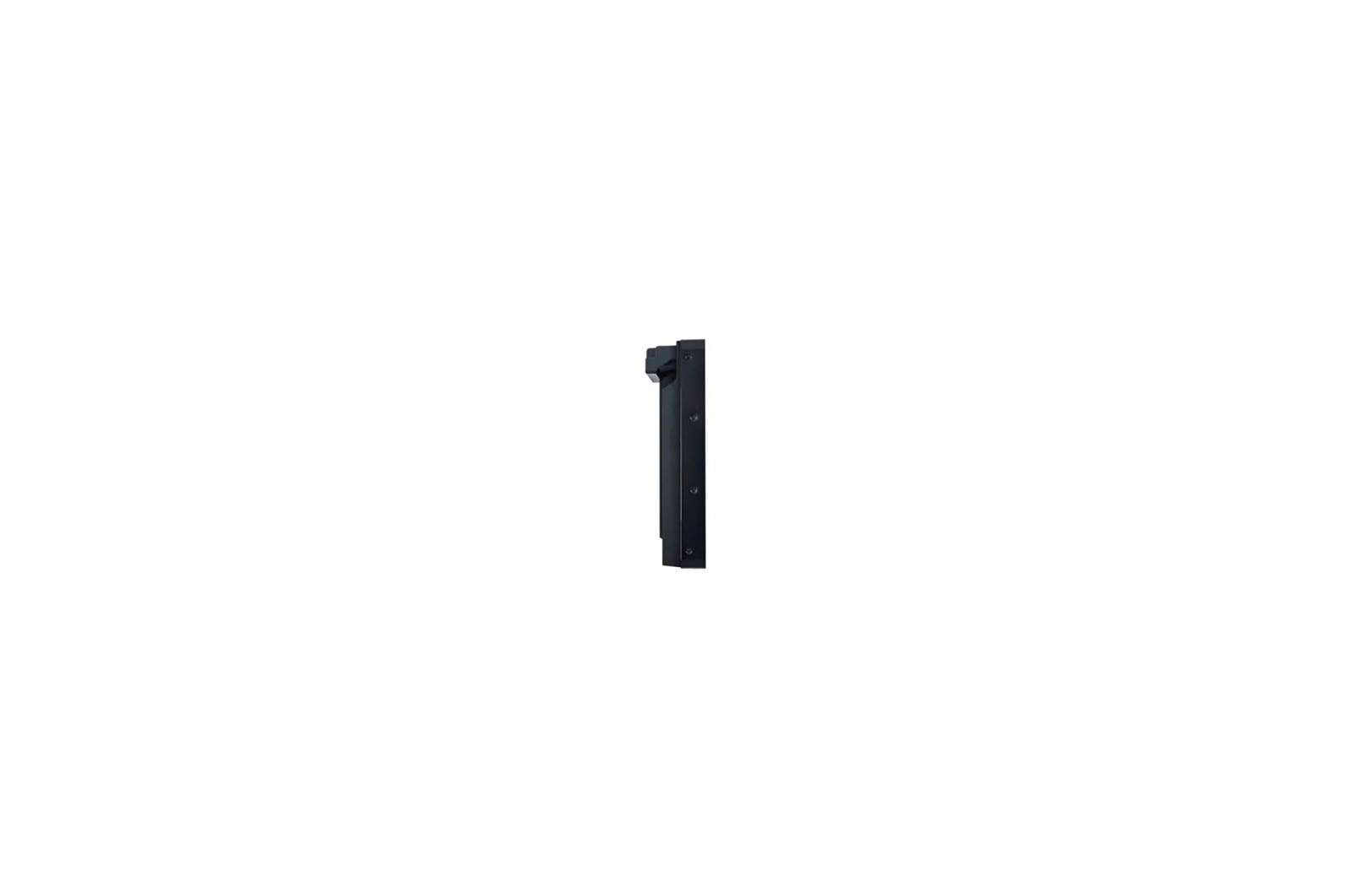

    • Left Side view
    • Left view
    • Back view
    • Top view
    Front view
    Front view

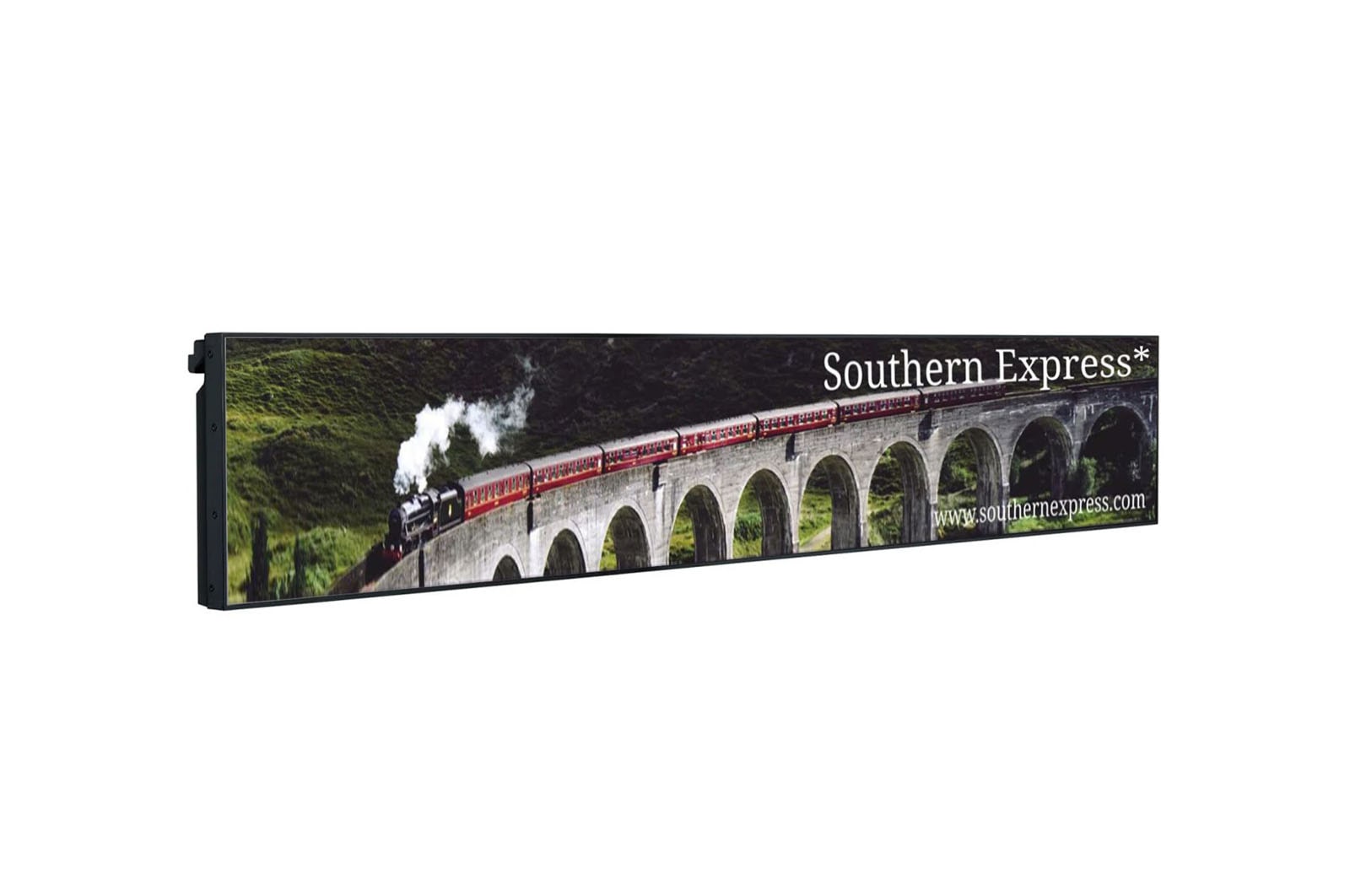

    Right Side view
    Left Side view
    Left view
    Back view

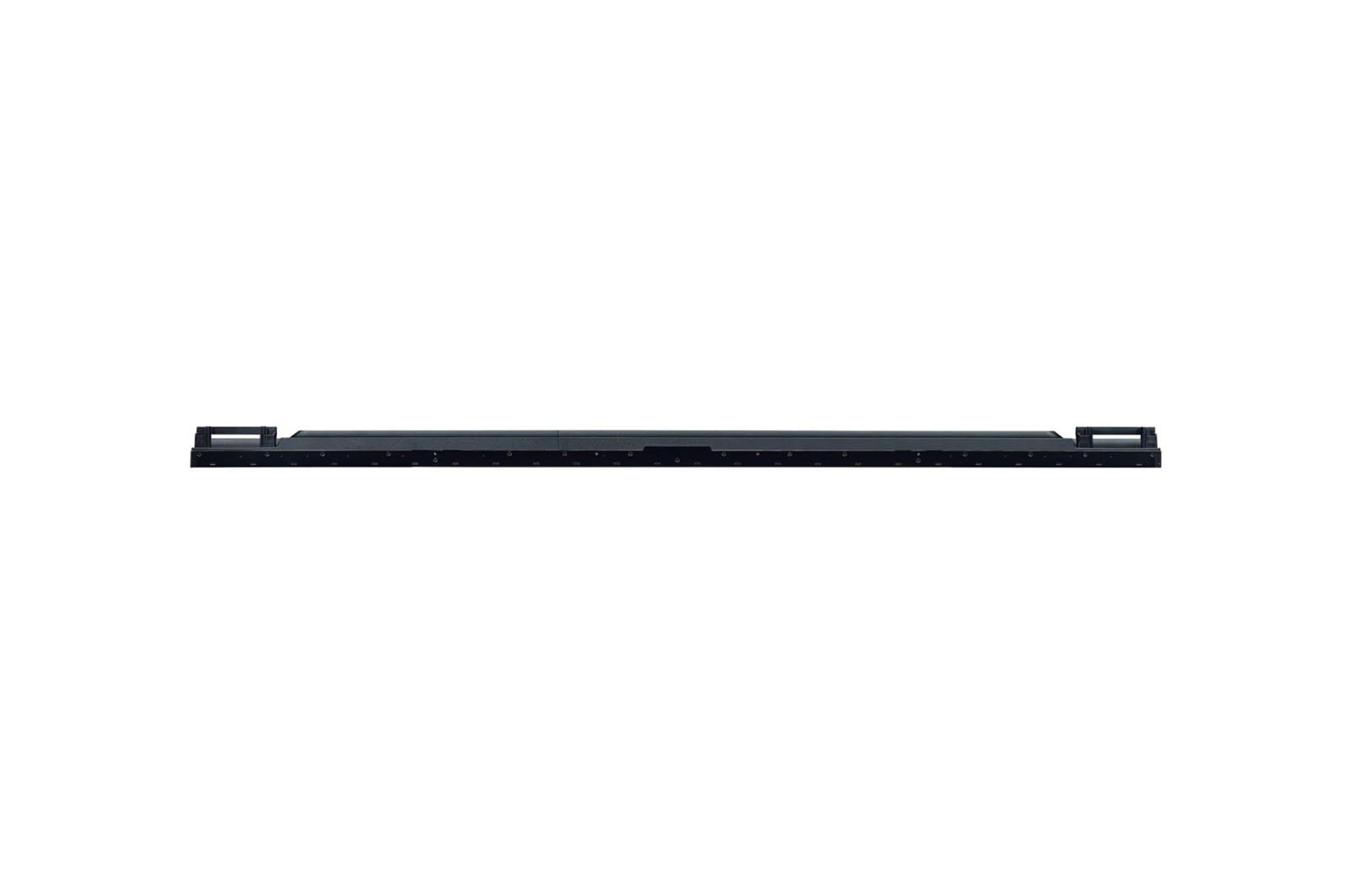

    Top view

    Key Features

    • Brightness(Typ.) : 500 cd/m2
    • Aspect Ratio: 58:9
    • Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
    • Depth: 81.7mm
    • Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
    More

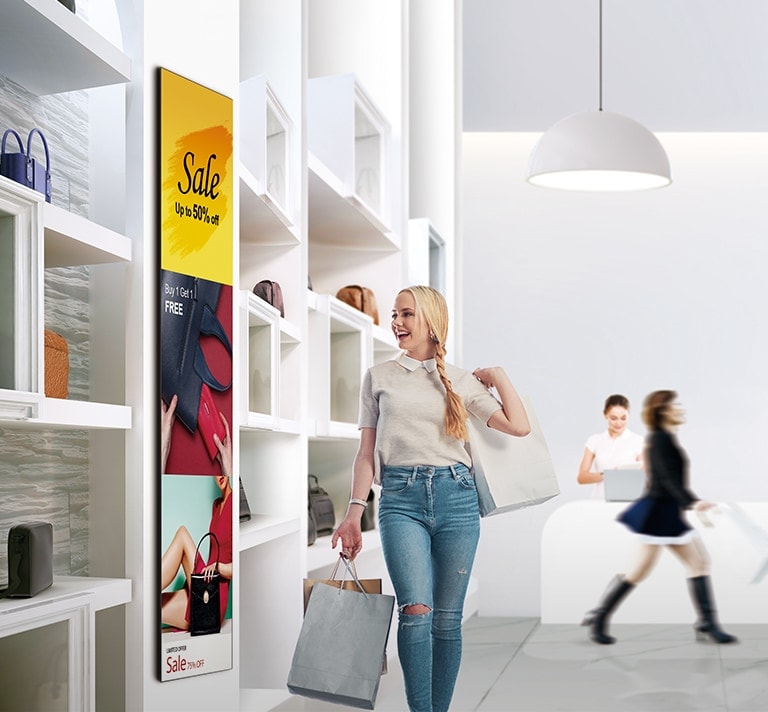

    Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

    The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

    LG 86BH5F ultra-stretch signage with wide screen

    * All images in this page are for illustrative purposes only.

    58:9 Extended Wide Format1

    58:9 Extended Wide Format

    It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.

    * Video content only. (Images not supported)

    Ultra HD Resolution (3,840 x 600)1

    Ultra HD Resolution (3,840 x 600)

    Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

    Multi Screen Mode with 4PBP1

    Multi Screen Mode with 4PBP

    The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

    Tiled Scene with Immersive View1

    Tiled Scene with Immersive View

    The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

    IP5x Certified Design1

    IP5x Certified Design

    The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

    User-Friendly UX1

    User-Friendly UX

    The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.

    *OSD : On Screen Display

    LAN Daisy Chain Management1

    LAN Daisy Chain Management

    By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

    Real-Time Monitoring with ConnectedCare1

    Real-Time Monitoring with ConnectedCare

    Easier and faster maintenance are available with our optional cloud service solution ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

    * All images of this page are for illustrative purposes only.

    Print

    All Spec

    PANEL

    • Screen Size (Inch)

      86

    • Panel Technology

      IPS

    • Back Light Type

      Direct

    • Aspect Ratio

      58:9

    • Native Resolution

      3840 x 600 (FHD)

    • Refresh Rate

      60Hz

    • Brightness

      500nit (Typ.)

    • Dynamic CR

      500,000:1

    • Color Gamut

      NTSC 72%

    • Viewing Angle (H x V)

      178o x 178o

    • Color Depth (Number of Colors)

      1.07 Billion colors

    • Response Time

      8ms (G to G)

    • Surface Treatment (Haze)

      Haze 10%

    • Operation Hours (Hours/Day)

      24/7

    • Portait / Landscape

      YES / YES

    • Transparency

      N/A

    • QWP (Quarter Wave Plate)

      N/A

    CONNECTIVITY

    • HDMI In

      YES (3ea)

    • HDMI In (HDCP Ver.)

      2.2/1.4

    • DP In

      YES (HDCP 2.2/1.3)

    • DVI-D In

      YES (HDCP 1.4)

    • RGB In

      NO

    • Audio In

      YES

    • RS232C In

      YES

    • RJ45(LAN) In

      YES (1ea)

    • IR In

      YES

    • USB In

      USB2.0 Type A (2ea)

    • HDMI Out

      NO

    • DP Out

      YES

    • Audio Out

      YES

    • Touch USB

      NO

    • External Speaker Out

      NO

    • RS232C Out

      YES

    • RJ45(LAN) Out

      YES

    • IR Out

      NO

    • Daisy Chain

      Input : HDMI, DP, DVI-D / Output : DP

    MECHANICAL SPECIFICATION

    • Bezel Color

      Black

    • Bezel Width

      T/R/L/B : 5.9/4.4/4.4/5.9mm

    • Weight (Head)

      20.5Kg

    • Packed Weight

      38.2Kg

    • Monitor Dimensions (W x H x D)

      2158.3 x 348.5 x 81.7mm

    • Monitor Dimension with Stand (W x H x D)

      N/A

    • Handle

      YES

    • VESA Standard Mount Interface

      600 x 200 mm

    • Carton Dimensions (W x H x D)

      2290 x 599 x 228mm

    • Weight (Head+Stand)

      N/A

    FEATURE - HARDWARE

    • Internal Memory (eMMC)

      8GB

    • Wi-Fi/BT (Built-in)

      YES

    • Temperature Sensor

      YES

    • Auto Brightness Sensor

      YES

    • Pixel Sensor

      NO

    • Proximity Sensor

      NO

    • Current Sensor

      YES

    • BLU Sensor

      NO

    • Humidity Sensor

      NO

    • Acceleration(Gyro) Sensor

      NO

    • Power Indicator

      NO

    • Local Key Operation

      YES

    • FAN (Built-in)

      NO

    FEATURE - SOFTWARE

    • OS Ver. (webOS)

      webOS 4.0

    • Local Contents Scheduling

      YES

    • Group Manager

      YES

    • USB Plug & Play

      YES

    • Fail Over

      YES

    • Booting Logo Image

      YES

    • No Signal Image

      YES

    • RS232C Sync

      YES

    • Local Network Sync

      YES

    • Backlight Sync

      NO

    • PIP

      NO

    • PBP

      YES (4PBP)

    • Screen Share

      NO

    • Video Tag

      NO

    • Play Via URL

      NO

    • Screen Rotation

      YES

    • External Input Rotation

      YES

    • Gapless Playback

      NO

    • Tile Mode Setting

      YES

    • Setting Data Cloning

      YES

    • SNMP

      YES

    • ISM Method

      YES

    • Auto Set ID

      YES

    • Status Mailing

      YES

    • Control Manager

      YES

    • Cisco Certification

      NO

    • Crestron Connected

      YES

    • Smart Energy Saving

      YES

    • PM mode

      YES

    • Wake on LAN

      YES

    • Network Ready

      NO

    • BEACON

      YES

    • HDMI-CEC

      YES

    • SI Server Setting

      NO

    • webRTC

      NO

    • Pro:Idiom

      NO

    • Brightness Compensation

      NO

    • W/B Setting by Grey scale

      NO

    • Scan Inversion

      NO

    ENVIRONMENT CONDITIONS

    • Operation Temperature

      0 °C to 40 °C

    • Operation Humidity

      10 % to 80 %

    POWER

    • Power Supply

      AC 100-240V~, 50/60Hz

    • Power Type

      Built-in Power

    POWER CONSUMPTION

    • BTU (British Thermal Unit)

      751 BTU/Hr(Typ.), 819 BTU/Hr(Max.)

    • Smart Energy Saving (70%)

      100W

    • DPM

      0.5W

    • Power off

      0.5W

    • Max.

      240W

    • Typ.

      220W

    SOUND

    • Speaker (Built-in)

      NO

    CERTIFICATION

    • Safety

      CB / NRTL

    • EMC

      FCC Class "A" / CE / KC

    • ERP / Energy Star

      YES(EU Only) / NO

    • ePEAT(US only)

      NO

    OPS COMPATIBILITY

    • OPS Type compatible

      YES (Piggyback)

    • OPS Power Built-in

      NO

    SOFTWARE COMPATIBILITY

    • SuperSign CMS

      NO

    • SuperSign Control+

      YES

    • SuperSign WB

      YES

    • SuperSign Cloud

      NO

    • Promota

      NO

    • Mobile CMS

      YES

    • Connected Care

      YES

    LANGUAGE

    • OSD

      English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

    ACCESSORY

    • Basic

      Remote Controller(including battery 2ea), Power Cord, DP cable, RS-232C Cable, IR/Light sensor receiver, Manual

    • Optional

      OPS Kit(KT-OPSF)

    SPECIAL FEATURE

    • Overlay Touch Compatibility

      N/A

    • Smart Calibration

      N/A

    • Tilt (Face up)

      N/A

    • Tilt (Face down)

      N/A

    • IP Rating

      IP5X

    • Conformal Coating (Power Board)

      YES

    • Power Protection

      N/A

    • Direct Sunlight

      N/A
