Name: LG Transparent LED Film
Brand: LG

LG Transparent LED Film

Find a Dealer

LG Transparent LED Film

LAT140

Key Features

Pitch : 14mm
LED Type: R,G,B 3in1 SMD
Transmittance: 53%
Curvature(concave and convex): 2,000R
Self-adhesive Film

*All images in this page are for illustrative purposes only and may differ from the actual product.

A NATURAL BLEND WITH SPACE

Superb Transparency

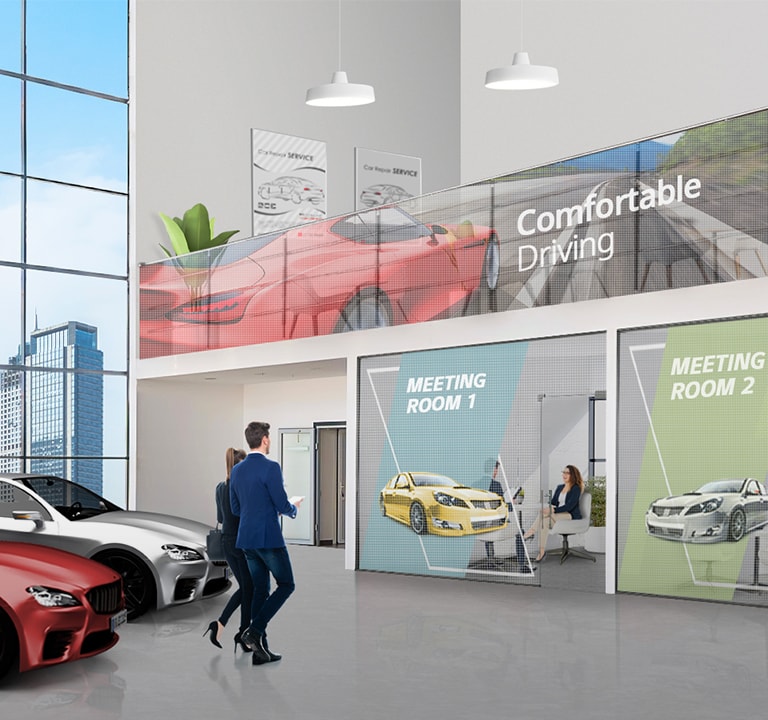

The LG Transparent LED film reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.

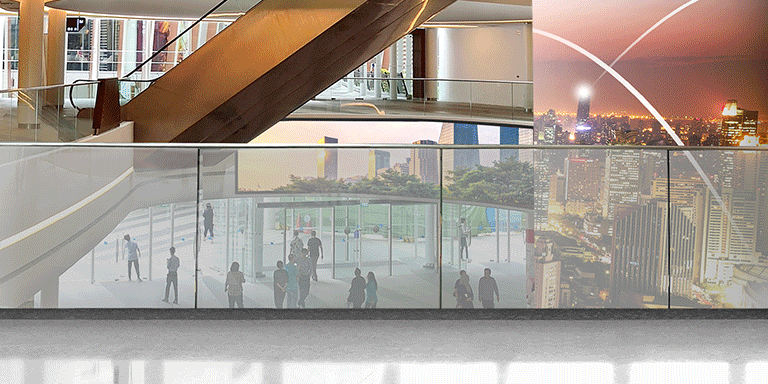

The 14mm LG Transparent LED film is installed in the shopping mall with reflecting the object behind the product even after the product is attached and turned off.

Fitting in with Flats and Curves

The LG Transparent LED film supports curvatures up to 2,000R convex and concave for curved glass or window applications, and offers even surface by durable, transparent layers. This allows a wide range of venues to be redesigned with the LAT series as a landmark.

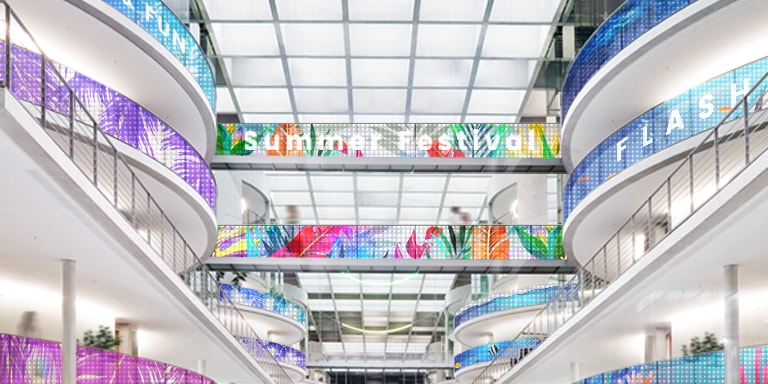

This shopping mall railing image shows that the LG Transparent LED film can be curved up to 2,000R convex and concave for curved glass or window applications.

EYECATCHING CONTENT DISPLAY

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 2,100cd/m2* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

*The examined brightness may differ from testing environments including a photometer.

This shows that LED film can be attached to glass through the self-adhesiveness.

EASY SPACE INNOVATION

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

EASY SPACE INNOVATION

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

SMART LED SIGNAGE

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

*webOS API will be provided to authorized SIs and developers.

SMART LED SIGNAGE

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.

SMART LED SIGNAGE

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

*ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

All Spec

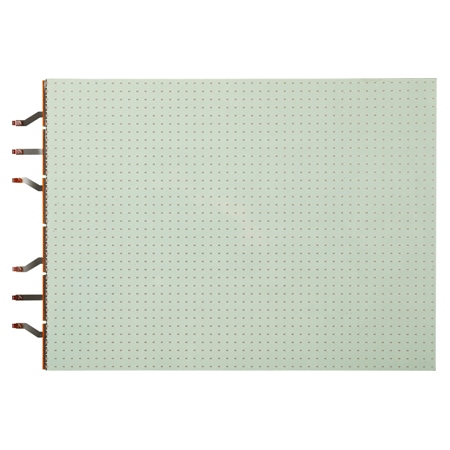

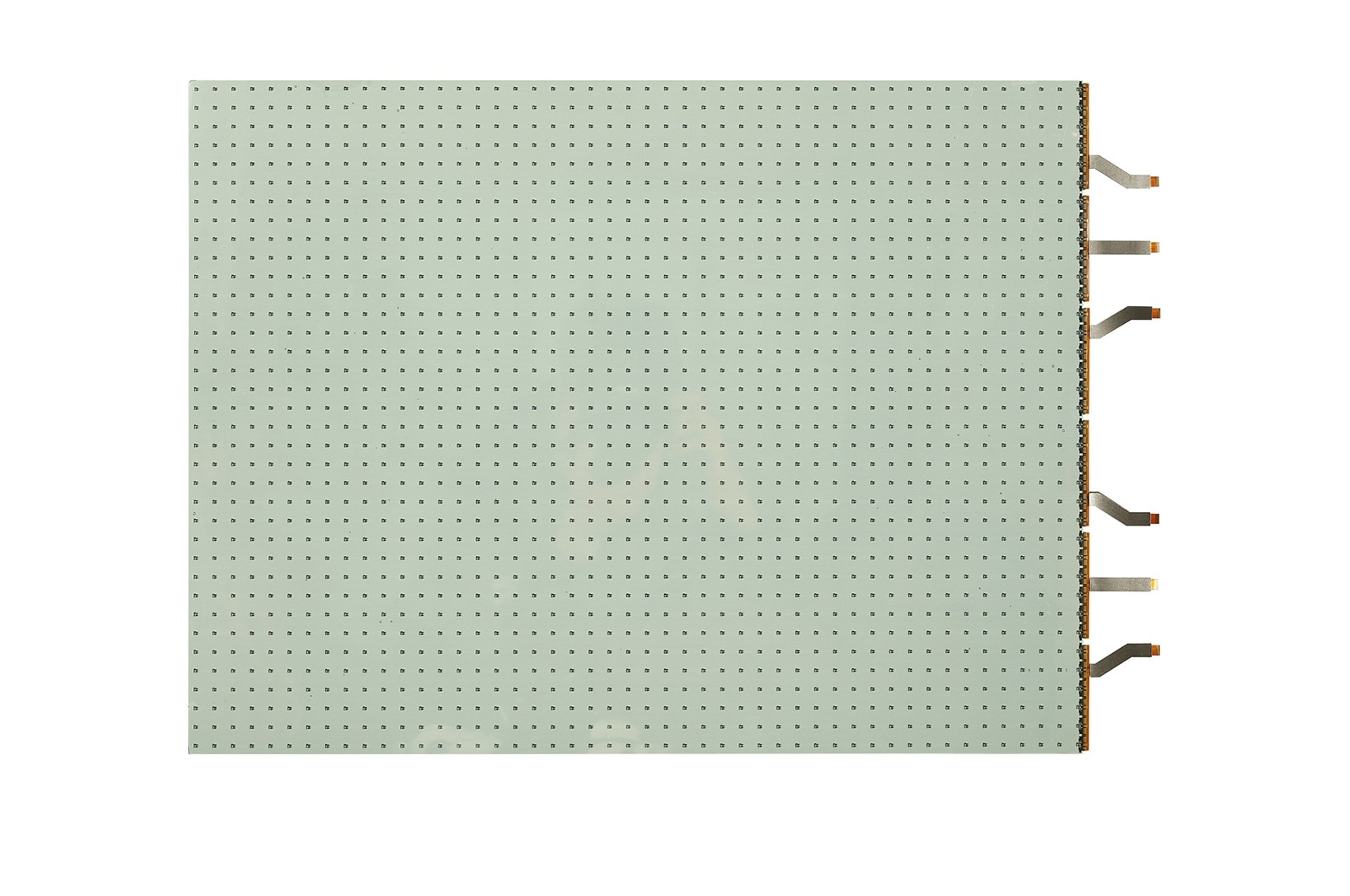

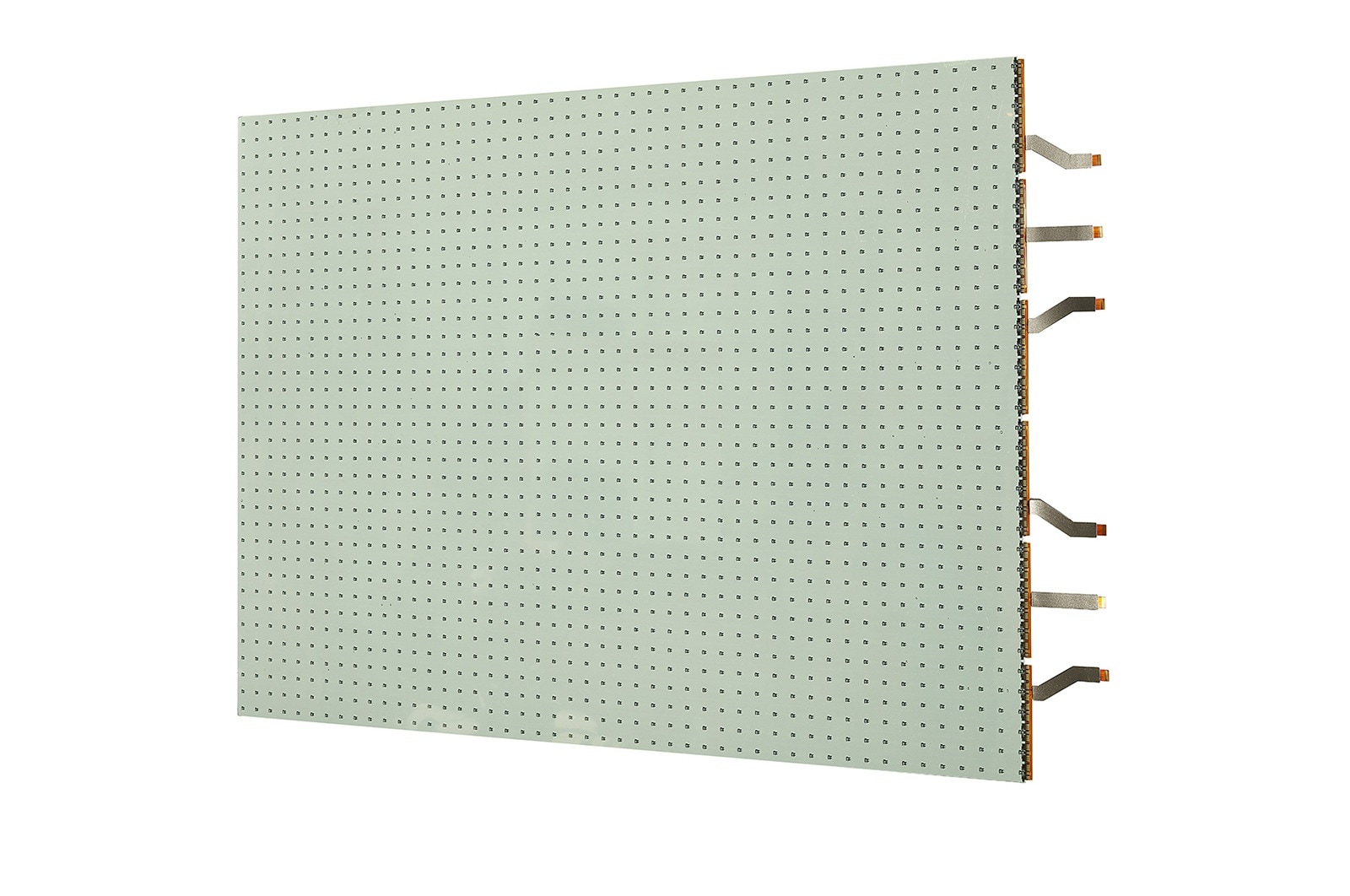

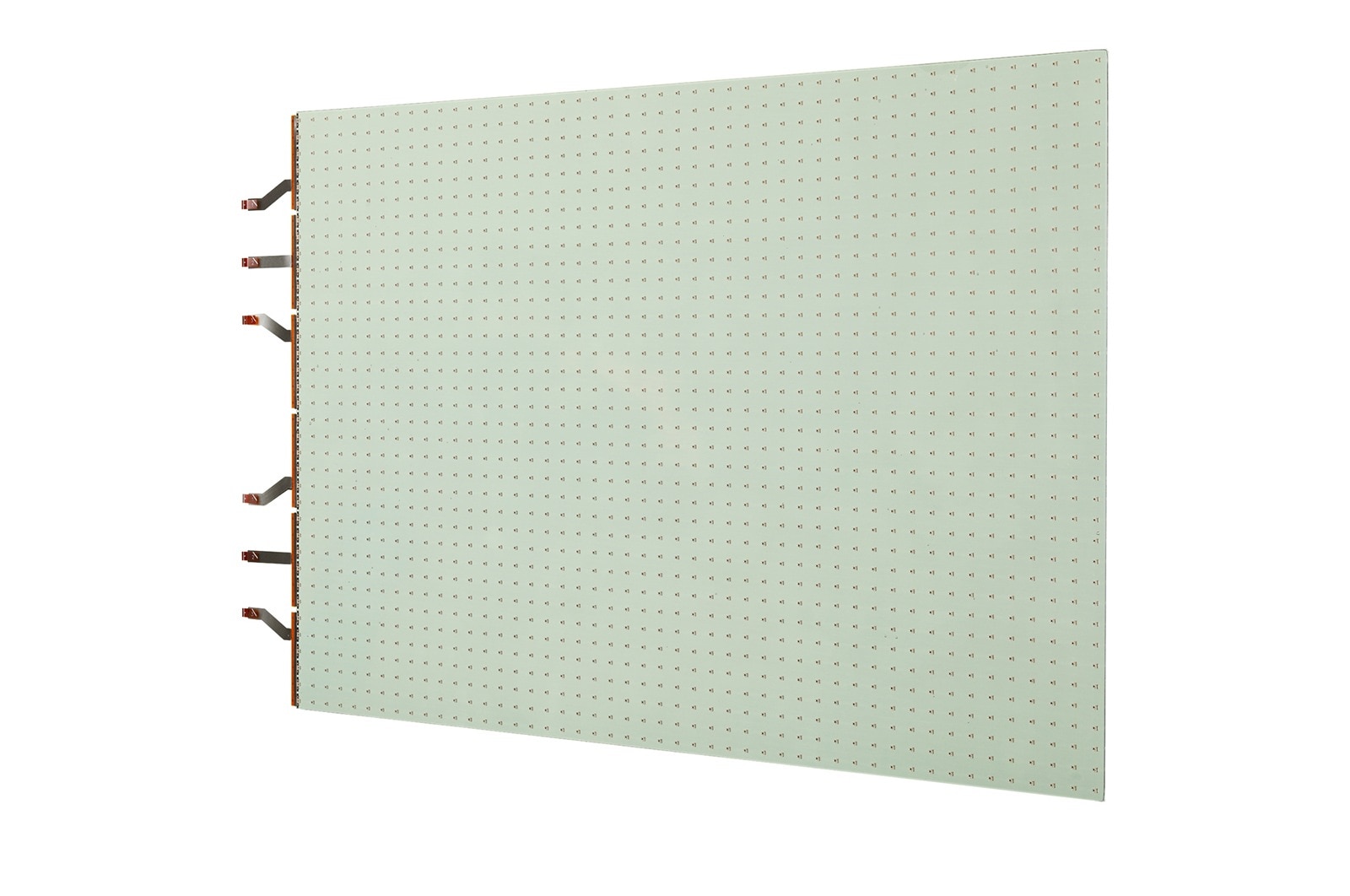

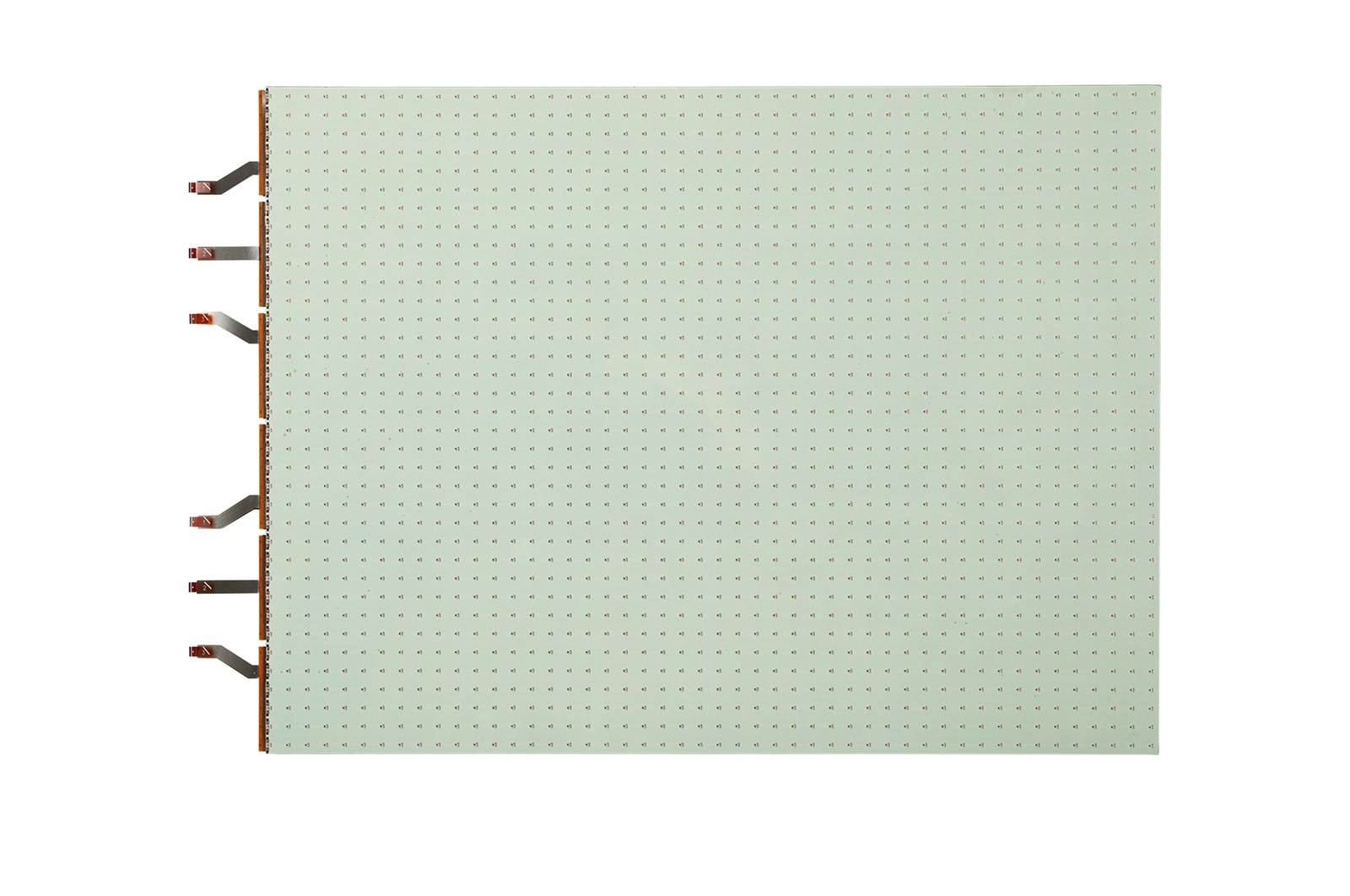

LED FILM(LAT140GT81)

Pixel Pitch(mm)

13.7±0.2mm
LED Type

R, G, B 3in1 Color Package (SMD2020)
Resolution

48 x 36
Pixels per Panel

1,728
Pixel Density (point/㎡)

5,102
Brightness (cd/m2)

Typ.2,100nit
Contrast Ratio

≥ 100,000:1
Luminance Uniformity

≥ 70%
Viewing Angle (H x V)

120 x 120
Life Time (Duration of Half Brightness in Hours)

50,000 Hrs
Daily Usage

24h / 7days
Warranty

2 years
Transparency

Typ 53%
Operating Temperature

0℃ ~ 45℃ (Indoor Glass Installation Only)
Film Trimming

Yes (Parallel to the Bezel Side Only)
Color Processing

(9bit) 500/500/500 Level (R, G, B)
Colors

125,000,000 Colors
Color Chromaticity

Cx: 0.25±0.03, Cy : 0.34±0.03
Dimension (W x H x D)

655 x 492 x 2.9mm (with front & back protection film)
Weight

1kg
Power Consumption

37W(Transparent panel 1EA + Common Bezel kit 2EA)
Accessory

ESG, Regulation book, Warranty Card

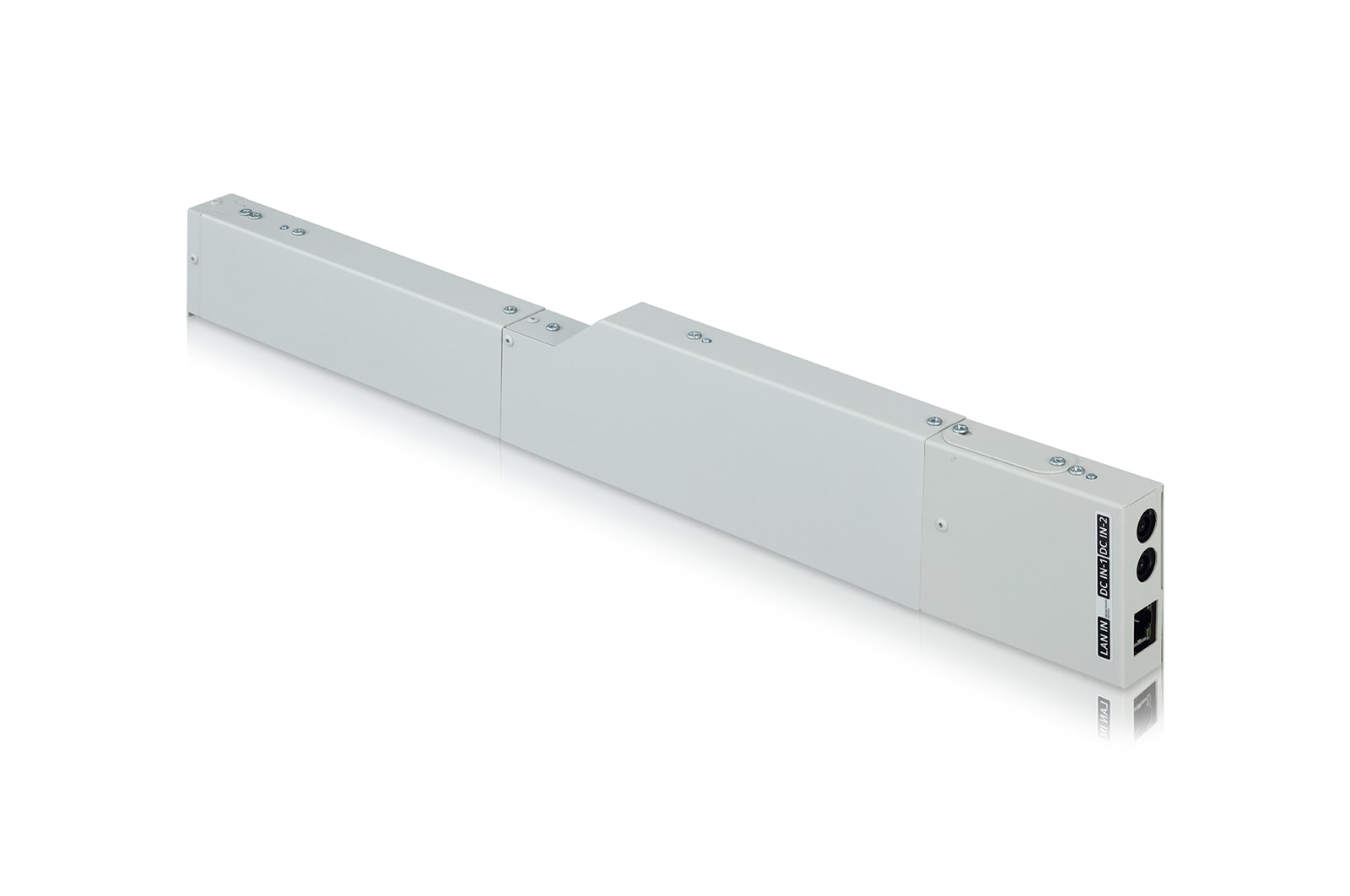

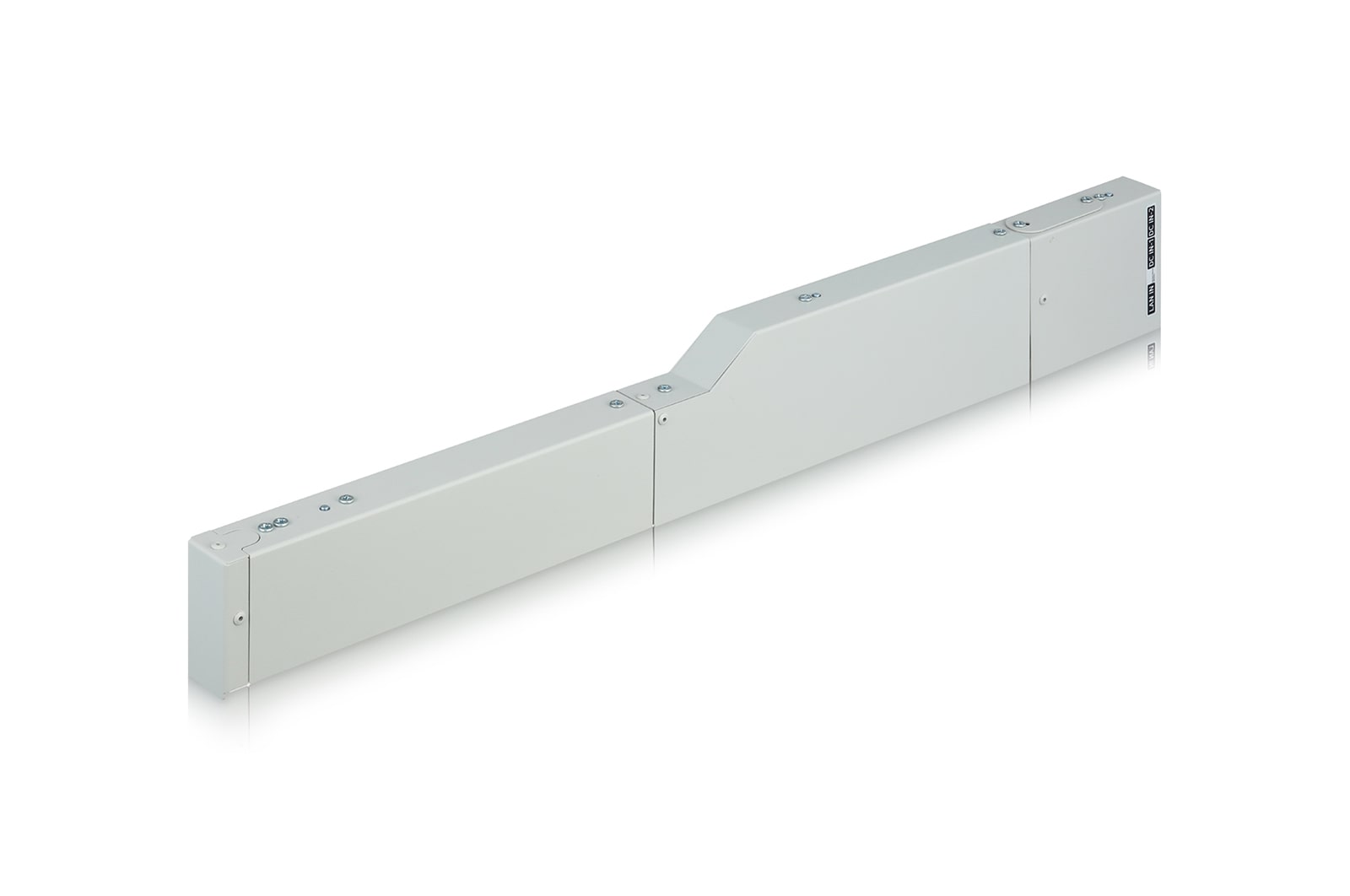

1ST BEZEL(ACC-14LATB1)

Dimension (W x H x D)

69.4 x 492 x 25mm (Cover)
Weight

0.4Kg

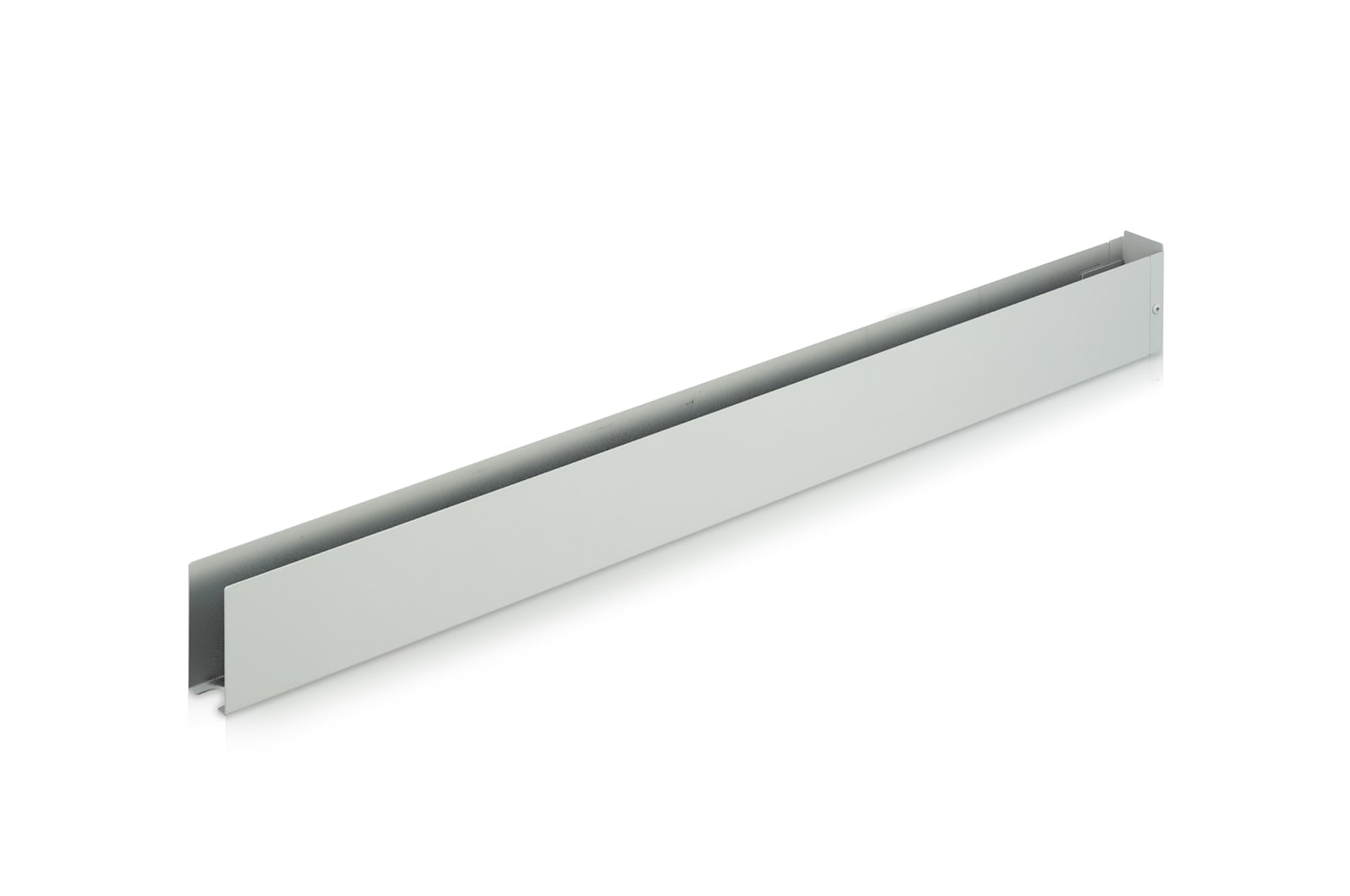

COMMON BEZEL(ACC-14LATB2)

Dimension (W x H x D)

51.4 x 492 x 25mm (Cover)
Weight

0.3Kg

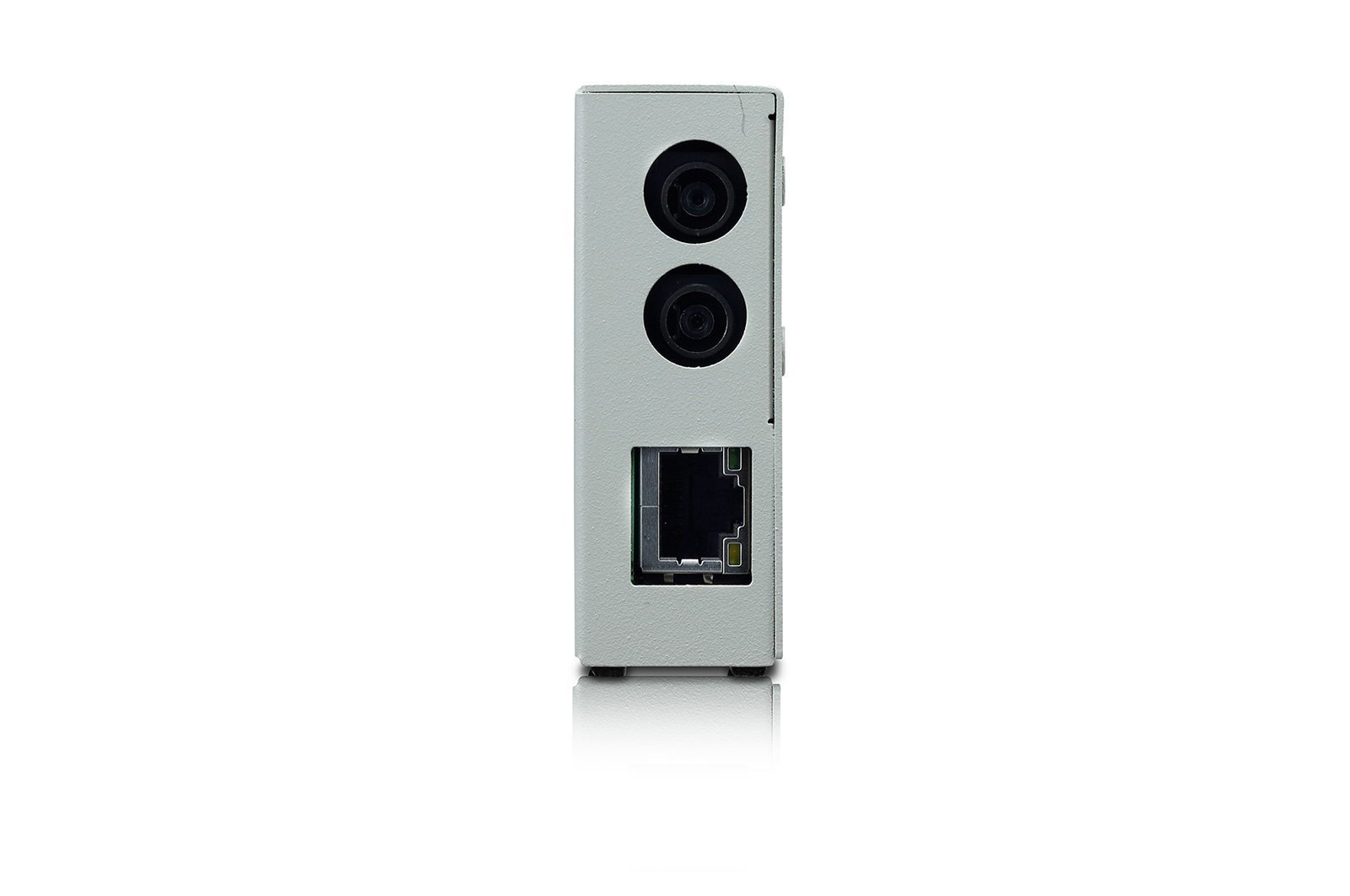

UNIT CONTROLLER(LCLG140U)

Resolution

960x540 (1/4 FHD)
Interface

Input : LVDS
Output : RJ45 x4EA
Maximum Transmission Length

100m (Cable : CAT5E, CAT6)
Dimension (W x H x D)

293 x 188.7 x 37mm
Weight

1.5Kg
Temperature Sensor

Yes
Power Consumption

20 W

SYSTEM CONTROLLER(LCLG002)

Video (Max. Input Resolution)

DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz
Interface (Input)

HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0,
Interface (Output)

DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS
Dimension (W x H x D mm)

293 x193.3 x 40.1mm
Weight (Head, Kg)

1.6kg
Temperature Sensor

O
Light Sensor

O
Source Selection

HDMI, DVI-D, DP
Power Consumption

17W
CMS S/W

Yes (2.9)
Signage365care

Yes (2.7)
Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card

ONE BOX CONTROLLER(CTAA-140G)

Video

HDMI : 1920x1080@60Hz
Input

HDMI, RS232C (Phone Jack Type), RJ45, IR Receiver, USB 3.0
Output

RS232C (Phone Jack Type), RJ45 (2)
Dimension (W × H × D)

333 x 186.8 x 40.1mm
Weight (Head)

1.82 kg
Temperature Sensor / Light Sensor

Yes / Yes
TPC (Temporal Peak Luminance Control)

Yes
Power Consumption

30 W
CMS S/W

SuperSign CMS
Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card

POWER(ACC-LATP1)

Dimension (W x H x D)

183 x 86 x 28mm
Weight

769g
Input

100~240V, 50~60Hz
Output

19.5V/10.8A (210W)
Color

White
DC output cable

14AWG, 1.5m
Type

L Type
