Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
3.91
Module Resolution (W x H)
64 × 128
Module Dimensions (W x H, mm)
250 × 500
Weight per Module (kg)
1.30

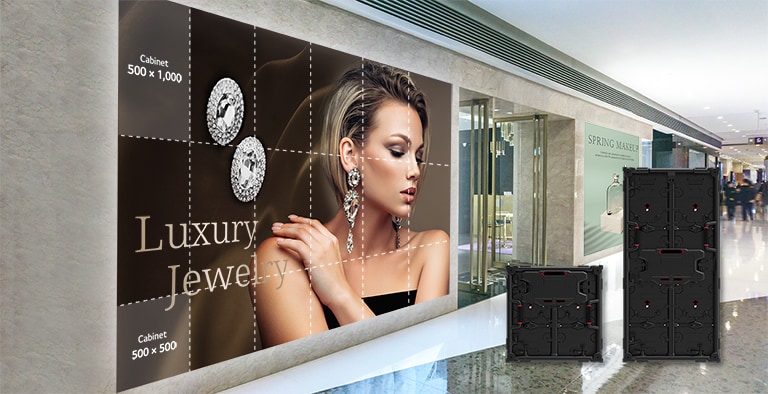

No. of Modules per Cabinet (W × H)
2 × 2 / 2 × 1 (Half-sized)
Cabinet Resolution (W × H)
128 × 256 / 128 × 128 (Half-sized)
Cabinet Dimensions (W × H × D)
500 × 1,000 × 66 / 500 × 500 × 66 (Half-sized)
Cabinet Surface Area (m2)
0.500 / 0.250 (Half-sized)
Weight per Cabinet (kg/cabinet)
12.0 / 8.0 (Half-sized)
Weight per Square Meter (kg/m2)
24.0 / 32.0 (Half-sized)
Physical Pixel Density (pixels/m2)
65,536
Flatness of Cabinet
± 0.3 mm
Cabinet Material
Die Casting Aluminum Alloy
Service Access
Front or Rear (One Option Only)
Min. Brightness (After Calibration)
1,000
Color Temperature
3,500 ~ 9,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
97%
Color Uniformity
± 0.003 Cx,Cy
Contrast Ratio
7,000
Processing Depth (bit)
14
Power Consumption (W/cabinet, Max.)
270 / 135 (Half-sized)
Power Consumption (W/cabinet, Avg.)
90 / 45 (Half-sized)
Power Consumption (W/m2, Max.)
540
Power Consumption (BTU/h/cabinet, Max.)
921 / 461 (Half-sized)
Power Consumption (BTU/h/cabinet, Avg.)
307 / 154 (Half-sized)
Power Consumption (BTU/h/m2, Max.)
1,842
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-10 °C to +45 °C
Operating Humidity
0 - 80 % RH
IP rating Front / Rear
IP30 / IP30
Certification
CE,FCC,ETL
Environment
RoHS
Controller
CVCA, LCIN006
