Name: LG Versatile Series
Brand: LG

LG Versatile Series

Find a Dealer

LG Versatile Series

GSCA039

(2)

Key Features

Pixel Pitch: 3.91mm
Brightness: 5,000 cd/m2
Fast Assembly and Easy Maintenance
Two Cabinet Options
IP65 Weatherproof Design
90o Corner Option Available

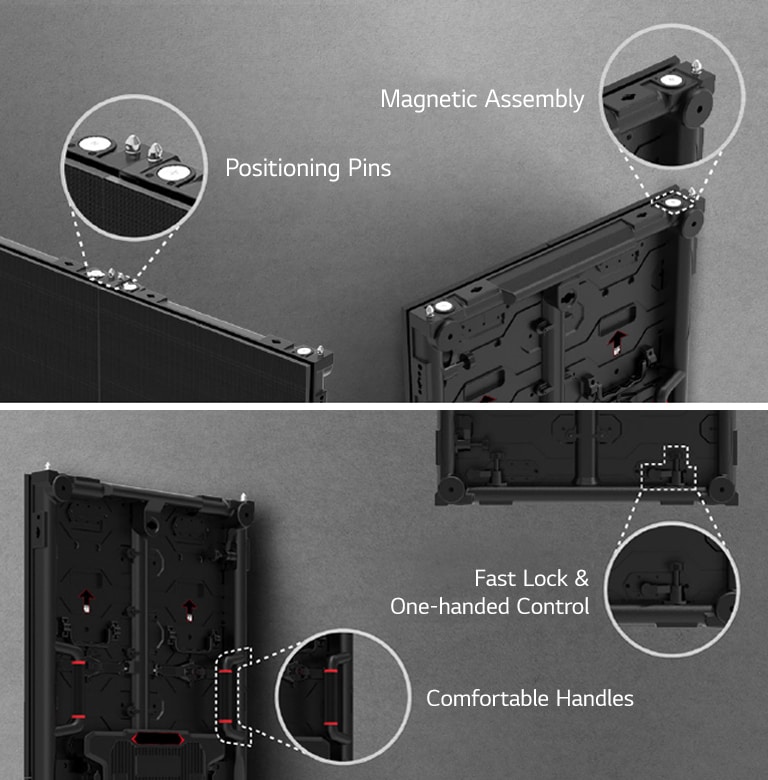

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

Easy Maintenance

The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

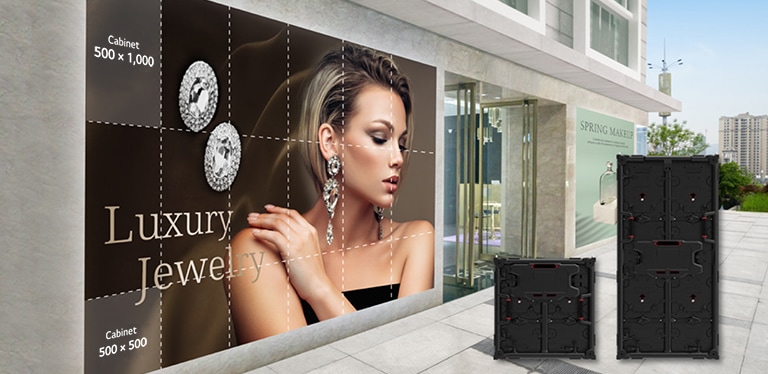

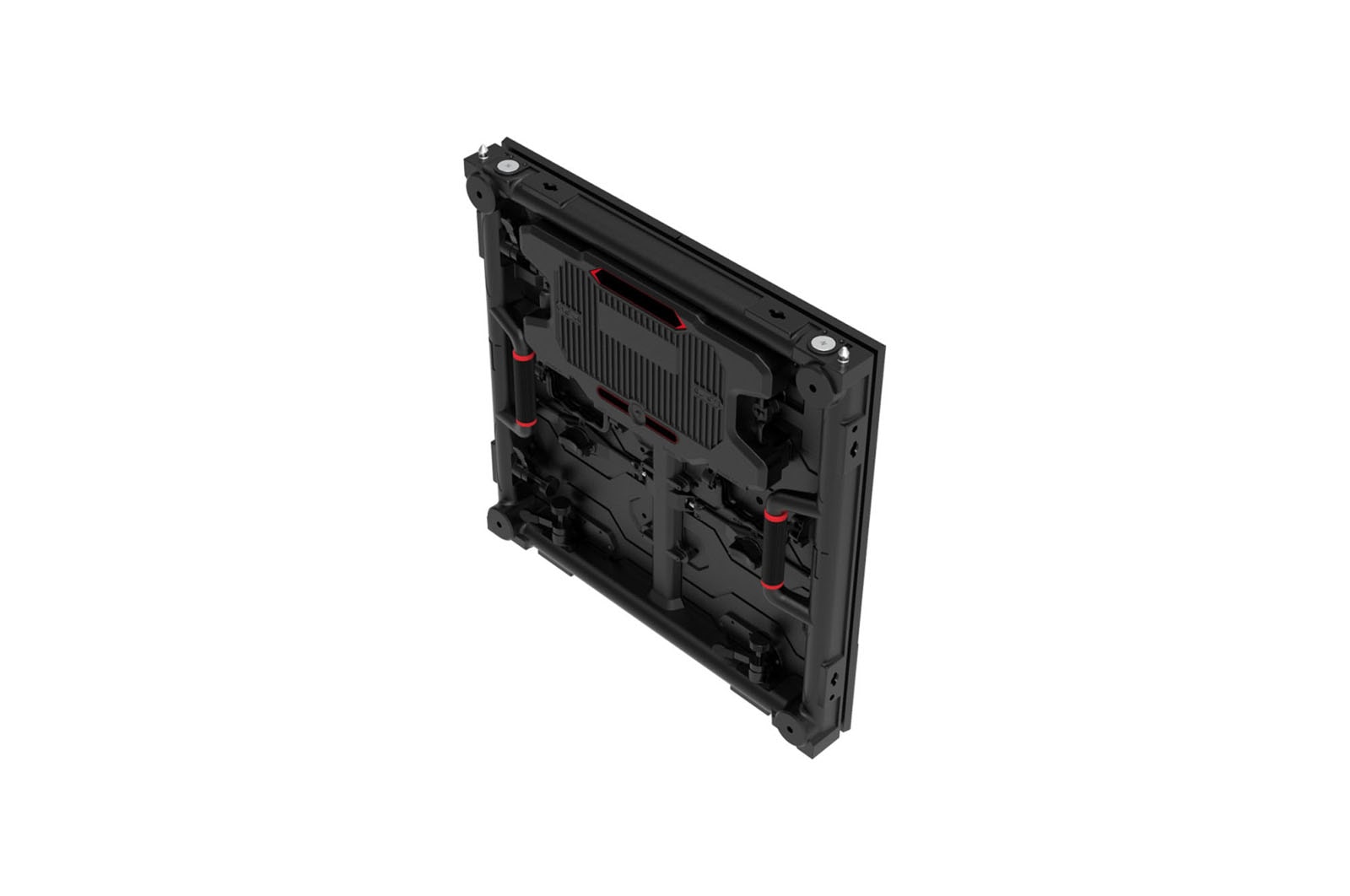

Two Cabinet Options

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.

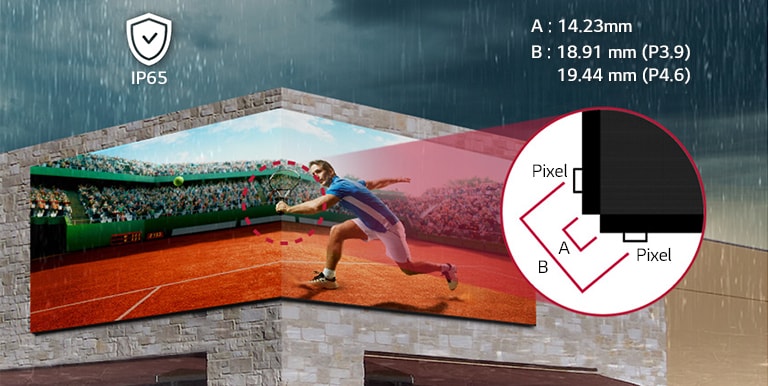

IP Rated Weatherproof
& 90° Corner Design

The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

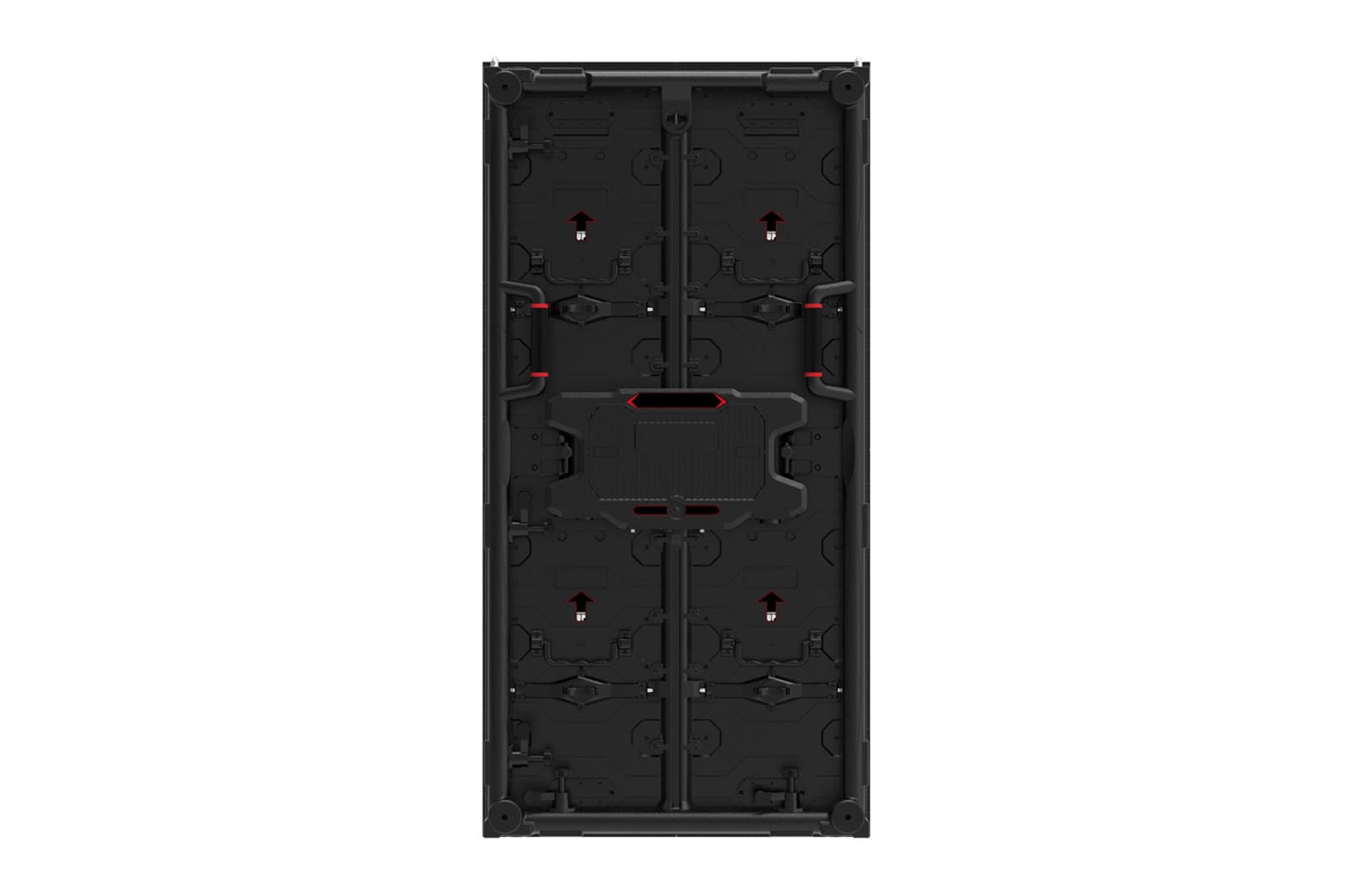

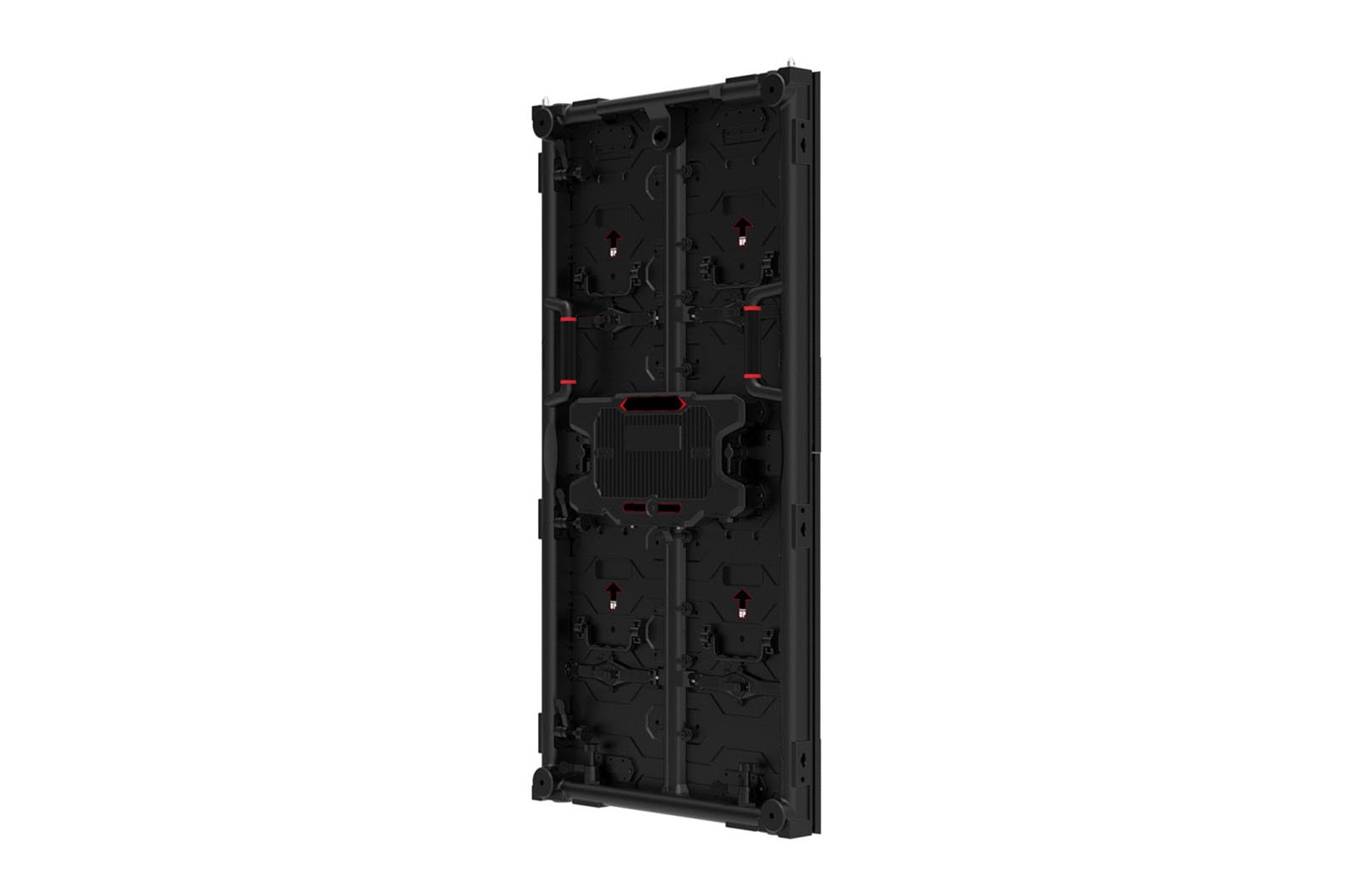

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

All Spec

PHYSICAL PARAMETER

Pixel Configuration

3 in 1 SMD
Pixel Pitch (mm)

3.91
Module Resolution (W x H)

64 × 128
Module Dimensions (W x H, mm)

250 × 500
Weight per Module (kg)

1.40
No. of Modules per Cabinet (W × H)

2 × 2 / 2 × 1 (Half-sized)
Cabinet Resolution (W × H)

128 × 256 / 128 × 128 (Half-sized)
Cabinet Dimensions (W × H × D)

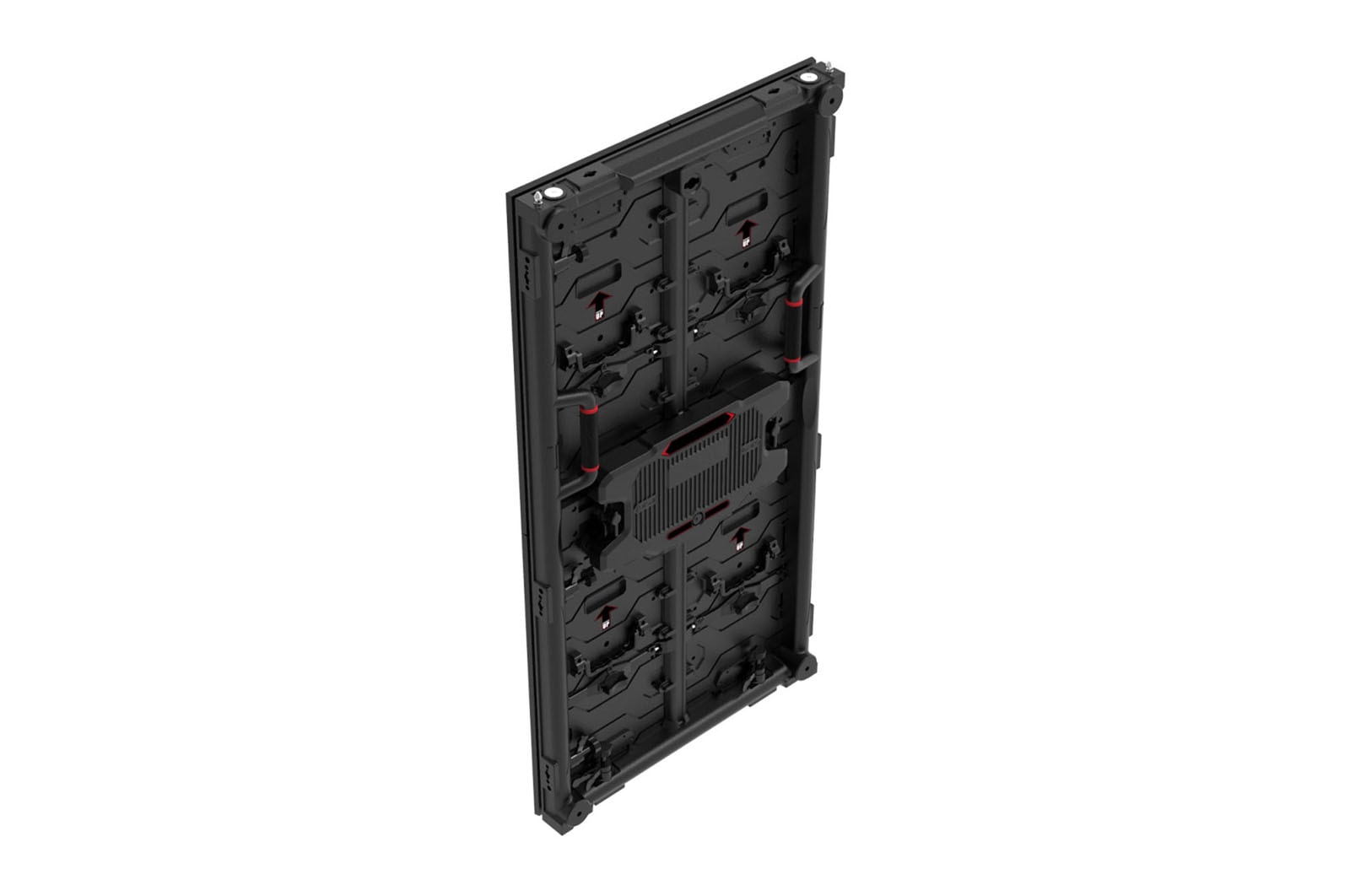

500 × 1,000 × 66.05

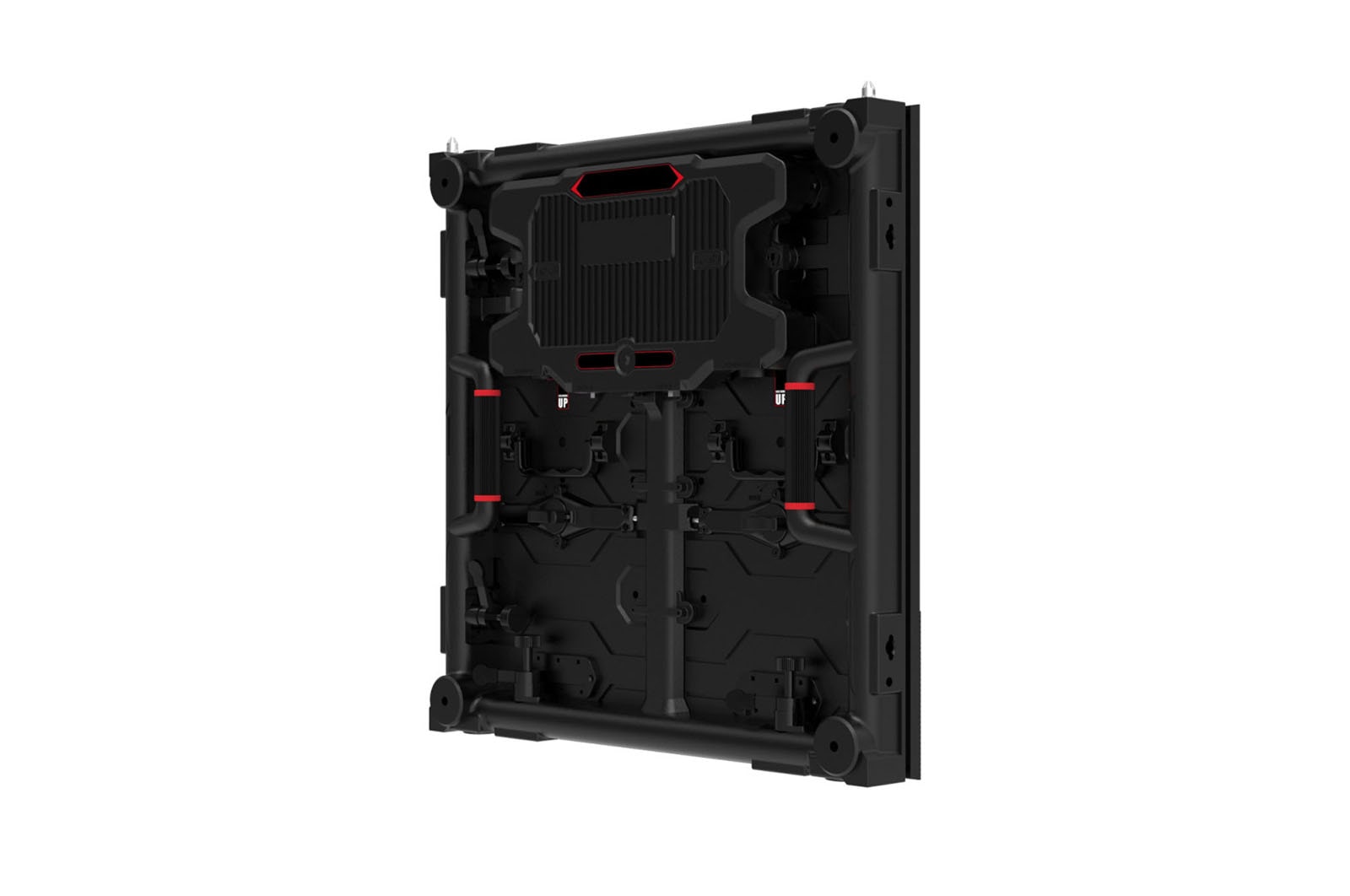

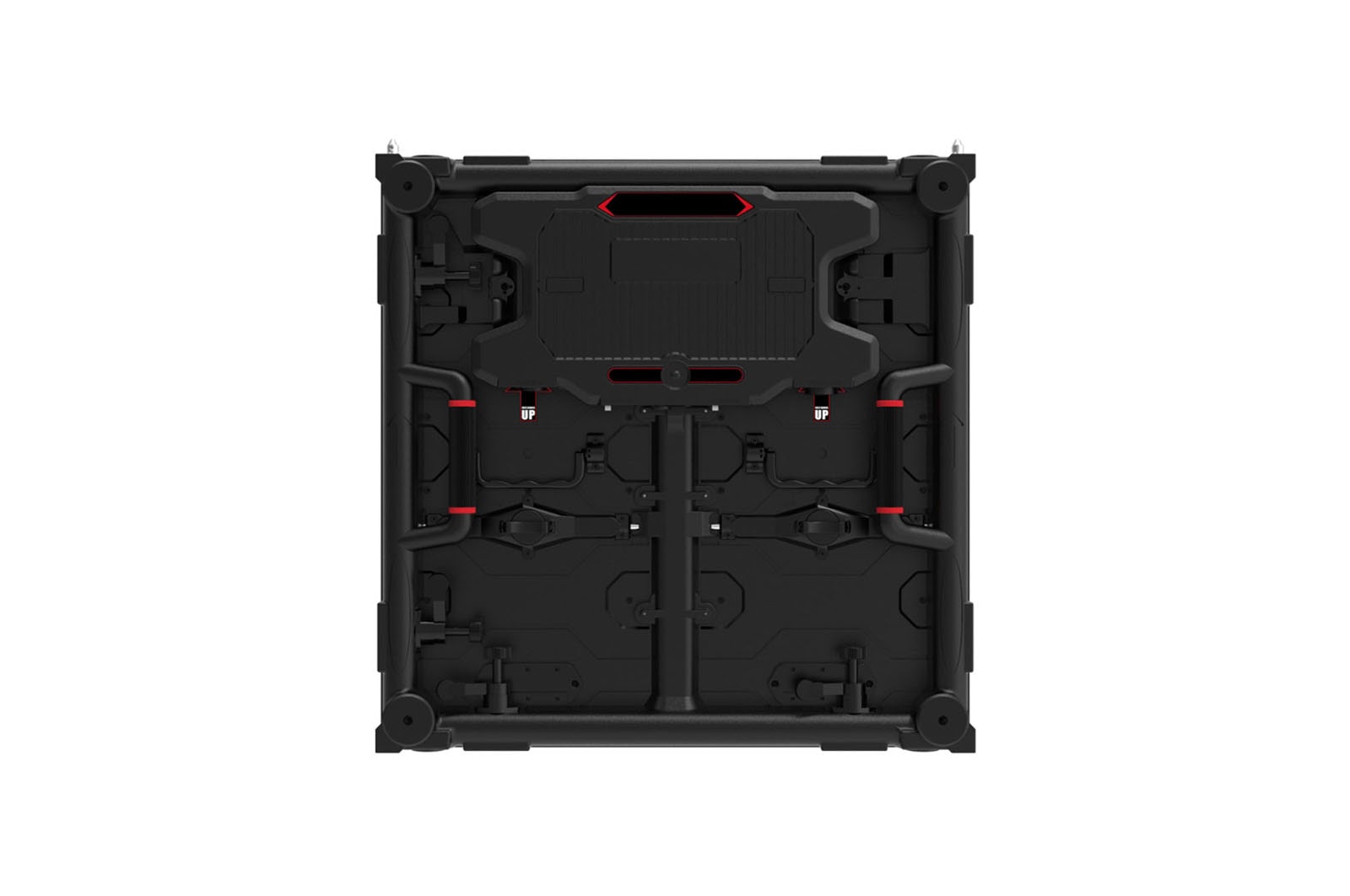

500 × 500 × 66.05 (Half-sized)
Cabinet Surface Area (m2)

0.500 / 0.250 (Half-sized)
Weight per Cabinet (kg/cabinet)

12.5 / 7.9 (Half-sized)
Weight per Square Meter (kg/m2)

24.9 / 31.7 (Half-sized)
Physical Pixel Density (pixels/m2)

65,536
Flatness of Cabinet

± 0.3 mm
Cabinet Material

Die-casting Magnesium
Service Access

Front or Rear (One Option Only)

OPTICAL PARAMETER

Min. Brightness (After Calibration)

5,000
Color Temperature

3,500 ~ 9,300
Visual Viewing Angle (Horizontal/Vertical)

160 / 155
Brightness Uniformity

97%
Color Uniformity

± 0.003 Cx,Cy
Contrast Ratio

6,000
Processing Depth (bit)

14

ELECTRICAL PARAMETER

Power Consumption (W/cabinet, Max.)

300 / 150 (Half-sized)
Power Consumption (W/cabinet, Avg.)

100 / 50 (Half-sized)
Power Consumption (W/m2, Max.)

600
Power Consumption (BTU/h/cabinet, Max.)

1024 / 512 (Half-sized)
Power Consumption (BTU/h/cabinet, Avg.)

341 / 171 (Half-sized)
Power Consumption (BTU/h/m2, Max.)

2047
Power Supply (V)

100 to 240
Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,840

OPERATION CONDITIONS

Lifetime (Hours to Half Brightness)

100,000
Operating Temperature (°C)

-30℃ to +45℃
Operating Humidity

10-99%RH
IP Rating Front

IP65
IP Rating Rear

IP65

CERTIFICATION

Certification

CE,FCC,ETL

ENVIRONMENT

Environment

RoHS

CONTROLLER

Controller

LCIN006/CVCA
