    43UH5F-H component-copyModelName

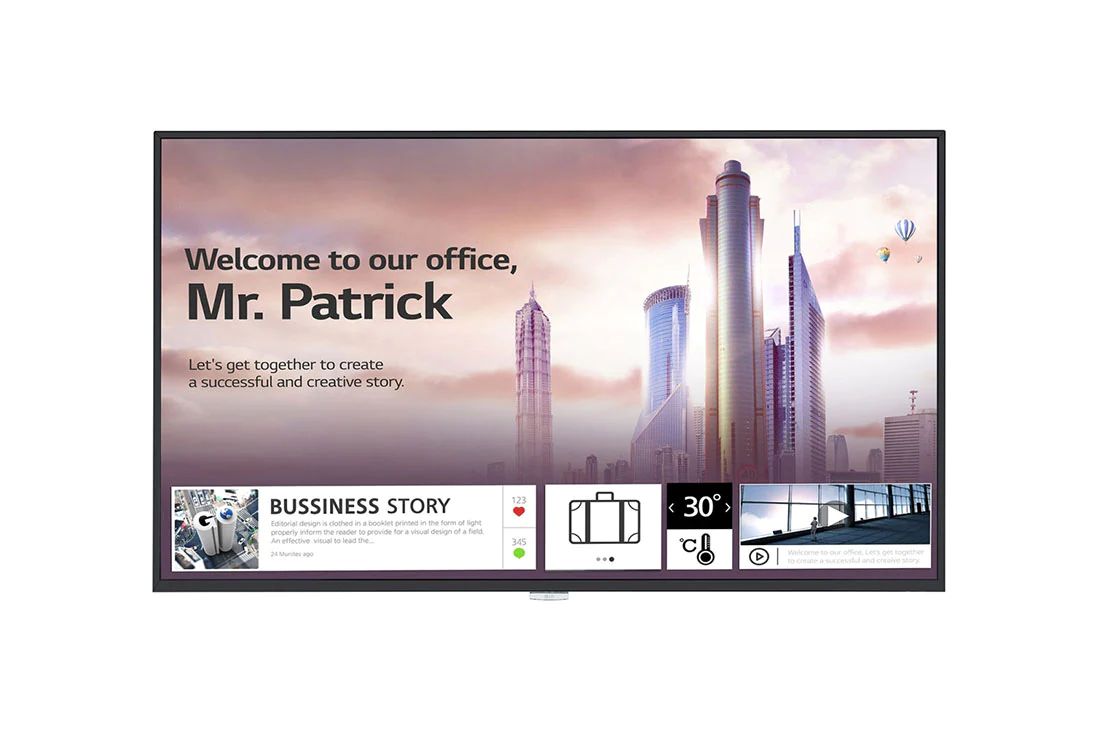

    UH5F-H Series, ULTRA HD Resolution, 4 times higher than FHD

    Key Features

    Choose your Size

    Choose your Size

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (43UH5F-H)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (43UH5F-H)
      $
      $
      LG Members Price
    Total
    UH5F-H Series, ULTRA HD Resolution, 4 times higher than FHD
    LG UHD Signage LG UHD Signage
    SUPERB PICTURE QUALITY

    Clear View with Non-glare Coating

    Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
    Clear View with Non-glare Coating. Clear View with Non-glare Coating.
    SUPERB PICTURE QUALITY

    ULTRA HD Resolution

    With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
    ULTRA HD Resolution ULTRA HD Resolution
    SLEEK AND PRACTICAL DESIGN

    Narrow Bezel & Slim Depth

    This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
    Narrow Bezel & Slim Depth. Narrow Bezel & Slim Depth.
    SLEEK AND PRACTICAL DESIGN

    Detachable Logo and Built-in Speaker

    This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
    Detachable Logo and Built-in Speaker. Detachable Logo and Built-in Speaker.
    PRODUCT RELIABILITY

    IP5x Certified Design

    The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
    IP5x Certified Design. IP5x Certified Design.
    PRODUCT RELIABILITY

    30° Tilting Installation

    When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.
    30° Tilting Installation. 30° Tilting Installation.
    *Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30oC temperature, 50% humidity)
    EASY INSTALLATION

    Auto Screen Rotatio

    This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.
    Auto Screen Rotatio. Auto Screen Rotatio.
    EASY INSTALLATION

    Fine Adjustment

    This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.
    Fine Adjustment. Fine Adjustment.
    webOS SMART SIGNAGE PLATFORM

    High-Performance with webOS

    Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
    High-Performance with webOS. High-Performance with webOS.
    webOS SMART SIGNAGE PLATFORM

    Various Sensor Applications

    LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
    Various Sensor Applications. Various Sensor Applications.
    MEETING ROOM SOLUTION COMPATIBILITY

    Compatible with AV Control System

    The UH5F-H series has been certified Crestron Connected? for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
    Compatible with AV Control System. Compatible with AV Control System.
    *Network based control.
    MEETING ROOM SOLUTION COMPATIBILITY

    Compatible with Video Conference System

    For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
    Compatible with Video Conference System. Compatible with Video Conference System.
    *Using an HDMI cable connection.
    ENERGY STAR? Certified

    ENERGY STAR? Certified

    Close
    PANEL
    • Screen Size
      43"
      Panel Technology
      IPS
    • Back Light Type
      Edge
      Aspect Ratio
      16 : 9
    • Native Resolution
      3840 x 2160 (UHD)
      Refresh Rate
      60Hz
    • Brightness
      500nit (Typ.)
      Contrast Ratio
      1,100:1
    • Dynamic CR
      1,000,000:1
      *The luminosity ratio of Full Black / Full White color on video input condition.
      Color gamut
      BT709 95%
    • Viewing Angle(H x V)
      178 x 178
      Color Depth
      10bit, 1.07Billion colors
    • Response Time
      8ms (G to G)
      Surface Treatment(Haze)
      28%
    • Life time
      50,000Hrs (Min.)
      Operation Hours (Hours/Day)
      24/7
    • Portrait / Landscape
      Yes/Yes
    CONNECTIVITY
    • Input - Digital - HDMI
      Yes(3)
      HDMI1/HDMI2 : HDCP 2.2/1.4
      HDMI3 : HDCP 1.4
      Input - Digital - DP
      Yes(1), HDCP2.2/1.3
    • Input - Digital - DVI-D
      Yes(1), HDCP1.4
      Input - Audio In
      Yes(1)
    • Input - External Control - RS232C IN
      Yes(1), 4pin Phone-jack
      Input - External Control - RJ45(LAN)
      Yes(1)
    • Input - External Control - IR IN
      Yes(1)
      Input - USB
      USB2.0 Type A(1)
    • Output - DP Out
      Yes(1), Input : HDMI1/2/3/DVI/DP/OPS
      Output - Audio Out
      Yes(1)
    • Output - External Control - RS232C OUT
      Yes(1), 4pin Phone-jack
    MECHANICAL SPECIFICATION
    • Bezel Color
      Black
      Bezel Width
      T/R/L: 8.4mm, B: 14.4mm
    • Weight(Head)
      11.2Kg
      Weight(Head+Stand)
      11.8Kg
    • Packed Weight
      13.7Kg
      Monitor Dimension(W x H x D)
      962.5 x 568.0 x 39.9mm
    • Monitor Dimensions with Stand(W x H x D)
      962.5 x 613.1 x 290.0mm
      Carton Dimensions(W x H x D) (Box outer size)
      1060.0 x 660.0 x 152.0mm
    • VESA? Standard Mount Interface
      200 x 200
    KEY FEATURE
    • HW - Internal Memory
      8GB
      HW - Wi-Fi - Built-in
      Yes
    • HW - Sensor - Temperature Sensor
      Yes
      HW - Sensor - Auto Brightness sensor
      Yes
    • HW - Sensor - Acceleration(Gyro) Sensor
      Yes
      HW - Local Key Operation
      Yes
    • SW - webOS ver.
      webOS 4.1
      SW - Embedded CMS - Local Contents Scheduling
      Yes
    • SW - Embedded CMS - Group Manager
      Yes
      SW - USB Plug & Play
      Yes
    • SW - Fail over
      Yes
      SW - Background Image - Booting Logo Image
      Yes
    • SW - Background Image - No Signal Image
      Yes
      SW - Sync Mode - RS-232C Sync
      Yes
    • SW - Sync Mode - Local Network Sync
      Yes
      SW - Multi-screen - PIP
      Yes
    • SW - Multi-screen - PBP
      Yes(4)
      SW - Screen Share
      Yes
    • SW - Video Tag
      Yes(4)
      SW - Play via URL
      Yes
    • SW - Rotation - Screen Rotation
      Yes
      SW - Rotation - External Input Rotation
      Yes
    • SW - Gapless Playback
      Yes
      SW - Tile Mode Setting
      Yes(Max. 15x15)
    • SW - Setting Data Cloning
      Yes
      SW - SNMP
      Yes
    • SW - ISM Method
      Yes
      SW - Auto Set ID
      Yes
    • SW - Status Mailing
      Yes
      SW - Control Manager
      Yes
    • SW - 3rd Party Compatibility - Crestron Inside
      Yes *Network based control
      SW - Smart Energy Saving
      Yes
    • SW - PM mode
      Yes
      SW - Wake on LAN
      Yes
    • SW - Beacon
      Yes
      SW - HDMI-CEC
      Yes *Compatibility may differ by equipment.
    • SW - SI Server Setting
      Yes
      SW - webRTC
      Yes
    • SW - Pro:Idiom
      Yes
    ENVIRONMENT CONDITIONS
    • Operation Temperature
      0 °C to 40 °C
      Operation Humidity
      10% to 80%
    POWER
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    POWER CONSUMPTION
    • Typ.
      75W
      Max.
      110W
    • BTU (British Thermal Unit)
      256 BTU/Hr(Typ.), 375 BTU/Hr(Max)
      Smart Enegy Saving
      60W
    • DPM
      0.5W
      Power off
      0.5W
    SOUND
    • Speaker
      Yes
    CERTIFICATION
    • Safety
      CB/NRTL
      EMC
      FCC Class "A"/CE/KC
    • ErP / Energy Star
      Yes/Energy Star 8.0
    OPS COMPATIBILITY
    • OPS type compatible
      Yes
    SOFTWARE COMPATIBILITY
    • SuperSign CMS
      Yes
      SuperSign Control / Control+
      Yes/Yes
    • SuperSign WB
      Yes
      SuperSign Media Editor
      Yes
    • Signage 365 Care
      Yes (The availability can differ by region.)
    LANGUAGE
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
    ACCESSORY
    • Basic
      Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
      Optional
      Stand(ST-653T), Wall bracket(LSW240B), VESA Adapter(AM-B220S), OPS Kit(KT-OPSF)
    SPECIAL FEATURE
    • Tilt (Facedown)
      Yes (Max 30o degree, 30oC temperature, humidity 50%)
      IP Rating
      IP5x
