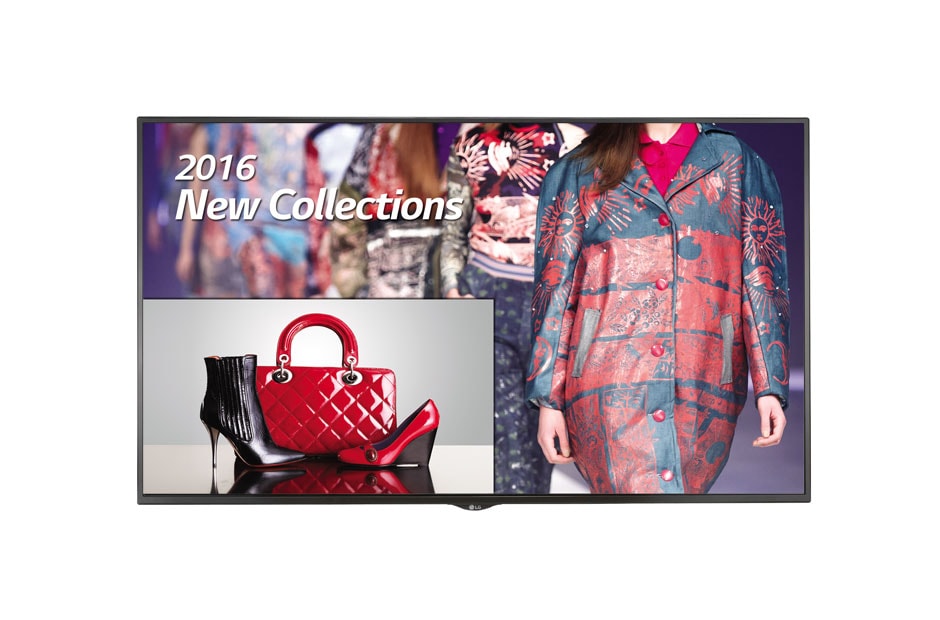

55UH5C component-copyModelName

UH5C Series

ADD TO WISHLIST

Discontinued

55UH5C component-copyModelName

UH5C Series

Key Features

Brightness : 500 cd/m2
Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Depth : 38.6 mm
Interface : HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card / USB

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 500 cd/m2
Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Depth : 38.6 mm
Interface : HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card / USB

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UH5C Series

Ultra HD

Ultra HD Resolution (3,840 x 2,160)

Ultra HD Large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD.

Ultra HD

High Efficiency Video Coding

Supports HEVC-based content which has the double data compression ratio than the H.264, so network traffic can be reduced by half.

Built-in Wi-Fi

Mirroring

Content sharing is more convenient on a Wi-Fi network.

Built-in Wi-Fi

Soft AP

The UH5C with Soft AP software can operate as a wireless access point for mobile devices.

Cost Effectiveness

Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels*.

Smart Platform

Quad Core SoC*

The high-performance SoC can execute several tasks at the same time and provides smooth content playback.

Smart Platform

webOS 3.0

The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.

Smart Platform

Group Manager

Content can be created, distributed and controlled by a signage without a dedicated PC or server.

PBP(Picture-By-Picture) / PIP(Picture-In-Picture)1

Smart Platform

PBP(Picture-By-Picture) / PIP(Picture-In-Picture)

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digital devices.

Support Network Protocol

IP Streaming Protocol

Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*.

Support Network Protocol

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure.

Support Network Protocol

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)

PANEL

Screen Size

55"

Resolution

3,840 x 2,160 (UHD)
Brightness

500cd/m2

CONNECTIVITY

Input

HDMI, DP, DVI-D, Audio, USB 3.0, SD Card

Output

DP, Audio, Externel Speaker Out
External Control

RS232C, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

Bezel Width

12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)

Monitor Dimension (W x H x D)

1,239.8 x 725.2 x 38.6 mm
Weight (Head)

16.6 kg

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

116 W

Smart Energy Saving

80 W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

SuperSign-w lite

Yes

SuperSign-c

Yes

ACCESSORY

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional

Speaker (SP-5200), Stand (ST-201T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
