    55VSM5J-H component-copyModelName
    55'' 500 nits FHD 0.44mm Even Bezel Video Wall

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55VSM5J-H)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55VSM5J-H)
      $
      $
      LG Members Price
    Total
    55'' 500 nits FHD 0.44mm Even Bezel Video Wall

    0.44mm Even Bezel Video Wall

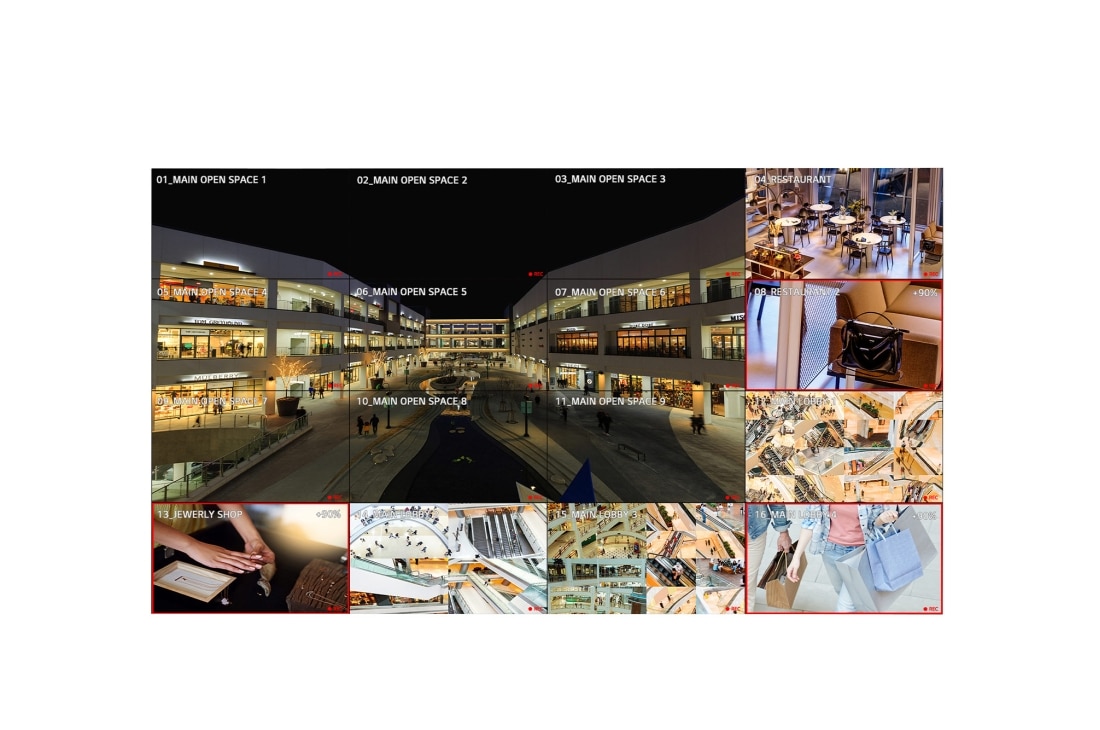

    Both the external and internal premises of the shopping center are monitored in the CCTV control room through a large video wall. Both the external and internal premises of the shopping center are monitored in the CCTV control room through a large video wall.
    *All images in this web page are for illustrative purposes only.

    Groundbreaking 0.44mm Even Bezel

    The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSM5J series will provide an even more immersive experience to viewers.
    The screening wall behind the news desk is composed of a video wall that consist of extremely thin bezels. The screening wall behind the news desk is composed of a video wall that consist of extremely thin bezels.
    A woman is looking up at the screen installed upstairs. A woman is looking up at the screen installed upstairs.

    Higher Viewing Angle

    Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSM5J series is high enough to display vivid colors throughout the screen with no distortion.
    *Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
    Several screens installed on both sides and front wall provide a more vivid and wider view. Several screens installed on both sides and front wall provide a more vivid and wider view.

    Wide Viewing Angle

    It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSM5J series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
    Low Uniformity Screen projects a darkening vignette on the corners of its bezel, whereas VSM5J series is able to display a balanced projection of colors. Low Uniformity Screen projects a darkening vignette on the corners of its bezel, whereas VSM5J series is able to display a balanced projection of colors.

    Uniform Color Expression

    Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the VSM5J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.
    *Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
    The 55VSM5J series consists of less image gaps between the tiled screens compared to the 55SVM5F series. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps. The 55VSM5J series consists of less image gaps between the tiled screens compared to the 55SVM5F series. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

    Image Gap Reduction

    The VSM5J series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
    *The "55SVM5F series" refers to displays which do not include an image improvement algorithm.

    Smart Calibration

    Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.
    On the left, there is a person using sensor calibration to adjust the colors of the video wall through the connected laptop, and the other person on the ladder is assessing the screen error. In contrast, LG Smart Calibration user on the right is simply and conveniently adjusting on a remote controller. On the left, there is a person using sensor calibration to adjust the colors of the video wall through the connected laptop, and the other person on the ladder is assessing the screen error. In contrast, LG Smart Calibration user on the right is simply and conveniently adjusting on a remote controller.
    * Depending on the user, the difference in color can be felt after smart calibration. In this case, adjusting the color manually is recommended.

    Clear View with Non-glare Panel

    Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSM5J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.
    The 55VM5F series is affected by bright lights, giving it the layer of white cast over the image. The 55VSM5J series screen in contrast, is able to remain vibrant under bright lightings. The 55VM5F series is affected by bright lights, giving it the layer of white cast over the image. The 55VSM5J series screen in contrast, is able to remain vibrant under bright lightings.
    The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once. The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

    High Performance and Great Scalability

    Thanks to its built-in SoC and webOS smart signage platform, the VSM5J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
    *SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
    One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content. One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content.

    Flexible Content Creation

    Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.
    *Supported protocols : RTSP, RTP, HLS, UDP Multicast
    Several tasks could be accomplished simultaneously with the intuitive GUI. Several tasks could be accomplished simultaneously with the intuitive GUI.

    Intuitive Menu Structure

    The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
    The menu screen consists of both landscape and portrait options. The menu screen consists of both landscape and portrait options.

    Dedicated GUI for Portrait Orientation

    The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VSM5J series, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
    Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings. Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

    Daisy Chain Capability

    A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
    The LG employee is remotely monitoring the VSM5J series installed in a different place by using cloud-based LG monitoring solution. The LG employee is remotely monitoring the VSM5J series installed in a different place by using cloud-based LG monitoring solution.

    Real-Time LG ConnectedCare

    Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
    *LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
    Close
    PANEL
    • Screen Size
      55"
      Panel Technology
      IPS
    • Back Light Type
      Direct
      Aspect Ratio
      16:9
    • Native Resolution
      1,920 x 1,080 (FHD)
      Refresh Rate
      60Hz
    • Brightness
      500nit (Typ.)
      Contrast Ratio
      1,100:1
    • Dynamic CR
      500,000:1
      Color gamut
      NTSC 72%
    • Viewing Angle(H x V)
      178 x 178
      Color Depth
      10bit, 1.07Billion colors
    • Response Time
      8ms (G to G)
      Surface Treatment(Haze)
      28%
    • Life time
      60,000Hrs (Typ.) / 50,000Hrs (Min.)
      Operation Hours (Hours/Day)
      24/7
    • Portrait / Landscape
      Yes / Yes
    CONNECTIVITY(JACK INTERFACE)
    • Input - Digital - HDMI
      Yes(2), HDCP2.2
      Input - Digital - DP
      Yes(1), HDCP2.2
    • Input - Digital - DVI-D
      Yes(1), HDCP1.4
      Input - Audio In
      Yes(1)
    • Input - RS232C IN
      Yes(1)
      Input - RJ45(LAN)
      Yes(1)
    • Input - IR IN
      Yes(1)
      Input - USB
      USB2.0 Type A(1)
    • Output - DP Out
      Yes(1), Input : HDMI / DVI / DP
      Output - Audio Out
      Yes(1)
    • Output - RS232C OUT
      Yes(1)
      Output - RJ45(LAN)
      Yes(1)
    MECHANICAL SPECIFICATION
    • Bezel Color
      Black
      Bezel Width
      Even bezel : 0.44mm
    • Weight(Head)
      16.8Kg
      Packed Weight
      23.6Kg
    • Monitor Dimension(W x H x D)
      1210.51 x 681.22 x 86.5mm
      Carton Dimensions(W x H x D) (Box outer size)
      1353 x 855 x 263mm
    • Handle
      Yes
      VESA? Standard Mount Interface
      600 x 400
    KEY FEATURE
    • HW - Internal Memory
      8GB
      HW - Sensor - Temperature Sensor
      Yes
    • HW - Sensor - BLU Sensor
      Yes
      HW - Sensor - Acceleration(Gyro) Sensor
      Yes
    • HW - Local Key Operation
      Yes
      SW - webOS ver.
      webOS 4.1
    • SW - Embedded CMS - Local Contents Scheduling
      Yes
      SW - Embedded CMS - Group Manager
      Yes
    • SW - USB Plug & Play
      Yes
      SW - Fail over
      Yes
    • SW - Background Image - No Signal Image
      Yes
      SW - Sync Mode - RS-232C Sync
      Yes
    • SW - Sync Mode - Local Network Sync
      Yes
      SW - Video Tag
      Yes(4)
    • SW - Play via URL
      Yes
      SW - Rotation - Screen Rotation
      Yes
    • SW - Rotation - External Input Rotation
      Yes
      SW - Gapless Playback
      Yes
    • SW - Tile Mode Setting
      Yes(Max. 15x15)
      SW - Setting Data Cloning
      Yes
    • SW - SNMP
      Yes
      SW - ISM Method
      Yes
    • SW - Auto Set ID
      Yes
      SW - Status Mailing
      Yes
    • SW - Control Manager
      Yes
      SW - 3rd Party Compatibility - Crestron Inside
      Yes
    • SW - Power - Smart Energy Saving
      Yes
      SW - Power - PM mode
      Yes
    • SW - Power - Wake on LAN
      Yes
      SW - Power - Network Ready
      Yes
    • SW - HDMI-CEC
      Yes
      SW - SI Server Setting
      Yes
    • SW - webRTC
      Yes
      SW - Pro:Idiom
      Yes
    • SW - W/B Setting by Grey scale
      Yes
      SW - Scan Inversion
      Yes
    ENVIRONMENT CONDITIONS
    • Operation Temperature
      0°C to 40°C
      Operation Humidity
      10% to 80%
    POWER
    • Power Supply
      AC 100-240 V~, 50/60 Hz
      Power Type
      Built-In Power
    POWER CONSUMPTION
    • Typ.
      200W(TBD)
      Max.
      250W(TBD)
    • BTU (British Thermal Unit)
      682BTU(TBD)
      Smart Enegy Saving
      105W(TBD)
    • DPM
      0.5W
      Power off
      0.5W
    CERTIFICATION
    • Safety
      CB / NRTL
      EMC
      FCC Class "B" / CE / KC
    • ErP / Energy Star
      Yes (EU Only) / Yes (Energy Star 8.0)
    OPS COMPATIBILITY
    • OPS type compatible
      Yes (Piggyback)
    SOFTWARE COMPATIBILITY
    • SuperSign CMS
      Yes
      SuperSign Control / Control+
      Yes/Yes
    • SuperSign WB
      Yes
      SuperSign Media Editor
      Yes
    • LG Connected care
      Yes
    LANGUAGE
    • OSD
      English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
    ACCESSORY
    • Basic
      Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
      Optional
      OPS Kit(KT-OPSF)
    SPECIAL FEATURE
    • Smart Calibration
      Yes
    COMPLIANCE INFORMATION
    • component-safetyInformationNotice-en
    • component-safetyInformationNotice-locale
