    75XF3C-B component-copyModelName

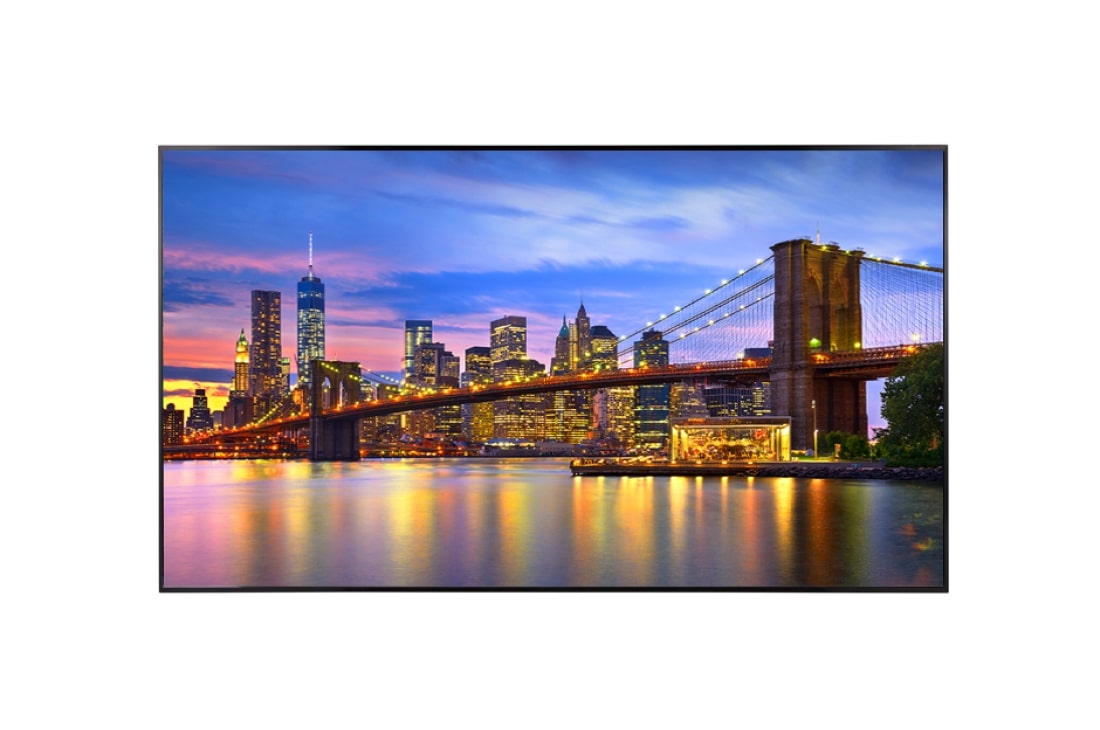

    75'' 3,000nits UHD Open-frame Display

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (75XF3C-B)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (75XF3C-B)
      $
      $
      LG Members Price
    Total
    75" 3,000nits UHD Open-frame Display

    Advanced Reliability with Enhanced Brightness

    In front of the burger drive-thru store, there is an XF3C-B installed, displaying burger menus and other advertisements. In front of the burger drive-thru store, there is an XF3C-B installed, displaying burger menus and other advertisements.
    * All images in this page are for illustrative purposes only.

    High Visibility
    Under Strong Sunlight

    With a brightness of 3,000 nits, 75XF3C-B boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.
    A large-sized display is installed on the street, and women are looking at a vivid-quality advertisement on the screen. A large-sized display is installed on the street, and women are looking at a vivid-quality advertisement on the screen.
    A blurry picture of FHD is being compared with UHD with vivid quality images. A blurry picture of FHD is being compared with UHD with vivid quality images.

    Superb Picture Quality with Ultra HD Resolution

    With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

    * Within 178 degree
    A display is working well in an environment of 0~50°C. A display is working well in an environment of 0~50°C.

    Wide Range of Operating Temperature

    75XF3C-B can be used under a wide range of operating temperatures from 0°C to +50°C.
    The XF3C-B has a conformal coating making it resistant to dust and salinity in moisture. The XF3C-B has a conformal coating making it resistant to dust and salinity in moisture.

    Conformal Coating

    Conformal Coating* protect the circuit board, power board against dust, iron powder, humidity, etc.

    * Thin protective films/breathing membranes that filter water vapor and solid debris
    M+ panels reduce power consumption by 35% compared to RGB. M+ panels reduce power consumption by 35% compared to RGB.

    Low Power Consumption Using the M+ Panel

    The M+ panel can offer high energy efficiency and cost savings as decreasing power consumption by approx.

    * M+ IPS reduced approx. by 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nit)
    ** Specific features can differ from circumstances.

    Smart Brightness Control

    The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
    The XF3C-B screen can adjust its brightness automatically according to the ambient light. The XF3C-B screen can adjust its brightness automatically according to the ambient light.
    It has improved user convenience by utilizing the SoC and webOS. It has improved user convenience by utilizing the SoC and webOS.

    webOS Smart Platform

    Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.
    User can monitor and control their displays through mobile phone and laptop. User can monitor and control their displays through mobile phone and laptop.

    Web Monitoring

    The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, ambient light, and gyro sensors. It can be easily controlled at all times.

    * Enabled by wired LAN connection
    Close
    PANEL
    • Screen Size
      75" Class
      Resolution
      3,840 x 2,160 (UHD)
    • Brightness (Typ., cd/m2)
      3000
    CONNECTIVITY
    • Input
      HDMI(2), DP, DVI-D, Audio, USB, SD Card
      Output
      DP, External Speaker Out (L/R)
    • External Control
      RS232C In/Out, RJ45 In, IR Receiver In
    PHYSICAL SPECIFICATION
    • Bezel Width
      11.8 mm (Even)
      Monitor Dimension (W x H x D)
      1,675.2 x 953.6 x 123.9 mm
    • Weight (Head)
      36.7 kg
      Carton Dimensions (W x H x D)
      1,816 x 1,106 x 285 mm
    • Packed Weight
      46.3 kg
    ENVIRONMENT CONDITIONS
    • Operation Temperature
      0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System),
      0℃ to 40℃ (Direct Sunlight)
      Operation Humidity
      10% to 85%
    POWER
    • Power Supply
      100-240 V~, 50/60 Hz
      Power Type
      Built-In Power
    POWER CONSUMPTION
    • Typ.
      660W (Full White)
      403W (IEC 62087)
      Max
      695W
    STANDARD(CERTIFICATION)
    • Safety
      UL recognized / CB
      EMC
      FCC Class "A" / CE / KC
    • ErP / Energy Star
      No / No
    SOFTWARE COMPATIBILITY
    • Content Management Software
      SuperSign CMS
      Control and Monitoring Software
      SuperSign Control+ / Control
    ACCESSORY
    • Basic
      Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
      Optional
      Wi-Fi Dongle (AN-WF500)
    COMPLIANCE INFORMATION
    • component-safetyInformationNotice-en
    • component-safetyInformationNotice-locale
