Key Features

Brightness(Typ.) : 350 cd/m2
Touch Type : In-Cell
Multi Touch Point : Active Pen : Max 2 Point
Depth : 86.5 mm
Interface : HDMI (2), DP, DVI-D, USB Type C / Audio-in,RS232C In/Out,USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m2
Touch Type : In-Cell
Multi Touch Point : Active Pen : Max 2 Point
Depth : 86.5 mm
Interface : HDMI (2), DP, DVI-D, USB Type C / Audio-in,RS232C In/Out,USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

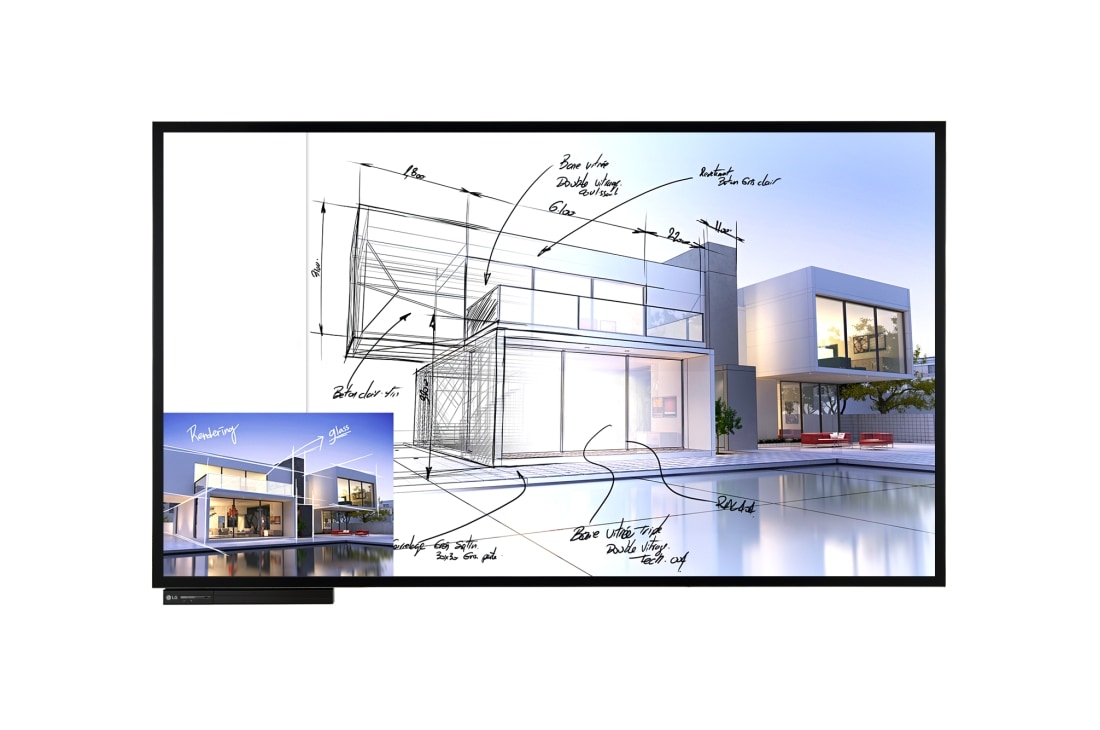

TN3F Series

True Interactivity for the Most Collaborative ...

In a complex writing environment such as meeting rooms and classrooms, TN3F is the ideal solution. The In-Cell Touch and Active Pen, which incorporate state-of-the-art touch technology, provide an unrivaled cursive writing experience.

NATURAL CURSIVE WRITING EXPERIENCE

In-Cell Touch

The In-Cell touch technology provides advantages in writing performance, visibility, and design because the LCD panel and protective glass are directly bonded with no air gaps. The In-Cell touch signage delivers a high-quality user experience and boosts your efficiency with its slim design and outstanding writing performance.

NATURAL CURSIVE WRITING EXPERIENCE

Active Pen

Use TN3F's Active Pen to write in a more natural and detailed way. The Active Pen is pressure sensitive, so strokes can be thick or thin, and the user's handwriting can be perfectly reproduced on the screen.

COLLABORATION & CONNECT

Data Mirroring

TN3F's data mirroring technology enables two-way writing and sharing in real time to remotely share annotations and facilitate collaboration in meetings in any space, anytime and anywhere.

COLLABORATION & CONNECT

Screen & File Sharing

TN3F's screen sharing provides the content-sharing function with laptops or various mobile devices, enabling more efficient and immersive meetings. Using the IDB DUO App, files can be directly shared between the Interactive Digital Board and the client devices, so you can carry out smarter meetings.

USER-FRIENDLY EXPERIENCE

Interactive UX-UI

New Interactive Display Application supports intuitive UX/UI that includes a simple launcher menu, easy control center, and seamless tool bar.

USER-FRIENDLY EXPERIENCE

All-in one

The TN3F integrates both webOS and IDB apps into a high performance Soc, without a PC. The IDB mode can be instantly started with just one touch.

USER-FRIENDLY EXPERIENCE

USB-C Type Ready

The TN3F provides video, audio, and power all in one, making it quick and easy to connect to other devices for smarter meetings. It also supports USB-C type cables that can replace other connectors, such as USB-B, USB-A, HDMI.

SUPERIOR PICTURE QUALITY

True Color, Immersive View

The TN3F is large enough to display content and catch the attention of various meeting participants. The IPS panel clearly conveys content at various angles, regardless of where participants are sitting. Each pixel of the IPS panel reproduces the actual image's color without any distortion.

SUPERIOR PICTURE QUALITY

Vivid Color Details with Ultra HD

Using UHD resolution will allow you to view details at a resolution that is four times higher than FHD, even while zoomed in. Various content such as documents, images, and videos are displayed without any distortion of image quality, which is especially important in a complex business environment.

LG C-Display+
Customer App

Find the latest production information along with reference case, OLED/LED/Video Wall configurator, manual and sales contact information.

Visit Our Web Application Go to Download App

PANEL

Screen Size

85.6

Panel Technology

IPS
Back Light Type

Edge

Aspect Ratio

16:09
Native Resolution

3,840 x 2,160 (UHD)

Brightness(Typ., cd/m2, w/ Protection Glass)

350
Contrast Ratio

1,000:1

Viewing Angle (H x V)

178 x 178
Response Time

8ms(G to G)

Life Time (Typ.)

50,000 Hrs (Typ.)
Operation Hours

16Hr

Orientation

Landscape

CONNECTIVITY

Video / Audio

HDMI (3), DP, DVI-D, USB

External Control

RS232C In/Out
USB

USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

(T/L/R/B) set: 28.8mm
Monitor Dimension (W × H × D)

1952.6 X 1164.1 X 86.4mm

Weight (Head)

66.7 kg
Carton Dimensions (W × H × D)

2190 X 1470 X 371mm

Packed Weight

96.4kg
Handle

Yes

VESA? Standard Mount Interface

600 x 400

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ. / Max.)

360W / 420W

SOUND

Speaker

Built in(10W/Ch)

STANDARD(CERTIFICATION)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes

optional

(OPS Kit (KT-OPSF))

ACCESSORY

Basic

Remote Controller, Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea, include battery 2ea), Pen Tip(12ea), Tip Remover(2ea), USB Type-C Cable, Ferrite Core Filter

SPECIAL FEATURE

IDB App

Yes

TOUCH SPECIFICATIONS

Touch type

In-cell

Available object size for touch

?5 mm ↑
Reponse Time (PC Windows 10)

70ms↓

Accuracy

1.5mm
Interface

USB 2.0

Protection Glass Thickness

1.85T (Anti-Glare)
Protection Glass Transmission

88%

Operating System Support

Win7 professional, Win8.1, Win10
Multi touch point

Finger : Max 20 Point (Windows), Finger: Max 10Point (webOS), Active Pen : Max 2 Point
