    55EW5TF-A component-copyModelName
    Transparent OLED Signage

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55EW5TF-A)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (55EW5TF-A)
      $
      $
      LG Members Price
    Total
    Transparent OLED Signage

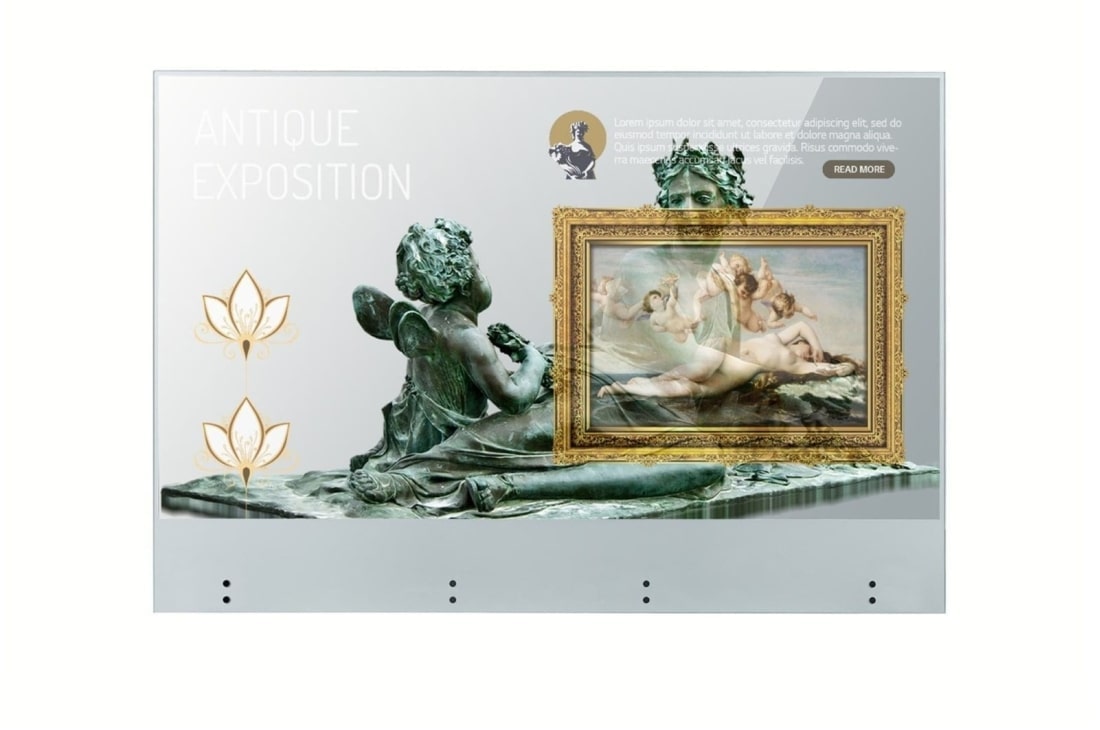

    A New Level of See-through View A New Level of See-through View

    A New Level of See-through View

    LG Transparent OLED Touch Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings. It can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.
    High Transparency High Transparency
    UNRIVALED PICTURE QUALITY

    High Transparency

    LG’s OLED technology makes the Transparent Touch OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film much higher than conventional LCD transparent displays (10%*).

    * Based on LG’s WFB series
    Accurate and Vivid Colors Accurate and Vivid Colors
    UNRIVALED PICTURE QUALITY

    Accurate and Vivid Colors

    Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
    Intuitive P-Cap Touch Intuitive P-Cap Touch
    VERSATILE SOLUTION

    Intuitive P-Cap Touch

    By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. P-Cap touch type is much better in accurate and fast touch responses than IR type, so users can fully enjoy its fascinating content using their fingertips with no lag.
    Protective Tempered Glass Protective Tempered Glass
    VERSATILE SOLUTION

    Protective Tempered Glass

    Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

    * Optically Clear Adhesive
    SPATIAL HARMONY

    Expandable Design

    LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
    Expandable Design Expandable Design
    * Installation accessories are not supplied by LG.
    Close
    PANEL
    • Screen Size
      55"
      Panel Technology
      OLED
    • Native Resolution
      1,920 x 1,080 (FHD)
      Brightness (Typ., nit, APL 100%, Without Glass)
      150
    • Brightness (Typ., nit, APL 25%, without Glass)
      400
      Contrast Ratio
      150,000 : 1
    • Dynamic CR
      No
      Color gamut
      BT709 120 %
    • Viewing Angle (H x V)
      178 x 178
      Color Depth
      1.07 Billion Colors (10 bit)
    • Response Time
      1 ms (G to G)
      Portrait / Landscape
      Yes / Yes
    • Surface Treatment (Haze)
      No
      Operation Hours (Hours / Day)
      18 / 7 (Moving Content Only)
    • Transparency (Typ.)
      33% (Set)
    CONNECTIVITY
    • Input
      HDMI (HDCP 2.2), DP (HDCP 1.3), USB 2.0 Type A, USB 2.0 Type A (Touch Control Board Only)
      Output
      DP, Audio, USB 2.0 Type B (Touch USB)
    • External Control
      RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)
    MECHANICAL SPECIFICATION
    • Bezel Color
      Matt Silver
      Bezel Width
      7.9 / 7.9 / 7.9 / 144.5 mm (T / R / L / B)
    • Weight (Head)
      (Head) 14.6 kg
      (Signage Box) 3.4 kg
      Monitor Dimension (W × H × D)
      (Head) 1,225.5 x 832.9 x 7.0 mm
      (Signage Box) 782.8 x 238.4 x 34.7 mm
    • Monitor Dimensions with Stand (W × H × D)
      No
      VESA? Standard Mount Interface
      No
    • Protection Glass
      Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof
    FEATURE
    • Key Feature
      Internal Memory (16GB), Temperature Sensor, FAN, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected?(Network based control), PM Mode, Wake on LAN, HDMI-CEC(Compatibility may differ by equipment.), SI Server Setting, Pro:Idiom
    ENVIRONMENT CONDITIONS
    • Operation Temperature Range
      0°C to 40°C
      Operation Humidity Range
      10 % to 80 %
    POWER
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    POWER CONSUMPTION
    • Typ. / Max.
      250 W / 280 W
      BTU (British Thermal Unit)
      853 BTU/Hr (Typ.), 955 BTU/Hr (Max.)
    SOUND
    • Speaker
      No
    CERTIFICATION
    • Safety
      CB / NRTL
      EMC
      FCC Class "A" / CE / KC
    • ErP
      Yes (EU Only)
    MEDIA PLAYER COMPATIBILITY
    • OPS Type Compatible
      No
      OPS Power Built In
      No
    SOFTWARE COMPATIBILITY
    • SuperSign CMS
      Yes
      SuperSign Control / Control+
      Yes
    • SuperSign Media Editor
      Yes
      Signage365Care
      Yes (The availability can differ by region.)
    ACCESSORY
    • Basic
      Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables (1,600 mm × 4 ea for Connection Between Panel and Signage Box), HDMI Cable (3 M), Micro to A Type USB Cable (1.8 M for Connection Between Touch and Signage Box), A to B Type USB Cable (Touch Out), Tape (10 ea for Cabling / 10 ea EMI Gasket Tape), Screw (M4 × L22, 12 ea / M4 Nut 12 ea / M3 × L5.5, 8 ea / M3 × L3.5, 20 ea), Shield Cover Ass'y, Rubber Damper 4 ea, Touch Cable Holder 2 ea
    COMPLIANCE INFORMATION
    • component-safetyInformationNotice-en
    • component-safetyInformationNotice-locale
