    65EP5G-B component-copyModelName
    UltraFine Display OLED Pro

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (65EP5G-B)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (65EP5G-B)
      $
      $
      LG Members Price
    Total
    UltraFine Display OLED Pro
    Reddot Winner 2021 Reddot Winner 2021

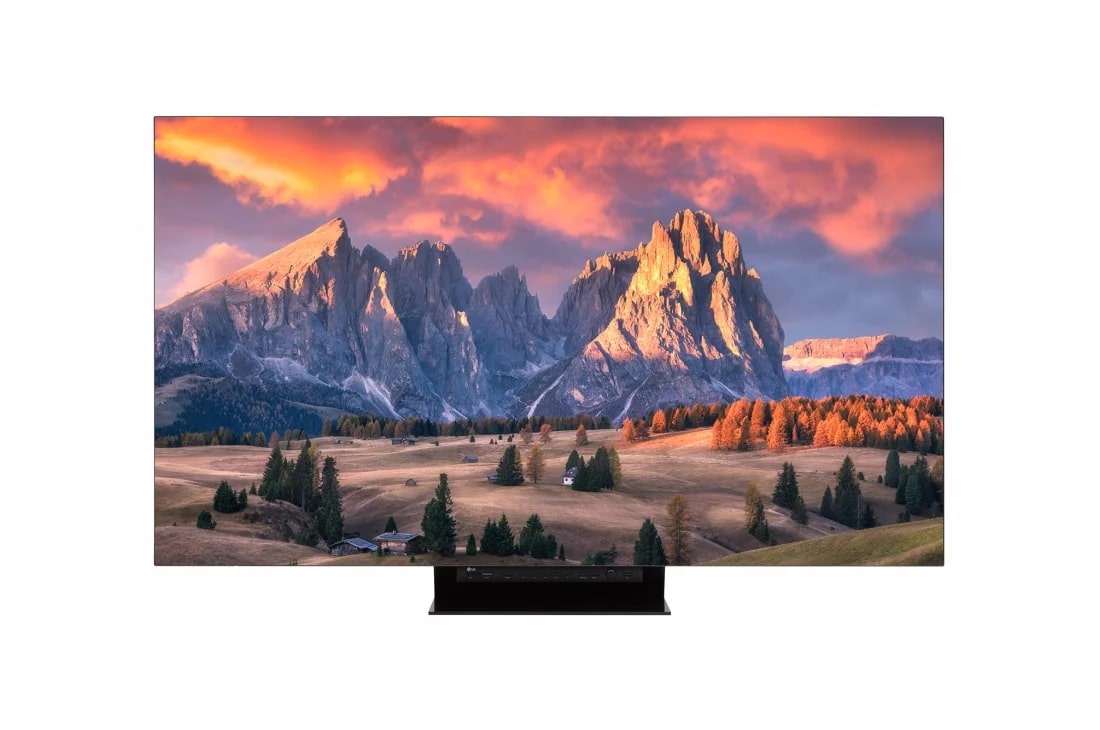

    LG UltraFine Display OLED Pro

    Versatile OLED
    with Accurate Color, Customized to Suit Your Needs

    Enhance your workplace with LG’s 65EP5G OLED professional monitor that has been developed to meet a variety of use cases and workflows in content production, post-production and distribution. 65EP5G builds upon the capabilities of LG’s OLED displays recognized by a Technology and Engineering Emmy? award and incorporates additional features and functionality to meet the needs of professionals.
    A man is working on video editing using two 65EP5Gs installed on walls and desks at his workplace. A man is working on video editing using two 65EP5Gs installed on walls and desks at his workplace.
    * 65 Inch (65EP5G)
    * All images are for illustrative purposes only.

    Accurate Color
    with a Wide OLED Screen

    Advanced Calibration functionality allows display to achieve reference performance for picture quality-enabled by LG’s proprietary software (SuperSign for White Balance). It supports programmable hardware 1D & 3D LUTs and multiple color-accurate profiles for rapid transitioning between calibrated modes.
    65EP5G can compare and monitor colors of SDR and HDR on one screen at the same time. 65EP5G can compare and monitor colors of SDR and HDR on one screen at the same time.
    * All images are for illustrative purposes only.
    Equipped with jack interfaces such as SDI, Genlock, and IP(SFP+ &RJ45), 65EP5G can be connected to the camera, facilitating video transmission between studio devices. Equipped with jack interfaces such as SDI, Genlock, and IP(SFP+ &RJ45), 65EP5G can be connected to the camera, facilitating video transmission between studio devices.

    Diverse I/O Interfaces

    A variety of input interfaces are provided including HDMI, quad loop-thru SDI (BNC), IP (SFP+ & RJ45). Supported IP formats include ST-2110 and ST-2022-6. Also included interface is a Genlock input for use in broadcast and virtual production applications.
    * All images are for illustrative purposes only.
    It is easy to set up through a control bar equipped with various functions such as APL, TALLY, Function keys, Power, and a profile key that can use 10 custom shortcuts. It is easy to set up through a control bar equipped with various functions such as APL, TALLY, Function keys, Power, and a profile key that can use 10 custom shortcuts.

    Convenience and Functionality

    The control panel provides shortcuts to frequently used functions and profiles featuring different monitor settings and picture quality options. Also, a variety of user selectable on-screen features are available such as Markers, Zoom, Audio Level Meters, and Waveform & Vector Scopes.
    * All images are for illustrative purposes only.
    Close
    PANEL
    • Screen Size
      65"
      Panel Technology
      OLED
    • Back Light Type
      OLED
      Aspect Ratio
      16:9
    • Native Resolution
      3840 x 2160 (UHD)
      Refresh Rate
      120 Hz
    • Brightness
      1000/900/500/185nit (APL 3%/10%/25%/100%)
      Contrast Ratio
      1,850,000 : 1
    • Color gamut
      DCI-P3 98.5%
      Viewing Angle (H x V)
      178 x 178
    • Color Depth
      10bit, 1.07Billion colors
      Response Time
      0.1ms (G to G)
    • Life time
      30,000 Hrs (Typ.)
      Operation Hours (Hours / Day)
      12/7 (Moving Content Only)
    • Portrait / Landscape
      No / Yes
    CONNECTIVITY
    • Input - Digital - HDMI
      HDMI2.1
      Input - SDI
      Yes(4)
      - Single Link : SD/HD/3G/6G/12G
      - Dual Link : HD/3G_4K
      - Quad Link : HD_4K/3G_4K
      - Quad View : SD/HD/3G/6G/12G
    • Input - REF In
      Yes (1), Black Burst, Tri-Level
      Input - External Control - RS232C IN
      Yes (1), Service only
    • Input - External Control - RJ45(LAN)
      Yes (1), 100base-T
      Input - External Control - RJ45(Remote)
      Yes (1), GPI 7port
    • Input - External Control - SFP
      Yes (1), SFP+, Support only for the Embrionix's SDI module
      Input - External Control - IR IN
      Yes(1)
    • Input - USB
      Yes (1), USB2.0 Type A
      Input - Power
      Yes (1), AC
    • Output - Audio Out
      Yes (1), Head-Phone
      Output - SDI
      Yes (4), Loop-through
    • Output - External Control - RJ45(Remote) OUT
      Yes (1), GPI 7port
    MECHANICAL SPECIFICATION
    • Bezel Color
      Black
      Bezel Width
      T/R/L/B : 2.0 /2.0 / 2.0 / 2.0mm (Off Bezel)T/R/L/B : 8.7 /8.9 / 8.9 / 11.6 mm (On Bezel)
    • Weight (Head)
      31kg
      Weight(Head+Stand)
      35kg
    • Packed Weight
      45.5kg
      Monitor Dimension (W × H × D)
      1446.3x 823.8 x 49mm (w/o control box)1446.3x 853.8 x 56.5mm(w/ control box)
    • Monitor Dimensions with Stand(W x H x D)
      1446.3x 896.5x 272mm
      Carton Dimensions(W x H x D) (Box outer size)
      1670 x 200 x 1108 mm
    • Handle
      Yes
      VESA? Standard Mount Interface
      300 x 300
    KEY FEATURE
    • HW - Internal Memory
      8GB
      HW - Sensor - Temperature Sensor
      Yes
    • HW - Power Indicator
      Yes (Standby : Red, Power On : White)
      HW - Local Key Operation
      Yes
    • HW - FAN
      Yes
      SW - webOS ver.
      webOS5.0
    • SW - Multi-screen - PIP
      Yes
      SW - Multi-screen - PBP
      Yes(2)
    • SW - SNMP
      Yes
      SW - ISM Method
      Yes
    • SW - HDMI-CEC
      Yes
      Picture - Adjust
      OLED Light, Brightness, Contrast, Chroma, Sharpness, Tint
    • Picture - Color Temp
      VAR Temp, 9300K, 6500K, 5400K, 3200K, D65(6504K), C(6774K), D-Cinema(6302K)
      Picture - Gamut
      Native, BT.709, DCI-P3, BT.2020, EBU, SMPTE-C, NTSC, AdobeRGB
    • Picture - R/G/B Gain
      -100 ~ 100
      Picture - EOTF
      Auto, User, 1.9, 2.2, 2.4, 2.6, ST.2084 PQ, BT.2100 HLG, Dolby Vision
    • Picture - Transfer Matrix
      Auto / BT.709 / BT.601 / BT.2020
      Picture - Mastering Peak
      Auto / 0 / 400 / 540 / 700 / 1000 / 2000 / 3000 / 4000 / 10000
    • Picture - SDI Color Format
      Auto / RGB444 / YCbCr444 / YCbCr422
      Picture - SCAN
      Zero Scan /Over Scan / Under Scan
    • Picture - AFD (Active Format Description)
      Yes
      Picture - Aspect Ratio
      Original / Full Wide / 4:3 / 14:9 / 13:9 / 1.85:1 / 2.35:1 / 1:1
    • Picture - Mono/Blue Only
      Off/MonoColor/Blue Color
      Picture - Zoom
      2x, 3x, 4x, 5x
    • Picture - HDMI IT Content
      Yes
      Picture - HDR/SDR monitoring
      Yes
    • Picture - Input Range
      Auto, Narrow, Full, SDI Full
      Picture - Uniformity Compensation
      Yes (Δu*v*<2.6, EBU Grade1)
    • Picture - DeltaE
      <2
      Picture - Eyesafe
      Yes
    • Picture - PictureOptions
      Noise Reduction, MPEG Noise Reduction, Real Cinema, Motion Eye Care, Dynamic Tone Mapping, Dynamic Contrast, Dynamic Color
      Marker - Marker
      Off/16:9/4:3/14:9/13:9/1.85:1/2.35:1/User Marker 1/User Marker 2/User Marker 3
    • Marker - Safety Area
      Off/16:9 95%/16:9 93%/16:9 90%/16:9 88%/16:9 85%/16:9 80%/4:3 95%/4:3 93%/4:3 90%/4:3 88%/4:3 85%/4:3 80%
      Marker - Center Marker
      Yes
    • Marker - Marker Thickness
      Yes
      Marker - Marker Color
      Yes
    • Marker - Preset1
      Preset1~2
      Audio - Audio Source Selection
      SDI1/ SDI 2 / SDI 3 / SDI 4 / SFP+
    • Audio - Audio Level Meter
      Yes
      GPI - GPI Control
      Yes (GPI1~7)
    • Video Analysis - Waveform / Vector Scope
      Yes
      Video Analysis - Time Code
      Yes
    • Video Analysis - Caption
      Yes (608, 708)
      Video Analysis - PIP/PBP
      Yes
    • Advanced - Profile
      Profile 1~10
      Advanced - Function Key
      F1~5
    • Advanced - OnScreen Display
      Yes
      Advanced - UMD (Under Monitor Display)
      Yes
    • Advanced - VPID
      Yes
      Advanced - Information
      Yes
    • Advanced - Control(Key/LED/IR)
      Yes
      Advanced - HDMI Ultra HD Deep Color
      Yes
    • Advanced - OLED Panel Settings
      TPC, Pixel Refresher, Screen Shift, Logo Luminance Adjustment, Global Sticky Reduction, Convex Power Control
      Advanced - Screen Saver
      On / Off
    • Advanced - Screen Control
      I/P Mode, Internal Pattern
      Advanced - Power
      No Signal / No IR / DPM
    • Advanced - Network Settings
      Yes
    ENVIRONMENT CONDITIONS
    • Operation Temperature
      0°C to 40°C
      Operation Humidity
      10% to 80%
    POWER
    • Power Supply
      AC 100-240V~, 50/60Hz
      Power Type
      Built-In Power
    POWER CONSUMPTION
    • Typ.
      300W
      Max.
      470W
    • BTU (British Thermal Unit)
      1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
      DPM
      3W
    • Power off
      0.5 W
    CERTIFICATION
    • Safety
      CB / NRTL
      EMC
      FCC Class "A" / CE / KC
    SOFTWARE COMPATIBILITY
    • SuperSign WB
      Yes
      CalMAN SW Compatibility
      Yes
    • IP Remote Utility
      Yes
    LANGUAGE
    • OSD
      English, Korean
    ACCESSORY
    • Basic
      Remote Controller(include battery 2ea), IG(Installation Guide), Regulation Book
    COMPLIANCE INFORMATION
    • component-safetyInformationNotice-en
    • component-safetyInformationNotice-locale
