    ABNW30GM1S2 ANWGMEA + ABUW30GM1S2 ANWGMEA component-copyModelName

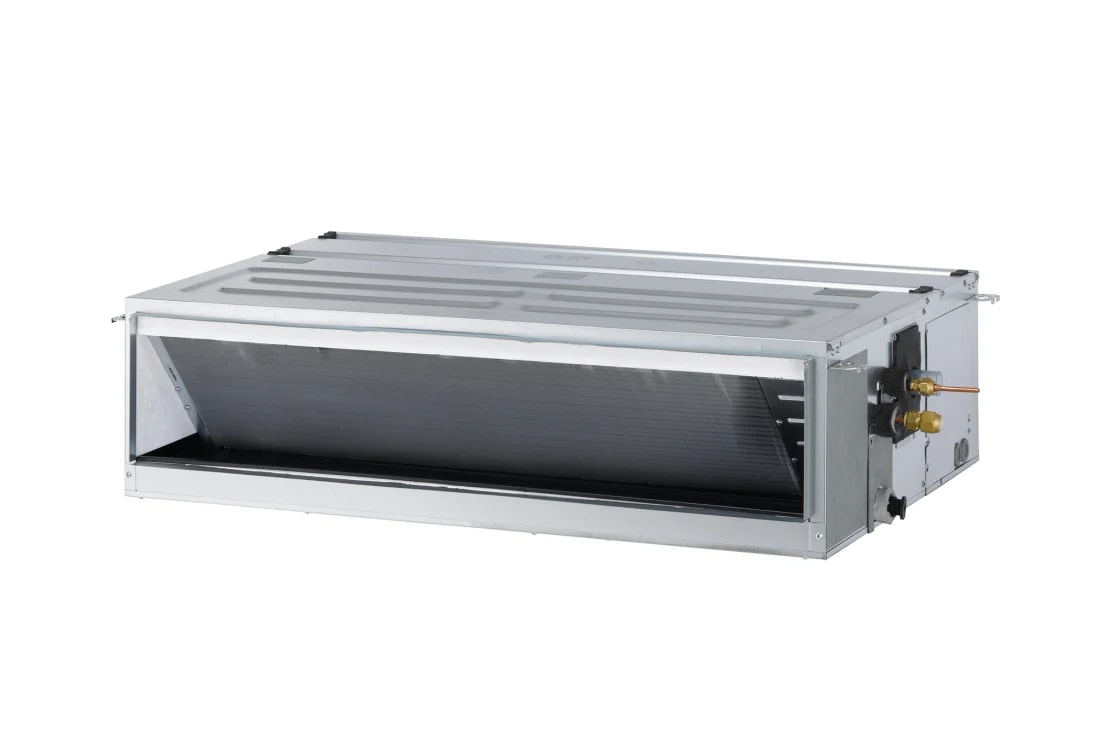

    Ceiling Concealed Duct, Duct_Inverter_H/P (1Φ), 30kBtu

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ABNW30GM1S2 ANWGMEA + ABUW30GM1S2 ANWGMEA)
      $
      $
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ABNW30GM1S2 ANWGMEA + ABUW30GM1S2 ANWGMEA)
      $
      $
      LG Members Price
    Total
    Ceiling Concealed Duct, Duct_Inverter_H/P (1Φ), 30kBtu
    • A simple interface icon with 'ESP' in a rectangle, surrounded by control symbols indicating Easy Control of LG Ceiling Concealed Duct.

      Easy Control

      The ESP function adjusts air volume via a remote controller, while the BLDC motor controls fan speed and air volume. A wired remote control automatically sets external static pressure regardless of pipe length, providing easy installation.

    • A thermometer symbol icon with red arrows indicating adjustable temperature setting represents the Optimal Temperature Control for LG Ceiling Concealed Duct.

      Optimal Temperature Control

      Monitored via the remote control and the indoor unit, the two thermistors can optimize the indoor temperature by sensing temperatures from different positions and automatically setting the optimal temperature for users.

    • A simple house outline icon with three interior arrows indicates the airflow direction of the LG Ceiling Concealed Duct in different rooms, symbolizing efficient air Management of Multiple Spaces.

      Management of Multiple Spaces

      Simultaneous operation of cooling and heating for multiple rooms is achieved by using a spiral duct(embedded or flexible type) and a steam chamber.

    • An air conditioner outline icon within a dashed border emphasizes the small and space-saving design of the LG Ceiling Concealed Duct.

      Compact Size

      New mid-static ducts1) provide ideal solution for installation in limited space.

    1. Conventional models are ARNU28GBGA2, ARNU36GBGA2, ARNU42GBGA2 and new models are ARNU28GM2A4, ARNU36GM2A4, ARNU42GM2A4.
    Close
    Capacity
    • Cooling1 (Min. ~ Rated ~ Max.) (kW)
      2.79~7.91~8.35
      Cooling1 (Min. ~ Rated ~ Max.) (Btu/h)
      9,600~27,000~28,500
    • Cooling2 (Rated) (kW)
      2.79~6.21~8.35
      Cooling2 (Rated) (Btu/h)
      9,600~21,200~28,500
    • Heating (Min. ~ Rated ~ Max.) (kW)
      2.79~7.80~8.20
      Heating (Min. ~ Rated ~ Max.) (Btu/h)
      9,600~26,600~28,000
    Power Input
    • Cooling1 (Rated) (kW)
      2.67
      Cooling2 (Rated) (kW)
      2.55
    • Heating (Rated) (kW)
      2.30
    EER/COP
    • Cooling 1) / Heating (W/W)
      10.10 / 3.40
    Outdoor Unit
    • Power Supply (V , ? , Hz)
      220-240, 1, 50
      Power Supply Cable (included Earth) (No. × mm2)
      3C × 2.5
    • Casing Color
      Warm Gray
      Dimensions Net (W × H × D) (mm)
      870 x 650 x 330
    • Net Weight (kg)
      44.7
      Compressor Type
      Twin Rotary
    • Refrigerant Type
      R410A
      Fan Air Flow Rate (Rated) (m3/min x No.)
      50 x 1
    • Fan Motor Type
      BLDC
      Sound Pressure Level Cooling (Rated) (dB(A))
      50
    • Sound Pressure Level Heating (Rated) (dB(A))
      52
      Piping Connections Liquid (Outer Dia.) (mm (inch))
      ? 9.52 (3/8)
    • Piping Connections Gas (Outer Dia.) (mm (inch))
      Φ15.88 (5/8)
      Piping Length (Max) (m)
      50
    • Maximum Height Difference IDU - ODU(Max) (m)
      20
    Indoor Unit
    • Power Supply (V , ? , Hz)
      220-240, 1, 50
      Dimensions Net (W × H × D) (mm)
      900 x 270 x 700
    • Net Weight (kg)
      25.3
      Fan Air Flow Rate (H / M / L) (m3/min)
      18.0 / 16.5 / 14.5
    • Fan Motor Type
      BLDC
      External static pressure High Mode_Factory Set
      59
    • Sound Pressure Level Cooling (H / M / L) (dB(A))
      37.0 / 35.0 / 32.0
      Sound Pressure Level Heating (H / M / L) (dB(A))
      37.0 / 35.0 / 32.0
