    ATNW36GYLT1 ANWBDXB + ATUW36GYLT1 ANWBDXB component-copyModelName
    Round Cassette, Cassette_Inverter_H/P (1Φ), 36kBtu

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ATNW36GYLT1 ANWBDXB + ATUW36GYLT1 ANWBDXB)
      $
      $
      LG Members Price
    Total

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (ATNW36GYLT1 ANWBDXB + ATUW36GYLT1 ANWBDXB)
      $
      $
      LG Members Price
    Total

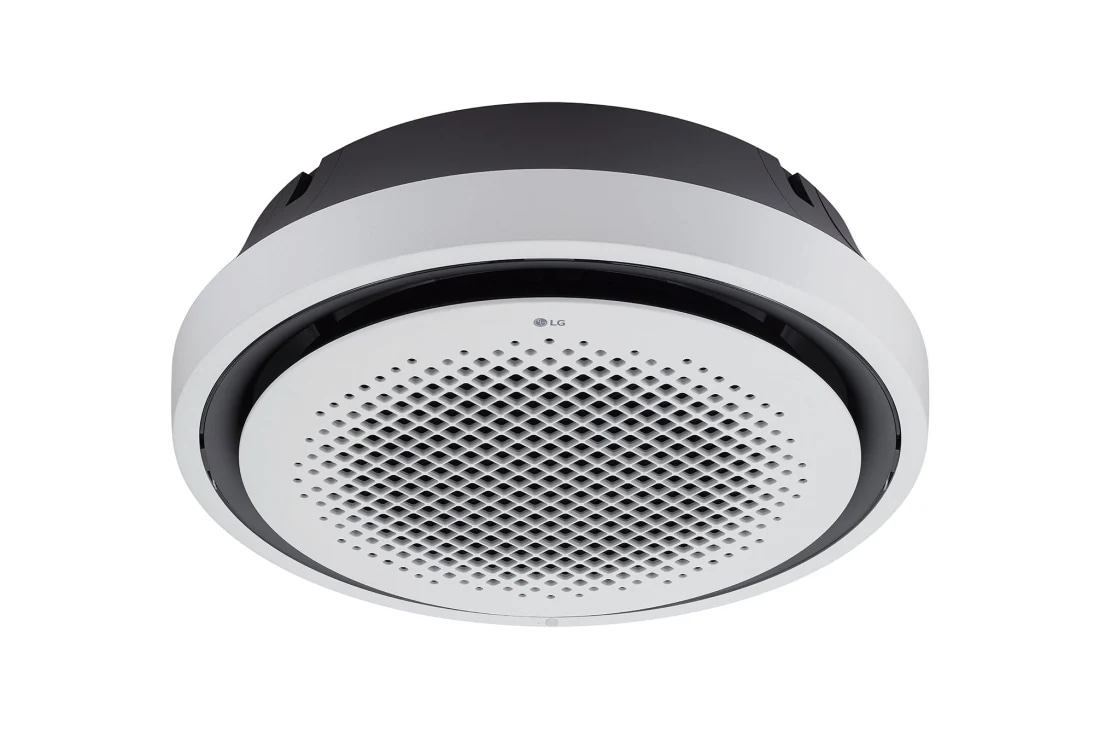

    Round Cassette, Cassette_Inverter_H/P (1Φ), 36kBtu
    • A simple line icon represents the LG Round Cassette, highlighted by its Elegant Round Design with a circular unit adorned with sparkles graphics.

      Elegant Round Design

      The aesthetic LG Round Cassette presents a more luxurious and inviting space. With a body height reduced by about 10%1), it makes the room feel taller and more spacious.

    • A simple line icon illustrates the 360° Circular Airflow of the LG Round Cassette, indicated by arrows circling outward.

      360° Circular Airflow

      LG Round Cassette covers a large area with its perfect circular shape. Moreover, powerful airflow and detailed air direction spread the wind evenly and extensively. It is much easier to reach the desired temperature due to 30%2) faster cooling up. 3), 4)

    • A simple line icon represents the LG Round Cassette’s Quiet Operation, depicted by a speaker with volume control symbols, emphasizing its ability to operate silently and efficiently.

      Quiet Operation

      With its Full 3D Fan, the airflow rate rises by 5% compared to the conventional LG 4-way cassette. Along with this, the operation noise level is reduced to 39dB(A)5), creating a comfortable and quieter atmosphere.

    • A simple line icon displays the Easy Installation feature of the LG Round Cassette, using a gear icon with a checkmark to convey the unit's straightforward setup process.

      Easy Installation

      The drain and refrigerant pipes are attached in the same direction and position, enabling quick and easy installation. By placing the control box on the product's exterior, installers are able to provide services more easily.

    1. The body height of LG Round Cassette(330mm) is lower than that of the competitor's comparable model(365mm).
    2. Experimental environment: Height 3.2m, 14.5kW, cooling mode, high flow rate, horizontal airflow direction.
    3. Based on test results from LG chamber.
    4. The actual performance of the product may vary depending on the usage environment.
    5. Noise level is measured at 14.5kW low flow rate.
    Capacity
    • Cooling1 (Min. ~ Rated ~ Max.) (kW)
      3.40 ~ 10.25 ~ 10.80
      Cooling1 (Min. ~ Rated ~ Max.) (Btu/h)
      11,600 ~ 35,000 ~ 36,850
    • Cooling2 (Rated) (kW)
      8.20
      Cooling2 (Rated) (Btu/h)
      28,000
    • Heating (Min. ~ Rated ~ Max.) (kW)
      4.20 ~ 11.00 ~ 13.00
      Heating (Min. ~ Rated ~ Max.) (Btu/h)
      14,330 ~ 37,537 ~ 44,350
    Power Input
    • Cooling1 (Rated) (kW)
      3.18
      Cooling2 (Rated) (kW)
      3.45
    • Heating (Rated) (kW)
      0.75 ~ 3.10 ~ 4.06
    EER/COP
    • Cooling1 / Heating (W / W)
      3.24 / 3.55
    Outdoor Unit
    • Power Supply (V , ? , Hz)
      220-240, 1, 50
      Dimensions (W x H x D) (mm)
      950x834x330
    • Net Weight (kg (lbs))
      30.00
      Compressor Type
      Inverter Scroll
    • Refrigerant Type
      R410A
      Fan Motor Type
      BLDC
    • Sound Pressure Level Cooling (Rated) (dB(A))
      51
      Sound Pressure Level Heating (Rated) (dB(A))
      53
    • Piping Connections Liquid (Outer Dia.) (mm (inch))
      ? 9.52 (3/8)
      Piping Connections Gas (Outer Dia.) (mm (inch))
      Φ15.88 (5/8)
    • Piping Length (Max.) (m (ft))
      75
      Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) (m (ft))
      30
    Indoor Unit
    • Power Supply (V, ?, Hz)
      220-240, 1, 50
      Dimensions Body (W x H x D) (mm)
      1,050 x 330 x 1,050
    • Net Weight (kg (lbs))
      30
      Air Flow Rate (H / M / L) (m3/min)
      25.0 / 23.0 / 21.0
    • Fan Motor Type
      BLDC
      Sound Pressure Level Cooling (H / M / L) (dB(A))
      39 / 37 / 34
    • Sound Pressure Level Heating (H / M / L) (dB(A))
      39 / 37 / 34
      Safety Devices
      Fuse
