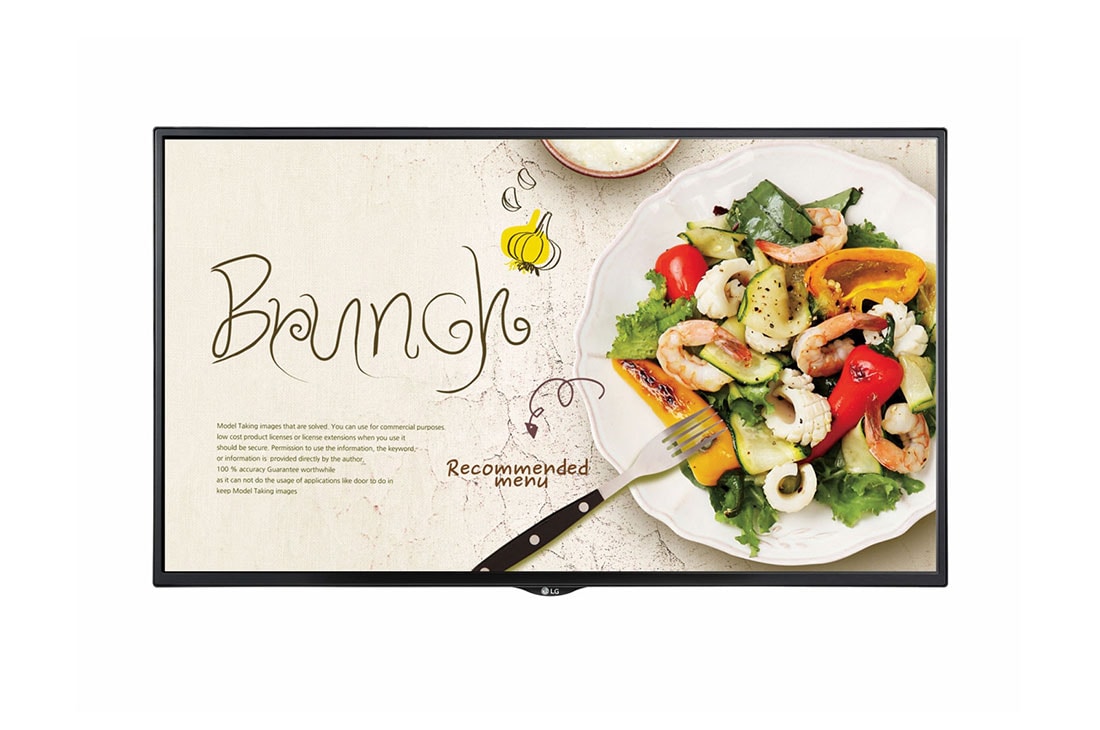

55SM5KE component-copyModelName

SM5KE Series

55SM5KE component-copyModelName

SM5KE Series

Key Features

Brightness (Typ.) : 450cd/m2
Bezel : 11.9mm (T/R/L), 18mm (B)
Depth : 54mm
Interface : HDMI(3)/DP/DVI-D/USB 3.0/RS232C/RJ45/Audio/IR
Built-in Speaker : 10W + 10W

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness (Typ.) : 450cd/m2
Bezel : 11.9mm (T/R/L), 18mm (B)
Depth : 54mm
Interface : HDMI(3)/DP/DVI-D/USB 3.0/RS232C/RJ45/Audio/IR
Built-in Speaker : 10W + 10W

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

SM5KE Series

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

Integrated CMS

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.

GUI for B2B & EZ Setting

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.

Video Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.

*Image is for illustration-purposes only.
*HLS (HTTP Live Streaming)/*UDP ( User Datagram Protocol).
*RTSP (Real-Time Streaming Protocol)/*RTP (Real-time Transport Protocol).

Gapless Playback

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Detachable Logo & Built-in Speaker

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Support for Network Protocol

HTTPS

With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.
Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Value-added Offerings

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

*Spported model: NIPPON PRIMEX (NP-3511, NP-3611).

Value-added Offerings

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on power board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

Optimized Work-Flow with LG Presenter

LG Presenter, an embedded application, enables wireless screen sharing* between computers and LG digital signages. It provides users with a smart and convenient meeting experience, reducing time spent unnecessarily managing devices and cables for connection.

*A Laptop and a display must be connected to the same network.
**Installation of the PC client app is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Business Resources' section.

ACCESSORY

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)

CONNECTIVITY

External Control

RS232C In/Out, RJ45 In, IR Receiver In

Input

HDMI (3), DP, DVI-D, Audio, USB 3.0
Output

DP(SST), Audio(Off/Fixed/Variable)

ENVIRONMENT CONDITIONS

Operation Humidity

10% to 80%

Operation Temperature

0°C to 40°C

MEDIA PLAYER COMPATIBILITY

External Media player Attatchable

Yes

OPS Type Compatible

Yes

PANEL

Brightness (Typ.,cd/m2)

450

Resolution

1,920 x 1,080 (FHD)
Screen Size

55”

PHYSICAL SPECIFICATION

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Carton Dimensions (W x H x D)

1,330 x 807 x 170 mm
Monitor Dimension (W x H x D)

1,238 x 714.9 x 54 mm

Monitor with Optional Stand Dimensions (W x H x D)

1,238 x 773.4 x 219.6 mm
Packed Weight

21.7 kg

VESA? Standard Mount Interface

300 x 300 mm
Weight (Head)

17.5 kg

Weight (Head+Stand)

20.8 kg

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Smart Energy Saving

70W (TBD)

Typ. / Max.

100W (TBD)/115W

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+/Control

STANDARD(CERTIFICATION)

EMC

FCC Class "A"/CE/KC

ErP/Energy Star

N/A / Yes (Energy Star 8.0)
Safety

IEC 60950-1/EN 60950-1/UL 60950-1

MINIMUM REQUIREMENTS FOR LG PRESENTER

OS (Windows)

Windows 7 (64bit), Windows 10 (64bit)

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM

Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra
