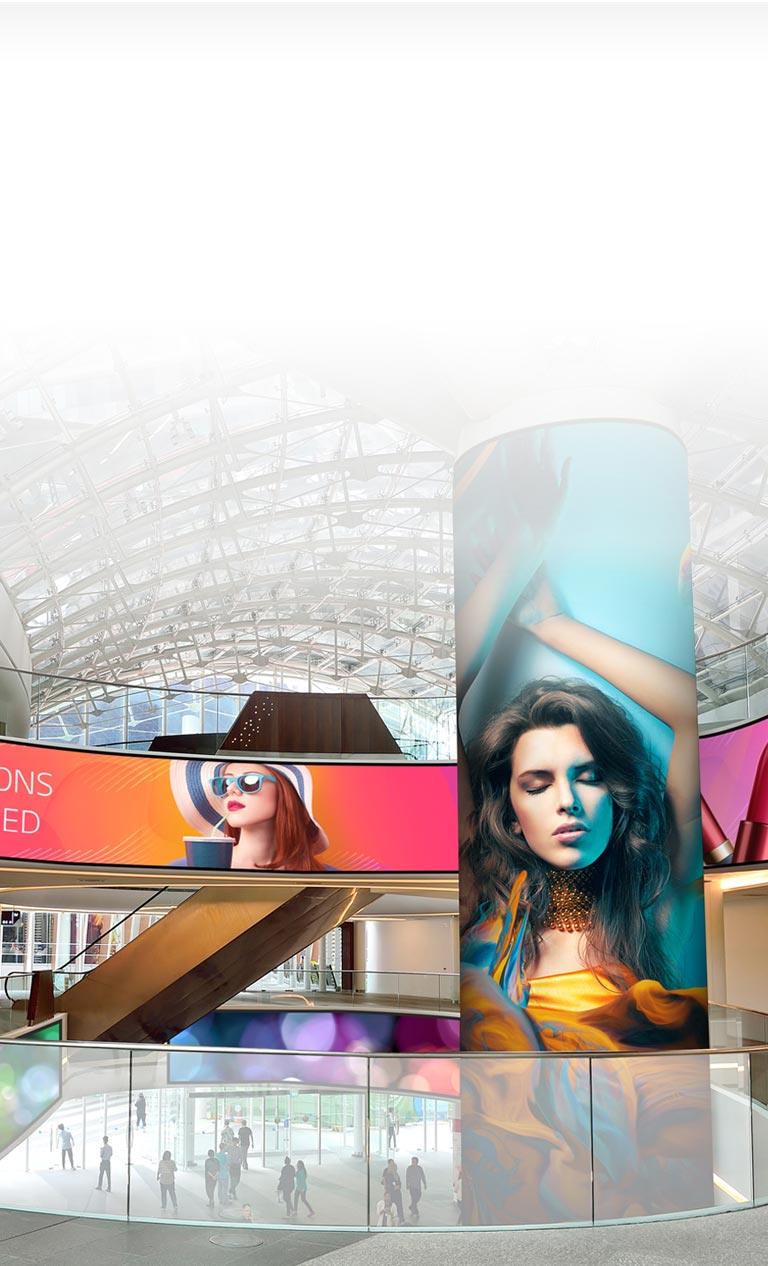

The curved screen is perfect for indoor use as it conforms to the surface it attaches to delivering with it a picture perfect quality. Learn more now.
D04_ID-LAC-Curved-02-1,200nit-High-Brightness_full_1554702291607
| Model Name | LAC025DD3 | LAC025DD4 | LAC029DD3 | LAC029DD4 |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 2.50 | 2.50 | 2.97 | 2.97 |
| Unit Case Resolution (WxH) | 200x200 | 200x200 | 168x168 | 168x168 |
| Unit Case Dimensions (WxHxD, mm) | 500x500x84 | 500x500x84 | 500x500x84 | 500x500x84 |
| Weight per Unit Case / Square Meter (kg) | 8.9/35.6 | 8.9/35.6 | 8.9/35.6 | 8.9/35.6 |
| Service access | Front or Rear | Front or Rear | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) | 1,200 | 1,200 | 1,200 | 1,200 |
| Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/160 | 160/160 | 160/160 | 160/160 |
| Brightness Uniformity | 97％ | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 13 | 13 | 13 | 13 |
| Power Consumption (W/Unit, Avg./Max.) | 50/150 | 50/150 | 50/150 | 50/150 |
| Power Consumption (W/m2, Max.) | 600 | 600 | 600 | 600 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 1,920 | 1,920 | 1,920 | 1,920 |
| Lifetime (Half brightness)* | 80,000 | 50,000 | 80,000 | 50,000 |
| Operating Temperature(°C) / Humidity | -10° to +45°/0~80％RH | -10° to +45°/0~80％RH | -10° to +45°/0~80％RH | -10° to +45°/0~80％RH |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
| Model Name | LAC039DD3 | LAC039DD4 |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 3.91 | 3.91 |
| Unit Case Resolution (WxH) | 128x128 | 128x128 |
| Unit Case Dimensions (WxHxD, mm) | 500x500x84 | 500x500x84 |
| Weight per Unit Case / Square Meter (kg) | 8.9/35.6 | 8.9/35.6 |
| Service access | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) | 1,200 | 1,200 |
| Color Temperature | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/160 | 160/160 |
| Brightness Uniformity | 97％ | 97％ |
| Color Uniformity | ±0.003CxCy | ±0.003CxCy |
| Contrast Ratio | 5,000 | 5,000 |
| Processing Depth (bit) | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) | 50/150 | 50/150 |
| Power Consumption (W/m2, Max.) | 600 | 600 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,840 | 3,840 |
| Lifetime (Half brightness)* | 80,000 | 50000 |
| Operating Temperature(°C) / Humidity | -10° to +45°/0~80％RH | -10° to +45°/0~80％RH |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
