The LBS DOOH can withstand harmful outdoor environments or harsh weather and stands out even on the sunniest of days. Learn how this product will transform your campaign.
D01_ID_LED-Signage-Outdoor_hero_02_M03_High-Performance-Slim_1554708749332
D03_ID-LBS-DOOH-01-Outstading-Visibility_full_1554706871082
ID-LBS-DOOH-02-Smooth-Playback-in-Dynamic-Motion_full_D
| Model Name | LBS062DA1-V | LBS062DA3-V | LBS083DA1-V | LBS083DA3-V |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 6.25 | 6.25 | 8.33 | 8.33 |
| Unit Case Resolution (WxH) | 128x256 | 128x256 | 96x192 | 96x192 |
| Unit Case Dimensions (WxHxD, mm) | 800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 |
| Weight per Unit Case / Square Meter (kg) | 40.0/31.3 | 40.0/31.3 | 40.0/31.3 | 40.0/31.3 |

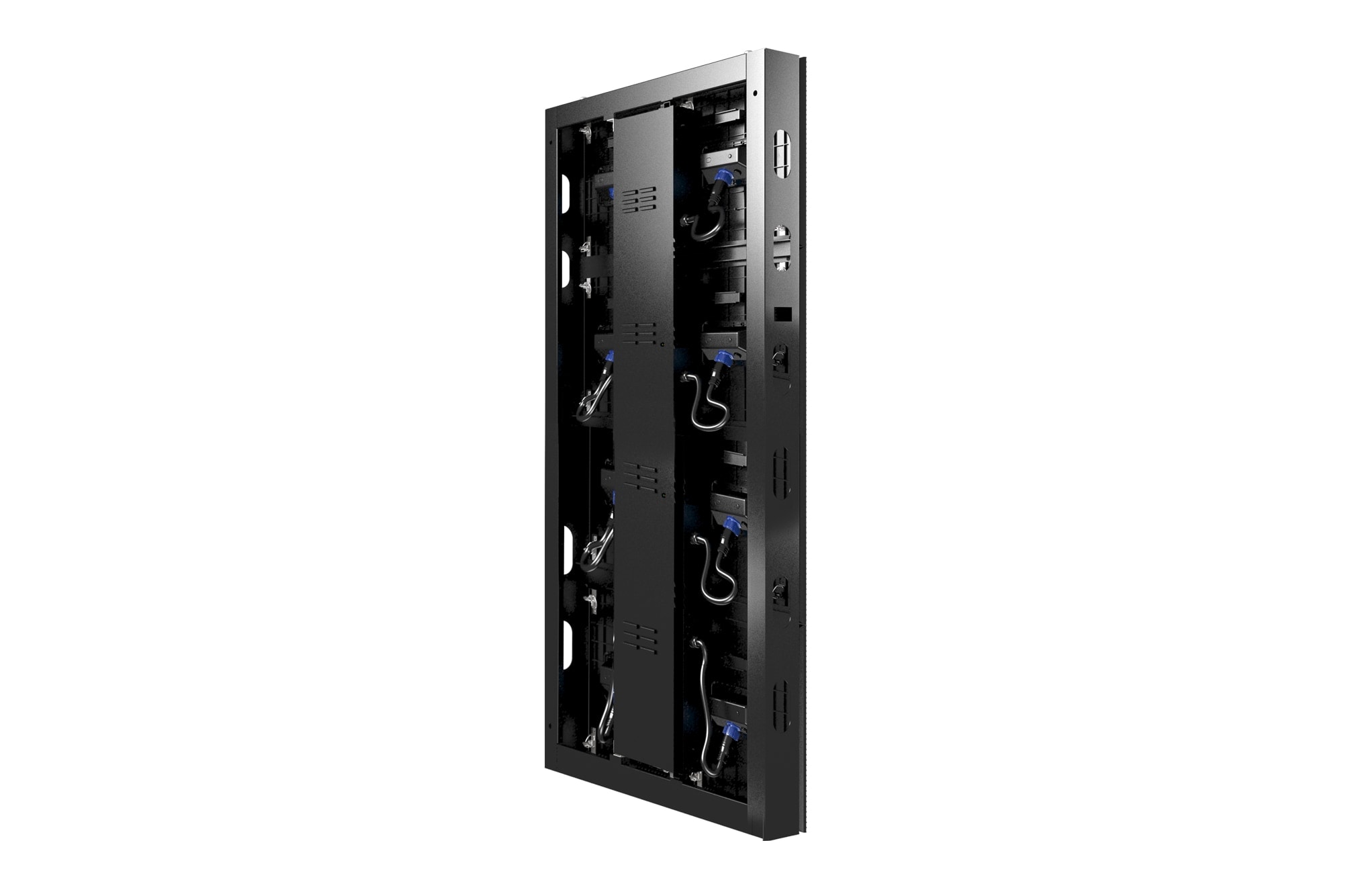

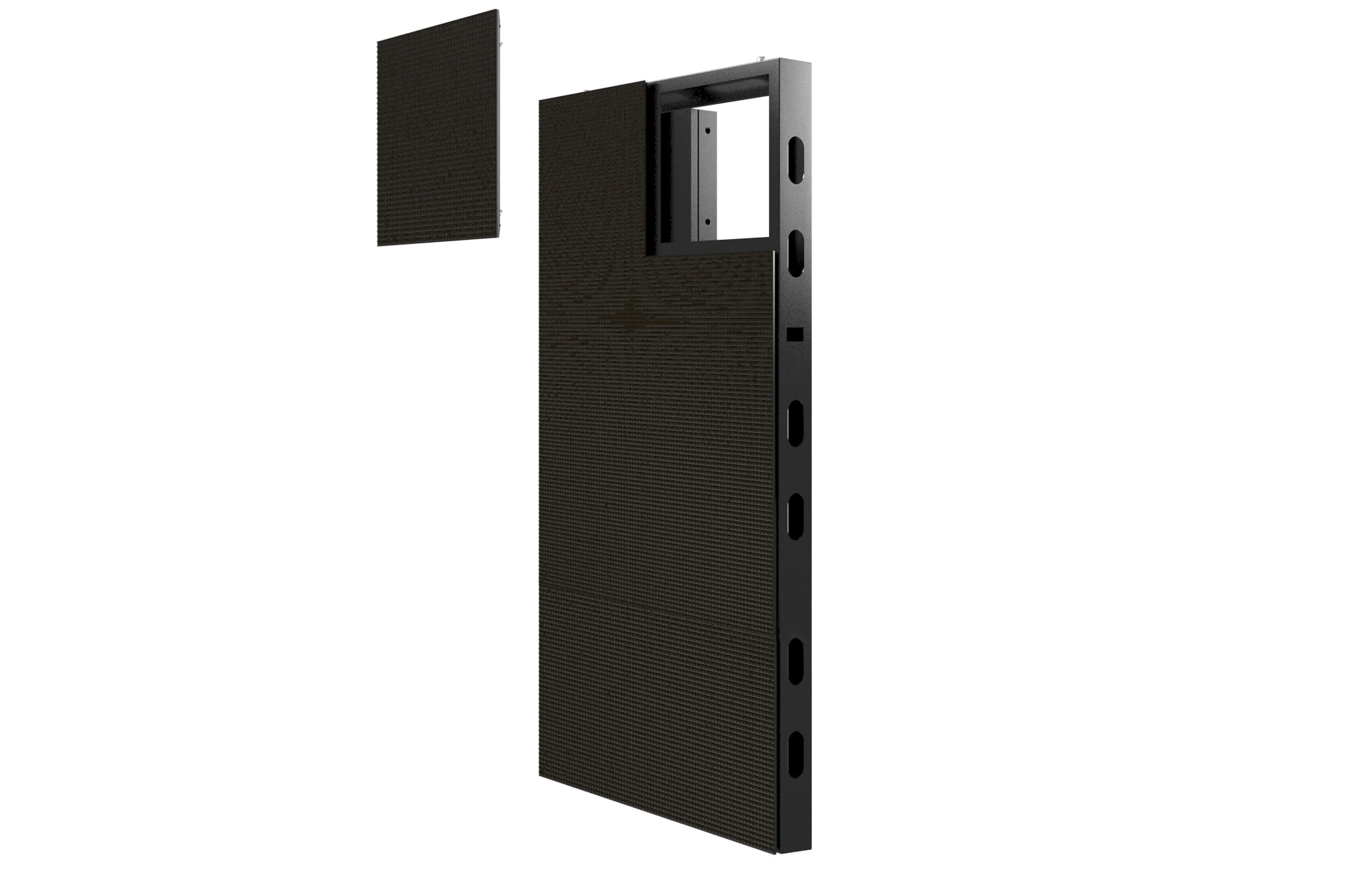

| Service access | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Min. Brightness (After Calibration) | 6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/130 | 160/130 | 160/125 | 160/125 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) | 312/780 | 312/780 | 320/800 | 320/800 |
| Power Consumption (W/m2, Max.) | 609 | 609 | 625 | 625 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime (Half brightness)* | 100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
| Model Name | LBS100DA1-V | LBS100DA3-V |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 10.00 | 10.00 |
| Unit Case Resolution (WxH) | 80x160 | 80x160 |
| Unit Case Dimensions (WxHxD, mm) | 800x1600x143.5 | 800x1600x143.5 |
| Weight per Unit Case / Square Meter (kg) | 40.0/31.3 | 40.0/31.3 |
| Service access | Front and Rear | Front and Rear |
| Min. Brightness (After Calibration) | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/115 | 160/115 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) | 300/750 | 300/750 |
| Power Consumption (W/m2, Max.) | 586 | 586 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 |
| Lifetime (Half brightness)* | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
