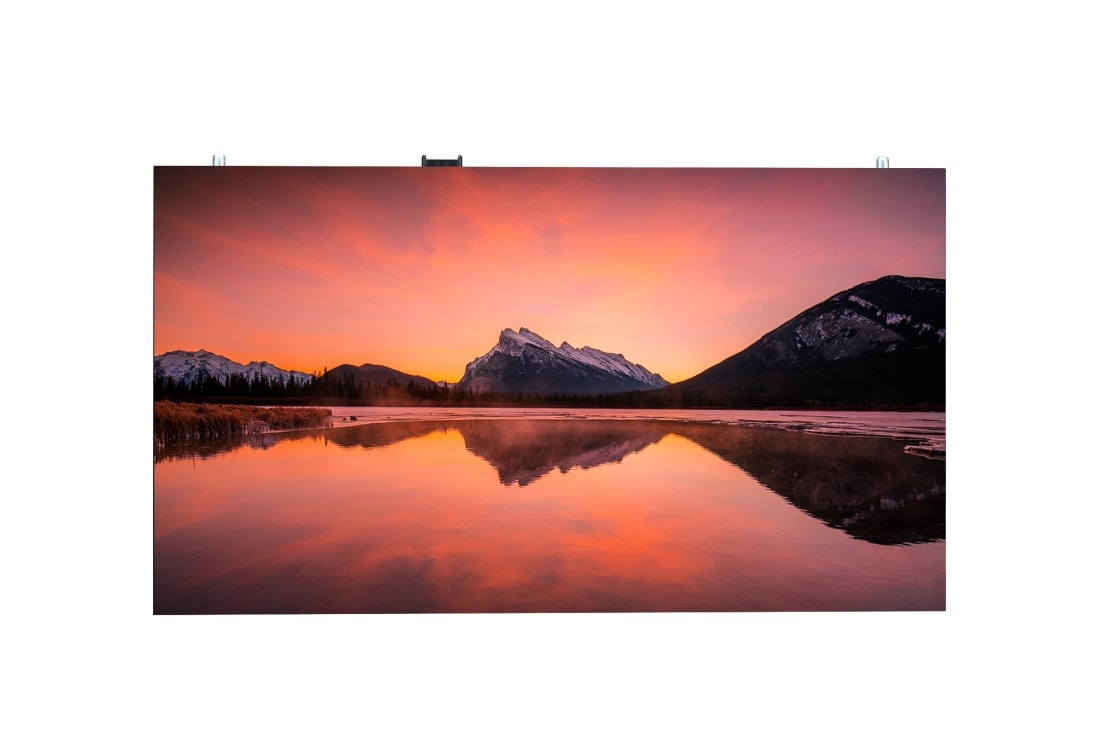

LSAA Optimum Cable-less LED Series
LSAA012
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Shipping options may vary by region.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Pixel Configuration
SMD, 4 Pixels in 1 PKG
Pixel Pitch (mm)
1.25
Module Resolution (W x H)
240 × 90
Module Dimensions (W x H, mm)
300 ×112.5
Weight per Module (kg)
0.20
No. of Modules per Cabinet (W × H)
2 × 3
Cabinet Resolution (W × H)
480 × 270
Cabinet Dimensions (W × H × D)
600 × 337.5 × 44.9
Cabinet Surface Area (m2)
0.203
Weight per Cabinet (kg/cabinet)
7.3
Weight per Square Meter (kg/m2)
36.1
Physical Pixel Density (pixels/m2)
640,000
Flatness of Cabinet
±0.5 mm
Cabinet Material
Die-casting Aluminum
Service Access
Front and Rear
* Module can be accessed only from the front.
Brightness
600nit (Typ.) 1,200nit (Peak)
Color Temperature (Default/Adjustable)
6,500K / 2,800~10,000K
* Adjustable via LED Assistant on PC
Visual Viewing Angle (Horizontal)
170
Visual Viewing Angle (Vertical)
170
Brightness Uniformity
98%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
Peak. 8,000:1 Typ. 4,000:1
Processing Depth (bit)
20
HDR Compatibility
HDR10, HDR10 Pro
* LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping
Power Consumption (W/cabinet, Max.)
112
Power Consumption (W/cabinet, Avg.)
67
Power Consumption (W/m2, Max.)
555
Power Consumption (BTU/h/cabinet, Max.)
383
Power Consumption (BTU/h/cabinet, Avg.)
230
Power Consumption (BTU/h/m2, Max.)
1,894
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Controller
CSAA-012X
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
0°C to 40°C
Operating Humidity
10-80%RH
IP rating Front / Rear
IP20 / IP20
Certification
Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment
RoHS
Optional
Wall Mount Kit, Frame Kit
