43UM5N-H component-copyModelName

Narrow Bezel UHD Standard Signage

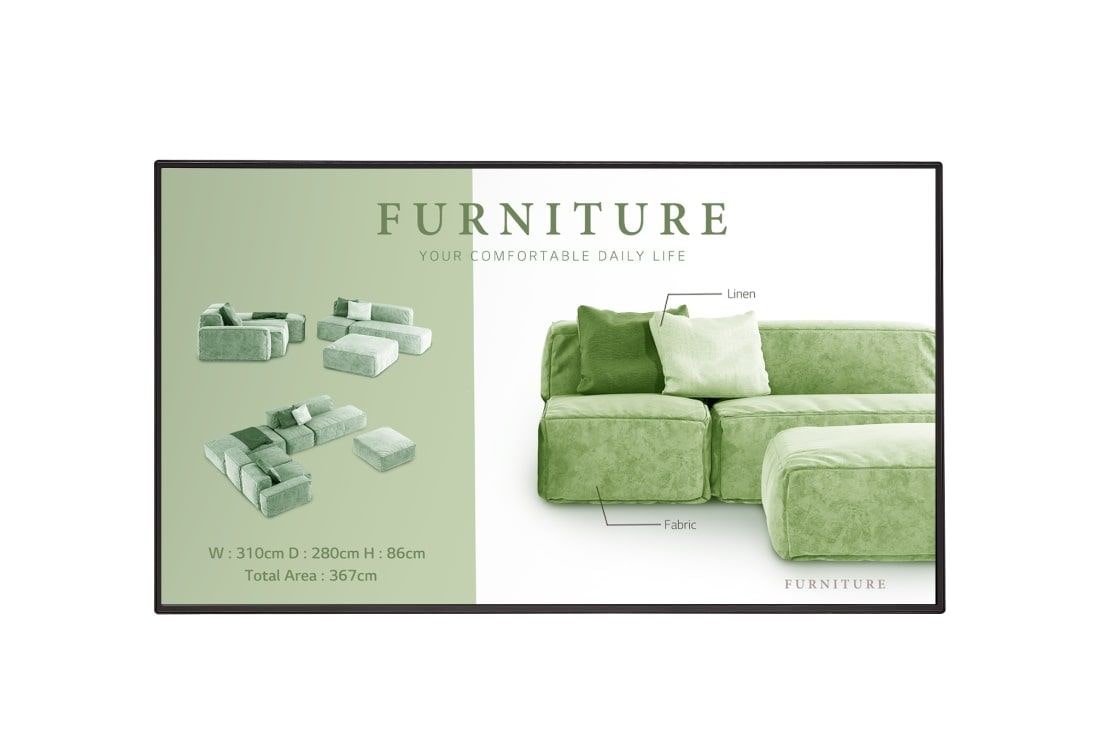

LG Narrow Bezel UHD Standard Signage, Front view with infill image, 43UM5N-H, thumbnail 1

LG Narrow Bezel UHD Standard Signage, Front view, 43UM5N-H, thumbnail 2

LG Narrow Bezel UHD Standard Signage, -45 degree side view, 43UM5N-H, thumbnail 3

LG Narrow Bezel UHD Standard Signage, -90 degree side view, 43UM5N-H, thumbnail 4

LG Narrow Bezel UHD Standard Signage, +45 degree side view, 43UM5N-H, thumbnail 5

LG Narrow Bezel UHD Standard Signage, +90 degree side view, 43UM5N-H, thumbnail 6

LG Narrow Bezel UHD Standard Signage, Top view, 43UM5N-H, thumbnail 7

LG Narrow Bezel UHD Standard Signage, Rear view, 43UM5N-H, thumbnail 8

LG Narrow Bezel UHD Standard Signage, Rear view 2, 43UM5N-H, thumbnail 9

LG Narrow Bezel UHD Standard Signage, Rear view 3, 43UM5N-H, thumbnail 10

LG Narrow Bezel UHD Standard Signage, Image taken from the top right, 43UM5N-H, thumbnail 11

LG Narrow Bezel UHD Standard Signage, -45 degree side rear view, 43UM5N-H, thumbnail 12

LG Narrow Bezel UHD Standard Signage, Close-up image of bottom right corner, 43UM5N-H, thumbnail 13

LG Narrow Bezel UHD Standard Signage, Close-up image of bottom right corner, 43UM5N-H, thumbnail 14

ADD TO WISHLIST

Discontinued

43UM5N-H component-copyModelName

Narrow Bezel UHD Standard Signage

Name: Narrow Bezel UHD Standard Signage
Brand: LG UAE
SKU: 43UM5N-H
Rating: 0 (0 reviews)

Key Features

Resolution : 3,840 x 2,160 (UHD)
Brightness (Typ.) : 500 nit
Surface Treatement (Haze) : 25 %
Bezel : 12.1 mm (T/B), 11.1 mm (R/L)
Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
webOS Smart Platform

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Resolution : 3,840 x 2,160 (UHD)
Brightness (Typ.) : 500 nit
Surface Treatement (Haze) : 25 %
Bezel : 12.1 mm (T/B), 11.1 mm (R/L)
Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
webOS Smart Platform

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Narrow Bezel UHD Standard Signage

UHD Signage Display with
LG webOS Platform and Advanced Security

A screen showing the meeting’s contents is installed on the meeting room’s wall.

* 65 inch
* All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

A number of tasks can be done at the same time with the intuitive GUI.

Convenient webOS Platform

The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UM5N-H is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

The UM5N-H has Conformal Coating on the power board to protect display even in a salty or humid environment.

Design for Space Utilization

Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

The UM5N-H with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

The UM5N-H provides security features to protect important data from external access or attacks.

Enhanced Security Features

The UM5N-H provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B.

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

INFO

Product

Standard (UHD)

Year

Y23
Month

M06(TBD)

PANEL

Screen Size (Inch)

43"

Panel Technology

IPS
Back Light Type

Direct

Aspect Ratio

16:9
Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz
Brightness (Typ.)

500nit (Typ.)

Contrast Ratio

1,000:1
Dynamic CR

1,000,000:1

Color Gamut

BT709 95%
Viewing Angle(H x V)

178 x 178

Color Depth

8bits + FRC, 1.07Billion colors
Response Time

Tr : 8ms / Tf :10ms

Surface Treatment(Haze)

25%
Life time

50,000Hrs (Min.)

Operation Hours (Hours/Day)

24/7
Portrait / Landscape

Yes / Yes

Connectivity
(Jack Interface)

HDMI IN

Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4

DP IN

Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN

Yes(1), 4pin PhYesne-jack

RJ45(LAN) IN

Yes (1)
IR IN

Yes (1)

USB IN

USB2.0 Type A(1)
HDMI Out

Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP

Audio Out

Yes (1)
RS232C Out

Yes (1), 4pin Phone-jack

Daisy Chain

Yes(Input HDMI, DP / Output HDMI)

MECHANICAL

Bezel Color

Black

Bezel Width

T/B: 12.1mm R/L: 11.1mm
Weight (Head)

9.0Kg

Packed Weight

11.3kg
Monitor Dimensions (W x H x D)

968 x 559 x 57.7mm (Without IR)

Carton Dimensions (W x H x D)

1055 x 660 x 142mm
VESATM Standard Mount Interface

200 x 200

HW FEATURE

Internal Memory

16GB

Wi-Fi (Built-in)

Yes
Temperature Sensor

Yes

Auto Brightness sensor

Yes(IR)
Acceleration(Gyro) Sensor

Yes

Local Key Operation

Yes
Speaker (Built-in)

Yes

SW FEATURE

OS ver.

webOS6.0

Local Contents Scheduling

Yes
Group Manager

Yes

USB Plug & Play

Yes
Fail over

Yes

Booting Logo Image

Yes
No Signal Image

Yes

RS232C Sync

Yes
Local Network Sync

Yes

PIP

Yes
PBP

Yes (4)

Screen Share

Yes
Video Tag

Yes (4)

Play via URL

Yes
Screen Rotation

Yes

External Input Rotation

Yes
Gapless Playback

Yes

Tile Mode Setting

Yes (Max. 15x15)
Setting Data Cloning

Yes

SNMP

Yes
ISM Method

Yes

Auto Set ID

Yes
Status Mailing

Yes

Control Manager

Yes
Cisco Certi.

Yes

Crestron Inside

Yes
Smart Energy Saving

Yes

PM mode

Yes
Wake on LAN

Yes

Beacon

Yes
Network Ready

Yes

HDMI-CEC

Yes
SI Server Setting

Yes

webRTC

Yes
Pro:Idiom

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ.)

100W

Power Consumption (Max.)

140W
Power Consumption (British Thermal Unit)

341 BTU/Hr(Typ.), 478 BTU/Hr(Max)

Power Consumption (Smart Energy Saving, ~70%)

70W
Power Consumption (DPM)

0.5W

Power Consumption (Power Off)

0.5W

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "B" / CE / KC
ErP / Energy Star

Yes(NewErP)/Yes

Carbon Trust

Yes(~'23.9, CO2 Measured)

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes / Yes
SuperSign WB

Yes

SuperSign Cloud

Yes
Mobile CMS

Yes

Connected Care

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

Optional

Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE

Tilt (Face Down)

Yes(Max 30o degree, 40oC temperature)

IP Rating

IP5x
Conformal Coating (Power Board)

Yes
