Name: High Brigtness Open frame Display
Brand: LG UAE
SKU: 75XF3ES-B
Rating: 0 (0 reviews)

Key Features

Brightness : 3,000 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel : 11.8 mm(Even bezel)
Depth : 128.9 mm
Interface : HDMI (2)/ DP/ DVI-D/ USB/ RJ45/ RS232C/ IR/ External speaker out

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 3,000 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel : 11.8 mm(Even bezel)
Depth : 128.9 mm
Interface : HDMI (2)/ DP/ DVI-D/ USB/ RJ45/ RS232C/ IR/ External speaker out

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

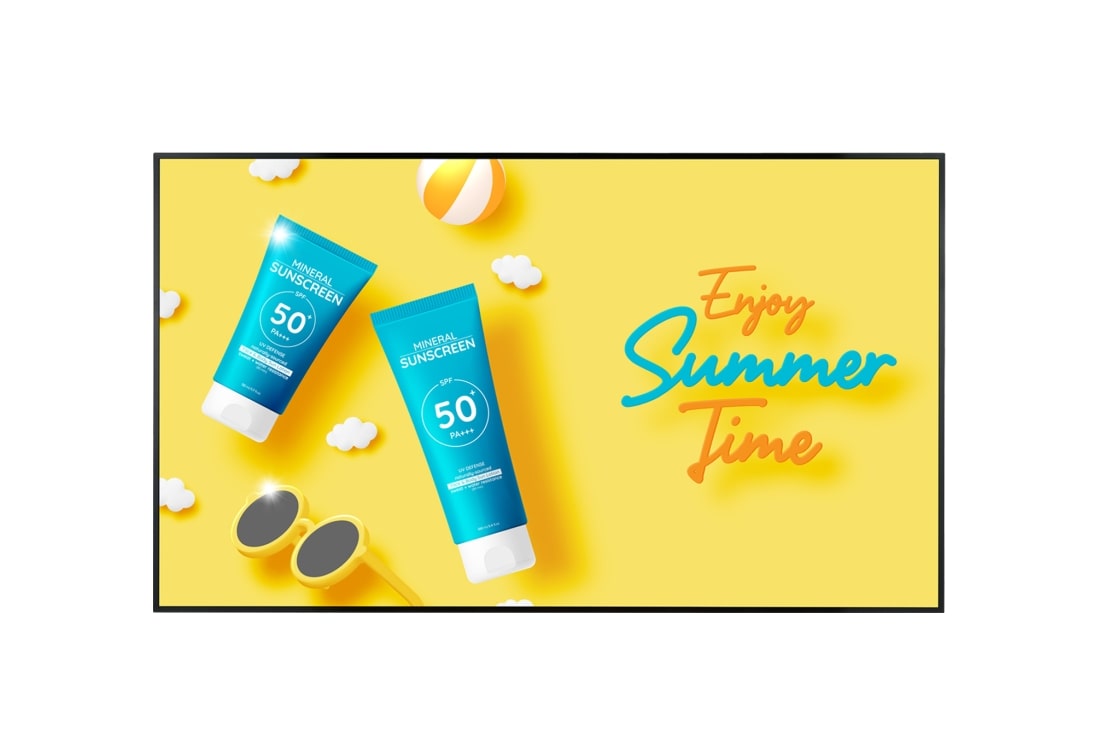

High Brigtness Open frame Display

Elevating Outdoor Advertising with a Flexible Large Display

Two large-sized displays are installed at a bus stop. One woman is looking at the vivid-quality advertisement, while the other woman is looking at the bus route map.

* All images in this page are for illustrative purposes only.
** Please follow the installation guide to get warranty.
*** It is highly recommended to account for thermal management when designing product casing.

High Visibility Under
Strong Sunlight

With stunning high brightness of 3,000 nits (Typ.), XF3ES outdoor display delivers contents clearly while captivating passersby, being suitable display for outdoor advertisement. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

Open-frame Type Display

XF3ES is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.

Various frame-shaped displays are installed outdoors.

A blurry picture of FHD is being compared with UHD with vivid quality images.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

* Within 178 degree

The XF3ES screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increasAed in light for better visibility, while it is decreased in darkness for efficient power management.

The XF3ES minimizes the change of the panel’s brightness over time.

Smart Brightness Compensation

The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.

* Back Light Unit

A display is working well in an environment of 0~50°C.

Wide Operating Temperature

XF3ES can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation.

* 0 °C to 50 °C w/o Direct Sunlight, Direct Sunlight in Cooling System

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

The display's backside is designed with the circuit board positioned on one side, allowing the display to be installed with a slim thickness even when layered on both sides.

Optimized Design for Double-sided Display

For double-sided displays, the circuit board box at the back of the display is conveniently positioned to conserve space with two back-to-back installations.

Double-sided displays can be easily controlled through RS-232C and LAN (RJ45).

Multi Display Control

Quad Core SoC^{(System-on-Chip)} can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

webOS Smart Platform

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

Real-time Remote Web Monitoring

This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network to monitor and control the displays remotely in real-time. Both side of displays can be controlled by multi display control.

User can monitor and control their displays through mobile phone and laptop.

PANEL

Screen Size

75" (74.52" Measured Diagonal)

Native Resolution

3,840 x 2,160 (UHD)
Brightness (Typ., cd/m2)

3000

CONNECTIVITY

Input

HDMI (2), DP, DVI-D, Audio, USB

Output

DP, External Speaker
External Control

RS232C In/out, RJ45 In, IR

PHYSICAL SPECIFICATION

Bezel Width

11.8 mm (Even)

Monitor Dimension (W x H x D)

1,675.2 x 953.6 x 128.9 mm
Weight (Head)

37.5kg

Carton Dimensions (W x H x D)

1,816 x 1,106 x 285 mm
Packed Weight

47.0kg
