86TR3PJ-b component-copyModelName

UHD IR-type Touch CreateBoard

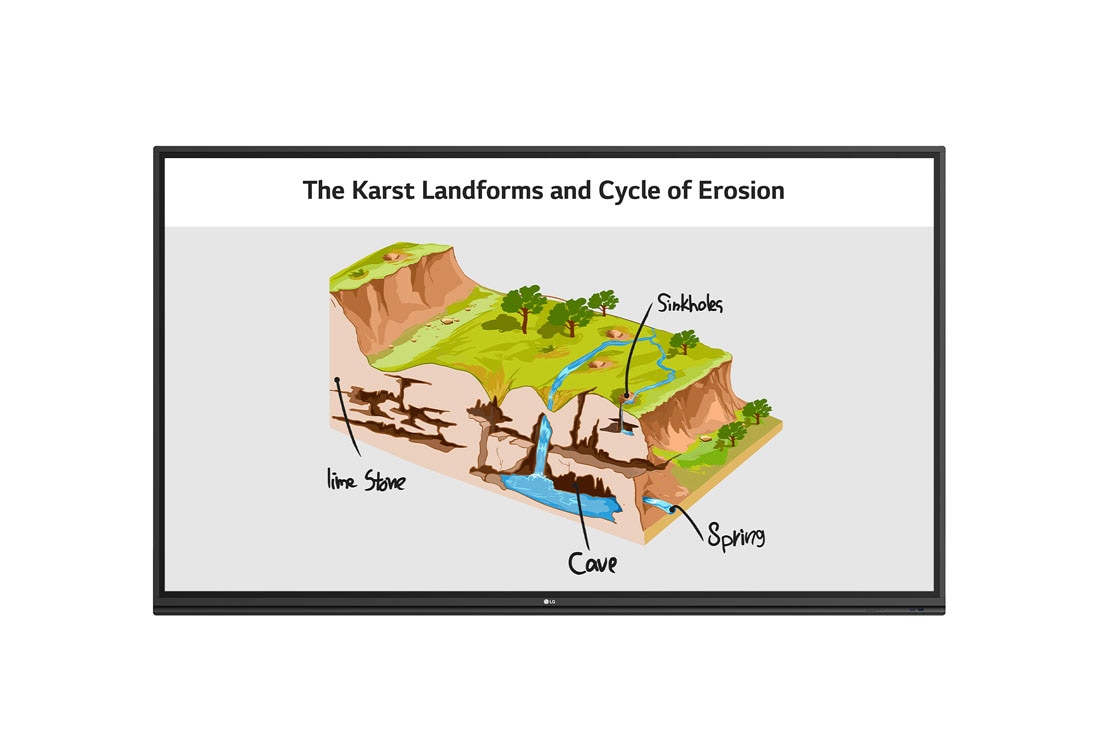

LG UHD IR-type Touch CreateBoard, Front view with infill image, 86TR3PJ-b, thumbnail 1

LG UHD IR-type Touch CreateBoard, Front view, 86TR3PJ-b, thumbnail 2

LG UHD IR-type Touch CreateBoard, -90 degree side view, 86TR3PJ-b, thumbnail 3

LG UHD IR-type Touch CreateBoard, +90 degree side view, 86TR3PJ-b, thumbnail 4

LG UHD IR-type Touch CreateBoard, Rear view, 86TR3PJ-b, thumbnail 5

LG UHD IR-type Touch CreateBoard, Top view, 86TR3PJ-b, thumbnail 6

LG UHD IR-type Touch CreateBoard, Bottom view, 86TR3PJ-b, thumbnail 7

ADD TO WISHLIST

Discontinued

86TR3PJ-b component-copyModelName

UHD IR-type Touch CreateBoard

Name: UHD IR-type Touch CreateBoard
Brand: LG UAE
SKU: 86TR3PJ-b
Rating: 0 (0 reviews)

Key Features

Brightness : 390 nit (w/o Glass, Typ.)
Multi Touch Point : 20 Points (Max.)
Interface : HDMI (3), RGB (1), Audio In (1), RS-232C In (1), RJ45 (1), USB 3.0 Type A (3), USB 2.0 Type A (1), USB Type-C (1), Audio Out / Optical Output, Touch USB (2)

SEE ALL SPECS

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 390 nit (w/o Glass, Typ.)
Multi Touch Point : 20 Points (Max.)
Interface : HDMI (3), RGB (1), Audio In (1), RS-232C In (1), RJ45 (1), USB 3.0 Type A (3), USB 2.0 Type A (1), USB Type-C (1), Audio Out / Optical Output, Touch USB (2)

SEE ALL SPECS

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UHD IR-type Touch CreateBoard

True Interactivity for
Bringing People Together

When the teacher marks it on the TR3PJ, it is displayed on the students' electronic device screens at the same time.

* 86 inch
* All images are for illustrative purposes only.
** Video Conferencing Solutions need to be purchased separately.

Multi Touch & Writing

The TR3PJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board writing experience and makes collaboration much easier.

Three children are drawing on the TR3PJ at the same time.

The screens of students' laptops and teacher's mobile are being shared to the display.

ScreenShare Pro Upgrade

With the newly upgraded ScreenShare Pro, which enables to show a maximum of six shared screens or a file on a screen in real-time, it has enhanced usability by allowing users to share Chromecast, Airplay and Miracast mirroring on the same network.

* ScreenShare Pro is a Wi-Fi based software and supported by separated application.
** All devices should be connected within the same network.

A teacher is having a class and the screen on the display is being shared to each students' laptop.

Air Class

Air Class supports connecting up to 30 students and offers interactive classes by using mobile devices equipped with web browsers, providing a variety of tools such as voting, answering, and sharing project texts.

Display Power Management function to manage power more efficiently.

DPM
(Display Power Management)

By activating DPM function, the display can be set to be on only when there is an input signal, which enables more efficient power management.

Engineering Drawing class with TR3PJ's annotation tool using Un-do and Re-do functions.

Annotation Upgrade

At annotation tool mode, ‘Un-do’ and ‘Re-do’ functions provide enhanced user experience. (Annotation tool can be used on any source.)

* Un-do : Moves one step back
Re-do : Moves one step forward

Web Browser

The TR3PJ series supports the web browser* in the Android OS**, so you can search the web easily and quickly, without connecting to an external desktop.

* Network-based Function
** The Android OS is updated to 9.0 ver.

System-on-a chip integrated with Android OS and free apps.

All-in-One

The TR3PJ series integrates both Android OS and Free apps into a high performance SoC, without a PC.

Secure Mode

Secured mode disables screen mirroring options for SSP (Screen Share Pro), which is an application that enables screen sharing between mobile devices and the display, to prevent any unauthorized contents to be shown via screen sharing functions in various devices.

Built-in OPS Slot

The TR3PJ series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the interactive digital board with internal power delivery.

USB is not being able to be connected to a display for security.

USB Block

The USB Block Mode that helps secure and prevent data from being copied into unauthorized devices in advance, which is essential for being used in space where security is critical.

Partial Capture

Users can select the desired area of the screen to crop the image and store that in internal memory. Also, TR3PJ allows that send cropped images directly to email or note apps.

A woman captures part of the TR3PJ and explains it to the man.

Three people are gathered in a conference room, having a virtual meeting with other people who are appearing on the screen.

Bluetooth Connectivity

TR3PJ supports Bluetooth to connect wirelessly to various devices such as speaker, mouse, keyboard, etc. This is optimized for building a hybrid environment so that online and offline meetings and classes can proceed with ease.

The LG employee is remotely monitoring the TR3PJ series installed in a different place.

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

* The availability of the "ConnectedCare" service differs by region, so please contact the LG sales representative in your region for more details.

PANEL

Screen Size

86"

Panel Technology

IPS
Back Light Type

Direct

Aspect Ratio

16 : 9
Native Resolution

3,840 × 2,160 (UHD)

Refresh Rate

60Hz
Brightness

490nit (wo Glass Max.),390nit (wo Glass Typ.),
335nit (wo Glass, Min.)
450nit (w Glass, Max.),350nit (w Glass, Typ.), 300nit (w Glass Min.)

Contrast Ratio

1,200:1
Color Gamut

NTSC 68% (Typ.)

Viewing Angle (H x V)

178 x 178
Color Depth

10bit, 1.07Billion colors

Response Time

8ms (G to G)
Surface Treatment(Haze)

Anti Glare, 7Mohs, Haze 28%

Life time

30,000 Hrs (Min.)
Operation Hours (Hours/Day)

16/7

Portrait / Landscape

No / Yes

CONNECTIVITY(JACK INTERFACE)

Input

HDMI (3, HDCP2.2/1.4),Audio In, RS232C IN, RJ45(LAN), IR IN, USB3.0 Type A(4), USB2.0 Type A(1), USB3.1 Type C (1, USB-PD, DP-Alt. Mode)

Output

HDMI Out, Audio Out, Optical,Touch USB (2), RJ45(LAN)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

17.7/17.7/17.7/45.7mm .
Weight(Head)

65.75Kg

Packed Weight

80.7Kg
Monitor Dimension(W x H x D)

1957×1160×87mm

Carton Dimensions(W x H x D) (Box outer size)

2110×225×1283mm
Handle

Yes

VESA? Standard Mount Interface

800 x 600

KEY FEATURE

HW

Internal Memory 32GB, Built-in Wi-Fi (Slot type), Power Indicator, Local Key Operation

SW

webOS ver. (Android 9.0), Background Image (Booting Logo Image), Screen Share (Screenshare pro), 3rd Party Compatibility Crestron Inside, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), HDMI-CEC

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10% ~90%RH

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

320W

Max.

600W
BTU (British Thermal Unit)

1092 BTU/Hr(Typ.), 2047 BTU/Hr(Max)

DPM

Yes
Power off

0.5W↓

SOUND

Speaker

Yes (12W x 2)

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE
ErP / Energy Star

Yes / No

OPS Compatibility

OPS type compatible

Yes (Slot)

OPS Power built in

Yes

SOFTWARE COMPATIBILITY

Signage 365 Care

Yes

Language

OSD

English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands（Dutch), Norwegian, Polski, Portugues(Europe),Portugues(Brazil) Romanian, Russian, Spanish, Swedish, Turkish, Ukrainian, Traditional Chinese, Hungarian, Latvian, Thai

ACCESSORY

Basic

Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

SPECIAL FEATURE

Touch - Available object size for touch

?3 mm ↑

Touch - Reponse Time (PC Win10)

60ms ↓ (Android)
100ms ↓ (Windows)
Touch - Accuracy

±1mm

Touch - Interface

USB 3.0
Touch - Protection Glass Thickness

4T (Anti-Glare)

Touch - Protection Glass Transmission

87%
Touch - Operating System Support

Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

Touch - Multi touch point

Max 20 Points

Android System

SoC

Quad Core A73

GPU

Mail G52 Multi Core 2
Internal Memory - Storage

32GB

Internal Memory - RAM

4GB
Wi-Fi

802.11a/b/g/n/ac

LAN

Gigabit LAN
Bluetooth

Bluetooth 5.0
