    GMBD040-GN2 component-copyModelName
    Flexible Outdoor LED

    Key Features

    Choose your Pitch

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (GMBD040-GN2)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (GMBD040-GN2)
      AED
      AED
      LG Members Price
    Total
    Flexible Outdoor LED

    Flexible Mesh LED Display

    A mesh LED is installed to fit the building’s curved exterior wall shape. The colorful advertisement reflected by the LED appears to harmonize with the city’s night view. A mesh LED is installed to fit the building’s curved exterior wall shape. The colorful advertisement reflected by the LED appears to harmonize with the city’s night view.
    * All images in this page are for illustrative purposes only.

    Flexibility for Various Screen Shapes

    With its ability to be curved, folded, or rolled, GMBD can be easily formed into a variety of shapes for artistic, ornamental, or creative work. Its features can be widely applied to building facades, outdoor commercial, large events, or other areas to provide daytime or night views.
    An LED is installed to fit the shape of the building’s outer wall which has rounded corner. An LED is installed to fit the shape of the building’s outer wall which has rounded corner.

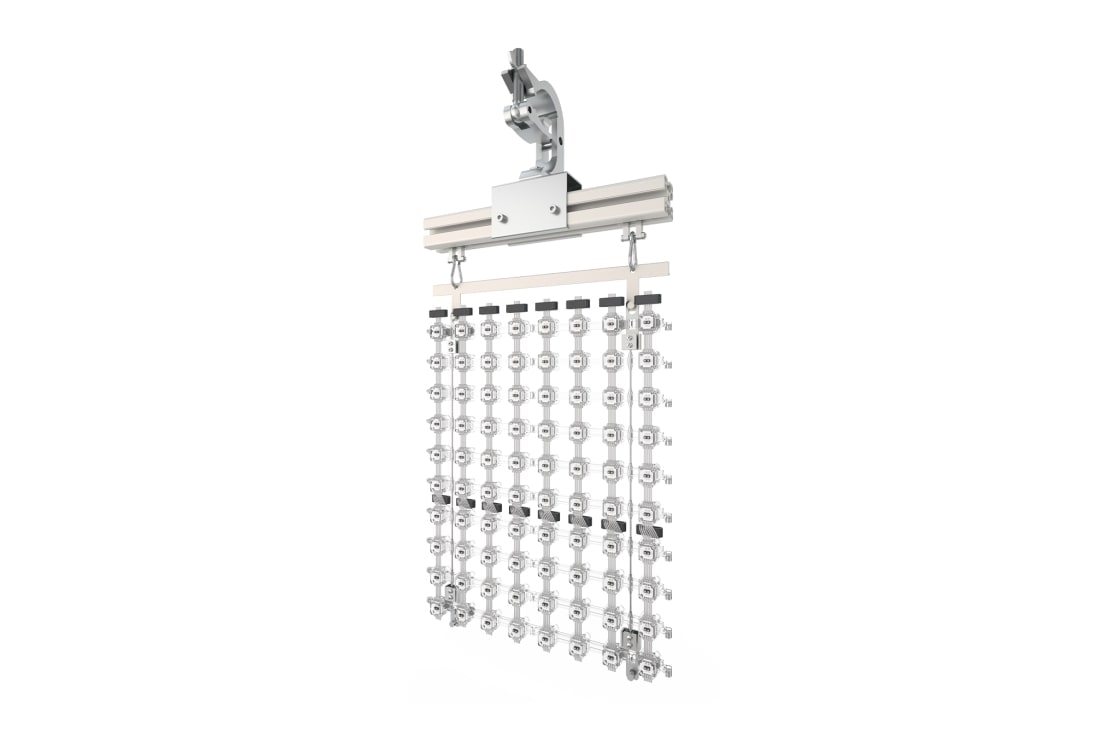

    Lightweight Mesh LED

    Its small, lightweight design reduces weight strain even for large screens, reducing time and cost for installation.
    One side of the lightweight mesh GMBD is rolled. One side of the lightweight mesh GMBD is rolled.

    Easy Maintenance

    Its LED Data Line Bypass function keeps LED PKGs working even when a middle LED PKG is broken (or dead). A single dead pixel can be fixed or replaced separately, which allows the LED to be operated with reduced costs and time for maintenance.
    Conventional LED cuts off the signal when one pixel fails and the rest of the pixels in the line become black. However, for GMBD, the rest of the pixels are visible showing no problems even if one pixel dies. Conventional LED cuts off the signal when one pixel fails and the rest of the pixels in the line become black. However, for GMBD, the rest of the pixels are visible showing no problems even if one pixel dies.
    Close
    PHYSICAL PARAMETERS
    • Pixel Configuration
      2 in 1 SMD
      Pixel Pitch(mm)
      40.00
    • Module Resolution (WxH)
      1x80
      Module Dimensions(WxH,mm)
      18x3,200
    • Weight per Module (kg)
      0.48
      No. of Modules per Cabinet (WxH)
      8x1
    • Cabinet Resolution (WxH)
      8x80
      Cabinet Dimensions (W x H x D, mm)
      320x3,200
    • Cabinet Surface Area (㎡)
      1.024
      Weight per Cabinet (kg/unit)
      6.4
    • Weight per Square Meter (kg/m2)
      6.4
      Physical Pixel Density (pixels/m2)
      625
    • Cabinet Material
      Plastic body and silicon cable
      Service access
      Front and Rear
    OPTICAL SPECIFICATIONS
    • Max Brightness (After Calibration, nit)
      3,000
      Color Temperature (K)
      18,000-25,000
    • Visual Viewing Angle (Horizontal)
      120
      Visual Viewing Angle (Vertical)
      120
    • Brightness Uniformity
      90%
      Contrast Ratio
      20,000:1
    • Processing Depth (bit)
      12 (HDR10, HDR10 Pro)
    ELECTRICAL SPECIFICATIONS
    • Power Consumption (W/Cabinet, Max.)
      384
      Power Consumption (W/Cabinet, Avg.)
      128
    • Power Consumption (W/m2, Max.)
      375
      Heat Dissipation (BTU/h/Cabinet, Max.)
      1,310
    • Heat Dissipation (BTU/h/Cabinet, Avg.)
      437
      Heat Dissipation (BTU/h/m2, Max.)
      1,280
    • Power Supply (V)
      9
      Frame Rate (Hz)
      50 / 60
    • Refresh Rate (Hz)
      20,000
    OPERATION SPECIFICATIONS
    • LED Lifetime (Half brightness)
      100,000
      Operating Temperature(℃)
      -40℃ to +60℃
    • Operating Humidity
      10~90%RH
      IP rating Front
      IP66
    • IP rating Rear
      IP66
    CERTIFICATION
    • Certification
      CE, FCC, cTUVus, CB
    Environment
    • Environment
      RoHS, REACH
    CONTROLLER
    • Controller
      CVBA
    90 degree corner cut
    • 90 degree corner cut
      Yes

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
