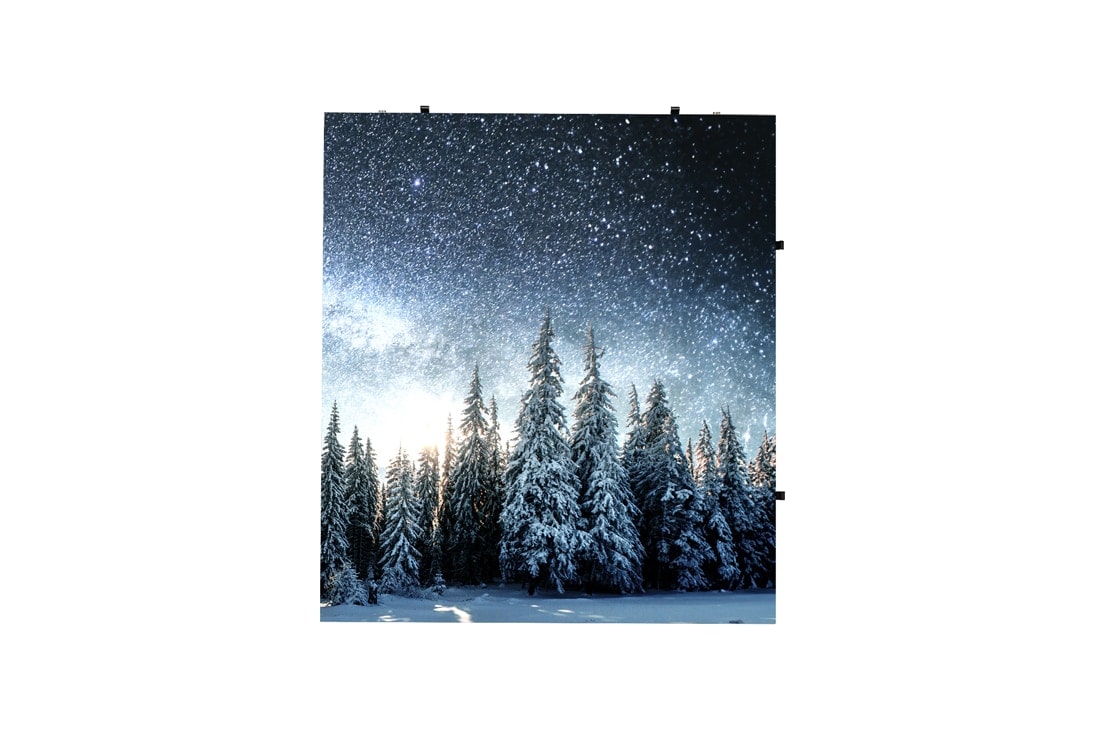

    LBAG015-G3 component-copyModelName
    Micro LED for Virtual Production

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LBAG015-G3)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LBAG015-G3)
      AED
      AED
      LG Members Price
    Total
    Micro LED for Virtual Production

    Micro LED for
    Virtual Production

    A woman is seen filming in front of a large cube-shaped LED screen. The LED displays a sparkling starlit snowy background, sharply contrasting with the woman's red dress, creating a vivid image on the large monitor. A woman is seen filming in front of a large cube-shaped LED screen. The LED displays a sparkling starlit snowy background, sharply contrasting with the woman's red dress, creating a vivid image on the large monitor.
    * All images in this page are for illustrative purposes only.

    Powerful UI/UX with
    Megapixel HELIOS LED Processing Platform

    With the Megapixel HELIOS LED Processing Platform, LBAG now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
    The MVR controller provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics. The MVR controller provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics.
    * Megapixel HELIOS LED Processing Platform needs to be purchased separately

    Easy Installation & Maintenance

    The module can be easily removed with even bare hands, as it features rear service access that does not require any tools. Additionally, the positioning pins and magnets help perform easy panel adjustments, resulting in a smooth screen assembly.
    The cabinet parts, including 'Position Guide Pin', 'LDM Holder & Screwless Design', 'Quick Lock & One Hand Control', and 'Headless Bolt', are depicted in an enlarged manner. The cabinet parts, including 'Position Guide Pin', 'LDM Holder & Screwless Design', 'Quick Lock & One Hand Control', and 'Headless Bolt', are depicted in an enlarged manner.
    The LED indicator on the back of the LBAG is shown in an enlarged view. The LED indicator on the back of the LBAG is shown in an enlarged view.

    LED Indicator to Check Status

    LED Indicator provides convenience to users to check LBAG status with various meanings of colors.
    The part where the cabinet can be installed either as stacking or hanging is enlarged and shown. The part where the cabinet can be installed either as stacking or hanging is enlarged and shown.

    Stacking & Hanging System Available

    It can be installed by stacking or hanging, using the optional accessories such as single or double beams for customization to the studio environment.

    * Installation accessories need to be purchased separately
    Curved LED walls are installed in a studio. Curved LED walls are installed in a studio.

    Curve Effect Available

    The angle adapter system and fast lock are designed to fascilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.
    A vivid HDR-enabled screen and a screen with a high refresh rate displaying the exact color are being shown. A vivid HDR-enabled screen and a screen with a high refresh rate displaying the exact color are being shown.

    Broadcast Quality Available

    With HDR capability and low latency video processing, LBAG supports broadcast-quality, providing accurate and smooth playback.
    LBAG utilizes full black coating technology and chip on board technology to achieve high contrast black. LBAG utilizes full black coating technology and chip on board technology to achieve high contrast black.

    Black Immersion, Enlivened Details

    By removing a package surrounding R, G, B LED chips and applying LG’s own Full Black Coating technology, the LBAG series surprisingly delivers much deeper black than the conventional package LED signage*. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion.

    * Based on comparison against LG's conventional LED Signage
    The LBAG technology showcases rainbow colors with uniformity and high fidelity to the original colors. The LBAG technology showcases rainbow colors with uniformity and high fidelity to the original colors.

    Accurate Colors as Intended

    By carefully selecting an LED chip which is a key factor to determine color purity, its narrowed wavelength allows LBAG series to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.

    Wide Color Viewing Angle

    Thanks to the structure of LBAG series, it minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated even from the side angles, captivating various pedestrians even if it is installed in a large public places.
    Even when viewed from a side angle, the LBAG technology accurately represents true colors due to its elongated and wide format. Even when viewed from a side angle, the LBAG technology accurately represents true colors due to its elongated and wide format.
    Close
    PHYSICAL PARAMETERS
    • Pixel Configuration
      COB
      Pixel Pitch(mm)
      1.56
    • Module Resolution (WxH)
      96x108
      Module Dimensions(WxH,mm)
      150x168.75
    • Weight per Module (kg)
      0.15
      No. of Modules per Cabinet (WxH)
      4x4
    • Cabinet Resolution (WxH)
      384x432
      Cabinet Dimensions (W x H x D, mm)
      600x675x125
    • Cabinet Surface Area (㎡)
      0.405
      Weight per Cabinet (kg/unit)
      16.0
    • Weight per Square Meter (kg/m2)
      39.5
      Physical Pixel Density (pixels/m2)
      409,600
    • Flatness of Cabinet (mm)
      ±0.5
      Cabinet Material
      Die casting Magnesium alloy
    • Service access
      Rear
    OPTICAL SPECIFICATIONS
    • Max Brightness (After Calibration, nit)
      Max. 1,500
      Color Temperature (K)
      6,504K / 2,000~10,000K
    • Visual Viewing Angle (Horizontal)
      160
      Visual Viewing Angle (Vertical)
      160
    • Brightness Uniformity
      ≥ 95%
      Color Uniformity
      ±0.02Cx,Cy
    • Contrast Ratio
      Max. 100,000:1
      Processing Depth (bit)
      22bit Internal processing (HDR10)
    ELECTRICAL SPECIFICATIONS
    • Power Consumption (W/Cabinet, Max.)
      220
      Power Consumption (W/Cabinet, Avg.)
      175
    • Power Consumption (W/m2, Max.)
      543
      Heat Dissipation (BTU/h/Cabinet, Max.)
      751
    • Heat Dissipation (BTU/h/Cabinet, Avg.)
      597
      Heat Dissipation (BTU/h/m2, Max.)
      1853
    • Power Supply (V)
      100 to 240
      Frame Rate (Hz)
      23.98/24/25/29.97/30/48/50/59.94/60/72/90/96/100/120
    • Refresh Rate (Hz)
      7,680
    OPERATION SPECIFICATIONS
    • LED Lifetime (Half brightness)
      100,000
      Operating Temperature(℃)
      0°to +40°
    • Operating Humidity
      10-80%RH
    CERTIFICATION
    • Certification
      IEC 62368-1
      EMC Class A,
    Environment
    • Environment
      RoHS/REACH
    CONTROLLER
    • Controller
      MVR HEIOS
    SERIES
    • Series
      LBAG

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
