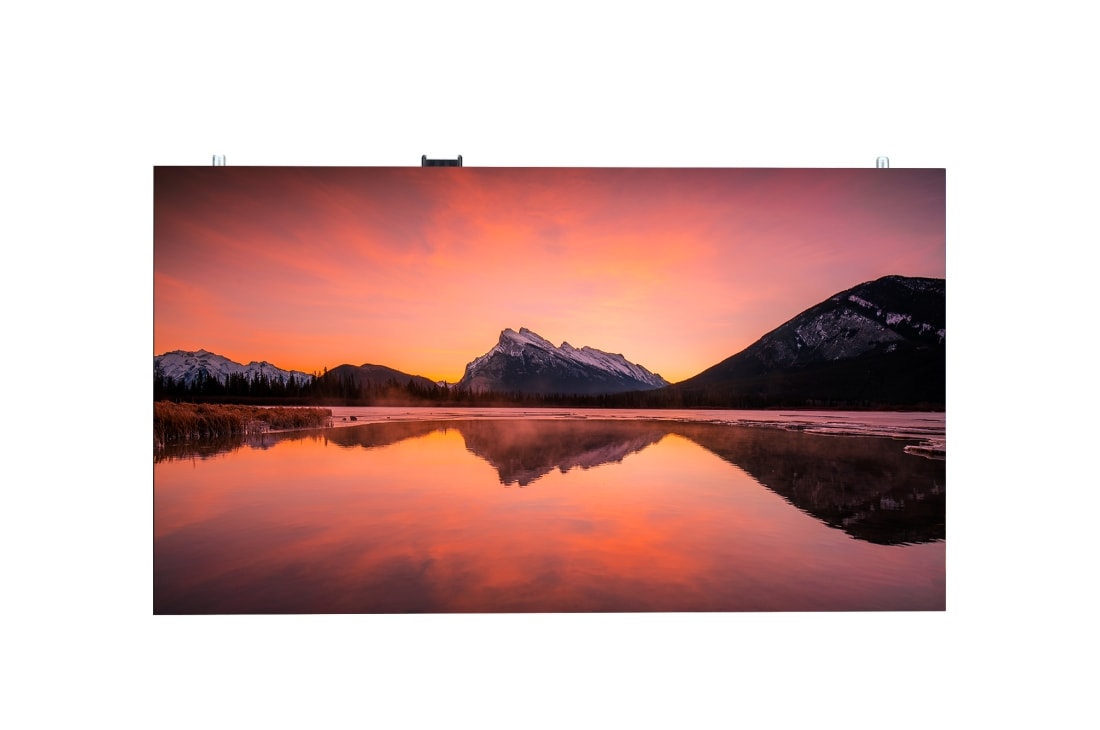

LG LSAA Optimum Cable-less LED Series, front view with inscreen, Cabinet, LSAA012, thumbnail 1

LG LSAA Optimum Cable-less LED Series, front view, Cabinet, LSAA012, thumbnail 2

LG LSAA Optimum Cable-less LED Series, left 45 degree side view, Cabinet, LSAA012, thumbnail 3

LG LSAA Optimum Cable-less LED Series, left side view, Cabinet, LSAA012, thumbnail 4

LG LSAA Optimum Cable-less LED Series, right 45 degree side view, Cabinet, LSAA012, thumbnail 5

LG LSAA Optimum Cable-less LED Series, right side view, Cabinet, LSAA012, thumbnail 6

LG LSAA Optimum Cable-less LED Series, rear view, Cabinet, LSAA012, thumbnail 7

LG LSAA Optimum Cable-less LED Series, right 45 degree rear view, Cabinet, LSAA012, thumbnail 8

LG LSAA Optimum Cable-less LED Series, top view, Cabinet, LSAA012, thumbnail 9

LG LSAA Optimum Cable-less LED Series, bottom view, Cabinet, LSAA012, thumbnail 10

LG LSAA Optimum Cable-less LED Series, top left corner detail view, Cabinet, LSAA012, thumbnail 11

LG LSAA Optimum Cable-less LED Series, top left detail view, Cabinet, LSAA012, thumbnail 12

LG LSAA Optimum Cable-less LED Series, front view, Controller, LSAA012, thumbnail 13

LG LSAA Optimum Cable-less LED Series, left 45 degree side view, Controller, LSAA012, thumbnail 14

LG LSAA Optimum Cable-less LED Series, right 45 degree side view, Controller, LSAA012, thumbnail 15

ADD TO WISHLIST

Discontinued

LSAA012 component-copyModelName

LSAA Optimum Cable-less LED Series

Name: LSAA Optimum Cable-less LED Series
Brand: LG UAE
SKU: LSAA012
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 1.25mm
Brightness: 600 cd/m2
Wireless Data Transfer and Cable-less Power Docking
AI-powered Image Processor
Real-time 365 Care Service

Choose your Pitch

P1.25

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 1.25mm
Brightness: 600 cd/m2
Wireless Data Transfer and Cable-less Power Docking
AI-powered Image Processor
Real-time 365 Care Service

Choose your Pitch

P1.25

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LSAA Optimum Cable-less LED Series

True Innovation Behind Simplicity

With unrivaled picture quality and optimum cable-less design,
Expand the Possibilities of Business Space Itself.

Why “Optimum Cable-less” LED

The LSAA series is the innovative LED signage applying the wireless transmission technology.
For up to UHD resolution with the 16:9 ratio,
it does not require a cable connection between the cabinets to supply signal & power.
Its block assembly design makes the LSAA series easier to be installed than ever before.

Optimum cable-less design for simple installation

*Based on P1.2, 16:9, UHD Resolution (8 x 8 Cabinets).

Wireless Data Transfer & Cable-less Power Docking

Optimized Image Quality with AI-powered Image Processor

The "Alpha 7 Intelligent Processor" applied to the LSAA series recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.

* The above functions are created by using deep learning AI technology to improve the picture quality.

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact.
The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

* HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.

Easy Remote Control Support

The LSAA series allows users to easily access the settings, such as Picture Mode, volume, etc. by using a remote control instead of connecting to a PC. It uses the same UI as general LG digital signage, so users can easily adapt to it.

* The easy-viewing UI menu is available for over 1,280 × 720 resolution screens.

Compatibility with AV Conference Systems

The LSAA series has been certified Crestron Connected? for a high level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network-based control

EMC Class B Certified

The LG LSAA Series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments.
Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

4-in-1 LED Package

Unlike LG's conventional LED signage in which one light source constitutes one small LED package, the LSAA series has applied four light sources at once to its wider LED package. So the attached area of 4-in-1 LED package can be wider than the conventional single LED package, making the LED signage surface smoother and suitable for up-close uses such as corporate meeting rooms etc.

Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.

Real-time 365 Care Service

Maintenance is easier and faster with the optional Signage365Care* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.

Power / Signal Redundancy Support

The LSAA series is designed to support redundancy of signal and power, providing users with comfort. With an optional embedded back-up power supply unit, customers can assure the continuous operation of the screen without power failure, while the dual controllers minimize screen failure with a bi-directional signal input.

* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
** The power/signal redundancy features are available from the third quarter of 2020.
*** The embedded back-up PSU model is optional.

PHYSICAL PARAMETERS

Pixel Pitch(mm)

1.25

Module Resolution (WxH)

240x90
Weight per Module (kg)

0.20

Cabinet Resolution (WxH)

480x270
Cabinet Surface Area (㎡)

0.259

Weight per Cabinet (kg/Cabinet)

6.9
Weight per Square Meter (kg/m2)

34.1

Physical Pixel Density (pixels/m2)

640,000
Flatness of Cabinet (mm)

±0.5

OPTICAL SPECIFICATIONS

Brightness (After Calibration)

600nit (Typ.) 1,200nit (Peak)

Visual Viewing Angle (Horizontal)

160
Visual Viewing Angle (Vertical)

160

Brightness Uniformity

97%
Color Uniformity

±0.015Cx,Cy

Contrast Ratio

Peak. 9,000:1
Typ. 5,000:1

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

107

Power Consumption (W/Cabinet, Avg.)

64
Power Consumption (W/㎡, Max.)

527

Power Consumption (BTU/Cabinet, Max.)

364
Power Consumption (BTU/Cabinet, Avg.)

218

Power Consumption (BTU/㎡, Max.)

1,798

CONTROLLER

Controller

CSAA-012X

Optional Accessary

Optional Accessary

Wall Mount Kit (WM-L1080)
Frame Kit (KT-BZ1080)

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
