    LSBE018-GD component-copyModelName
    2023 LG Indoor LED Series, 1.88mm Pixel Pitch

    Key Features

    Choose your Pitch

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LSBE018-GD)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LSBE018-GD)
      AED
      AED
      LG Members Price
    Total
    2023 LG Indoor LED Series, 1.88mm Pixel Pitch
    Find a Dealer

    LSBE Indoor LED Series

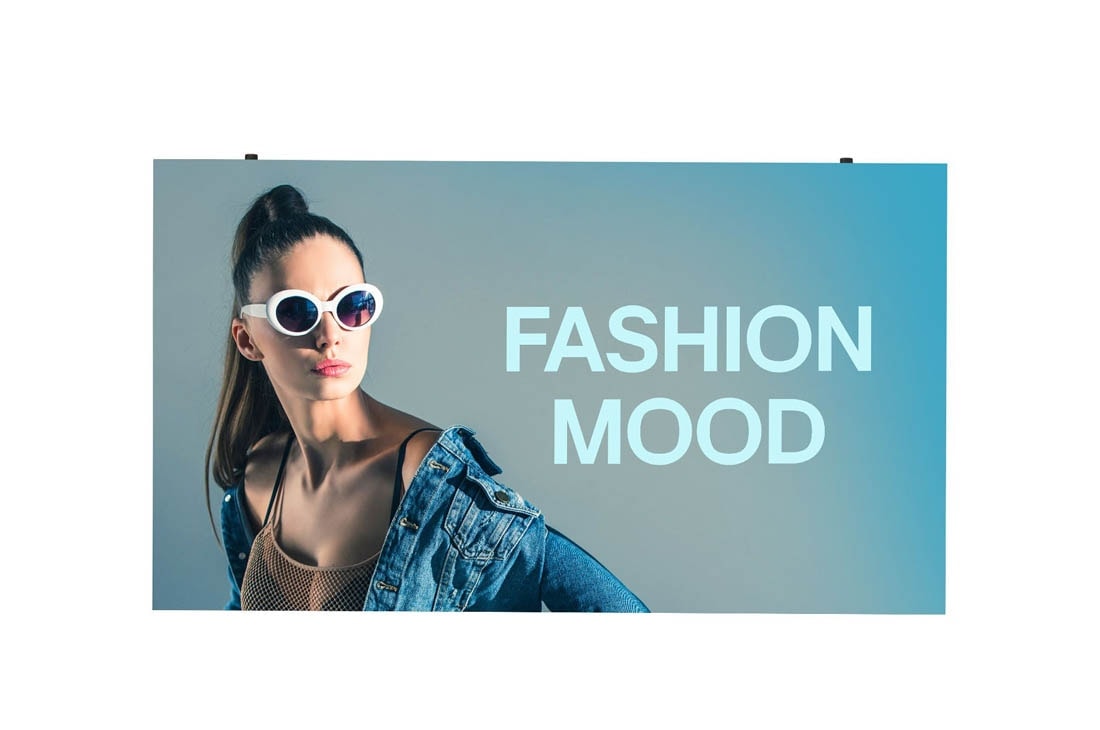

    A large LED is installed on the wall of the shopping mall, displaying fashion advertisements vividly on the LED screen. A large LED is installed on the wall of the shopping mall, displaying fashion advertisements vividly on the LED screen.
    * All images in this page are for illustrative purposes only.

    Brightness

    With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.
    LSBE has a brightness of 600 nits, so it is clearly visible, even under strong light. LSBE has a brightness of 600 nits, so it is clearly visible, even under strong light.

    90° Corner Design Available

    If you add 90° corner option, the LSBE series fits naturally into the space and delivers smooth content to customers.
    The content with the 90° corner option is shown without any interruptions even when installed on a corner. The content with the 90° corner option is shown without any interruptions even when installed on a corner.

    Improved Flatness and
    Easy Maintenance

    LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. Moreover thanks to its structural advantage, LSBE allows for easy maintenance.
    LSBE uses only two modules to create one cabinet. LSBE uses only two modules to create one cabinet.
    The module is being moved safely using Safety Wire. The module is being moved safely using Safety Wire.

    More Secure Maintenance with the Use of Safety Wire

    When removing a module from the cabinets, the safety wire helps secure maintenance by preventing screen and module drops.
    The frame of LSBE is composed of aluminum. The frame of LSBE is composed of aluminum.

    Durable Frame Design

    LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame, surpassing that of plastic, allows for stable operation.

    Flame Spread Protection

    LSBE is compliant with the standard for assessing flame spread, receiving a Class C rating according to the EN 13501-1:2018 test. With its fire resistance, LSBE contributes to the safety of your space.
    The LSBE series is designed to be resistant to fire. The LSBE series is designed to be resistant to fire.
    * The test was conducted by SGS-CSTC Standards Technical Services (Shanghai) Co., LTD on Aug. 21 to 24, 2023, in accordance with the EN 13501-1:2018 standard. The LED module with product number (LSBE XX-XXX) was used as the test subject. The test results confirmed its compliance with the EN 13501-1:2018 Class C-s2, d0 rating.

    Compatibility with LG Software Solutions

    When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
    The LG employee is remotely monitoring the LSBE series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBE series to be compatible with LG software solutions. The LG employee is remotely monitoring the LSBE series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBE series to be compatible with LG software solutions.
    * The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
    * The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
    * Actual GUI may vary in different webOS versions.
    * LG Software solutions needs to be purchased separately.
    Close
    PHYSICAL PARAMETERS
    • Pixel Configuration
      Single SMD
      Pixel Pitch(mm)
      1.88
    • Module Resolution (WxH)
      160x180
      Module Dimensions(WxH,mm)
      300x337.5x13
    • Weight per Module (kg)
      0.95
      No. of Modules per Cabinet (WxH)
      2x1
    • Cabinet Resolution (WxH)
      320x180
      Cabinet Dimensions (W x H x D, mm)
      600x337.5x72
    • Cabinet Surface Area (㎡)
      0.203
      Weight per Cabinet (kg/unit)
      6.5
    • Weight per Square Meter (kg/㎡)
      32.0
      Physical Pixel Density (pixels/㎡)
      284,089
    • Flatness of Cabinet (mm)
      ±0.3
      Cabinet Material
      Die-casting Aluminum
    • Service access
      Front
    OPTICAL SPECIFICATIONS
    • Max Brightness (After Calibration, nit)
      600
      Color Temperature (K)
      3,200~9,300
    • Visual Viewing Angle (Horizontal)
      160
      Visual Viewing Angle (Vertical)
      150
    • Brightness Uniformity
      97%
      Color Uniformity
      ±0.003Cx,Cy
    • Contrast Ratio
      5,000:1
      Processing Depth (bit)
      14
    ELECTRICAL SPECIFICATIONS
    • Power Consumption (W/Cabinet, Max.)
      103
      Power Consumption (W/Cabinet, Avg.)
      41
    • Power Consumption (W/㎡, Max.)
      510
      Heat Dissipation (BTU/h/Cabinet, Max.)
      351
    • Heat Dissipation (BTU/h/Cabinet, Avg.)
      140
      Heat Dissipation (BTU/h/m2, Max.)
      1,740
    • Power Supply (V)
      100 to 240
      Frame Rate (Hz)
      50 / 60
    • Refresh Rate (Hz)
      3,840
    OPERATION SPECIFICATIONS
    • LED Lifetime (Half brightness)
      100,000
      Operating Temperature(℃)
      -20℃ to +40℃
    • Operating Humidity
      10~80%RH
      IP rating Front
      IP50
    • IP rating Rear
      IP50
    Standard
    • Certification
      CE, FCC, cTUVus, CB, KC, CCC
    Environment
    • Environment
      RoHS, REACH
    CONTROLLER
    • Controller
      CVBA
    90 degree corner cut
    • 90 degree corner cut
      O

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
