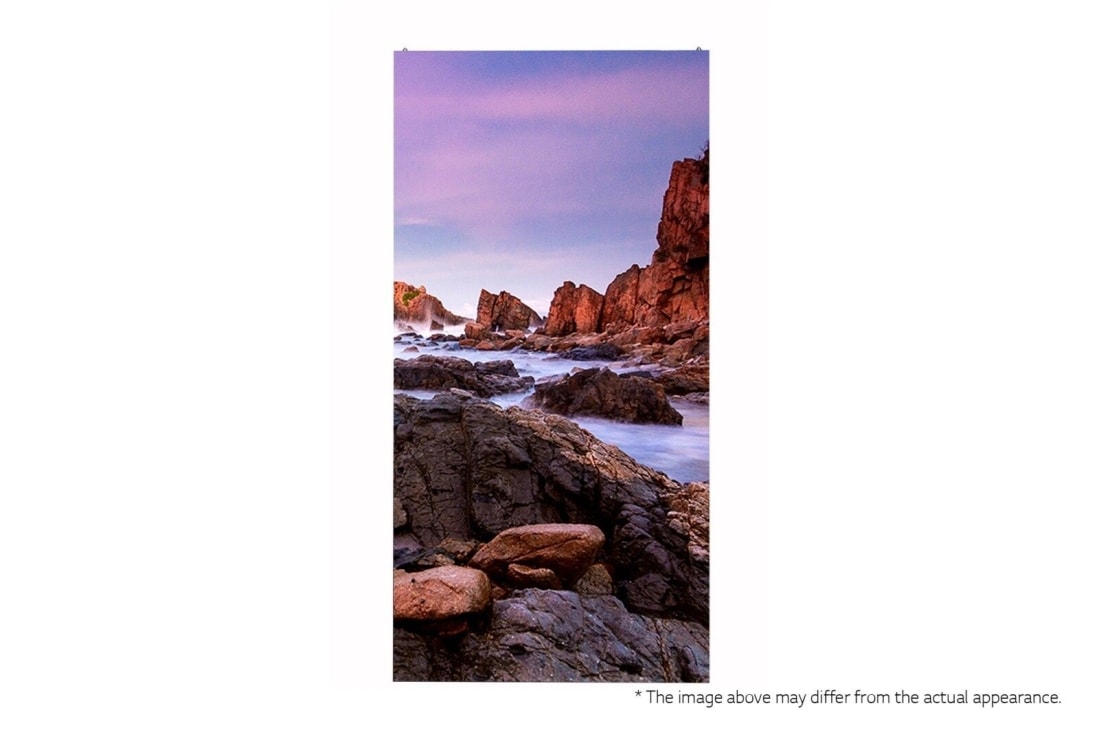

LG Versatile Series, front view with inscreen, 500x1000 * The image above may differ from the actual appearance., LSCA029-RK, thumbnail 1

LG Versatile Series, -45 degree side view with inscreen, 500x1000, LSCA029-RK, thumbnail 2

LG Versatile Series, +45 degree side view with inscreen, 500x1000, LSCA029-RK, thumbnail 3

LG Versatile Series, front view with inscreen, 500x500, LSCA029-RK, thumbnail 4

LG Versatile Series, -45 degree side view with inscreen, 500x500, LSCA029-RK, thumbnail 5

LG Versatile Series, +45 degree side view with inscreen, 500x500, LSCA029-RK, thumbnail 6

LG Versatile Series, -90 degree side view, 500x1000, LSCA029-RK, thumbnail 7

LG Versatile Series, +90 degree side view, 500x1000, LSCA029-RK, thumbnail 8

LG Versatile Series, -45 degree rear view, 500x1000, LSCA029-RK, thumbnail 9

LG Versatile Series, +45 degree rear view, 500x1000, LSCA029-RK, thumbnail 10

LG Versatile Series, rear view, 500x1000, LSCA029-RK, thumbnail 11

LG Versatile Series, -90 degree side view, 500x500, LSCA029-RK, thumbnail 12

LG Versatile Series, +90 degree side view, 500x500, LSCA029-RK, thumbnail 13

LG Versatile Series, -45 degree rear view, 500x500, LSCA029-RK, thumbnail 14

LG Versatile Series, rear view, 500x500, LSCA029-RK, thumbnail 15

ADD TO WISHLIST

Discontinued

LSCA029-RK component-copyModelName

Versatile Series

Name: Versatile Series
Brand: LG UAE
SKU: LSCA029-RK
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 2.97mm
Brightness: 1,000 cd/m2
Fast Assembly and Easy Maintenance
Two Cabinet Options
90o Corner Option Available

Choose your Pitch

P2.98

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 2.97mm
Brightness: 1,000 cd/m2
Fast Assembly and Easy Maintenance
Two Cabinet Options
90o Corner Option Available

Choose your Pitch

P2.98

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Versatile Series

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

Easy Maintenance

The LSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

Two Cabinet Options

The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fits perfectly with customer's demands.

90° Corner Design Available

If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

Compatibility with
LG Software Solutions

Powered by LG’s high performance system controller, the LSCA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

PHYSICAL PARAMETERS

Pixel Configuration

3 in 1 SMD

Pixel Pitch(mm)

2.97
Module Resolution (WxH)

84x168

Module Dimensions(WxH,mm)

250x500
Weight per Module (kg)

1.30

LED Package Manufacturer

KL+Cu
No. of Modules per Unit Case (WxH)

2x2

Unit Case Resolution (WxH)

168x336
Unit Case Dimensions (W x H x D, mm)

500x1000x65.6

Unit Case Surface Area (㎡)

0.500
Weight per Unit Case (kg/unit)

14.0

Weight per Square Meter (kg/㎡)

28.0
Physical Pixel Density (pixels/㎡)

112,896

Flatness of Unit Case (mm)

±0.3
Unit Case material

Die-casting Aluminum

Service access

Front or Rear (select one only)

OPTICAL SPECIFICATIONS

Min. Brightness (After Calibration, nit)

1,000

Color Temperature (K)

3500 ~ 9000
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

160
Brightness Uniformity

97%

Color Uniformity

±0.003CxCy
Contrast Ratio

5,000

Processing Depth (bit)

14

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Unit, Max.)

270

Power Consumption (W/Unit, Avg.)

90
Power Consumption (W/㎡, Max.)

540

Power Consumption (BTU/Unit, Max.)

921
Power Consumption (BTU/Unit, Avg.)

307

Power Consumption (BTU/㎡, Max.)

1,842
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

2,880

Inrush Current (Typ, A@VA)

160
Leakage Current (mA)

0.61

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-10°to +45°
Operating Humidity

0~80%RH

IP rating Front

IP30
IP rating Rear

IP30

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
