Name: Ultra Slim Series
Brand: LG UAE
SKU: LSCB015-GK
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 1.56mm
Brightness: 800cd/m2
Ultra Slim Depth
EMC Class B, BS 476 Part7 Class 1

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 1.56mm
Brightness: 800cd/m2
Ultra Slim Depth
EMC Class B, BS 476 Part7 Class 1

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra Slim Series

Ultra Slim Depth

Its ultra-slim design with 37.5 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed and utilized in any type of venues without restriction.

Easy & Seamless Installation

The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a magnetic tool.

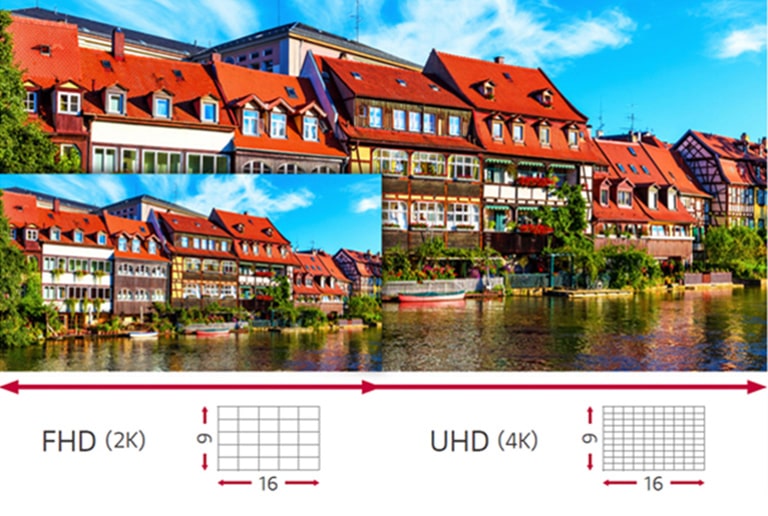

16:9 FHD/UHD Configuration

Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content.
This allows you to keep using existing content without additional cost and time for editing.

90° Corner Design Available

If you add 90° corner option, the LSCB series fits naturally into the space and delivers smooth & flawless content to customers.

EMC Class B Certified

Boasting EMC Class B certification, the LSCB series guarantees its safety by producing low amount of electromagnetic wave which is harmful to the environment and people.

Fire Resistant Design

The LSCB series obtained Fire Protection Certification and is designed to keep flames from spreading quickly. So you can find enough time to deal with the emergency in case of fire.

PHYSICAL PARAMETER

Pitch Name

3 in 1 SMD

Pixel Pitch (mm)

1.56
Module Resolution (W x H)

192 × 108

Module Dimensions (W x H, mm)

300 × 168.75
Weight per Module (kg)

0.40

No. of Modules per Cabinet (W × H)

2 × 2
Cabinet Resolution (W × H)

384 × 216

Cabinet Dimensions (W × H × D)

600 × 337.5 × 35 mm
Cabinet Surface Area (m2)

0.203

Weight per Cabinet (kg/cabinet)

5.2
Weight per Square Meter (kg/m2)

25.7

Physical Pixel Density (pixels/m2)

409,600
Flatness of Cabinet

± 0.1 mm

Cabinet Material

Die-casting Aluminum
Service Access

Front

OPTICAL PARAMETER

Min. Brightness (After Calibration)

800 nit

Color Temperature

3,500 ~ 9,000
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

160
Brightness Uniformity

97%

Color Uniformity

± 0.003 Cx,Cy
Contrast Ratio

5,000

Processing Depth (bit)

14

ELECTRICAL PARAMETER

Power Consumption (W/cabinet, Max.)

150

Power Consumption (W/cabinet, Avg.)

50
Power Consumption (W/m2, Max.)

740

Power Consumption (BTU/h/cabinet, Max.)

512
Power Consumption (BTU/h/cabinet, Avg.)

171

Power Consumption (BTU/h/m2, Max.)

2,525
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,840

OPERATION CONDITIONS

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C)

-10 °C to +45 °C
Operating Humidity

0 - 80 % RH

IP rating Front / Rear

IP30 / IP30

CERTIFICATION

Certification

CE, FCC, ETL, EMC Class-B Fire Protection

Environment

Environment

RoHS, REACH in progress

CONTROLLER

Controller

CVCA, LCIN006
