    LTAK140-GW component-copyModelName

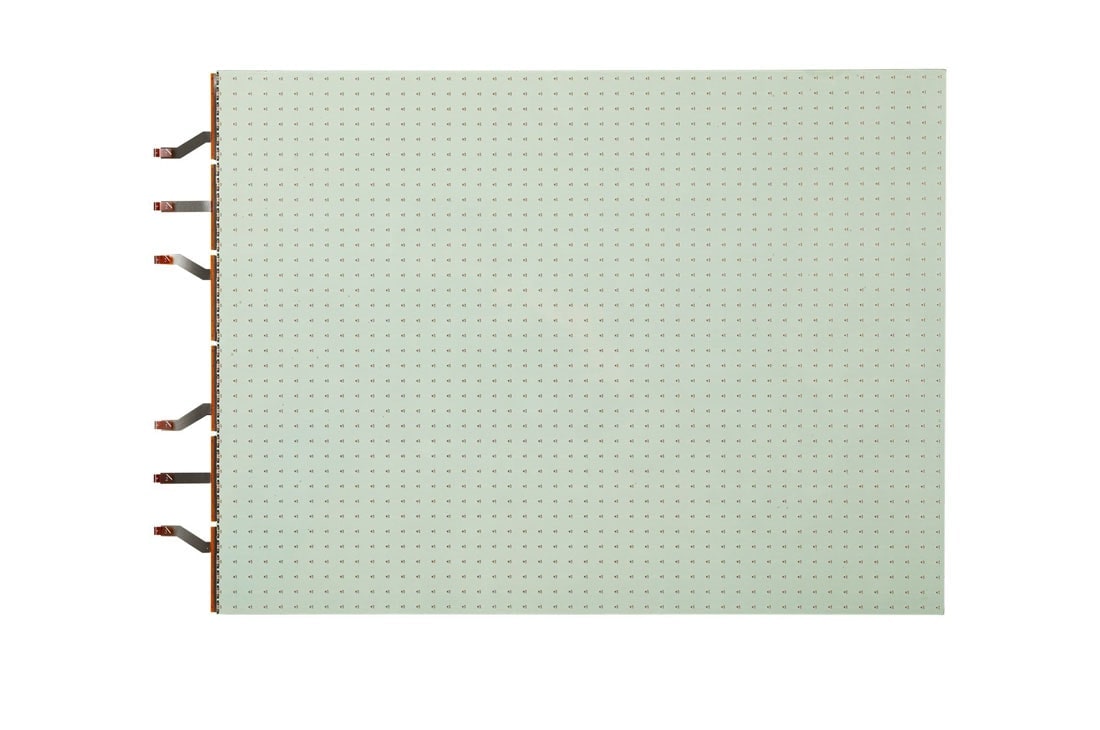

    Transparent LED Film with High Brightness

    Key Features

    Choose your Pitch

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LTAK140-GW)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (LTAK140-GW)
      AED
      AED
      LG Members Price
    Total
    Transparent LED Film with High Brightness
    Find a Dealer

    Your Imaginative Space Discovered by Transparent Displays

    The transparent LED films installed on the glass wall at the building's entrance show content welcoming visitors. Some of the content shows the color well, and some of it looks transparent enough for the background behind the LED films to be seen. The transparent LED films installed on the glass wall at the building's entrance show content welcoming visitors. Some of the content shows the color well, and some of it looks transparent enough for the background behind the LED films to be seen.
    * All images in this page are for illustrative purposes only.

    Transformation to a Splendid Atmosphere

    Transparent displays with high brightness enable the implementation of media art in space, transforming an ordinary space into a more artistic space, thereby allowing customers to increase the space’s value and arouse interest in it.
    Transparent LED film is installed on the building's first floor glass wall. The content is shown in vivid colors, while at the same time, the part lacking color is transparent, so the inside of the building behind the LED film can be seen. Transparent LED film is installed on the building's first floor glass wall. The content is shown in vivid colors, while at the same time, the part lacking color is transparent, so the inside of the building behind the LED film can be seen.

    Superb Transparency

    The LG Transparent LED film reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.
    LG Transparent LED film shows information when the power is turned on, and reflects the background behind the product when the power is turned off. LG Transparent LED film shows information when the power is turned on, and reflects the background behind the product when the power is turned off.
    * Transparency : Typ. 53%

    Fitting in with Flats and Curves

    The LG Transparent LED film supports curvatures up to 2,000R convex and concave for curved glass or window applications, and offers even surface by durable, transparent layers. This allows a wide range of venues to be redesigned with the LTAK140 as a landmark.
    Transparent LED films are installed on the railings of several floors in the building. Even where the railing curves, the content of the transparent LED films is shown smoothly. Transparent LED films are installed on the railings of several floors in the building. Even where the railing curves, the content of the transparent LED films is shown smoothly.
    LG Transparent LED film is self-adhesive, so it can attach to the surface of the window easily. LG Transparent LED film is self-adhesive, so it can attach to the surface of the window easily.

    Self-adhesive Film

    The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.
    By adding film vertically or horizontally, or by trimming film, the film can be flexibly resized. By adding film vertically or horizontally, or by trimming film, the film can be flexibly resized.

    Outstanding Expandability and Flexibility

    The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.
    Transparent film of store window has been adjusted to 4,000 nits in bright day and 900 nits in dark night. Transparent film of store window has been adjusted to 4,000 nits in bright day and 900 nits in dark night.

    Enhanced Brightness and Control

    The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 4,000nit(cd/m2)* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

    * The examined brightness may differ from testing environments including a photometer.
    LG webOS is compatible with SCAP, HTML, CSS and JavaScript. LG webOS is compatible with SCAP, HTML, CSS and JavaScript.

    webOS Smart Platform

    LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

    * webOS API will be provided to authorized SIs and developers.
    * SCAP : Signage Common Application Platform. API interface service for SIs.
    * CSS : Cascading Style Sheets
    Through the Control Manager, it manages transparent film of wall of office with mobile phone and laptop. Through the Control Manager, it manages transparent film of wall of office with mobile phone and laptop.

    Control Manager

    Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for LG Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.
    Through ConnectedCare service, display status of the workplace can be managed remotely. Through ConnectedCare service, display status of the workplace can be managed remotely.

    Real-time LG ConnectedCare Service

    Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

    * The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
    Close
    LTAK140-GW
    • Pixel Pitch
      13.7±0.2mm (14)
      LED Type
      R, G, B 3in1 Color Package (SMD2020)
    • Resolution
      48 x 36
      Pixels per Film
      1,728
    • Physical Pixel Density(pixels/㎡)
      5,102
      Brightness
      Typ.4,000nit
    • Contrast Ratio
      ≥ 100,000:1
      Luminance Uniformity
      ≥ 70%
    • Chromaticity Uniformity
      Δu’v’≤0.015
      Viewing Angle (H x V)
      120 x 120
    • Life Time (Brightness 50%)
      50,000 Hrs
      Daily Usage
      24h / 7days
    • Warranty
      2 year
      Transparency
      Typ 53%
    • Operating Temperature
      0℃ ~ 45℃ (Instaliling at indoor glass)
      Curved Installation
      2,000 R (Concave and Convex available on Glass)
    • Film Trimming
      Yes (horizontal direction according to Bezel only)
      Color Processing
      (9bit) 500/500/500 Level ( R, G, B)
    • Colors
      125,000,000 Colors
      Color Chromaticity
      Cx: 0.25±0.03, Cy : 0.33±0.03
    • Dimension (W x H x D)
      655 x 492 x 2.9mm
      (with front & back protection film)
      Weight
      1kg
    • Power Consumption
      75W(Transparent panel 1EA + Common Bezel kit 2EA)
    1ST BEZEL
    (ACC-LTAK14W1)
    • Interface
      Input : RGMII
      Output : Differential Serial
      Dimension (W x H x D)
      69.4 x 492 x 25mm
    • Weight
      0.4Kg
      Power Consumption
      75W(Transparent panel 1EA + First(1EA) & Common(1EA) Bezel kit)
    • Accessory
      DC Jack Connection cable(1100mm) 1ea, DC Jack Connection cable(240mm) 1ea Screw 2 type, Gasket Rubber 3 type, Cable hole cover 1 type, ESG, Regulation book, Warranty Card
    COMMON BEZEL
    (ACC-LTAK14W2)
    • Interface
      Input : Differential Serial
      Output : Differential Serial
      Dimension (W x H x D)
      51.4 x 492 x 25mm
    • Weight
      0.3Kg
      Power Consumption
      75W(Transparent panel 1EA + Common Bezel kit 2EA)
    • Accessory
      DC Jack Connection cable(240mm) 2ea, Screw 2 type, Gasket Rubber 2 type, Cable hole cover 2 type, ESG, Regulation book, Warranty Card
    UNIT CONTROLLER
    (LCLG141U)
    • Resolution
      960x540 (1/4 FHD)
      Interface
      Input : LVDS
      Output : RJ45 x4EA
    • Maximum Transmission Length
      100m (Cable type: CAT5E, CAT6)
      Dimension (W x H x D)
      293 x 188.7 x 37mm
    • Weight
      1.5Kg
      Temperature Sensor
      Yes
    • Power Consumption
      20 W
      Accessory
      Power cord, LVDS MCX cable, ESG, Regulation book, Warranty Card
    SYSTEM CONTROLLER
    (LCLG002-T)
    • Video - Max. Input Resolution
      DP : 1920x1080@60Hz
      HDMI : 1920x1080@60Hz
      DVI-D : 1920x1080@60Hz
      Interface - Digital (w/ HDCP) - HDMI
      Input : 1EA
    • Interface - Digital (w/ HDCP) - DP
      Input : 1EA
      Output : 1EA
      Interface - Digital (w/ HDCP) - DVI-D
      Input : 1EA
    • Interface - Comm. Port - RS-232C
      Input : 1EA (Phone Jack Type)
      Output : 1EA (Phone Jack Type)
      Interface - Comm. Port - RJ-45
      Input : 1EA (without LED indicator)
      Output : 1EA (without LED indicator)
    • Interface - Comm. Port - IR Receiver (w/ Light Sensor)
      1EA (Phone Jack Type) : Used for installation
      Interface - USB3.0
      1EA
    • Interface - LVDS
      Output : 1EA
      Dimension (W x H x D mm)
      293 x193.3 x 40.1mm
    • Weight (Head, Kg)
      1.6kg
      Temperature Sensor
      Yes
    • Light Sensor
      Yes
      Source Selection
      HDMI, DVI-D, DP
    • TPC (Temporal Peak luminance Control)
      Yes
      Motion Eye Care
      Yes
    • Power Consumption
      17W
      CMS S/W
      Yes (2.9)
    • Signage365care
      Yes (2.7)
      Accessory
      Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card
    ADAPTOR
    (ACC-LATP1)
    • Model No.
      ACC-LATP1
      Dimension (W x H x D)
      183*86*28mm
    • Weight
      769g
      Input
      100~240V, 50~60Hz
    • Output
      19.5V/10.8A (210W)
      Color
      White
    • DC output cable
      14AWG, 1.5m
      Type
      L Type
    • Accessory
      Power Cord, Regulation Book
    ONE-BOX CONTROLLER(UNIT + SYSTEM CONTROLLER)
    (CTAA-140G)
    • Resolution
      480x270 (1/16 FHD)
      Maximum Transmission Length
      100m (Cable type : CAT5E, CAT6)
    • Dimension (W x H x D)
      333 x186.8 x 40.1mm
      Weight
      1.8.2Kg
    • Video - Max. Input Resolution
      HDMI : 1920x1080@60Hz
      Interface - Digital (w/ HDCP) - HDMI
      Input : 1EA
    • Interface - Comm. Port - RS-232C
      Input : 1EA (3.5? headphone jack type)
      Output : 1EA (3.5? headphone jack type)
      Interface - Comm. Port - RJ-45
      Input : 1EA
      Output : 2EA (1EA to connect film with LED Indicator)
    • Interface - Comm. Port - IR Receiver (w/ Light Sensor)
      1EA (Phone Jack Type) : Used for installation
      Interface - USB3.0
      1EA
    • Interface - LVDS
      -
      Temperature Sensor
      Yes
    • Light Sensor
      Yes
      TPC (Temporal Peak luminance Control)
      Yes
    • Motion Eye Care
      Yes
      Power Consumption
      30
    • CMS S/W
      Yes (3.0)
      Signage365care
      Yes (2.7)
    • Accessory
      Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book Warranty Card

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
