    14HQ701G-BP component-copyModelName
    LG 14x17 Digital X-ray Detector with a-Si TFT

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (14HQ701G-BP)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (14HQ701G-BP)
      AED
      AED
      LG Members Price
    Total

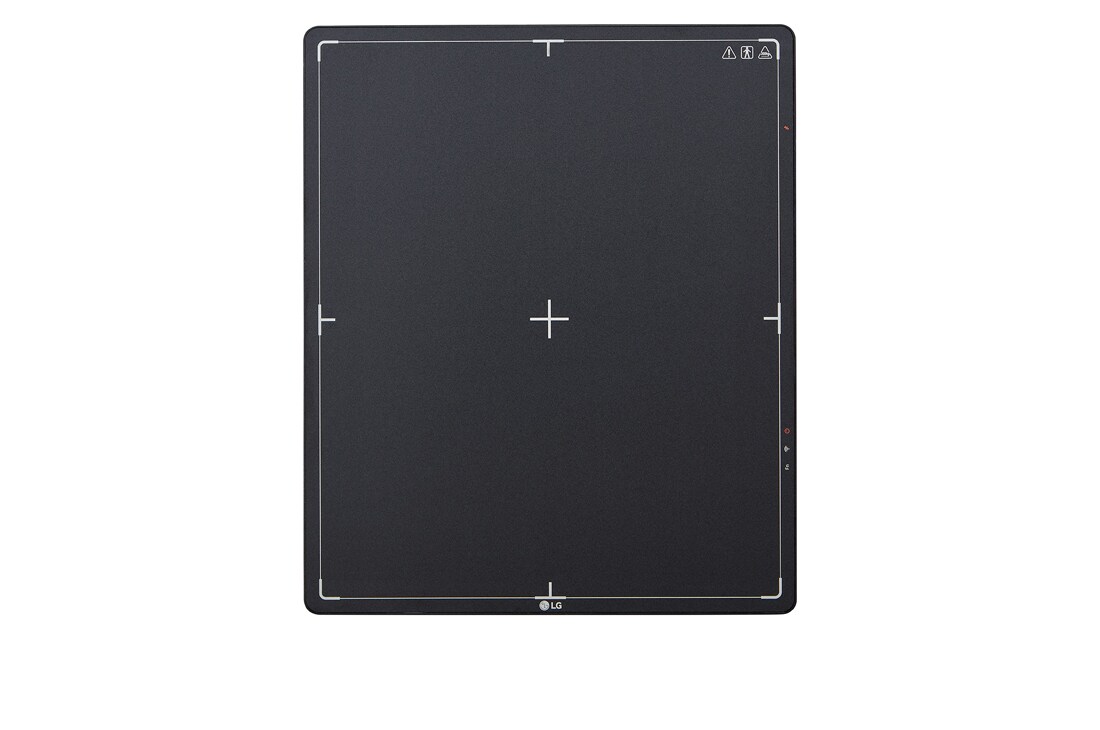

    LG 14x17 Digital X-ray Detector with a-Si TFT
    LG Digital X-ray Detector with a-Si TFT. LG Digital X-ray Detector with a-Si TFT.

    LG Digital X-ray Detector with a-Si TFT

    Watch the Full Movie
    *All images are shown for illustrative purposes only, and may vary from the actual product/usage.
    **Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
    Amorphous Silicon TFT

    Get Clear Images

    *All images are shown for illustrative purposes only, and may vary from the actual product/usage.
    **Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

    Durable Design

    Durable Design. Durable Design.

    IP68*

    400kg** Max. Uniform Load

    200kg** Max. Point Load

    1.5m*** Max. Drop Height

    *IP68 includes Solids Level 6 (Dust-tight: no ingress of dust, and Liquid Level 8.
    *Tested under controlled laboratory conditions with an IP68 rating. Water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet.
    **Maximum total uniform load and maximum point load when tested for 60 seconds.
    ***IEC 60601-1 drop test in a controlled laboratory environment can differ from actual usage situation.
    ****All images are shown for illustrative purposes only, and may vary from the actual product/usage.
    *****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

    Efficient Portability

    Light-weight Body (3.2kg (7.1 lbs)) with 4-side Chamfer. Light-weight Body (3.2kg (7.1 lbs)) with 4-side Chamfer.
    Carbon & Magnesium Body

    Light-weight Body (3.2kg (7.1 lbs)) with 4-side Chamfer

    *All images are shown for illustrative purposes only, and may vary from the actual product/usage.
    **Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

    Uninterrupted Use for Extended Operating Times

    • Long-lasting Battery Up to 7.5 Hours.

      Long-lasting Battery Up to 7.5 Hours

    • Hot Swap Up to 1min.

      Hot Swap Up to 1min.

    *300 shots / 7.5 hours under conditions of cycle time 90 sec.
    **Actual battery usage time and performance may vary depending on network connectivity and application use.
    ***All images are shown for illustrative purposes only, and may vary from the actual product/usage.
    ****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

    Upgraded Convenience

    Monitor Device Status via OLED Display Panel. Monitor Device Status via OLED Display Panel.
    Built-in OLED Display

    Monitor Device Status via OLED Display Panel

    • High Transmission Speed for Full Images.

      1.5 sec.(Wired) / 2 sec.(Wireless)

      High Transmission Speed for Full Images

    • Storage on the Digital X-ray Detector.

      Local Storage

      Storage on the Digital X-ray Detector

    *All images are shown for illustrative purposes only, and may vary from the actual product/usage.
    **Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
    Close
    DIMENSIONS/WEIGHT
    • Dimension
      384 mm x 460 mm x 15.6 mm
      Weight
      3.2 kg (7.1 lbs)
    Technical
    • Intended Use
      General Radiography
      TFT Type
      a-Si
    • Scintillator
      CsI
      Pixel Pitch
      140 ?
    • A/D Conversion
      16 bit
      Data Output
      16 bit
    IMAGE AREA
    • Number of Pixels
      3072 x 2560 pixels
      TFT Active Area
      358.40 x 430.08 mm
    MTF
    • MTF @ 0.5lp/mm (Typ.)
      84%
    COMMUNICATION
    • Type
      Wired / Wireless
      WLAN
      IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
    • Auto Exposure Detection
      Yes
      Cycle Time
      4.5 sec (Wired) / 5 sec (Wireless)
    • Full Image Transfer (Typ.)
      *Without window time
      1.5 sec (Wired) / 2 sec (Wireless)
    DURABILITY
    • Maximum Load Weight
      Full (Uniform Load) : 400 kg (881.8 lbs)
      Local (Point Load) : 200 kg (440.9 lbs)
      Watertightness
      IP68
    • Sensor Protection Plate
      Carbon Fiber Plate
    BATTERY
    • Operation Time
      300 shots / 7.5 hrs (Typ.) (Condition : Cycle Time 90 sec)
      Charging Time
      3 hrs (Typ.)
    • Hot Swap
      Yes (1 Min)
    ACCESSORIES
    • Cable
      Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
      Other
      Battery Charger
      2 x Battery Packs
      Control Box
    COMPLIANCE INFORMATION
    • The safety information for accessories is included with the safety information for the product and is not provided separately.

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
