    17HK701G-WP component-copyModelName

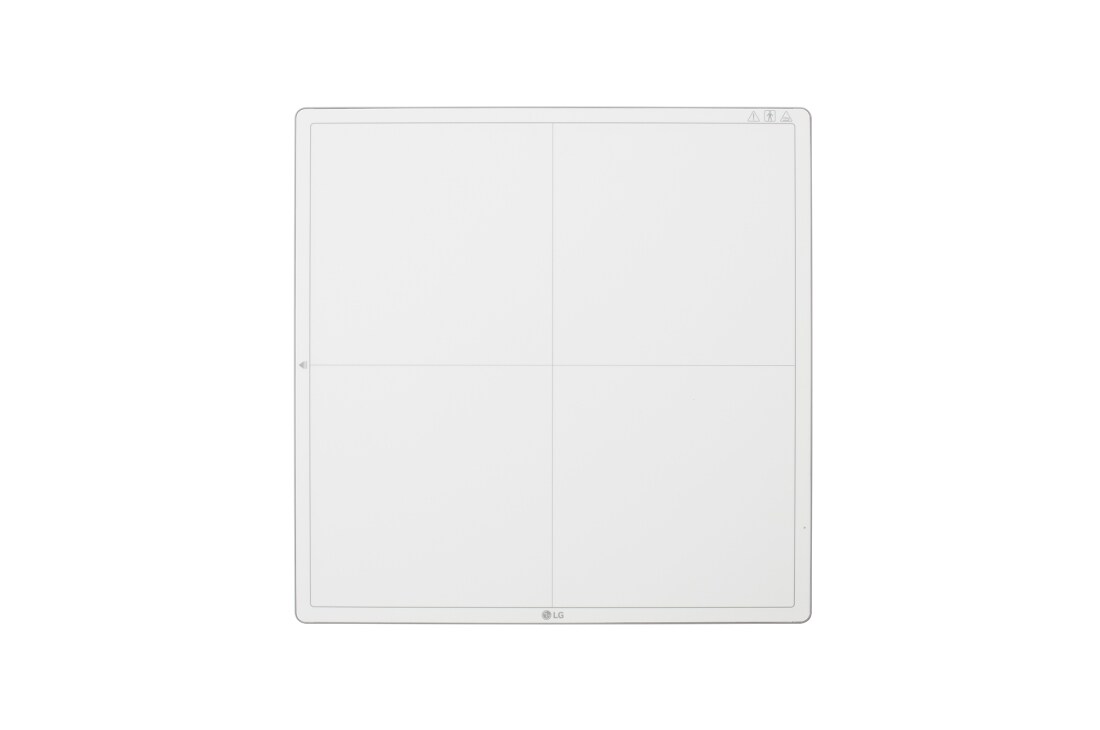

    Digital X-Ray Detector (DXD)

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (17HK701G-WP)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (17HK701G-WP)
      AED
      AED
      LG Members Price
    Total
    Digital X-Ray Detector (DXD)
    Find a Dealer
    Superior Image Quality3 Superior Image Quality4
    Ensure Diagnostic Accuracy

    Superior Image Quality

    LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140? for high resolution images.
    Watch the Full Movie
    Light yet Durable1 Light yet Durable2

    Light yet Durable

    IP41: Waterproof and Dustproof1 IP41: Waterproof and Dustproof2

    IP41: Waterproof and Dustproof

    IP*41 resistance rating ensures that LG DXD will be protected against objects of 1mm or larger and dripping liquids such as blood and bodily fluids.
    * IP: Ingress protection
    Magnesium & Carbon-fiber Body1 Magnesium & Carbon-fiber Body2

    Magnesium & Carbon-fiber Body

    With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight, but also exceptionally strong.
    * Maximum load weight: uniform load 150kg (331lb), point load 100kg (220lb)
    Rapid Image Availability1 Rapid Image Availability2
    Improve Work Efficiency

    Rapid Image Availability

    LG DXD increases productivity with a fast-processing. It takes only 3 seconds with connection or 6 seconds for wireless to get a raw image.
    Close
    AC ADAPTER FOR BATTERY CHARGER
    • AC Power Cord
      Yes
      DC Cable length
      1,500 mm
    • Dimensions(WxDxH, mm)
      134 x 59.8 x 31mm
      Input
      100 ~ 240VAC
    • Output
      19V/3.42A
      weight(kg)
      0.9 kg
    ACCESSORIES
    • Cable
      Power cord, Manin Cable 1m (LAN Cable, Sync cable Option)
      CD
      Manual, Calibration SW
    • Other
      Book Manual , Outgonig Inspection sheet
    BATTERY
    • Battery duration in standby status
      Typ. 13 hrs
      Dimensions(WxDxH, mm)
      204.6*110.5*7.8
    • Nominal Capacity
      30W (7.5V, 4000mAh)
      Nominal Voltage
      7.5V
    • Operation Time
      Typ. 240 shots / 6.0 hrs (Condition : Interval Time 90 sec)
      Type
      Detachable
    • weight(g)
      229.86
    BATTERY CHARGER
    • Bundle battery Q'ty
      2
      Charging Time
      3 Hours
    • Dimensions(WxDxH, mm)
      125 x 255.5 x 90.5mm
      Input voltage
      19V
    • Output voltage
      8.7V
      Slot Q'ty
      3
    • weight(kg)
      0.9 kg
    CONTROL BOX
    • AC Power Cord
      1.5m, White
      Dimensions(WxDxH, mm)
      125 x 255 x 109.8mm
    • Power Input
      AC100 to 240V, 47-63Hz
      Power Output
      DC24V / 2.1A
    • weight(kg)
      1.3 kg
    DEGRADATION
    • A/D Conversion
      16 bit
      Auto Exposure Detection
      Yes
    • Data Output
      16 bit
      Detachable Wire (Easy to plug / unplug)
      Yes (Magnetic)
    • Expected lifetime (Gy)
      100 Gy
      Power unit interface
      Connect to Control Box
    • Sensitivity degradation at the 'end of Life'
      20%
      Sensor
      ←
    • Shock monitoring
      Yes
      Spatial Resolution(lp/mm)
      3.57 lp/mm
    • Unit Interface
      Connect to Control Box
      Wired Communication
      Yes
    • WLAN
      IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
      X-ray generator voltage range
      40 to 150kVp
    • X-ray period (ms) (=Window Time)
      Standard: 500 ( ~4000)
    DQE(TYP)
    • DQE @ 0.1lp/mm
      72%
      DQE @ 0.5lp/mm
      67%
    • DQE @ 1lp/mm
      61%
      DQE @ 2lp/mm
      49%
    • DQE @ 3lp/mm
      28%
      Sensitivity( lsb/uGy ) / Programmable
      Typ. 600 / Yes
    ENVIRONMETAL
    • Operating-Attitude
      Less than 5000 m
      Operating-Humidity
      Less than 80% RH, No condensation
    • Operating-Pressure
      70 ~ 106 kPa
      Operating-Temperature
      10 to 35 ℃
    • Storage-Attitude
      Less than 12,192 m
      Storage-Humidity
      Less than 90% RH, No condensation
    • Storage-Pressure
      50 ~ 106 kPa
      Storage-Temperature
      -20 to 60 ℃
    MAIN CABLE(DXD-CONTROL BOX)
    • LAN Cable (Control Box-PC) : Optional(When Buyer requires this cable, is shipped according to BOM)
      (Option)
      Length
      1m10m15m
    • Sync Cable(Control Box - X-ray Generator) : Optional(When Buyer requires this cable, is shipped according to BOM)
      (Option)
    MTF(TYP.)
    • MTF @ 0.5lp/mm
      89%
      MTF @ 1lp/mm
      74%
    • MTF @ 2lp/mm
      47%
      MTF @ 3lp/mm
      29%
    SENSOR(PANEL)UNIT
    • Cycle Time(Ethernet / WLAN)
      8sec / 11 sec (Ethernet / WLAN)
      Falling
      40 Cm
    • Full Image(Raw Image)
      Ethernet 3sec / WLAN 6 sec
      Image-lag (Typ.)
      0.023%
    • Input
      DC24V/2.1A
      Maximum Load Weight
      Full (Uniform Load) : 150kg Local (Point Load) : 100kg
    • Number of Pixels
      3072x3072
      Pixel Pitch
      140?
    • Power consumption
      Typ. 19.0W (No Charging), 30.5W (with Charging)
      Scintillator
      CsI
    • Sensor Protection Plate
      Carbon Fiber Plate
      TFT Active Area(mm)
      430.08×430.08 mm
    • TFT Dimensions(WxDxH, mm)
      445 x 445 mm
      TFT Type
      A-si
    • Weight(kg) / Icld. Battery (Typ.)
      3.4kg
      X-ray sensitive Area(mm)
      430.08 x 430.08mm
    • X-ray Sensitive Pixel
      3072 x 3072
    WARRANTY
    • Warranty
      36 Month
    WATERTIGHTNESS
    • Anti-Bacteria
      JIS Z 2801 0.99%
      Cleaning and desinfecting products
      Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
    • Watertightness
      IP41
    COMPLIANCE INFORMATION
    • The safety information for accessories is included with the safety information for the product and is not provided separately.
