    21HQ513D-B component-copyModelName

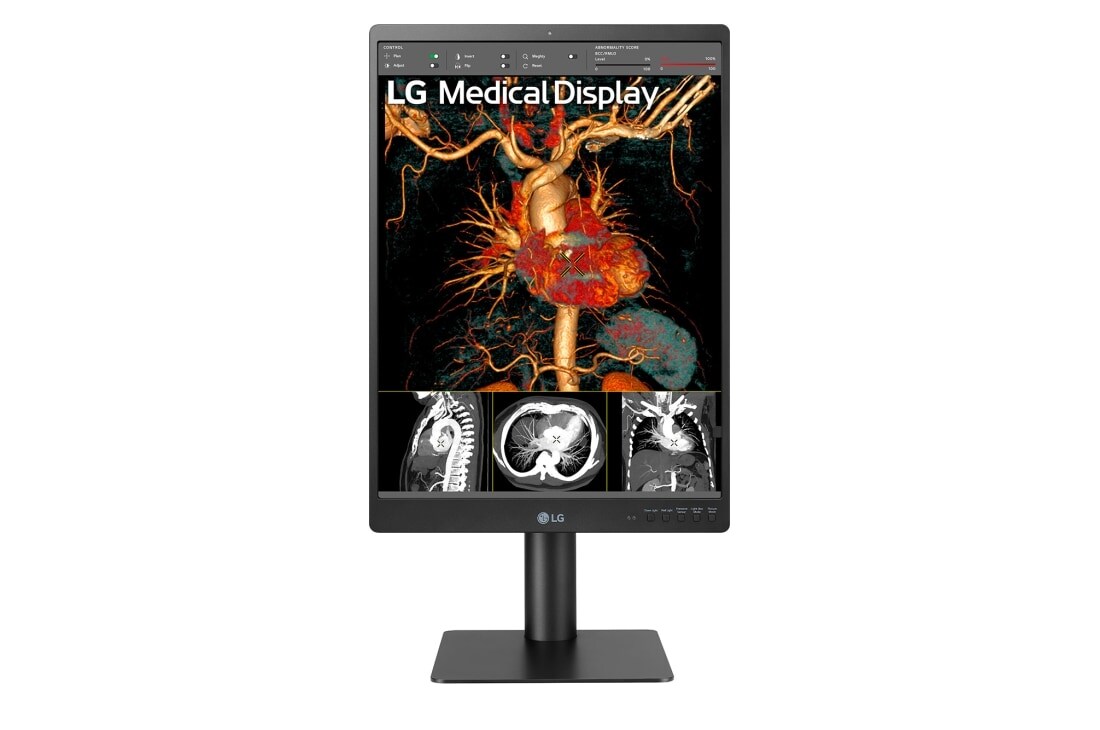

    LG 21.3'' 3MP IPS Diagnostic Monitor

    Key Features

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (21HQ513D-B)
      AED
      AED
      LG Members Price
    Total
    Add to CompareAdd to CompareRemove Compare

    component-OBScountrySelectDesc

    See Retailer for Pricing

    Limited Quantity Sale

    Available QTY 0
    • vip-price-message
      (21HQ513D-B)
      AED
      AED
      LG Members Price
    Total
    LG 21.3'' 3MP IPS Diagnostic Monitor
    LG 21.3'' 3MP IPS Diagnostic Monitor LG 21.3'' 3MP IPS Diagnostic Monitor
    21.3-inch 3MP IPS Display

    See Clearly Image Quality for Diagnostic Review

    Watch the Full Movie

    • Accuracy

      21.3-inch 3MP IPS Display
      Easy Calibration with Front Sensor

    • Efficiency

      Focus View
      5 Hot Keys & Lighting

    • Comfort

      Daisy Chain
      Ergonomic Design

    Accurate Imaging

    the monitor equipped with the front-sensor offering for easy-calibration.
    Easy Calibration with Front Sensor

    Manage Effortless Quality Control

    The Integrated Front Sensor allows easy calibration ?without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
    multi-resolution mode offering for users to select resolution between input of 3mp and of 2mp. multi-resolution mode offering for users to select resolution between input of 3mp and of 2mp.
    Multi-resolution Mode

    Compatible with Various Device

    Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
    pathology mode offering imaging results as detailed and accurately colored as seen under a microscope. pathology mode offering imaging results as detailed and accurately colored as seen under a microscope.
    Pathology Mode

    True-to-Life Color Reproduction

    In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

    Streamlined and Efficient Workflow

    presence sensor detecting the motion of the user and having the screen turned off automatically when no motion. presence sensor detecting the motion of the user and having the screen turned off automatically when no motion.
    Presence Sensor

    Hassle-free Savings & Stronger Security

    Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
    focus view offering for users to review a specific part of imaging. focus view offering for users to review a specific part of imaging.
    Focus View

    Fully Focus on the Region of Interest

    LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis.
    Down Lighting & Wall Lighting

    Ideal Diagnostic Workspace

    Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
    down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom. down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom.
    5 Hot Keys

    Intuitive Control

    The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
    5 hot keys offering user's intuitive control consisting of down light, wall light, presence sensor, light box mode, and picture mode. 5 hot keys offering user's intuitive control consisting of down light, wall light, presence sensor, light box mode, and picture mode.

    Ergonomic and Comfortable Workspace

    auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions. auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions.
    Auto Luminance Sensor

    Reducing Eye Strain

    LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.
    Daisy Chain

    Reducing Clutter on Your Desk and Simplifying Cable Management

    The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
    productive workstation by connecting two diagnostic Monitors and a PC. productive workstation by connecting two diagnostic Monitors and a PC.
    Ergonomic Design

    Easy and Comfortable Workspace

    The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.
    Ergonomic design with features of pivot, height, and tilt adjustment. Ergonomic design with features of pivot, height, and tilt adjustment.
    Stop

    pivot adjustable Pivot Two-way

    height adjustable stand within the range of 0m to 110mm Height 0~110mm

    tilt adjustable stand within the range of -5 degrees to 20 degrees Tilt -5~20°

    Close
    DISPLAY
    • Aspect Ratio
      3:4
      Brightness (Typ.)
      1100cd/m2
    • Color Bit
      10bit
      Color Gamut (Typ.)
      NTSC 72%
    • Contrast Ratio (Typ.)
      1800:1
      Panel Type
      IPS
    • Pixel Pitch(H x V)
      0.2115 x 0.2115 mm
      Resolution
      1536x2048
    • Response Time (GTG)
      5ms (GtG at Faster)
      Size (Diagonal, Inch)
      21.3
    • Size (H x V)
      324.86 x 433.15mm
      (12.79 x 17.05")
      Surface Treatment
      Anti-glare, 3H
    • Viewing Angle (CR≥10)
      178°(Right/Left), 178°(Up/Down)
    FEATURE
    • Hot Key
      Yes(5keys)
      Brightness stabilization
      Yes
    • Auto Luminance sensor
      Yes
      Presence sensor
      Yes
    • Front Sensor
      Yes
      Black Stabilizer
      Yes
    • HW Calibration
      Yes(PerfectLum)
      DICOM Compliant
      Yes
    • Color Temperature
      6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
      Flicker safe
      Yes
    • Multi-resolution Mode
      Yes(3MP/2MP)
      Pathology Mode
      Yes
    • Reader Mode
      Yes(Text Mode)
      Focus View
      Yes
    • Light Box Mode
      Yes
      Smart Energy Saving
      Yes
    • Lighting
      Yes(Down/ Wall)
      Super Resolution+
      Yes
    SW APPLICATION
    • Dual Controller
      Yes
      Qubyx
      Yes
    CONNECTIVITY
    • DisplayPort
      Yes(In 2ea / Out 1ea)
      DVI
      Yes(1ea)
    • Daisy Chain
      Yes(3MP/60Hz)
      USB Downstream Port
      YES(2ea/ver3.0)
    • USB Upstream Port
      Yes(2ea/ver3.0)
    POWER
    • AC Input
      100-240Vac, 50/60Hz
      DC Output
      19V, 6.32A
    • Power Consumption (DC Off)
      Less than 0.3W
      Power Consumption (Max.)
      120W
    • Type
      External Power(Adapter)
    MECHANICAL
    • Borderless Design
      Normal
      Display Position Adjustments
      Tilt/Height/Pivot
    • Height Range
      110mm
      Machanical Power Switch
      Yes
    • OneClick Stand
      Yes
      Pivot
      Yes(±90°)
    • Tilt
      Yes(-5°~20?)
      Wall Mount Size
      100 x 100 mm
    DIMENSIONS/WEIGHT
    • Dimension in Shiping (W x H x D)
      636x551x163
      Dimension with Stand (W x H x D)
      343.1x640x234.6
    • Dimension without Stand (W x H x D)
      343.1x484x72.4
      Pallet Stuffing (20ft/40ft/40ft HC)
      396/864/936
    • Weight in Shipping
      9.5Kg
      Weight with Stand
      7.0kg
    • Weight without Stand
      5.0kg
    ACCESSORY
    • Adapter
      Yes
      Calibration Report (Paper)
      Yes
    • DVI-D
      Yes
      Display Port
      Yes
    • Power Cord
      Yes
      USB3.0 Upstream Cable
      Yes

    To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
